This table summarizes the features available with F mount NIKKOR

lenses attached to Z mount cameras via an FTZ mount adapter.

This section lists the lenses that can be used with the FTZ mount

adapter and describes how to tell the different types of lenses apart.

This section lists the restrictions and precautions that apply when using

F mount NIKKOR lenses with the FTZ mount adapter.

Supported Features 2

Compatible Lenses 3

Using F Mount NIKKOR Lenses 7

The FTZ Mount Adapter

Compatible F Mount Lenses

SB8I02(11)/ 7MMA1311-02

Supported features are indicated by check marks (z), unsupported

features by dashes (—).

*ModeMonly.

Supported Features

Mode Focus mode Shooting mode

Metering mode

(L, M, N, t)

Lens AF

(withelectronic

rangefinder) MF b, P, S A, M

Autofocus

CPU

AF-S Type G, E, and D;

AF-P Type G and E;

AF-I Type D

zzzzz z

AF Type G and D —zzzz z

Other AF Lenses ——zz z z

Manual focus

CPU

PC-ENIKKOR Series,PC

NIKKOR 19mm f/4E ED ——zz z z

PC Micro 85mm f/2.8D ——z—z*z

AI-P Lenses ——zz z z

Non-CPU

AI-, AI-Modified

NIKKORorNikonSeries

E Lenses

——z—zz

The FTZ mount adapter can be used with the following lenses:

•AF-S Type G, E, and D; AF-P Type G and E; AF-I Type D

•AF Type G and D

•Other AF Lenses

•PC-E NIKKOR Series, PC NIKKOR 19mm f/4E ED

•PC Micro 85mm f/2.8D

•AI-P Lenses

•AI-, AI-Modified NIKKOR or Nikon Series E Lenses

Telling Lenses Apart

❚❚ AF-S Type G, E, and D; AF-P Type G and E; AF-I Type D

An AF-S NIKKOR 50mm f/1.4G is shown.

Compatible Lenses

AF-S, AF-P, or AF-I G, E, or D

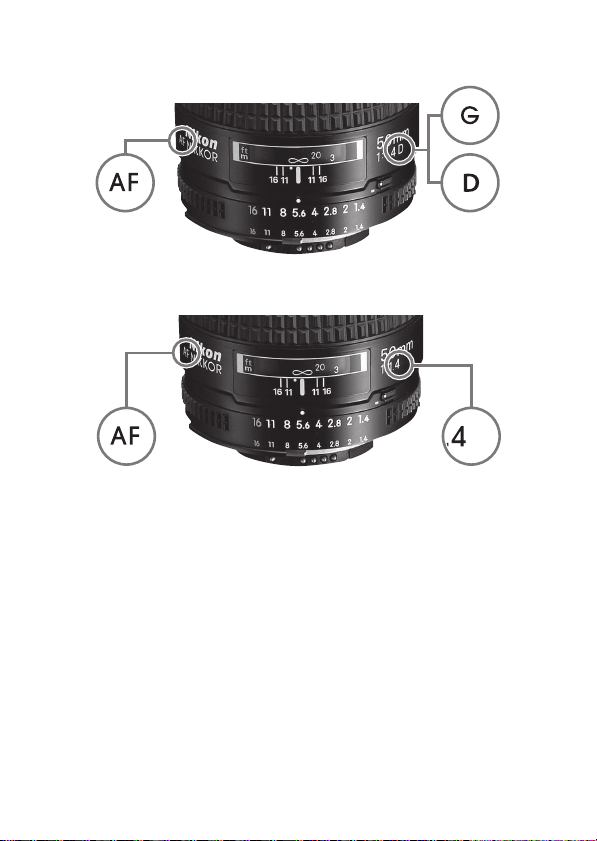

❚❚ AF Type G and D

An AI AF Nikkor 50mm f/1.4D is shown.

❚❚ Other AF Lenses

An AI AF Nikkor 50mm f/1.4S is shown.

AF G or D

AF No G, E, or Dlabel

❚❚ PC-E NIKKOR Series, PC NIKKOR 19mm f/4E ED

•PC-E NIKKOR 24mm f/3.5D ED

•PC-E Micro NIKKOR 45mm f/2.8D ED

•PC-E Micro NIKKOR 85mm f/2.8D

•PC NIKKOR 19mm f/4E ED

❚❚ PC Micro 85mm f/2.8D

•PC Micro-Nikkor 85mm f/2.8D

❚❚ AI-P Lenses

•AI Nikkor 45mm f/2.8P

•AI Nikkor 500mm f/4P IF-ED

•AI Zoom-Nikkor 1200–1700mm f/5.6–8P IF-ED

❚❚ AI-, AI-Modified NIKKOR or Nikon Series E Lenses

An AI Nikkor 50mm f/1.4S lens is shown.

AI-, AI-modified NIKKOR, and Nikon Series E lenses have an exposure

meter coupling guide on the aperture ring; they do not have CPU

contacts and their labels do not begin with “AF”.

Exposure meter

coupling guide

DCPU Versus Non-CPU Lenses

CPU lenses have CPU contacts.

CPU contacts

CPU lens Non-CPU lens

When using a non-CPU lens, enter the focal length and maximum aperture

using the Non-CPU lens data option in the camera setup menu.

This section lists the restrictions and precautions that apply when using

F mount NIKKOR lenses with the FTZ mount adapter. You should also

consult the mount adapter manual and the “Supported Features”

section in this guide.

Points Common to all F Mount NIKKOR Lenses

The following restrictions and precautions apply to all F mount NIKKOR

lenses:

•If the lens is equipped with an aperture ring, select minimum

aperture (the highest f-number) before attaching the lens to the

mount adapter.

•Attaching a DX lens automatically selects the DX image area and

disables the Image Dust Off ref photo option in the camera setup

menu.

•Movies shot when a DX lens is mounted on the Z 6 and 1920 × 1080

120p, 1920 × 1080 100p, or 1920 × 1080 slow-mo is selected for

Frame size/frame rate in the movie shooting menu will be recorded

at the following frame sizes and rates:

- 1920 × 1080; 120p: 1920 × 1080; 60p

- 1920 × 1080; 100p: 1920 × 1080; 50p

- 1920 × 1080; 30p ×4 (slow-mo): 1920 × 1080; 30p

- 1920 × 1080; 25p ×4 (slow-mo): 1920 × 1080; 25p

- 1920 × 1080; 24p ×5 (slow-mo): 1920 × 1080; 24p

•Custom Setting f2 (Custom control assignment) > Lens Fn button

option in the camera menus applies to the lens focus function

button. In the case of lenses equipped with a focus function selector,

the option chosen with the camera applies only if AF-L is selected

with the focus function selector.

Using F Mount NIKKOR Lenses

•The Focus shift shooting option in the camera photo shooting

menu can be used with AF-S and AF-P lenses. No peaking stack

image is recorded.

•The Vignette control and Auto distortion control options in the

movie shooting menu have no effect.

•The edges of pictures taken with Auto distortion control enabled in

the photo shooting menu may be cropped out in order to reduce

distortion. Take a test shot and view the results in the display.

•Sounds may be audible from the lens or mount adapter during

shooting or when the camera is turned on or off.

•The WT-7 wireless transmitter cannot be attached to the camera

tripod mount while the FTZ mount adapter is in use. Insert the WT-7

into its supplied case and attach it to the strap or the tripod.

•The option selected for Custom Setting g4 (AF speed) applies only

to AF-P lenses and the lenses listed below. All other lenses focus at

maximum speed.

- AF-S Fisheye NIKKOR 8–15mm f/3.5–4.5E ED

- AF-S DX NIKKOR 16–80mm f/2.8–4E ED VR

- AF-S DX NIKKOR 18–55mm f/3.5–5.6G VR II

- AF-S DX NIKKOR 18–140mm f/3.5–5.6G ED VR

- AF-S DX NIKKOR 18–300mm f/3.5–6.3G ED VR

- AF-S NIKKOR 20mm f/1.8G ED

- AF-S NIKKOR 24mm f/1.8G ED

- AF-S NIKKOR 24–70mm f/2.8E ED VR

- AF-S NIKKOR 28mm f/1.4E ED

- AF-S NIKKOR 35mm f/1.8G ED

- AF-S DX NIKKOR 55–200mm f/4–5.6G ED VR II

- AF-S NIKKOR 58mm f/1.4G

- AF-S NIKKOR 70–200mm f/2.8E FL ED VR

- AF-S NIKKOR 105mm f/1.4E ED

- AF-S NIKKOR 180–400mm f/4E TC1.4 FL ED VR

- AF-S NIKKOR 200–500mm f/5.6E ED VR

- AF-S NIKKOR 300mm f/4E PF ED VR

- AF-S NIKKOR 400mm f/2.8E FL ED VR

- AF-S NIKKOR 500mm f/4E FL ED VR

- AF-S NIKKOR 500mm f/5.6E PF ED VR

- AF-S NIKKOR 600mm f/4E FL ED VR

AVibration Reduction

The vibration reduction feature for VR lenses combines with on-camera

vibration reduction to reduce blur caused by camera motion on the pitch, yaw,

and roll axes. The option selected with the lens vibration reduction on/off

switch takes precedence over the option selected with the camera. On-camera

vibration reduction can also be used with non-CPU lenses if the focal length is

supplied using the Non-CPU lens data option in the camera setup menu.

Note that depending on the lens, on-camera vibration reduction may cause a

drop in peripheral illumination or otherwise fail to produce the desired results.

Points Applicable to Specific Lens Types

The restrictions and precautions listed in this section apply only to

specific lens types.

❚❚ AF-S Type G, E, and D; AF-P Type G and E; AF-I Type D

The electronic rangefinder may not function as expected and autofocus

fine-tuning may be necessary to obtain the desired results with some

lenses. In addition, autofocus may, depending on shooting conditions,

fail to produce the desired results with the following lenses. Repeat the

autofocus operation until the subject is in focus or focus using manual

focus.

•AF-S DX NIKKOR 18–55mm f/3.5–5.6G VR II

•AF-S DX VR Zoom-Nikkor 55–200mm f/4–5.6G IF-ED

•AF-S DX NIKKOR 18–55mm f/3.5–5.6G VR

The focus position for AF-P lenses may change if you turn the camera

off and then on again after focusing.

❚❚ Other AF Lenses

The Vignette control and Auto distortion control options in the

photo shooting menu have no effect on AF lenses that are not type G,

E, or D.

❚❚ PC-E NIKKOR Series, PC NIKKOR 19mm f/4E ED

The Vignette control and Auto distortion control options in the

photo shooting menu have no effect.
