Nibe F1245 Manuel utilisateur

User manual

LEK

NIBE™ F1245

Ground source heat pump

AHB GB 0926-1

031336

Quick guide

Navigation

Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 10.

How to scroll through menus and make different settings is described on

page 13.

Set the indoor climate

The mode for setting the indoor temperature is reached, when in the start

mode in the main menu, by pressing the OK button twice. Read more

about the settings on page 23.

Increase hot water volume

To temporarily increase the amount of hot water , first turn the control

knob to mark menu 2 and then press the OK button twice. Read more

about the settings on page 46.

In event of disturbances in comfort

If a disturbance in comfort of any type occurs there are some measures

that can be taken before you need to contact your installer. See page 69

for instructions.

Table of Contents

1 Important information 2

Installation data 2

Safety information 3

Serial number 4

Contact information 5

F1245 – An excellent choice 6

2 The heat pump – the heart of the house 7

Heat pump function 8

Contact with F1245 9

Maintenance of F1245 17

3 F1245 – at your service 22

Set the indoor climate 22

Set the hot water capacity 45

Get information 51

Adjust the heat pump 55

4 Disturbances in comfort 68

Manage alarm 68

Troubleshooting 69

Only additional heat 72

5 Technical data 73

6 Glossary 74

Item register 80

1NIBE™ F1245Table of Contents |

1Important information

Installation data

F1245Product

Serial number

Installation date

Installer

Type of brine -

Mixing ratio/freezing point

Active drilling depth/collector

length

Accessories

✔

SetDe-

fault

set-

tings

NameNo.

0heating curve (offset)1.9.1

7heating curve (curve

slope)

1.9.1

Serial number must always be given

Certification that the installation is carried out according to instructions in

NIBE’s installer manual and applicable regulations.

_________________________Signed__________________Date

NIBE™ F1245Chapter 1 | Important information2

Safety information

This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appli-

ance.

Rights to make any design or technical modifications are reserved.

©NIBE 2008.

Symbols

NOTE

This symbol indicates danger to machine or person.

Caution

This symbol indicates important information about what you should observe

when maintaining your installation.

TIP

This symbol indicates tips on how to facilitate using the product.

Marking

This heat pump is CE marked and fulfils IP21.

The CE marking means that NIBE ensures that the product meets all regula-

tions that are placed on it based on relevant EU directives. The CE mark is

obligatory for most products sold in the EU, regardless where they are made.

IP21 means that the product cannot be penetrated by objects with a diameter

larger than or equivalent to 12.5 mm and cause damage and that the product

is protected against vertically falling drops.

3NIBE™ F1245Chapter 1 | Important information

Serial number

The serial number can be found at the bottom right of the front cover and

in the info menu (menu 3.1).

Serial number

Caution

Always give the product's serial number when reporting a fault.

NIBE™ F1245Chapter 1 | Important information4

Contact information

KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT

Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: [email protected]

www.knv.at

NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH

Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: [email protected] www.nibe.ch

Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad

Jizerou

Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: [email protected]

www.nibe.cz

NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE

Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: [email protected] www.nibe.de

Vølund Varmeteknik, Filial af NIBE AB, Brogårdsvej 7, 6920 VidebækDK

Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: [email protected] www.volund-

vt.dk

NIBE – Haato OY, Valimotie 27, 01510 VantaaFI

Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: [email protected]

www.haato.fi

NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,

Chesterfield S41 9QG

Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: [email protected]

www.nibe.co.uk

NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL

Tel: 0168 477722 Fax: 0168 476998 E-mail: [email protected] www.nibenl.nl

NIBE AB, Fekjan 15F, 1394 NesbruNO

Tel: 22 90 66 00 Fax: 22 90 66 09 E-mail: [email protected] www.nibevillav-

arme.no

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL

Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: [email protected]

www.biawar.com.pl

NIBE AB Sweden, Box 14, Järnvägsgatan 40, SE-285 21 MarkarydSE

Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: [email protected]

www.nibe.se

5NIBE™ F1245Chapter 1 | Important information

F1245 – An excellent choice

F1245 is part of a new generation of heat pumps, which have been introduced

to supply your home with inexpensive and environmentally friendly heating

and/or cooling. Heat production is safe and economical with integrated water

heater, immersion heater, circulation pump and control system.

The heat pump can be connected to an optional low temperature heat distri-

bution system. e.g. radiators, convectors or under floor heating. It is also

prepared for connection to several different products and accessories, e.g.

extra hot water heater, ventilation recovery, pool, free cooling and climate

systems with different temperatures.

An immersion heater of 9 kW (if 1 phase, 7 kW) can be connected automat-

ically if anything unforeseen should occur or as reserve operation (then 6

kW).

F1245 is equipped with a control computer for good comfort, good economy

and safe operation. Clear information about status, operation time and all

temperatures in the heat pump are shown on the large and easy to read

display. This means, for example, that external unit thermometers are not

necessary.

Excellent properties for F1245:

႑Integrated water heater

There is a water heater integrated in the heat pump, which is insulated

with environmentally friendly cellular plastic for minimal heat loss.

႑Scheduling the indoor comfort and hot water

Heating and hot water as well as cooling and ventilation in some cases,

can be scheduled for each day of the week or for longer periods (vacation).

႑Large display with user instructions

The heat pump has a large display with easy-to-understand menus that

facilitate setting a comfortable climate.

႑Simple troubleshooting

In the event of a fault, the heat pump display shows what happened and

the actions to be taken.

NIBE™ F1245Chapter 1 | Important information6

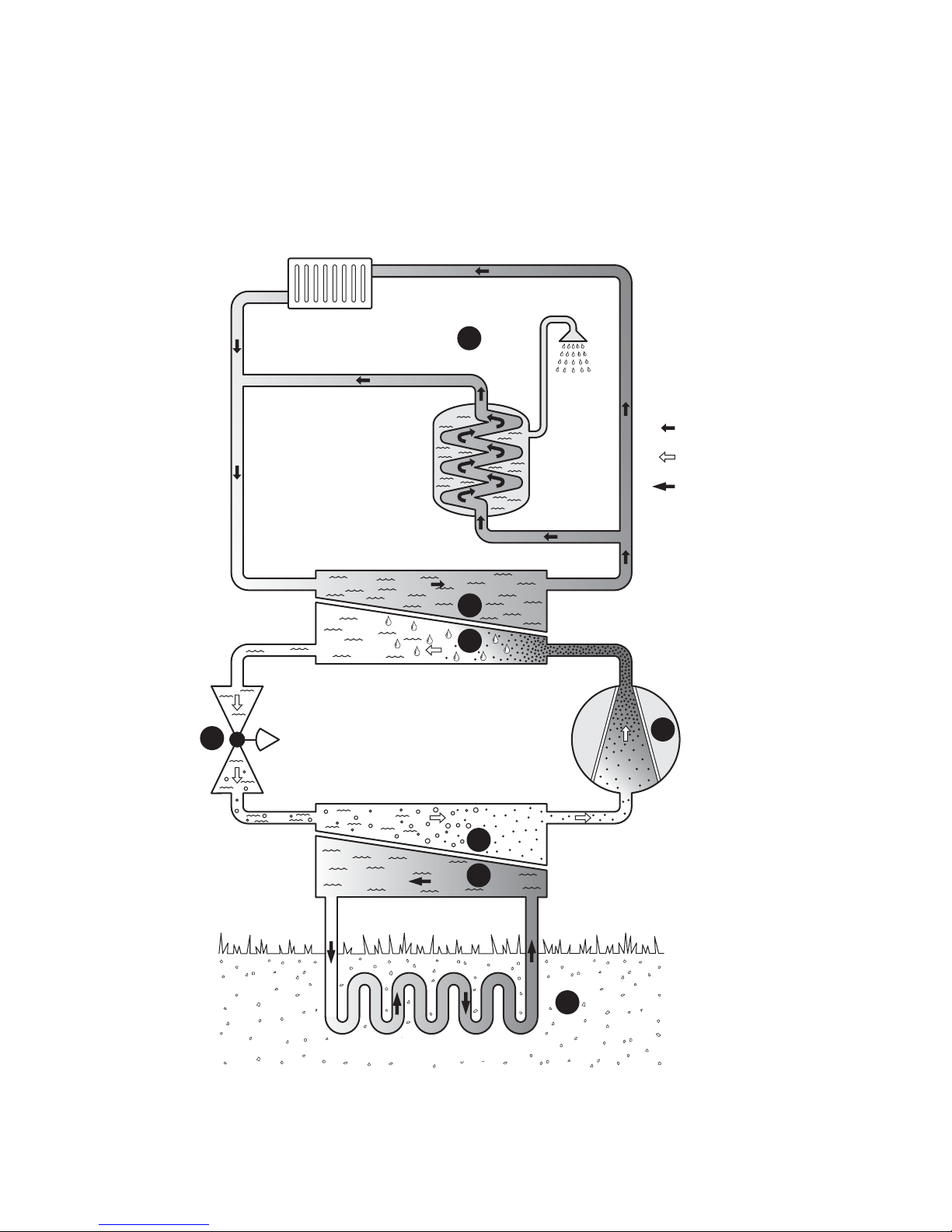

2The heat pump – the heart of

the house

Värmekälla

Förångare

Kondensor 100 °C

0 °C-3 °C

-2 °C

50 °C40 °C

Expansionsventil Kompressor

Heating medium

Brine

Refrigerant

Evaporator

Condenser

Expansion valve Compressor

Heat source

The temperatures are only examples and may vary between different installations and time

of year.

7NIBE™ F1245Chapter 2 | The heat pump – the heart of the house

Heat pump function

A heat pump can use stored solar energy from rock, ground or water in order

to heat a property. The conversion of stored energy in nature to property

heating occurs in three different circuits. In the brine circuit, (1) , free heat

energy is retrieved from the surroundings and transported to the heat pump.

In the refrigerant circuit, (2) , the heat pump increases the retrieved heat's

low temperature to a high temperature. In the heating medium circuit, (3) ,

the heat is distributed around the house.

Brine circuit

In a hose, collector, an anti-freeze liquid, brine, circulates from the heat pump

out to the heat source (rock/ground/lake). The energy from the heat source is

stored by it heating the brine a few degrees, from about –3°C to about 0 °C.

The collector then routes the brine to the heat pump’s evaporator. Here, the

brine releases heat energy and the temperature drops a few degrees. The liquid

then returns to the heat source to retrieve energy again.

Refrigerant circuit

Another liquid circulates in a closed system in the heat pump, a refrigerant, which

also passes the evaporator. The refrigerant has a very low boiling point. In the

evaporator the refrigerant receives the heat energy from the brine and starts to

boil.

The gas that is produced during boiling is routed into an electrically powered

compressor. When the gas is compressed, the pressure increases and the gas's

temperature increases considerably, from 5 °C to approx. 100 °C.

From the compressor, gas is forced into a heat exchanger, condenser, where it

releases heat energy to the heating system in the house, whereupon the gas is

cooled and condenses to a liquid form again.

As the pressure is still high, the refrigerant can pass an expansion valve, where

the pressure drops so that the refrigerant returns to its original temperature. The

refrigerant has now completed a full cycle. It is routed to the evaporator again

and the process is repeated.

Heat medium circuit

The heat energy that the refrigerant produces in the condenser is retrieved by

the heating system's water, heating medium, which is heated to 35 °C (supply

temperature).

The heating energy that the refrigerant releases in the condenser is retrieved by

the heat pump's boiler section.

The heating medium circulates in a closed system and transports the heated wa-

ter's heat energy to the house water heater and radiators/heating coils.

NIBE™ F1245Chapter 2 | The heat pump – the heart of the house8
