Nibe S2125 Guide de l'utilisateur

Installer manual

Air/water heat pump

NIBE S2125

IHB EN 2212-1

631663

41 Important information

4Safety information

4Symbols

4Marking

4Serial number

5Inspection of the installation

Compatible indoor modules (VVM) and control

modules (SMO)

6Indoor module

6Control module

72 Delivery and handling

7Transport

8Assembly

10Condensation

11Supplied components

12Removing the side panel and top panel

13Installation of automatic gas separator

163 The heat pump design

16General

20Distribution box

21Sensor placement

224 Pipe connections

22General

22Symbol key

23Pipe coupling heating medium circuit

245 Electrical connections

24General

24Accessibility, electrical connection

25Connections

306 Commissioning and adjusting

30Preparations

30Filling and venting

30Start-up and inspection

30Post adjustment and venting

31Adjustment, charge flow

327 Control

32General

32LED status

32Master control

33Control conditions

34Control - Heat pump EB101

378 Service

37Service actions

389 Disturbances in comfort

38Troubleshooting

40Alarm list

4210 Accessories

4311 Technical data

43Dimensions

44Sound levels

45Technical specifications

49Energy labelling

52Electrical circuit diagram

60Item register

63Contact information

3Table of ContentsNIBE S2125

Table of Contents

Safety information

This manual describes installation and service procedures

for implementation by specialists.

The manual must be left with the customer.

Symbols

Explanation of symbols that may be present in this manual.

NOTE

This symbol indicates danger to person or machine.

Caution

This symbol indicates important information about

what you should consider when installing or servi-

cing the installation.

TIP

This symbol indicates tips on how to facilitate us-

ing the product.

Marking

Explanation of symbols that may be present on the product’s

label(s).

Fire hazard!

Read the User Manual.

Read the Installer Manual.

Disconnect the voltage supply before starting work.

Dangerous voltage.

Serial number

The serial number can be found on the rear cover and at the

bottom on the side.

Caution

You need the product's (14 digit) serial number for

servicing and support.

NIBE S2125Chapter 1 | Important information4

Important information

Inspection of the installation

Current regulations require the heating installation to undergo an installation inspection before it is commissioned. The

inspection must be carried out by a suitably qualified person. In addition, fill in the page for information regarding the in-

stallation data in the User Manual.

DateSignatureNotesDescription

✔

Heating medium (page 22)

Automatic gas separator installed

System flushed

System vented

Particle filter

Shut-off and drain valve

Charge flow set

Electricity (page 24)

Fuses property

Safety breaker

Earth circuit-breaker

Heating cable type/effect

Fuse size, heating cable (F3)

Communication cable connected

S2125 addressed (only when cascade connec-

tion)

Cooling permitted

Connections

Main voltage

Phase voltage

Miscellaneous

Condensation water pipe

Insulation for condensation water pipe,

thickness (unless KVR 11 is used)

NOTE

Check the connections, main voltage and phase voltage before powering up the heat pump, to prevent damage

to the heat pump electronics.

5Chapter 1 | Important informationNIBE S2125

Compatible indoor modules (VVM) and control modules (SMO)

SMO S40VVM S320

XXS2125-8

XXS2125-12

SMO 40SMO 20VVM 500VVM 310VVM 225

XXXXXS2125-8

XXXXS2125-12

Indoor module

VVM S320

Stainless steel, 3x230 V

Part no. 069 201

VVM S320

Stainless steel, 1x230 V

Part no. 069 198

VVM S320

Stainless steel, 3x400 V

Part no. 069 196

VVM S320

Enamel, 3x400 V

Part no. 069 206

VVM S320

Copper, 3x400 V

Part no. 069 195

Control module

SMO S40

Control module

Part no. 067 654

SMO 20

Control module

Part no. 067 224

SMO 40

Control module

Part no. 067 225

NIBE S2125Chapter 1 | Important information6

Transport

S2125 must be transported and stored vertically.

NOTE

Ensure that the heat pump cannot fall over during

transport.

Check that the heat pump has not been damaged during

transport.

LIFT FROM THE STREET TO THE SET UP

LOCATION

If the base allows, the simplest thing is to use a pallet truck

to move the S2125 to the set up location.

NOTE

The centre of gravity is offset to one side (see print

on the packaging).

LEK

C:a 180 kg

Approx. 180 kg

If S2125 needs to be transported across soft ground, such

as a lawn, we recommend using a crane truck that can lift

it to the installation location. When S2125 is lifted with a

crane, the packaging must be untouched.

If a crane vehicle cannot be used the S2125 can be transpor-

ted on an extended sack truck. S2125 must be taken from

its heaviest side and two people are required to lift S2125.

LIFT FROM THE PALLET TO FINAL POSITIONING

Before lifting remove the packaging and the securing strap

to the pallet.

Place lifting straps around each machine foot. Lifting from

the pallet to the base requires four persons, one for each

lifting strap.

SCRAPPING

When scrapping, the product is removed in reverse order.

Lift by the bottom panel instead of a pallet!

7Chapter 2 | Delivery and handlingNIBE S2125

Delivery and handling

Assembly

•Place the heat pump in a suitable location outdoors to

prevent any risk of the refrigerant flowing in through

ventilation openings, doors or similar openings in the event

of a leak. It must also not constitute a hazard to people or

property in any other way.

•If the heat pump is placed in a location where any refriger-

ant leak could accumulate, for example below ground level

(in a dip or low-lying recess), the installation must satisfy

the same requirements that apply for gas detection and

the ventilation of engineering rooms. Requirements regard-

ing sources of ignition must be applied where appropriate.

•Place S2125 outdoors on a solid level base that can take

the weight, preferably a concrete foundation. If concrete

slabs are used they must rest on asphalt or shingle.

•The lower edge of the evaporator must not be lower than

the level of the average local snow depth. The base should

be at least 70 mm tall.

•S2125 should not be positioned next to noise sensitive

walls, for example, next to a bedroom.

•Also ensure that the placement does not inconvenience

the neighbours.

•S2125 must not be placed so that recirculation of the

outdoor air is possible. Recirculation entails reduced power

and impaired efficiency.

•The evaporator must be sheltered from direct wind / ,

which negatively affects the defrosting function. Place

S2125 protected from wind / against the evaporator.

•A small amount of water may drip from the drainage hole

under S2125. Make sure that the water can run away by

selecting a suitable material underneath S2125 (see sec-

tion "Condensation").

•Care must be exercised so that the heat pump is not

scratched during installation.

LEK

S2125

LEK

S2125

LEK

S2125

min 300 mm

min

70 mm

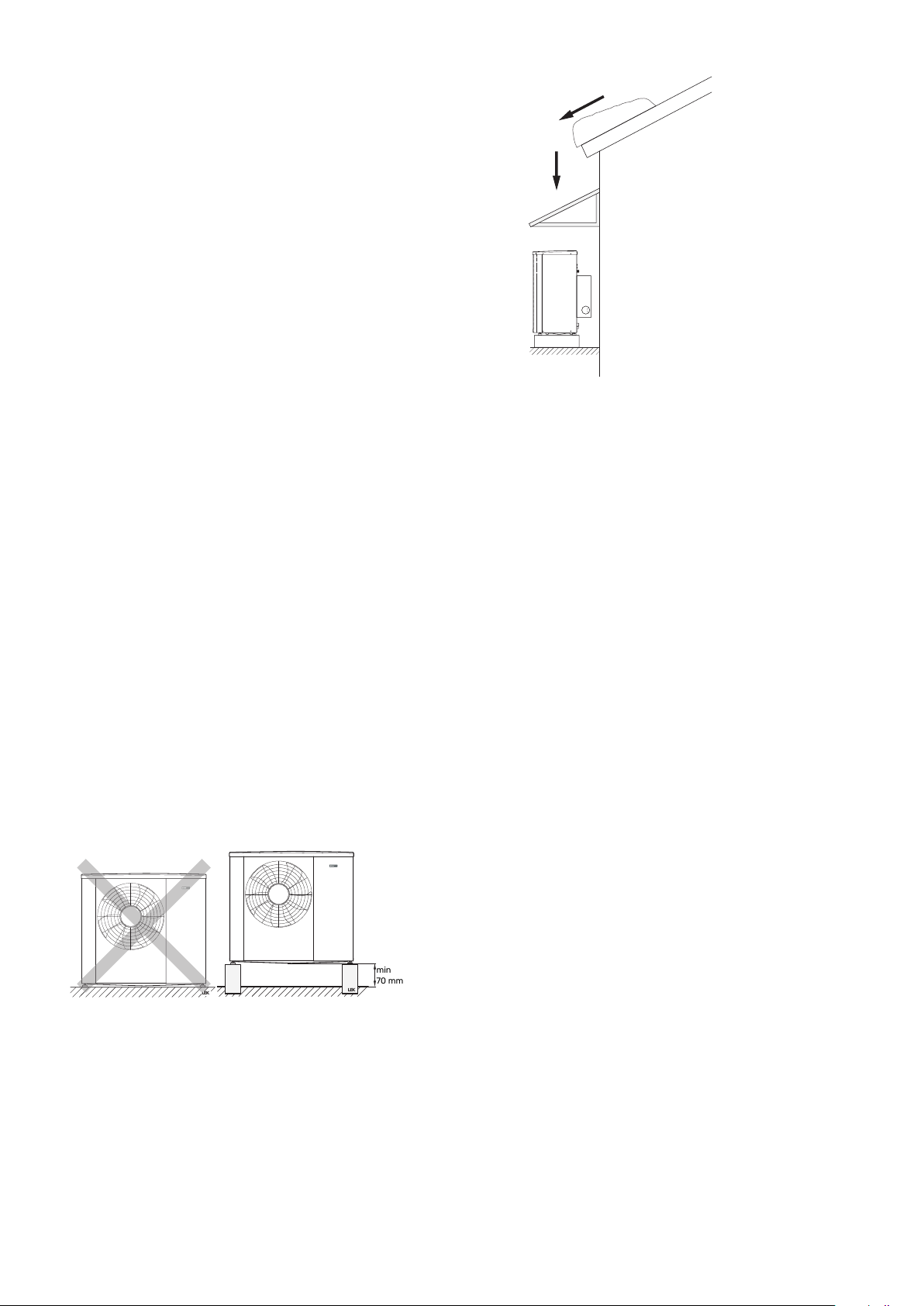

Do not place S2125 directly on the lawn or other non solid

surface.

If there is a risk of snow slip from roof, a protective roof or

cover must be erected to protect the heat pump, pipes and

wiring.

NIBE S2125Chapter 2 | Delivery and handling8

INSTALLATION AREA

The distance between S2125 and the house wall must be at least 350 mm, but not more than 500 mm in locations that are

exposed to the wind. The free space above S2125 must be at least 1,000 mm. The free space in front must be at least

1,000 mm for any future servicing.

350 mm

Fritt utrymme bakom

Fritt utrymme framför

dock 1000 mm för ev. framtida service

Min. avstånd

vid användning

av ﬂera F2300

600 mm

1000 mm

400 mm

Minimalt

fritt utrymme

600mm

Minimalt

fritt utrymme

Minimum free

space Minimum free space

Minimum distance during use

of several S2125

600 mm

400 mm

Free space in front for any future servicing

350 – 500 mm

Free space behind*

At least 1,000

* The space behind must not exceed 500 mm in locations that are exposed to the wind.

9Chapter 2 | Delivery and handlingNIBE S2125

Condensation

The condensate drain pan collects and leads away the con-

densation water.

NOTE

It is important to the heat pump function that

condensation water is led away and that the drain

for the condensation water run off is not posi-

tioned so that it can cause damage to the house.

Condensation run-off should be checked regularly,

especially during the autumn. Clean if necessary.

•The condensation water (up to 50 litres/24 hrs) that col-

lects in the trough should be routed away by a pipe to an

appropriate drain, it is recommended that the shortest

outdoor stretch possible is used.

•The section of the pipe that can be affected by frost must

be heated by the heating cable to prevent freezing.

TIP

Pipe with heating cable for draining the condens-

ation water trough is not included.

To ensure the function, the accessory KVR 11

should be used.

•Route the pipe downward from S2125.

•The outlet of the condensation water pipe must be at frost

free depth.

•Use a water trap for installations where air circulation may

occur in the condensation water pipe.

•The insulation must seal against the bottom of the con-

densation water trough.

DRAINAGE OF CONDENSATION

Stone caisson

LEK

Frostfritt djup

S2125

Frost proof depth

If the house has a cellar the stone caisson must be posi-

tioned so that condensation water does not affect the house.

Otherwise the stone caisson can be positioned directly under

the heat pump.

Gutter drainage

LEK

S2125

Frostfritt

djup

Frost free

depth

Water seal

Route the pipe downward from S2125.

The condensation water pipe must have a water seal to

prevent air circulation in the pipe.

Caution

If none of the recommended alternatives is used

good lead off of condensation water must be as-

sured.

NIBE S2125Chapter 2 | Delivery and handling10

Autres manuels pour S2125

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nibe Pompe à chaleur

Nibe

Nibe F1126 Manuel utilisateur

Nibe

Nibe F2050 Manuel utilisateur

Nibe

Nibe DEMO 40 Guide de l'utilisateur

Nibe

Nibe F750f750 Manuel utilisateur

Nibe

Nibe DRAZICE TJ 2 EHP 6 kW Fiche technique

Nibe

Nibe SOLAR 40 Guide de l'utilisateur

Nibe

Nibe S1255PC Guide de l'utilisateur

Nibe

Nibe F1345 Series Manuel utilisateur

Nibe

Nibe ClimateMaster Tranquility 30 Digital Series Mode d’emploi

Nibe

Nibe AP-BW30 Manuel utilisateur

Nibe

Nibe AG-WL10 series Guide de l'utilisateur

Nibe

Nibe F1155 Series Manuel utilisateur

Nibe

Nibe CLIMATEMASTER TRT Series Manuel du propriétaire

Nibe

Nibe FIGHTER 1120 Manuel utilisateur

Nibe

Nibe HK 200S Manuel utilisateur

Nibe

Nibe F2016 Manuel utilisateur

Nibe

Nibe S1155PC Guide de l'utilisateur

Nibe

Nibe SPLIT HBS 12 Manuel utilisateur

Nibe

Nibe AP-CS2.0 Manuel utilisateur

Nibe

Nibe FIGHTER 1310 Manuel utilisateur

Nibe

Nibe F2300 Guide de l'utilisateur

Nibe

Nibe F370 Manuel utilisateur

Nibe

Nibe F130 Manuel utilisateur

Nibe

Nibe F370 Guide de l'utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
