Nexta Tech MCX-M500 Manuel utilisateur

Control unit for 230Vac motors with built-in dip switches.

Power supply 230Vac, Max 500W.

Integrated 433,92 MHz radio receiver.

MCX-M500

INDEX

1 - PRODUCT FEATURES

1.1 - TECHNICAL DATA page 3

2 - CONNECTION DIAGRAMS

2.1 - CONNECTION DIAGRAM WITH NEUTRAL FROM CONTROL UNIT

2.2 - CONNECTION DIAGRAM WITH NEUTRAL FROM THE ELCTRICAL SYSTEM

page 4

page 5

3 - USE OF THE CONTROL UNIT

3.1 - TYPICAL INSTALLATION

3.2 - USE VIA WIRE

3.3 - USE VIA RADIO

page 6

page 7

4 - CONTROL BY RADIOTRANSMITTERS

4.1 - RADIOTRANSMITTER SETTING

4.2 - DELETION OF RADIOTRANSMITTERS

page 8

page 9

5 - ADVANCED PROGRAMS

5.1 - CONFIGURATION OF MANOEUVRE TIMES

5.2 - FUNCTION CUSTOMIZATION OF THE “WIRELESS BUS” TRANSMITTER BUTTONS

5.3 - WIRED INPUT SETTING

5.4 - WIRED INPUT MODE SETTING

5.5 - RESET

page 10

page 11

page 12

page 13

page 14

1 - PRODUCT FEATURES

1.1 TECHNICAL DATA

Power supply (Input) 230Vac

Load type (Output) 230Vac motor with built-in limit switches

Max power load (Output) 500W

N° of programmable transmitters 30

RF receiver frequency 433,920MHz

Protection rating IP20

Working temperature -20° +55°

Box dimensions 52x43x21 mm

Led

P2 Key

P1 Key

48mm

68mm

45mm 22mm

2 - CONNECTION DIAGRAMS

RECOMMENDATIONS

• Installation must be carried out only by professional technicians in accordance with the applicable electrical and

safety regulations.

• All connections shall be operated without electrical voltage.

• Use proper cables.

• Don’t cut the antenna

• Provide in the power line with an appropriate disconnection device

• Dispose of waste materials in full compliance with local law.

• Do not exceed the specied load limits

2.1 CONNECTION DIAGRAM WITH NEUTRAL FROM CONTROL UNIT

Filar inputs can be set to:

- Mono/Bi Button, see paragraph 7.3

- Automatic/man-present operation, see paragraph 7.4

P1 P2

OUT 230V

max 500W

Common

Open

OP C CL

L N P1 P2

P1 P2

2.2 CONNECTION DIAGRAM WITH NEUTRAL FROM THE ELECTRICAL SYSTEM

Filar inputs can be set to:

- Mono/Double Button, see paragraph 7.3

- Automatic/man-present operation, see paragraph 7.4

P1 P2

OUT 230V

max 500W

Open

OP C CL

L N P1 P2

P1 P2

3 - USE OF THE CONTROL UNIT

3.1 TYPICAL INSTALLATION

The system can be controlled by a wired push button, radio commands.

The installation can operate with only radio controls.

NEXTA CONTROL UNIT

RADIOTRANSMITTER

CONFIGURATION

See paragraph 4

3.2 USE VIA WIRE

Once connected, the button is already active with Open/Stop/Close function.

3.3 USE VIA RADIO

To control the load via radio you must have compatible transmitters and therefore must carry out the association

procedure, see paragraph 4.

STEP 1

Press the button P1 on the receiver for a short time.

The LED comes red on and stays on.

STEP 2

Within 60 seconds make a transmission with the transmitter

to be saved.

The LED on the receiver Flashes 3 times and turns off.

4 - MANAGEMENT WITH REMOTE CONTROL

This procedure lets you programme/delete compatible transmitters.

ACTION: Short pressure P1 button LED: Turns on red

ACTION: Send a command with remote control LED: Flashes 3 times

4.1 - RADIO PROGRAMMING

This procedure lets you programme compatible multifunctional or generic transmitters.

STEP 1

Hold the receiver button P1 down (about 8 seconds.) until

the LED begins to Flash.

DELETION OF SINGLE

TRANSMITTER

DELETION OF ALL

TRANSMITTER SAVED

4.2 - DELETION OF REMOTE CONTROL

These procedures let you delete from the memory transmitters that have already been programmed.

STEP 2a

Within 10 seconds make a transmission with the

transmitter that you want to delete.

The LED ashes quickly and turns off.

STEP 2B

Within 10 seconds press the button RADIO on the

receiver for a short time to conrm the delection of

all transmitters.

The LED starts Flashing quickly and turns off.

ACTION: Hold button P1 down LED: Flashes red

ACTION: Make a transmission with the transmitter

LED: Flashing quickly and turns off

ACTION: Short press of button P1

LED: Flashing quickly and turns off

5 - ADVANCED PROGRAMS

5.1 - CONFIGURATION OF MANEUVER TIMES

Default: 60 seconds

This procedure is used to set the opening and closing manoeuvre time (maximum time that can be set 180 seconds).

STEP 1

Make short pressures of the P2 button.

Each time the LED changes colour green/yellow/magenta/

green...

Stop pressing when the LED is green.

STEP 3

To end the count press the button P1 for a short time during the

Flash that corresponds to the function desired

ACTION: Short pressure P1 button LED: Flash

ACTION: Short pressure P1 button LED: Turns off

STEP 2

Press the button P1 on the receiver for a short time and count the

number of Flashes emitted by the LED (max 180 Flashes): each

Flash represents a second of manoeuvre time.

Attention: the control unit Flashes one time every 1 second, example:

120 seconds = 120 Flashes = 2 minutes of manoeuvre

ACTION: make a short presses of button P2 LED: Turns on green/yellow/magenta/green...

Table des matières

Autres manuels Nexta Tech Unité de contrôle

Nexta Tech

Nexta Tech PLANO-V5/RGBW Manuel utilisateur

Nexta Tech

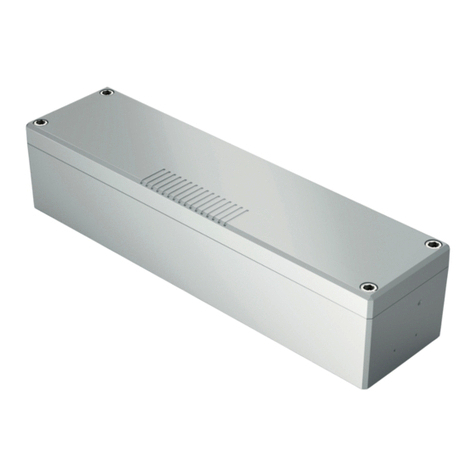

Nexta Tech TOP-M400/One Manuel utilisateur
