Nexo FXO-128o Manuel utilisateur

FXO-128o Analog VoIP Gateway

User Manual v1.0

Prefa e

Wel ome

Thanks for choosing the Gateway-128o Analog Gateway for VoIP! We hope you will make

full use of this rich-feature FXO VoIP Gateway

About This Manual

This manual provides information about the introduction of the analog VoIP gateway, and

about how to install, configure or use it

Please read this document carefully before install the gateway

Intended Audien e

This manual is aimed primarily at the following people:

Users

Engineers who install, configure and maintain the gateway

Revision Re ord

Document Name Firmware Version

Document Version

Gateway-128o FXO Analog VoIP V1 0

Gateway User Manual V1 0

Gateway-128o User Manual I

2 Quick Installation
Contents

 Produ t Introdu tion
  

1.1
Overview


4
1.2
Application Scenario


4
1.3
Product Appearance
5
1.3.1
Appearance of Gateway-128o
5
1.3.2
Ports and Connector
5
1.4
Features & Functions


7

 Qui k Installation
  

2.1
Installation Attentions
11
2.2
RJ45 Wire Sequence
11
2.3
Installation Steps
12

 Basi  Operation
  

3.1
Call out and Call in via FXO Port
13
3.1.1
Call Out
13
3.1.2
Call In
13
3.2
Description of Feature Codes
13
3.3
Send or Receive Fax
15
3.3.1
Fax Mode Supported
15
3.3.2
Explanation of T 38 and Pass-through
15
3.4
Local IVR Operation
15
3.4.1
Inquiring the IP address
15
3.4.2
Factory Reset
15
3.4.3
IP Address configuration
16

 Configurations on Web Interfa e
  

4.1
Preparations for Login
17
4.1.1
Network Connection
17
4.1.2
Log In Web Interface
18
4.2
Navigation Tree
18
4.3
Status & Statistics
19
4.3.1
System Information
19
4.3.2
Port Status
22
Gateway-128o User Manual 1

2 Quick Installation
4.3.3
Current Call
23
4.3.4
RTP Session
23
4.3.5
CDR
24
4.3.6
Record Statistics
24
4.3.7
Call Limit Info
24
4.4
 Quick Setup Wizard

25
4.5
 Network

26
4.5.1
Local Network
26
4.5.2
VLAN
（
   Virtual Local Area Network
）

27
4.5.3
DHCP Option
28
4.5.4
QoS
29
4.5.5
ARP
29
4.5.6
IPv6 Network
29
4.6
 SIP Server

30
4.7
 IP Profile

32
4.8
 Tel Profile

34
4.9
 Port

35
4.10
 Advanced

37
4.10.1
Line Parameter
37
4.10.2
FXO Parameter
39
4.10.3
Media Parameter
42
4.10.4
Service Parameter
44
4.10.5
SIP Compatibility
47
4.10.6
NAT Parameter
51
4.10.7
Speed dial
51
4.10.8
Feature Code
52
4.10.9
System Parameter
54
4.11
 Call & Routing

56
4.11.1
Port Group
56
4.11.2
IP Trunk
58
4.11.3
Routing Parameter
58
4.11.4
IP



    Tel Routing
59
4.11.5
Tel



    IP/Tel Routing
60
4.11.6
Call Limit
61
4.12
 Manipulation

62
Gateway-128o
User Manual
2

Quick Installation
12.1    IP           Tel Called   .................................................................................................................................62
12.2    Tel           IP/Tel Caller   ...........................................................................................................................64
12.3    Tel           IP/Tel Called   ..........................................................................................................................65
13    Management   ...................................................................................................................................................67
13.1    TR069   ...................................................................................................................................................67
13.2    SNMP   ...................................................................................................................................................68
13.3    Syslog   ...................................................................................................................................................70
13.4    Provision   ...............................................................................................................................................71
13.5    Cloud server   ..........................................................................................................................................72
13.6    User Manage   .........................................................................................................................................73
13.7    Remote Server   ......................................................................................................................................73
13.8    Record Parameter   .................................................................................................................................73
13.9    Radius Parameter   ..................................................................................................................................74
13.10    Action URL   ........................................................................................................................................75
13.11    SIP PNP   ..............................................................................................................................................76
13.12    NMS Configuration   ............................................................................................................................76
14    Security   ..........................................................................................................................................................77
14.1    WEB ACL   ............................................................................................................................................77
14.2    Telnet ACL   ...........................................................................................................................................77
14.3    Passwords   .............................................................................................................................................78
15    Tools   ..............................................................................................................................................................79
15.1    Firmware Upload   ..................................................................................................................................79
15.2    Data Backup   .........................................................................................................................................79
15.3    Data Restore   .........................................................................................................................................80
15.4    FXO Test   ..............................................................................................................................................80
15.5    Ping Test   ...............................................................................................................................................82
15.6    Tracert Test   ...........................................................................................................................................83
15.7    Network Capture   ..................................................................................................................................84
15.8    Factory Reset   ........................................................................................................................................86
15.9    Device Restart   ......................................................................................................................................86
 Glossary 
Gateway-128o User Manual    3

2 Quick Installation

Produ t Introdu tion

1.1 Overview

Gateway-128o is a multi-functional analog gateway offering seamless connectivity between

IP-based telephony networks and legacy telephones (POTS), and PBX systems It adopts

modularized hardware design that allows to expand FXO ports by adding boards according to

user’s requirements Each board has 8 FXO ports and the gateway supports 128 FXO ports

at maximum

Gateway-128o supports the standard SIP protocol and it's compatible with leading IMS/NGN

platforms and SIP-based IP telephony systems Which is ideally suited for small and medium

businesses, call centers and multi-location environments that need VoIP services

1.2 Application Scenario

The application scenario of Gateway-128o is shown as follows:

Gateway-128o User Manual 4

2 Quick Installation

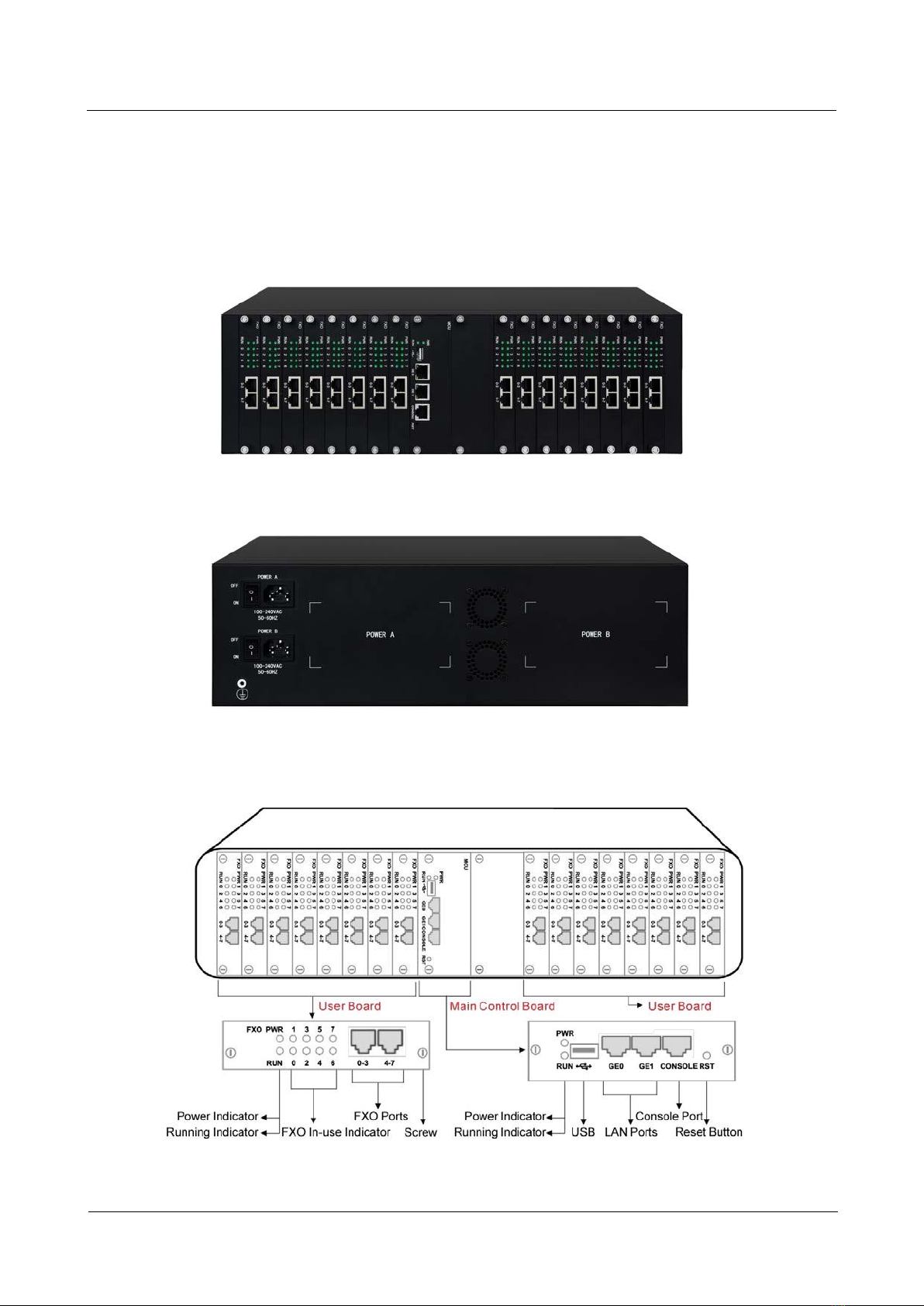

1.3 

1.3.1 

Front View:

Back View:

1.3.2 

Gateway-128o User Manual 5

2 Quick Installation

The description of interfaces of Gateway-128o

Port Name Conne tor Des ription

Power Jack

To connect 100-240V AC 50-60HZ power supply

Power Switch Power Switch Turn on or turn off power supply

LAN Port RJ45 To connect to the IP network over a DSL modem or

(GE0/GE1) Router or a LAN switch

FXO Ports 0~7

RJ45 To connect to PSTN

Console Port RJ48 Console port is used to carry out maintenance-related

configurations

After the device is powered on, short press the RST

Reset Button

button to restart the device; long press the RST

button for about 6-10 seconds to restore the device to

factory default settings

The description of indicators of Gateway-128o

Indi ator Definition

Status

Des ription

On Power supply is normal

PWR Power

Indicator Off There is no power supply or power supply is

abnormal

RUN Running Slow The device is running properly

Indicator Flashing

Gateway-128o User Manual 6

2 Quick Installation

Fast SIP account is registered successfully

Flashing

Off The device is running improperly

Telephone On FXO port is currently occupied by

FXO 0~7 In-use

Indicator Off FXO port is idle or faulty

Flashing The gateway is properly connected to network

LAN Port Link (Green)

(GE0/GE1) Off The gateway is not connected to network or

network connection is improper

1.4 Features & Functions

Key Features

Modularized Gateway with 128 FXO ports

Fax over IP (T 38 and Pass-Through)

Support IPv4 and IPv6

TR069 and SNMP

Multiple codecs: G 711A/U,G 723 1,G 729A/B etc

Fully compatible with leading IMS/NGN, SIP based IP telephony system

Physi al Interfa es

Capacity

Range from 8 to 128 FXO

Capacity

Range from 8 to 128 FXO

Support 16 user board

slots

User Board

2* RJ45 connectors with 8 FXO

MCU Board 1*RS232,

115200bps

2*10/100/1000Mbps,

RJ45 1* USB 2 0

Gateway-128o User Manual 7

2 Quick Installation

Voi e Capabilities & Fax

G 711A/U law, G 723 1, G 729A/B, AMR, G 726, iLBC

Silence Suppression

Comfort Noise Generation(CNG)

Voice Activity Detection(VAD)

Echo Cancellation(G 168), with up to 128ms

Adaptive (Dynamic) Jitter Buffer

Programmable Gain Control

T 38/Pass-through

Modem/POS

DTMF mode: Signal/RFC2833/INBAND

VLAN 802 1P/802 1Q

Layer3 QoS and DiffServ

FXO

Connector: RJ45 with 4 FXO

Dial Mode: DTMF/Pulse Dialing

Caller ID: FSK, DTMF

Polarity Reversal

Answer Delay

Busy Tone Detection

No Current Detection

VoIP

Protocol: SIP v2 0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833),

RFC3262,3263,3264,3265, 3515,2976,3311



SIP TLS/SRTP

RTP/RTCP, RFC2198, 1889

RFC4028 Session Timer

RFC3266 IPv6 in SDP

RFC2806 TEL URI

RFC3581 NAT,rport

Outbound Proxy

DNS SRV/ A Query/NATPR Query

SIP Trunk

Early Media/Early Answer

Gateway-128o User Manual 8
