Nexcom NEX 812 Manuel utilisateur

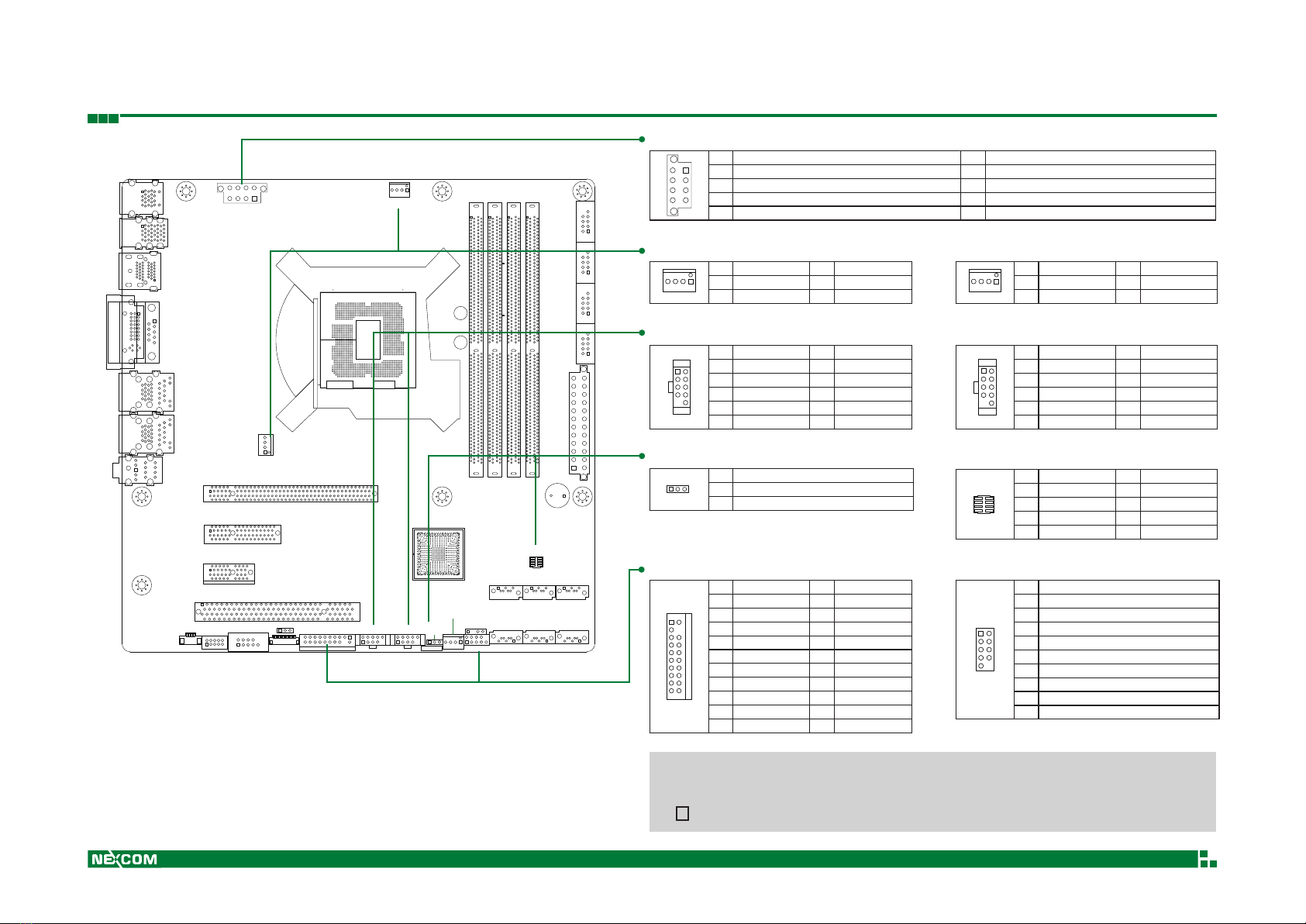

NEX 812 Quick Reference Guide

CLRTC

TPM1 CHASSIS

SATA6G_1 SATA6G_2

SATA6G_3

SATA6G_4

SATA6G_5

SATA6G_6

F_PANEL1

SPI1

CHA_FAN2

USB9 USB10

DIO1

AMP_CON1

COM2

COM3COM4COM5COM6

LAN1

EATX12V

CPU_FAN1

CHA_FAN1

EATXPWR1

LAN2

111

SATA6G_1: Serial ATA 6.0Gb/s Connector

Pin Denition Pin Denition

01 GND 02 RSATA_TXP1

03 RSATA_TXN1 04 GND

05 RSATA_RXN1 06 RSATA_RXP1

07 GND

SATA6G_3: Serial ATA 6.0Gb/s Connector

Pin Denition Pin Denition

01 GND 02 RSATA_TXP3

03 RSATA_TXN3 04 GND

05 RSATA_RXN3 06 RSATA_RXP3

07 GND

SATA6G_5: Serial ATA 6.0Gb/s Connector

Pin Denition Pin Denition

01 GND 02 RSATA_TXP5

03 RSATA_TXN5 04 GND

05 RSATA_RXN5 06 RSATA_RXP5

07 GND

SATA6G_2: Serial ATA 6.0Gb/s Connector

Pin Denition Pin Denition

01 GND 02 RSATA_TXP2

03 RSATA_TXN2 04 GND

05 RSATA_RXN2 06 RSATA_RXP2

07 GND

SATA6G_4: Serial ATA 6.0Gb/s Connector

Pin Denition Pin Denition

01 GND 02 RSATA_TXP4

03 RSATA_TXN4 04 GND

05 RSATA_RXN4 06 RSATA_RXP4

07 GND

SATA6G_6: Serial ATA 6.0Gb/s Connector

Pin Denition Pin Denition

01 GND 02 RSATA_TXP6

03 RSATA_TXN6 04 GND

05 RSATA_RXN6 06 RSATA_RXP6

07 GND

EATX_PWR1: ATX Power Connectors

Pin Denition Pin Denition

01 +3V 02 +3V

03 +3V 04 -12V

05 GND 06 GND

07 +5V 08 PSON#

09 GND 10 GND

11 +5V 12 GND

13 GND 14 GND

15 PWR OK 16 -5V

17 +5VSB 18 +5V

19 +12V 20 +5V

21 +12V 22 +5V

23 +3V 24 GND

AMP_CON1: Speaker-out Connector

Pin Denition

01 R_OUT+

02 R_OUT-

03 L_OUT-

04 L_OUT+

COM2/3/4/5/6: Serial Port Connector

Pin Denition

01 DCD

02 RXD

03 TXD

04 DTR

05 GND

06 DSR

07 RTS

08 CTS

09 RI

10 -

DIO1: Digital I/O Connector

Pin Denition Pin Denition

01 DIO#1 02 DIO#2

03 DIO#3 04 DIO#4

05 DIO#5 06 DIO#6

07 DIO#7 08 DIO#8

09 +5V 10 GND

CHA_FAN2: CPU and Chassis Fan Connector

Pin Denition

01 GND

02 CHA FAN2 PWR

03 CHA FAN2 IN

04 +5V

CHASSIS: Chassis Intrusion Connector

Pin Denition

01 +5VSB_MB

02 -

03 Chassis Signal

04 GND

NEX 812 Quick Reference Guide

CLRTC

TPM1 CHASSIS

SATA6G_1 SATA6G_2

SATA6G_3

SATA6G_4

SATA6G_5

SATA6G_6

F_PANEL1

SPI1

CHA_FAN2

USB9 USB10

DIO1

AMP_CON1

COM2

COM3COM4COM5COM6

LAN1

EATX12V

CPU_FAN1

CHA_FAN1

EATXPWR1

LAN2

111

TPM1: TPM Connector

Pin Denition Pin Denition

01 LCLK 02 GND

03 LFRAME# 04 -

05 PCIRST# 06 NC

07 LAD3 08 LAD2

09 +3V 10 LAD1

11 LAD0 12 GND

13 NC 14 NC

15 +3VSB 16 SERIRQ

17 GND 18 CLKRUN#

19 LPCPD# 20 NC

CHA_FAN1: CPU and Chassis Fan Connector

Pin Denition Pin Denition

01 GND 02 CHA FAN1 PWR

03 CHA FAN1 IN 04 +5V

CPU_FAN1: CPU and Chassis Fan Connector

Pin Denition Pin Denition

01 GND 02 CPU FAN PWR

03 CPU FAN IN 04 +5V

CLRTC: Clear RTC RAM

1 3

Pin Denition

1-2* Normal (Default)

2-3 Clear RTC

F_PANEL1: System Panel Connector

Pin Denition

01 HDD_LED+

02 PWR_LED+

03 HDD_LED-

04 PWR_LED-

05 GND

06 PWR

07 HWRESET#

08 GND

09 NC

SPI1: BIOS Programmable Connector

Pin Denition Pin Denition

01 +3.3VSPI 02 GND

03 SPI_CS0#_F 04 SPI_CLK_F

05 SPI_SO_F 06 SPI_SI_F

07 NC 08 NC

USB9: USB 2.0 Connector

Pin Denition Pin Denition

01 +5V 02 +5V

03 USB_P11- 04 USB_P12-

05 USB_P11+ 06 USB_P12+

07 GND 08 GND

09 - 10 NC

USB10: USB 2.0 Connector

Pin Denition Pin Denition

01 +5V 02 +5V

03 USB_P13- 04 USB_P14-

05 USB_P13+ 06 USB_P14+

07 GND 08 GND

09 - 10 NC

EATX12V: ATX Power Connectors

Pin Denition Pin Denition

01 +12V 02 GND

03 +12V 04 GND

05 +12V 06 GND

07 +12V 08 GND

Quick reference guide is subject to change without prior notice. For any update,

please visit our website: www.nexcom.com

=Pin1 [ * ]=Default setting
