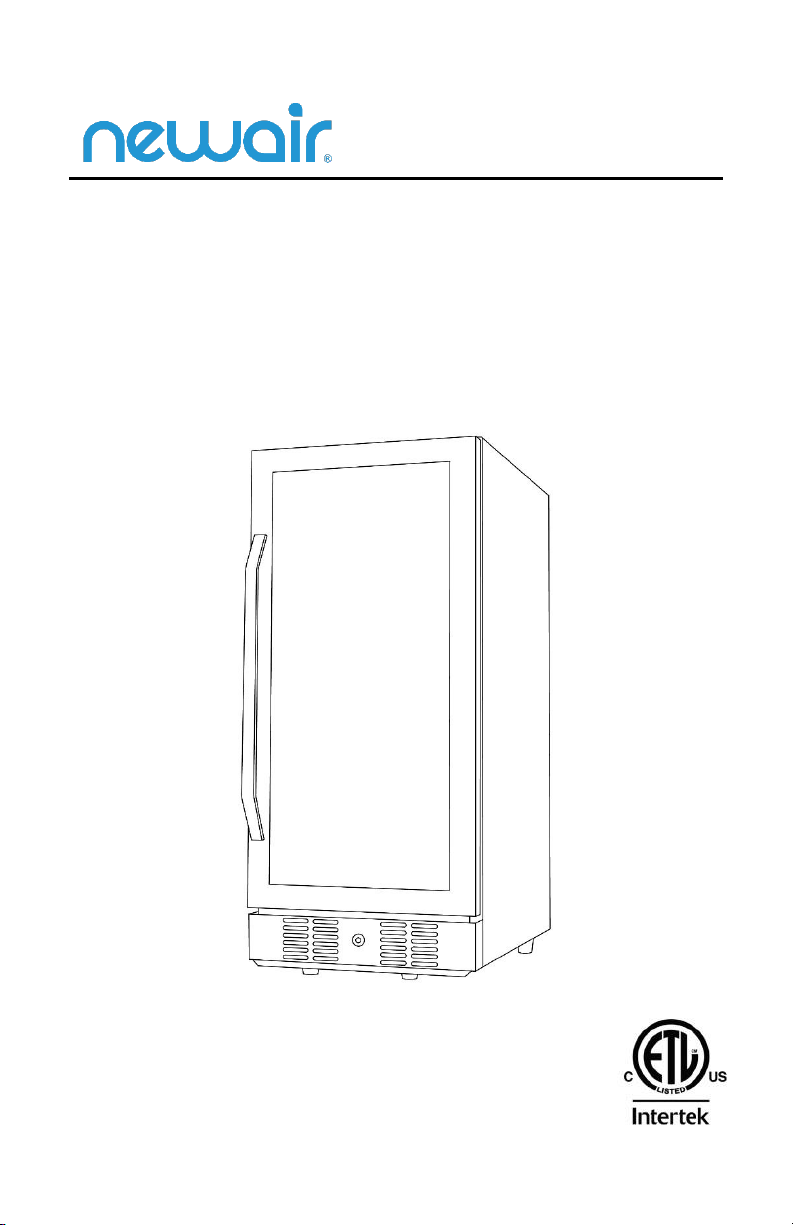

New Air NWB057BSD0 Manuel utilisateur

Manual v1.0

15” Built-in Dual Zone

Wine & Beverage Fridge

Refrigerador para vinos y bebidas de 15" de Doble Zona

Refroidisseur à vin et à boissons de 15 po à deux zones

NWB057BSD0

OWNER’S MANUAL

Manuel de L'utilisateour

Manual del Propietario

www.newair.com 2

LANGUAGE INDEX

English Manual..................................................................................................... 3

Manuel en Français............................................................................................ 18

Manual en Español............................................................................................. 35

www.newair.com 3

A Name You Can Trust

Trust should be earned and we will earn yours. Customer happiness is the focus

of our business.

From the factory to the warehouse, from the sales floor to your home, the

whole Newair family promises to provide you with innovative products,

exceptional service, and support when you need it the most.

Count on Newair

As a proud Newair owner, welcome to our family. There are no robots here,

real people shipped your product and real people are here to help you.

Please reach out to our customer service team before making a return to your

store of purchase. We are happy to help with any questions or concerns!

Mon-Fri from 8-4 PST at:

Call:

1-855-963-9247

Email:

[email protected]

Online:

www.newair.com

A team member will respond to you within 24 hours.

Facebook.com/newairusa

Instagram.com/newairusa

YouTube.com/newairusa

Twitter.com/newairusa

EN


www.newair.com 4
READ AND SAVE THESE INSTRUCTIONS.
TABLE OF CONTENTS
Specifications ....................................................................................................... 5
Register Your Product Online............................................................................... 6
Safety Information & Warnings ...........................................................................7
Parts List............................................................................................................... 9
Assembly & Installation ..................................................................................... 10
Before Using Your Appliance .............................................................................10
Reversing The Door Swing ................................................................................. 10
Installing Your SplitShelf™..................................................................................10
Handle Assembly................................................................................................ 11
Operating Instructions ....................................................................................... 12
How To Use The Buttons On The Display Panel.................................................12
Cleaning & Maintenance....................................................................................13
Cleaning Your Cooler.......................................................................................... 13
Moving Your Fridge............................................................................................ 13
Usage & Storage Tips ......................................................................................... 14
Troubleshooting.................................................................................................16
Limited Manufacturer’s Warranty ..................................................................... 18




www.newair.com 5

SPECIFICATIONS

MODEL NO.

NWB057BSD0

VOLTAGE:

110-120V

CURRENT:

1.2A

FREQUENCY:

60Hz

POWER CONSUMPTION:

90W

STORAGE CAPACITY:

3.2 cubic feet

TEMPERATURE RANGE:

37°F - 50°F (upper zone)

50°F - 66°F (lower zone)

CLIMATE CLASS:

N, 25C ambient

PRODUCT WEIGHT:

76 lbs

UNIT DIMENSIONS (W XDXH):

14.8” x 24.3” x 33.8”

www.newair.com 6

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for Newair promotions and offers

Registering your product information online is safe & secure and takes less than

2 minutes to complete:

Alternatively, we recommend you attach a copy of your sales receipt below and

record the following information, located on the manufacturer’s nameplate on

the rear of the unit. You will need this information if it becomes necessary to

contact the manufacturer for service inquiries.

Date of Purchase: ___________________________________________

Serial Number: ____________________________________________

Model Number: ____________________________________________

newair.com/register

www.newair.com 7

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety precautions must

be followed in order to reduce the risk of fire, electrical shock

and/or injury to persons or property. Be sure to read all instructions

before using this appliance and observe the following safety tips:

Shock Hazard –Electrical Grounding Required

Never attempt to repair or perform maintenance on the unit until the

electricity has been disconnected.

Never remove the round grounding prong from the plug and never use a two-

prong grounding adaptor.

Altering or cutting of power cord, removal of power cord, removal of power

plug, or direct wiring can cause serious injury, fire, and loss of property and/or

life, and will void the warranty.

Never use an extension cord to connect power to the unit.

Avoid operating this fridge in excessively moist or humid environments.

Important Precautions:

Do not lift unit by door handle.

Never install or operate the unit behind closed doors.

Be sure the kick-plate on the front bottom is free of obstruction. Obstructing

airflow can cause the unit to malfunction and will void the warranty.

Failure to clean the condenser every six months can cause the unit to

malfunction.

Allow unit temperature to stabilize for 24 hours before use.

Do not block any internal fans.

Keep the fridge away from hazardous materials or combustible/flammable

substances.

Use only genuine supplier’s replacement parts. Imitation parts can damage the

unit, affect its operation or performance, and may void the warranty.

Attention: To avoid the risk of child entrapment, do not allow children to

operate, play with, or crawl inside the unit. If the unit will not be used for an

extended period of time, remove the door and leave the shelves in place so

that children cannot crawl inside. Also remove the door when disposing of the

unit.

The appliance should not be used by children or persons with reduced physical,

sensory or mental capabilities, or lack of experience.

www.newair.com 8

Children should not play with the appliance. Cleaning and user maintenance should

be performed under adult supervision.

If the power cord is damaged, it must be replaced by the manufacturer, its service

agent, or similarly qualified persons in order to avoid a safety hazard.

Keep ventilation openings, in the appliance enclosure or in the built-in structure,

clear of obstruction.

Do not use mechanical devices or means other than those recommended by the

manufacturer to accelerate the defrosting process.

Do not damage the refrigerant circuit.

Do not use electrical appliances other than those recommended by the

manufacturer inside the wine storage compartments of the appliance.

Do not store explosive substances such as aerosol cans with a flammable propellant

in the appliance.

This appliance is intended for use only in the household, office and similar

environments.

www.newair.com 9

PARTS LIST

1. Right upper hinge

2. Upper zone light

3. Fan

4. Upper zone NTC point

5. Exhaust window

6. Lower zone temperature

7. Upper zone temperature

8. Temperature switch

9. Light switch

10. Carbon filter

11. Lower zone fan

12. Lower zone light

13. Shelf

14. Lower zone NTC point

15. Exhaust window

16. Foot

17. Door seal

18. Glass

19. Handle

20. Lower hinge

21. Lock

www.newair.com 10

ASSEMBLY & INSTALLATION

BEFORE USING YOUR APPLIANCE

Before connecting the appliance to a power source, let it stand upright for

approximately 24 hours. This will reduce the possibility of a malfunction in the

cooling system from handling during transportation.

Before operating your fridge for the first time, follow these steps:

•Remove the exterior and interior packing.

•Clean the interior surface of the unit with lukewarm water and a soft cloth.

•Place the fridge on a level surface that will be strong enough to support

the unit when it is fully loaded. To level your cooler, adjust the front feet

located at the bottom of the unit.

REVERSING THE DOOR SWING

The door hinge is on the left side by default. If you wish to reverse the swing so

that the door opens from the right, it is important to have at least one other

person to help. It is dangerous to try to reverse the door swing by yourself.

1. Unscrew the upper door hinge while the second person supports the door.

2. Remove the upper hinge and carefully lift the door off the bottom hinge.

3. Unscrew the bottom hinge and install it on the left side of the unit.

4. Flip the door around so that the handle is on the right side and slip the

door over the bottom hinge.

5. Reattach the door by screwing the top hinge into the holes provided on

the upper left surface of the unit. Make adjustments as necessary to be

sure the door is aligned properly.

INSTALLING YOUR SPLITSHELF™

The top zone of the fridge comes with an adjustable SplitShelf™ configuration

for your beverages, enabling you to have either a full-sized shelf or a half-sized

shelf to accommodate different sized cans or bottles.

To install, simply remove the first shelf from the top zone of the fridge and

replace with the included half-sized shelf.
