New Air NBC177SS00 Manuel utilisateur

Manual v1.0

24” Built-in 177 Can

Beverage Fridge

OWNER’S MANUAL

Read and save these instructions.

NBC177SS00

newair.com

A Name You Can Trust

Trust should be earned, and we will earn yours. Customer happiness is the focus

of our business.

From the factory to the warehouse, from the sales floor to your home, the whole

NewAir family promises to provide you with innovative products, exceptional

service, and support when you need it the most.

Count on NewAir.

As a proud NewAir owner, welcome to our family. There are no robots here, real

people shipped your product and real people are here to help you.

For questions regarding your product, please contact us at:

Call:

1-855-963-9247

Email:

[email protected]

Online:

www.newair.com

Connect with Us:

facebook.com/newairusa

instagram.com/newairusa

youtube.com/newairusa

twitter.com/newairusa

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Safety Information & Warnings........................................................................... 5

Parts List .............................................................................................................. 6

Installation........................................................................................................... 8

Operating Instructions......................................................................................... 9

Cleaning & Maintenance ................................................................................... 10

Troubleshooting................................................................................................. 11

Limited Manufacturer’s Warranty..................................................................... 13

SPECIFICATIONS

MODEL NO.

NBC177SS00

VOLTAGE:

110-120V

CURRENT:

0.9A

FREQUENCY:

60Hz

POWER CONSUMPTION:

100W

STORAGE CAPACITY:

5.1 cubic feet

TEMPERATURE RANGE:

37°F - 65°F

PRODUCT WEIGHT:

103 lbs

UNIT DIMENSIONS :

23.5”W x 22.5”D x 32.3”H

newair.com

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for NewAir promotions and offers

Registering your product information online is safe & secure and takes less than 2

minutes to complete:

Alternatively, we recommend you attach a copy of your sales receipt below and

record the following information, located on the manufacturer’s nameplate on

the rear of the unit. You will need this information if it becomes necessary to

contact the manufacturer for service inquiries.

Date of Purchase: ___________________________________________

Serial Number: ____________________________________________

Model Number: ____________________________________________

newair.com/register

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety precautions

must be followed in order to reduce the risk of fire, electrical

shock and/or injury to persons or property. Be sure to read all

instructions before using this appliance and observe the

following safety tips:

Attention: To avoid the risk of child entrapment, do not allow children to

operate, play with, or crawl inside the unit. If the unit will not be used for an

extended period of time, remove the door and leave the shelves in place so that

children cannot crawl inside. Also remove the door when disposing of the unit.

Shock Hazard –Electrical Grounding Required

•Never attempt to repair or perform maintenance on the unit until the

electricity has been disconnected.

•Never remove the round grounding prong from the plug and never use a

two-prong grounding adaptor.

•Altering or cutting of power cord, removal of power cord, removal of power

plug, or direct wiring can cause serious injury, fire, and loss of property

and/or life, and will void the warranty.

•Never use an extension cord to connect power to the unit.

•Avoid operating this cooler in excessively moist or humid environments.

Important Precautions:

•Do not lift unit by door handle.

•Be sure the kick-plate on the front bottom is free of obstruction. Obstructing

airflow can cause the unit to malfunction and will void the warranty.

•Failure to clean the condenser every six months can cause the unit to

malfunction.

•Allow unit temperature to stabilize for 24 hours before use.

•Do not block any internal fans.

•Keep the cooler away from hazardous materials or combustible/flammable

substances.

•Use only genuine supplier’s replacement parts. Imitation parts can damage

the unit, affect its operation or performance, and may void the warranty.

newair.com

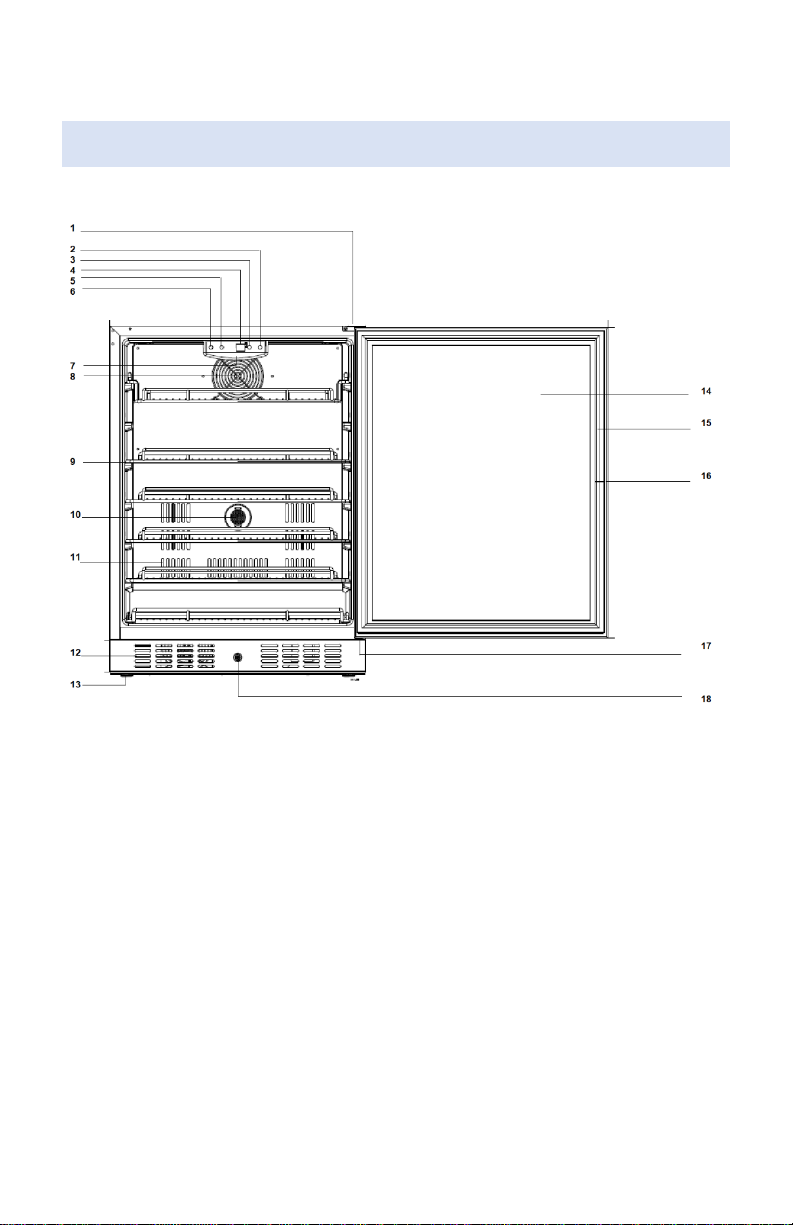

PARTS LIST

1. Right Upper

Hinge

2. Temperature

Setting (DOWN)

3. Temperature

Setting (UP)

4. Temperature

Display

5. Light Switch

6. Power Switch

7. Light

8. Fan

9. Shelf

10. Carbon Filter

11. Exhaust

Window

12. Exhaust

Window

13. Foot

14. Glass

15. Door Seal

16. Handle

17. Lower Hinge

18. Lock

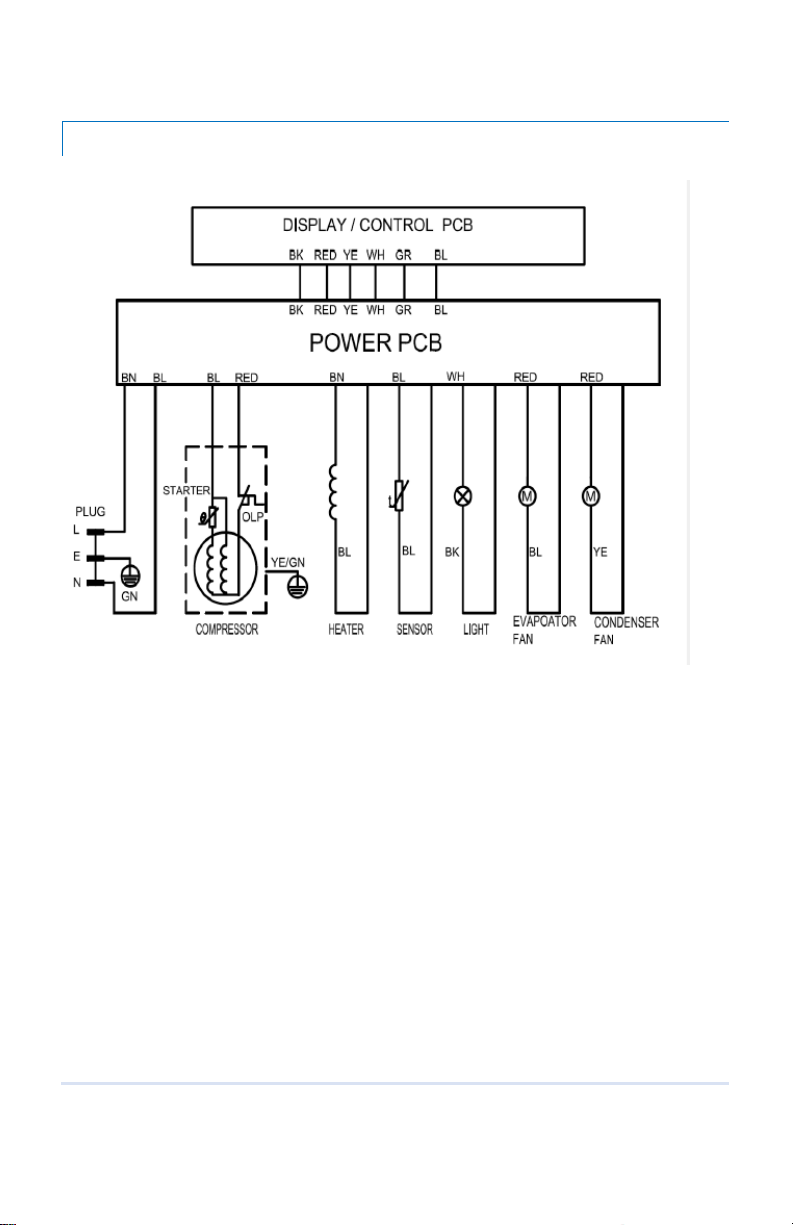

ELECTRICAL CIRCUIT DIAGRAM

newair.com

INSTALLATION

Before connecting the appliance to a power source, let it stand

upright for approximately 2 hours. This will reduce the possibility

of a malfunction in the cooling system from handling during

transportation.

Before operating your cooler for the first time, follow these steps:

•Remove the exterior and interior packing.

•Clean the interior surface of the unit with lukewarm water and a soft cloth.

•Place the cooler on a level surface that will be strong enough to support the

unit when it is fully loaded. To level your cooler, adjust the front feet located

at the bottom of the unit.

OPERATING INSTRUCTIONS

HOW TO USE THE BUTTONS ON THE DISPLAY PANEL

Raise the desired

temperature. *

Lower the desired

temperature. *

* To set the temperature, press the UP or DOWN button on the control panel.

The interior temperature can be adjusted in increments of 1 degree between

37°F and 65°F (3° - 18°C).

The interior light can be turned on or off by pressing the “Light” button.

ADDITIONAL NOTES

•The appliance should not be used by children or persons with reduced

physical, sensory or mental capabilities, or lack of experience.

•Children should not play with the appliance. Cleaning and user maintenance

should be performed under adult supervision.

•If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent, or similarly qualified persons in order to avoid a safety hazard.

•Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

•Do not use mechanical devices or means other than those recommended by

the manufacturer to accelerate the defrosting process.

•Do not damage the refrigerant circuit.

•Do not use electrical appliances other than those recommended by the

manufacturer inside the storage compartments of the appliance.

•Do not store explosive substances such as aerosol cans with a flammable

propellant in the appliance.

•This appliance is intended for use only in the household, office and similar

environments.

newair.com

CLEANING & MAINTENANCE

CLEANING YOUR BEVERAGE FRIDGE

To clean your beverage fridge:

•Unplug the beverage fridge and remove anything inside.

•Wash the inside of the unit with a solution made of warm water and baking

soda solution (2 tablespoons of baking soda to one quart of water).

•Unscrew the water reservoir at the bottom of the unit and rinse with water.

•To clean the outside of the unit, use a mild detergent and warm water.

MOVING YOUR BEVERAGE FRIDGE

To move your beverage fridge:

•Remove anything stored inside.

•Securely tape down all loose parts located inside the unit.

•Turn the leveling feet up to the base in order to avoid damage.

•Tape the door shut.

•Be sure the beverage fridge stays in an upright position during

transportation.
