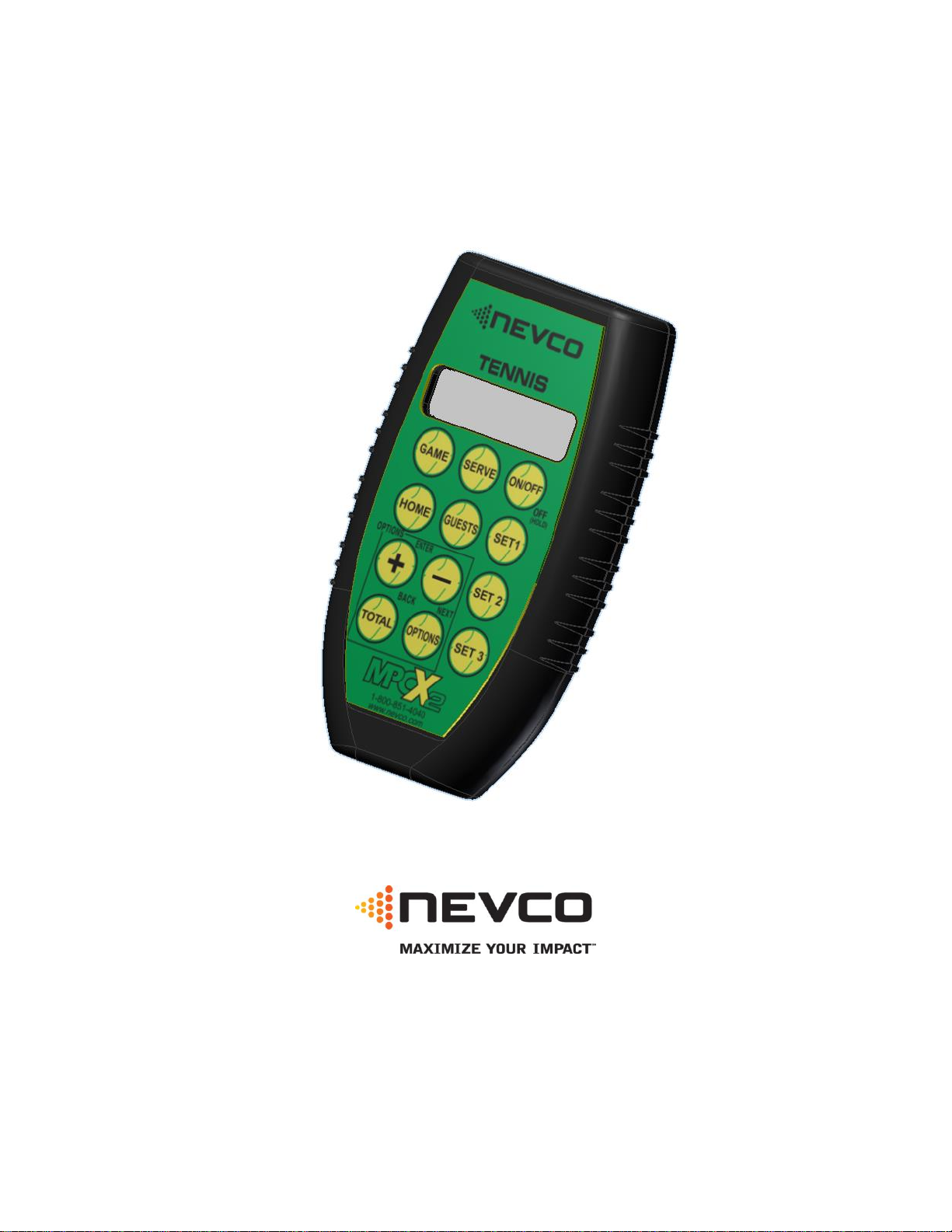

Scoreboard Operator’s Instructions

MPCX2 Tennis Control

Since 1934

Retain this manual in your permanent files

These Instructions are for the Following Models:

LED models:

9550

9650

9651B

9652B

Incandescent models:

Thank You

Thank You for choosing NEVCO. We appreciate your business.

The following instructions will help you become familiar with the operation and features of the scoreboard

system.

Please take a few minutes to study this manual, and to practice with the control.

If you ever have any questions or comments, please call or email us.

NEVCO GUARANTEE

To view or receive the most recent copy of the Guarantee, please visit our website, www.nevco.com

or call 1-618-664-0360

NEVCO, Inc.

301 East Harris Avenue

Greenville, IL 62246-2151 USA

USA TOLL-FREE 800-851-4040

CANADA TOLL-FREE 800-461-8550

International Telephone: +1-618-664-0360

Website: www.nevco.com

Email: [email protected]

TABLE OF CONTENTS

QUICK START GUIDE..........................................................................................................................................................................4

KEYBOARD FUNCTIONS....................................................................................................................................................................6

GREETING SCREEN ...........................................................................................................................................................................6

TOTAL SCREEN...................................................................................................................................................................................7

SET SCREEN .........................................................................................................................................................................................8

GAME SCORE SCREEN......................................................................................................................................................................9

SERVE SCREEN .................................................................................................................................................................................10

OPTIONS MENU ..................................................................................................................................................................................11

TROUBLESHOOTING CHART........................................................................................................................................................19

MPCX2 TENNIS CONTROL (front view)

LCD Display (16 characters x 2 lines)

Power ON / OFF Switch

Selects the SET number

and

Puts the control into scoring mode

OPTIONS key

Allows you to:

Clear Data for ALL Courts

Clear Data for active court

Set Brightness of Scoreboard

Check Battery Level

Check Signal Strength

Link Control to Receiver Network

Select Scoreboard Model Type

Change the Active Court

Selects the HOME or GUESTS

(for scoring)

Game Score and Serve

Add to or Subtract from selected

feature

Selects the TOTAL scores on

scoreboard

MPCX2 Six Court TENNIS Control System

MPCX2 TENNIS CONTROL (rear view)

Belt Clip

Battery

Compartment

Cover

(2 x AA)

BNC Connector

9VDC Power Supply

The Nevco six court Tennis control system consists of one receiver and six hand-held controls. Each control can

post information on the scoreboard for the court it has been assigned to.

MPCX2 Receiver for use with outdoor x6xx

and indoor x7xx scoreboards.

MPCX2 Receiver for use with scoreboards

that pre-date x6xx outdoor and x7xx indoor

scoreboards. (Boards that have coax input

only)

NOTE: This version can also be used in addition (but

not simultaneous operation) to a W6 system for dual

operation by connecting the W6 receiver or wired

coax of the MPC-5/6 connection to the coax input of

the X2 receiver.

TENNIS QUICK START GUIDE

The Nevco six court tennis scoreboard system consists of six wireless hand held controls (one for each court)

and one scoreboard that displays the scores for all six courts, plus the total score. Each control can send

information to the scoreboard for its corresponding court for both teams for 3 sets of play and total score.

The Nevco single court tennis system operates the same way as the six court system. The main aspect is that the

single court controller must be set to court 1.

Any of the controls can be programmed to control any of the six courts, including court 1. Multiple controllers

can be set to the same court. The controller designated as court 1 is the only controller that can control the

brightness level or clear the whole scoreboard at once.

Note: Any controller can turn on the scoreboard, however when the court 1 control is turned OFF the

scoreboard is blanked. Please make sure that all other controllers are powered down as well in order to conserve

battery life.

Note: It is assumed that each control has been configured for a court and that the court 1 control has been linked

to the desired receiver(s). Both functions are explained in the setup guide that comes with a new control. One

control is set to “court 1” by default at the factory; however it can be set in the field from the OPTION menu if

needed. (See pages 8 and 9 for detailed instructions).

Turn the scoreboard power ON first. Wait approximately 10 seconds before turning the controls on and make

sure each controller is initialized before powering on the next controller. Verify the court that each control is

configured to operate.

Press The control will display a greeting while it establishes

communications with its receiver(s). (Up to 20 seconds).

Note: v01.00 for example, indicates the software version of

the control

The display will then show Total Score.

Press

Next the display will change to show:

oThe Court number the control is programmed

to operate

oThe Set number

oThe Home score

oThe Guest score

Court: 1 Set: 1

Home: _ Guests:

ON/OFF

MPCX2 v01.00

2.4 GHz

Scanning

Total Score

Home: _ Guest:

SET 1

To clear the complete scoreboard (Only Court 1 Controller)

From the Options Menu; select

Then press

This will clear all of the scores for all of the courts.

To clear an individual court (Example Court 2)

From the Options Menu; select

Then press

Using the court 2 controller, this will clear the scores for only court 2.

To put the Control in scoring mode

Press

The control will show

Use the keys to select the team.

Note: The cursor indicates the selected team.

Use the keys to enter the points.

You are now ready for the game to begin.

Please consult the following sections of this manual for more details, functions, and features

SET 1

Court:1 Set:1

Home:0 Guests:0

GUESTS

HOME

Court:1 Set:1

Home:0 Guests:0

Court:1 Set:1

Home:1 Guests:0

OPTIONS

Clear Court: 2

Press (+)

OPTIONS

Clear Scoreboard

Press (+)

KEYBOARD FUNCTIONS

GREETING screen

Nevco MPCX2 2.4 GHz

When you are done using the control; power it OFF to

conserve batteries.

Note: Powering the court 1 control OFF also blanks the

scoreboard.

Note: Always power ON the receiver (scoreboard) first, and wait a few seconds for the receiver

to initialize (red LED illuminates) before powering ON the controls. If any control is already

ON, turn it OFF, wait a few seconds, and then turn it back ON.

Note: If the scoreboard fails to respond to a control, power the control OFF, wait a few seconds,

and then try again.

ON/OFF

GREETING

When the control is Powered ON, the greeting showing the

type of control, the software version, and the frequency it is

broadcasting. It will then display scanning for the remaining

time until the control establishes communications with its

receiver(s). (May take up to 20 seconds)

Accessed

pressing

MPCX2 v01.00

2.4 GHz

Scanning

TOTAL SCREEN

Use the “TOTAL” key if you want to change the Total

Score.

Select Home or Guests, then, use the “+” or “-” keys

to change the Total Score and send it to the

scoreboard.

Total Score

Home:2 Guests:1

TOTAL

Accessed

pressing

TOTAL

This is the default screen on power up. This screen shows the

Total Score. You must use this screen if you want to change

the Total Score. The cursor indicates the currently selected

team. Use the HOME or GUESTS keys to select the team, then,

use the “+” or “-” keys to change its value and send it to the

scoreboard.

Note: The Total Score can be changed by any court controller.

TOTAL

Total Score

Home:2 Guests:1

SET SCREEN

Select Set 1.

Select Set 2.

Select Set 3.

Use the “Home” or “Guests” keys to select the team whose

score you want to change.

Use the “+” or “-“ keys to change the

selected teams score and send it to the

scoreboard.

Court:1 Set:1

Home:1 Guests:0

Court:1 Set:1

Home:1 Guests:0

HOME

GUESTS

Court:1 Set:1

Home:1 Guests:1

Accessed

pressing

MAIN

The main screen shows the Court Number, the Set Number,

and the Scores. You must use this screen if you want to change

the Scores. Press SET 1, SET 2, or SET 3 any time to return to

its screen. The cursor indicates the currently selected team. Use

the HOME, GUESTS, keys to select the team, then, use the “+”

or “-” keys to change its value and send it to the scoreboard.

You should keep one of these three screens displayed during the

game.

Court:1 Set:1

Home:1 Guests:1

Court:1 Set:2

Home:1 Guests:1

Court:1 Set:3

Home:1 Guests:1

SET 1

SET 3

SET 2

SET 1

SET 2

SET 3

Court:1 Set:1

Home:1 Guests:1

Court:1 Set:2

Home:1 Guests:1

Court:1 Set:3

Home:1 Guests:1
