Network Technologies PRIMUX-16X64 Manuel utilisateur

PRIMUX-16X64

PRIMUX-8X32

KVM Matrix Switch via CATx

Quick Start Guide

PRIMUX

Series

-UNV PS/2 and USB Host

Adapter (sold separately)

PRIMUX-UZR

User Station (sold separately)

PRIMUX-16X64

(Front and Rear View)

What's in the Box

What's also needed (sold separately)

•NTI Host Adapter(s) HA-UNV PS2/USB Host Adapter (Includes a CT7038 USB-PS2 Adapter)/

HA-SUN-MTX SUN Host Adapter /

HA-RS-M Serial Host Adapter (see chart on page 7)

•NTI PRIMUX-UZR User Station

•CAT5/5e/6 unshielded twisted-pair cable(s) terminated with RJ45 connectors wired straight thru (pin 1 to pin 1, etc.)

Please Note: The PRIMUX User Station and Host Adapters used in conjunction with the PRIMUX Matrix Switch must all be

running firmware version 2.0 or later in order to be compatible with the PRIMUX Matrix Switch. For updated firmware with

instruction for upgrading, go to http://www.networktechinc.com/download/d-kvmswitch-cat5.html .

NTI PRIMUX-16X64 or 8X32

Cat5 KVM Matrix Switch

C Line Cord

Countr

Specific

Terminatin

Plu

Manual CD

Quick Start

Guide

Hardware Setup

1. Disconnect power from each CPU to be connected. (If your CPU fully supports hot-plugging, powering-down will not be necessary).

2. Plug the appropriate Host Adapter into the devices and video ports on the back of each CPU.

Rear View of Legacy SUN CPU

(Front View)

devices

video

Note: When hotplugging the

mouse and keyboard cables into

a PS/2 CPU, be sure to connect

the mouse cable first, then the

keyboard cable. Failure to

connect in this order may cause

the mouse to not be recognized

by the CPU.

(Front View)

Rear View of PS/2 CPU

15HD male

video connector

15HD female

video connector

6 pin miniDIN

female connectors

6 miniDIN

male connectors

PS/2 keyboard (purple)

USB-PS/2 Adapter

(mouse)

(Front View)

Rear View of USB CPU

15HD male

video connector

15HD female

video connector

USB Type A male

USB Type A

device port

PS/2 Keyboard Connector cannot be used

when the USB connector is plugged directly

into the USB CPU.

(Rear View)

CAT5 Cable

to Matrix Switch

Cable to CPU

3. Connect a CAT5 cable from the "OUT" port on each Host Adapter to a "CAT5" port on the PRIMUX KVM

Matrix Switch.

4. Connect the Terminating Plug (supplied with Host Adapter) to the "IN" port on each Host Adapter.

WARNING: Never connect the PRIMUX Host Adapter, User Station, or Matrix

Switch to an Ethernet card, Ethernet router, hub or switch or other Ethernet

RJ45 connector of an Ethernet device. Damage to devices connected to

the Ethernet may result.

NOTE: HA-SUN-MTX Host Adapters require the insertion of a Terminating Plug (included) into the "IN" port on the Host Adapter.

Be sure to insert this plug.

5. Connect the user keyboard and mouse to the proper "DEVICES" port(s) (USB or PS/2) on the PRIMUX-UZR User Station. (USB type

devices are shown in the following image.)

6. Connect the user monitor to the "MONITOR" port on the User Station.

Cat5 Monitor

SUN

Devices

PS/2

Devices

Mouse Kybd

RS232

USB

Devices

5VDC

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-56 2-7070

Fax:330- 562-1999

1275 D anner D r

Auro ra, OH 44202

www.networktechinc.com

NTIR

Rear View of PRIMUX-UZR User Station

VGA

Multi-Scan

Monitor

USB

Mouse USB Keyboard

(Rear View)

CAT5 Cable

to PRIMUX Switch

Cable to CPU

Terminating

Plug (Supplied)

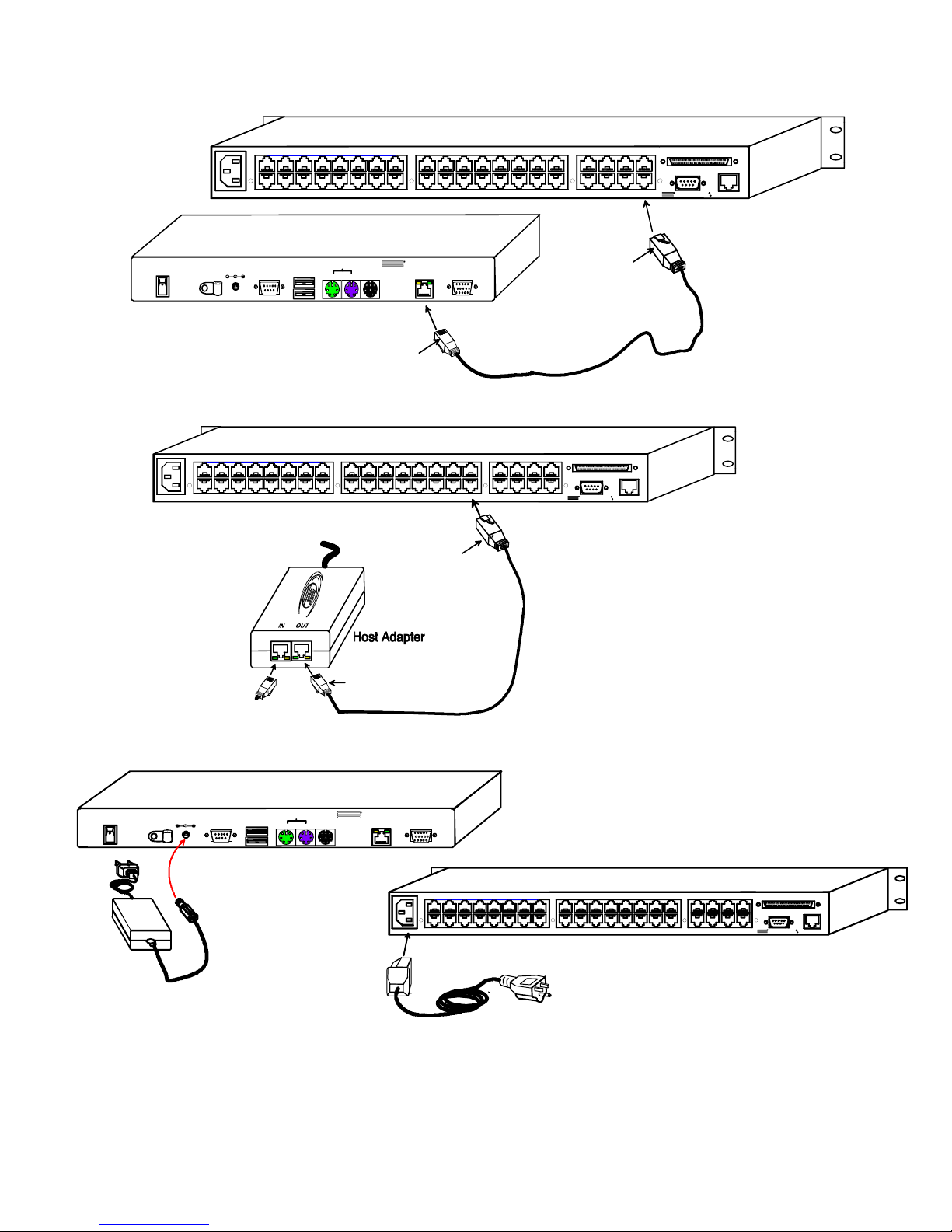

7. Connect a Cat5 cable between the “Cat5” port on the User Station and a “User” port on the Matrix Switch.

Connect a Cat5 cable between the “OUT” port on each Host Adapter and a “CPU” port on the Matrix Switch.

8. Connect the AC adapter to the "5VDC" port on the User Station and the IEC line cord into the IEC port on the Matrix Switch.

9. Power-up the monitor, User Station and Matrix Switch.

10. Power-up the CPU(s).

(Rear View)

Cable to CPU

EXPANSION PORT

RS232 ETHERNET

1234USER

5678 USER

1718192021222324

11121314

1516

2526272829303132

CPU

NETWORK TECHNOLOGIES INC Tel:330-562-7070

1275 DannerDr, Aurora, OH44202 www.nti1.com

NTI R

Rear View of PRIMUX-Matrix Switch

Cat5 cable

RJ45 male

connector

RJ45 male

connector

Terminating

Plug (Supplied)

RJ45 male

connector

RJ45 male

connector

Cat5 cable

Rear View of PRIMUX-UZR

EXPANSION PORT

RS232 ETHERNET

1234USER

5678 USER

1718192021222324

11121314

1516

2526272829303132

CPU

NETWORK TECHNOLOGIES INC Tel:330-562-7070

1275 Danner Dr,Au rora,OH 44202 www.nti1.com

NTI R

Rear View of PRIMUX-Matrix Switch

Cat5 Monitor

SUN

Devices

PS/2

Devices

Mouse Kybd

RS232

USB

Devices

5VDC

NETW ORK

TECHNOL OGIES

INCORPO RATED

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora,OH 44202

www .networktech inc.com

NTI R

Rear View of PRIMUX-UZR User Station

Cat5 Monitor

SUN

Devices

PS/2

Devices

Mouse Kybd

RS232

USB

Devices

5VDC

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-7070

Fax:330-562-1999

1275 Da nne r D r

Aurora, OH 44202

www .n etw orktec hinc.com

NTIR

Rear View of PRIMUX-UZR User Station

5 VDC

ADAPTER

Rear View of PRIMUX-UZR

Rear View of PRIMUX-UZR User Station

EXPANSION PORT

RS232 ET HE RN ET

1234 USER

78 USER

5678

1718

2021222324

91011121314

1516

2526272829303132

CPU

NETWORKTECHNOLOGIESINC Tel:330-562-7070

1275 Danner Dr , Aurora, OH4 42 02 www.nti1.c o m

NTI R

Rear View of PRIMUX-Matrix Switch

IEC Line Cord

AC Adapter

Initial Startup

Upon startup, the Command Mode On Screen Display (OSD) menu will be displayed, auto-logging you in as the administrative user

“root”. By default, the user “root” has full administrative rights and access to all Host Adapters and their connected CPUs.

To logout as a user, press <L> and the login screen will appear

If you logout and want to log back in as the administrator “root” either ;

A) type <root> at the user prompt and press <Enter> or <Tab>

type <nti> at the password prompt and press <Enter>

-or-

B) power-cycle the PRIMUX and be automatically logged-in as root

NOTE: In PRIMUX units with firmware version 1.9 and earlier, the administrator name was “ADMINISTRATOR” and the password

was “NTI” (all upper case letters). The PRIMUX must be using version 2.0 and later to work with a PRIMUX Matrix Switch.

Configure User Station for Matrix Mode

The User Station must be configured for use with a Matrix Switch instead of as a Stand Alone unit before the Command Mode menu will

recognize any connected CPUs. From the Command Mode menu, enter the following key sequence:

<A>-<R>-<M>-<Spacebar>-<Y> , then power-cycle the User Station.

This sequence of key presses will open the Administration menu (A), then the User Station Configuration menu (R), select the Mode

configuration option (M), toggle the mode from Standalone (the default) to Matrix (Spacebar), and confirm the configuration change (Y).

You must power-cycle the User Station to establish communication with the Matrix Switch.

To return to the Command Mode menu, either press <Esc> twice, or <F10> once. Any connected CPUs should now be listed in the

Command Mode OSD menu as “PN:xxxxxxxx>” where xxxxxxxx is the part number of the Host Adapter (this number can be found on the

back side of the Host Adapter).

Menu sequence for Matrix Switch Mode

Make a Connection

From the Command Mode menu, to make connection to any Host Adapter,

press <Up arrow> or <Down arrow> to highlight and select the desired Host Adapter,

press <Enter> to connect to it.

-OR-

use the mouse to highlight the desired Host Adapter to connect to and left-click on it to connect.

Press <Esc> to exit Command Mode and use the connected CPU.

Press <Ctrl> + <`> to return to the Command Mode OSD menu.

Congratulations, you have successfully installed your PRIMUX Matrix Switch.

Host Adapter Ordering Chart

NTI # Application

HA-UNV PS2/USB CPU

HA-SUN-MTX Legacy SUN CPU

HA-RS-M Serial-Controlled Devices

To order CAT5/5e/6 cables, Host Adapters, or User Stations either visit our website at www.networktechinc.com or call us at 1-800-RGB-

TECH (800-742-8324) or 1-330-562-7070.

Please Note: The PRIMUX User Station and Host Adapters used in conjunction with the PRIMUX Matrix Switch must all be

running firmware version 2.0 or later in order to be compatible with the PRIMUX Matrix Switch. For updated firmware with

instruction for upgrading, go to http://www.networktechinc.com/download/d-kvmswitch-cat5.html .

MAN106 Rev 6/17/2010
