Network Technologies NTI VOPEX VOPEX-USBV Manuel utilisateur

MAN034 Rev Date 10/7/2004

VOPEX-USBV-2

USB Keyboard, Video, and Mouse

Splitter/Hub

Installation and Operation Manual

OPEX

Series

NETWORK

TECHNOLOGIES

INCORPORATED

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora, OH 44202

www.nti1.com

NTI R

MAN034 Rev Date 10/7/2004

Warranty Information

The warranty period on this product (parts and labor) is one (1) year from the date of purchase. Please contact Network

Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.nti1.com for

information regarding repairs and/or returns. A return authorization number is required for all repairs/returns.

retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the

right to make changes in the product design without reservation and without notification to its users.

Trademark

---- VOPEX is a trademark of Network Technologies Inc in the U.S. and other countries.

MAN034 Rev Date 10/7/2004

TABLE OF CONTENTS

INTRODUCTION.............................................................................................................................................................1

LIMITATIONS..................................................................................................................................................................1

MATERIALS....................................................................................................................................................................1

FEATURES AND FUNCTIONS.......................................................................................................................................2

INSTALLATION...............................................................................................................................................................3

Monitor Connection......................................................................................................................................................3

Mouse Connection.......................................................................................................................................................3

Keyboard Connection..................................................................................................................................................3

CPU Connection..........................................................................................................................................................4

Hub Ports.....................................................................................................................................................................4

Power-Up.....................................................................................................................................................................4

OPERATION ...................................................................................................................................................................5

Keyboard Command Mode..........................................................................................................................................5

Mice and Trackballs with MACs ..................................................................................................................................6

International SUN Keyboards......................................................................................................................................6

Hub Ports.....................................................................................................................................................................6

SPECIFICATIONS ..........................................................................................................................................................7

TROUBLESHOOTING....................................................................................................................................................7

TABLE OF FIGURES

Figure 1- Connect User 1 Keyboard, Mouse, and Monitor.................................................................................................................3

Figure 2- Connect the VOPEX to the CPU ........................................................................................................................................4

Figure 3- Connect other devices to Ports 2-4 ....................................................................................................................................4

NTI BRANDNAME AND DESCRIPTON

INTRODUCTION

The VOPEX-USBV-2-HUB (VOPEX) is a USB KVM Splitter and 3-Port Hub. It enables the control of one USB enabled CPU

through two separate USB keyboards, USB mice, and VGA monitors and it enables the connection of 3 additional USB devices

(other than keyboards or mice). Each user is able to have complete control of a CPU, provided they don't try to access it at the

same time. While the user access is controlled by four (4) separate modes of operation, both user monitors will show the same

image at all times. The 3 hub ports (for printer, scanner, camera, etc.) will be connected to the CPU at all times.

Types of User Input Devices Supported:

•USB keyboard with Windows layout

•USB keyboard with SUN layout

•USB keyboard with MAC layout

•USB Mouse - (up to 3 buttons)

•USB IntelliMouse (scrollwheel)

•Mouse-Trak trackball

•Logitech, Kensington and Microsoft Wheelmouse or Trackball on Mac CPUs with special drivers

•Logitech Cordless Elite Duo keyboard and mouse

•Crystal Vision keyboard with touchpad

•Gyration keyboard/mouse

•NTI USB-PS/2 Adapter

•NTI USB-SUN Adapter

Types of Shared Devices Supported:

•Both low-speed and full speed USB devices are supported.

•USB 1.1 compliant.

•Plug-n-Play specification supported

Types of CPUs Supported:

Any USB CPU supporting USB version 1.0 or above including:

•USB WINxx

•USB MAC

•USB SUN

LIMITATIONS

•The USB ports on the VOPEX are USB 1.1 compatible. Any USB 2.0 device connected to the VOPEX will be regulated to

USB 1.1 speeds.

MATERIALS

Materials included with this kit:

•VOPEX-USBV-2 2-Port USB KVM Splitter

•USB-AB-1M-ST 1 Meter Transparent USB A-B Device Cable

•VEXT-3 3' M-F VGA Video Cable

•120 or 240VAC @ 50 or 60Hz-5VDC/2.0A AC Adapter

NTI BRANDNAME AND DESCRIPTON

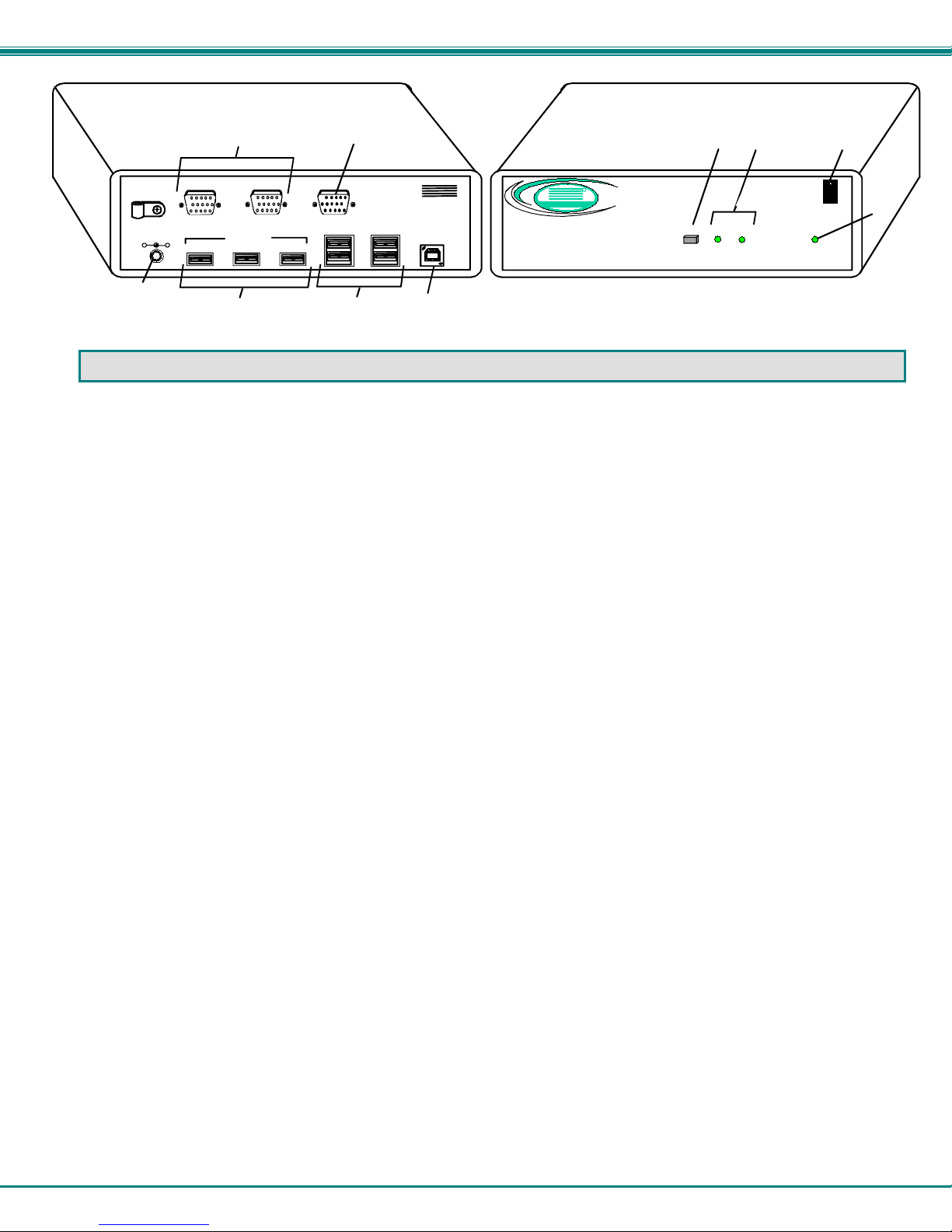

FEATURES AND FUNCTIONS

1. Power Switch- to power up or power down the VOPEX-USBV-2.

2. Power LED- for visual indication of splitter's power status

3. Mode Status LEDs- for visual indication of splitter's operating mode

4. Mode Switch- press to manually switch between operating modes

5. VIDEO- 15HD male connector- for connecting the video cable from the CPU

6. MONITOR x- 15HD female connectors- for connection of the user video monitors

7. 5VDC- connection jack for the AC adapter

8. DEVICES x- USB type A female connectors- for connection of the cables from USB devices

9. USER x DEVICES- USB type A female connectors- for connection of user USB device(s)

10. CPU- USB type B female connector- for connection of the devices cable from the CPU

VOPEX

Front View of VOPEX-USBV-2

Rear View of VOPEX-USBV-2

NTI

Network Technologies Inc

5VDC

CPU

USER 1

DEVICES

MONITOR 1 VIDEO

USER 2

DEVICES

NTI

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora, OH 44202

www.nti1.com

MONITOR 2

U2 PwrMode

DEVICE 3 DEVICE 2 DEVICE 1

HUB PORTS

NTI BRANDNAME AND DESCRIPTON

INSTALLATION

FYI: It is not necessary to disconnect power to the CPU and monitor(s) before installation.

Monitor Connection

Disconnect the monitor cable at the CPU and reconnect it to the "MONITOR 1" port on the VOPEX. (See Fig. 1)

Plug a second monitor (or optional VEXT-xx extension cable) into the "MONITOR 2" port on the VOPEX.

Note: "xx" in VEXT-xx indicates the length of the cable in feet. Many lengths are available. Contact your VPI

salesperson or visit us at our website at http://www.vpi.us for details.

Mouse Connection

Disconnect the mouse at the CPU and reconnect it to one of the female USB type A 'USER 1 DEVICES" ports on the

VOPEX.

Connect a second mouse (or optional USB extension cable NTI USB-A+A-5M) to the female USB type A "USER 2 DEVICES"

ports on the VOPEX.

Keyboard Connection

1. Disconnect the keyboard at the CPU and reconnect the keyboard to the remaining female USB type A "USER 1 DEVICES"

port on the VOPEX.

2. Connect a second keyboard (or optional USB extension cable NTI USB-A+A-5M) to the remaining female USB type A "USER

2 DEVICES" ports on the VOPEX.

Figure 1- Connect User 1 Keyboard, Mouse, and Monitor

Rear View of VOPEX-USBV-2

5VDC

CPU

USER 1

DEVICES

MONITOR 1 VIDEO

USER 2

DEVICES

NTI

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora,OH 44202

www.nti1.com

MONITOR 2

DEVICE 3 DEVICE 2 DEVICE 1

HUB PORTS

15HD Female

Video Connector

USB KEYBOARD

USB MOUSE

USB Type A Female

USB Type A Male

VGA

Multi-Scan

Monitor

15HD Male

Video Connector

MONITOR 1

NTI BRANDNAME AND DESCRIPTON

CPU Connection

Connect the male USB type A connector end of the USB-AB-1M-ST cable into the device port on the CPU.

Connect the male USB type B connector of the same cable to the "CPU" port on the VOPEX.

Connect the male 15HD connector end of the VEXT-3 into the CPU’s video port. (See Fig. 2)

Connect the female 15HD connector end of the VEXT-3 into the "VIDEO" port on the VOPEX.

Figure 2- Connect the VOPEX to the CPU

Hub Ports

If desired, connect additional USB devices to

the each of the three "Hub Ports" . These ports

will be powered and operate anytime the VOPEX

and CPU are powered ON. See Fig. 3.

Power-Up

If not already ON, turn ON power to the CPU

monitors, and VOPEX.

Figure 3- Connect other devices to Ports 2-4

Rear View of VOPEX-USBV-2

5VDC

CPU

USER 1

DEVICES

MONITOR 1 VIDEO

USER 2

DEVICES

NTI

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Auro ra, O H 4420 2

www.nti1.com

MONITOR 2

DEVICE 3 DEVICE 2 DEVICE 1

HUB PORTS

Scanner

Adapter

ADAPTER

Printer

USB Camera

15HD Male

Video Connector

15HD Female

Video Connector

Rear View of VOPEX-USBV-2

5VDC

CPU

USER 1

DEVICES

MONITOR 1 VIDEO

USER 2

DEVICES

NTI

Tel:330-562-7070

Fax:330-562-1999

1275 Danner Dr

Aurora, OH 4 4202

www.nti1.com

MONITOR 2

DEVICE 3 DEVICE 2 DEVICE 1

HUB PORTS

USB Type B

Female Connector

USB Type A Female

USB Type A Male

VEXT-3

15HD Male

Video Connector

USB Type B

Male

15HD Female

Video Connector

Rear View of Windows USB CPU

Video Port

Input Device Port

VIDEO

USB-AB-1M

NTI BRANDNAME AND DESCRIPTON

OPERATION

Mode Selection

The VOPEX comes equipped with four (4) modes of operation. To manually toggle between modes, depress the MODE button

once each time a mode change is desired. The VOPEX will cycle through the 4 modes of operation, then return to the first mode

(1 to 2, 2 to 3, 3 to 4, 4 to 1). The following table depicts the 4 operations available for operation.

MODE DESCRIPTION INDICATOR LEDS

1- INSTANTANEOUS Same as "DELAY" mode except that the delay is

only 2 seconds rather than 5.

2- DELAY First user with active device gets control of CPU.

Second user is "Locked out" until after 5 seconds

of no activity from first user.

3- USER 1 "USER 1" has sole access. "USER 2" is locked

out.

4- USER 2 "USER 2" has sole access. "USER 1" is locked

out.

Keyboard Command Mode

In order to control the other features of the VOPEX with the keyboard, Command Mode must be enabled. To enter

Command Mode from the keyboard:

Press

When the Command Mode is enabled, all 3 status lights on the keyboard will illuminate and both LEDs on the VOPEX will

illuminate solid to indicate Command Mode is enabled. See the table below for available functions while in Command Mode.

NOTE: The user must exit Command Mode in order to use the CPU in the selected mode. To exit Command Mode,

press ESC on the keyboard. ) The mouse will not operate while in Command Mode.

NOTE: While in Command Mode, when a proper programming key is pressed and recognized by the switch, the LEDs

on the keyboard will flash once to indicate acceptance. The user must exit Command Mode (by pressing ESC) to see a

change take effect in the switch operation.

NOTE: The VOPEX will automatically exit Command Mode after 10 seconds of inactivity by the user if the user does not

manually exit Command Mode.

The following functions exist while in Command Mode:

Key Combination Description of Function

<X>-<key>-<Y> Select a new key sequence to use to enter Command Mode- Replace <key> with the desired key

to follow <Ctrl> with.

<L> - <x> - <x> Select the country code of the keyboard being used with a USB SUN CPU (see Country Codes

chart on page 6)

<V> - <Enter> This will print the version of the code in the VOPEX to a text editor window (i.e. Windows Notepad)

for use when troubleshooting the VOPEX. Note: The text editor should be open prior to entering

Command Mode.

<M> Configure the CPU port to connect to a MAC CPU (see "Mice and Trackballs with MACs" on pg. 6.

<W> Configure the CPU port to connect to a Windows or SUN CPU

<D> - <x> Select the operating mode, x=1 for Instantaneous Mode, x=2 for Delay Mode, x=3 User 1Mode, x=4

for User 2 mode. (Modes are described in the table above.)

<P> - <x> Select the default mode to have the VOPEX enter upon power-up.

<Esc> Exit Command Mode

Ctrl

~(ACCENT

KEY)

U1 U2

NTI BRANDNAME AND DESCRIPTON

Mice and Trackballs with MACs

The VOPEX can be configured to enable full functionality between mice and trackballs having two or more buttons and a USB

MAC CPU. By default, the CPU port on the VOPEX is configured for use a WINDOWS or SUN CPU and has no special

translation for using multi-function mice and trackballs when a MAC CPU is connected. Using the commands in Command Mode

above, either enable or disable this feature as needed.

NOTE: Be sure to re-configure port for connection to a WINDOWS or SUN CPU if a MAC CPU is removed and a

WINDOWS or SUN CPU is then connected.

International SUN Keyboards

The VOPEX can recognize international layouts for Sun keyboards. In order to use an international Sun keyboard, follow this

procedure:

1. Disconnect the CPU from the VOPEX

2. Connect the international keyboard to be used to the VOPEX

3. Power down the VOPEX for at least 3 seconds

4. Power up the VOPEX

5. Reconnect the CPU to the VOPEX

It is also possible to configure the VOPEX to emulate a specific international Sun keyboard regardless of what actual keyboard is

connected. This is recommended when the CPU needs the layout code (i.e. a SUN CPU) and the keyboard doesn't have an

explicit layout code (i.e. some Windows keyboards). To do this, manually set the VOPEX to indicate the international keyboard

identification number to the CPU using the following procedure;

1. Connect the keyboard to be used to the VOPEX

2. Power down the VOPEX for at least 3 seconds

3. Power up the VOPEX

4. Enter Command Mode (<Ctrl> - <`>)

5. Type Lxx, where xx is the number from the list below that corresponds to the desired country code

6. Exit Command Mode

7. Power down the VOPEX for at least 3 seconds

8. Power up the VOPEX

9. Reboot the CPU connected to the VOPEX

Country Codes

00 Not Supported 18 Netherlands/Dutch

01 Arabic 19 Norwegian

02 Belgian 20 Persian (Farsi)

03 Canadian-Bilingual 21 Poland

04 Canadian-French 22 Portuguese

05 Czech Republic 23 Russia

06 Danish 24 Slovakia

07 Finnish 25 Spanish

08 French 26 Swedish

09 German 27 Swiss/French

10 Greek 28 Swiss/German

11 Hebrew 29 Switzerland

12 Hungary 30 Taiwan

13 International (ISO) 31 Turkish

14 Italian 32 UK

15 Japan (Katakana) 33 US

16 Korean 34 Yugoslavia

17 Latin American 35-99 Reserved

Hub Ports

The three connections labeled "Hub Ports" can be used to connect any USB device, such as a printer, scanner,

camera, etc. for continuous operation at USB 1.1 compliant speeds. These ports are not controlled by the VOPEX.

NTI BRANDNAME AND DESCRIPTON

SPECIFICATIONS

Size: Each unit is 8.5”W x 6”D x 2.6”H

Power: Powered by 120 or 240VAC @ 50 or 60Hz-5VDC/2.0A AC Adapter

Connections: 15HD VGA & SGA compatible

USB Type A female device connectors

USB Type B female CPU connector

TROUBLESHOOTING

PROBLEM SOLUTION

•Keyboard error •Check cable connections on CPU and VOPEX

•Mouse not working •Check cable connections on CPU and VOPEX

•Monochrome on VIDEO OUT 1 port •No ID bits – call VPI immediately

MODEL NO: VOPEX-USBV-2

SERIAL NO: _____________________

DATE: _____________________

INSPECTED BY: ________________

Man034 Rev 10/7/04

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Network Technologies Changer

Network Technologies

Network Technologies PRIMUX-16X64 Manuel utilisateur

Network Technologies

Network Technologies CAT5 Primux Manuel utilisateur

Network Technologies

Network Technologies NTI High Density DVI USB KVM Switch... Manuel utilisateur

Network Technologies

Network Technologies NTI PRIMUX PRIMUx-UZR Manuel utilisateur

Network Technologies

Network Technologies DVI-4 Manuel utilisateur

Network Technologies

Network Technologies Console Switch Manuel utilisateur

Network Technologies

Network Technologies SERIMUX-CS-x Manuel utilisateur

Network Technologies

Network Technologies KEEMUX-P2 Manuel d'utilisation

Network Technologies

Network Technologies UNIMUX series Manuel utilisateur

Network Technologies

Network Technologies KEEMUX-P2 Manuel utilisateur

Network Technologies

Network Technologies SE-DVI-2 Manuel utilisateur

Network Technologies

Network Technologies PRIMUX-16X64 Manuel utilisateur

Network Technologies

Network Technologies SERIMUX-S-x Manuel utilisateur

Network Technologies

Network Technologies NTI UNIMUX UNIMUX-USBV-4 Manuel utilisateur

Network Technologies

Network Technologies ST-nXm-U Manuel utilisateur

Network Technologies

Network Technologies PWR-RMT-RBT Manuel utilisateur

Network Technologies

Network Technologies VOPEX-USBV-2 Manuel utilisateur

Network Technologies

Network Technologies UNIMUX-USBV-2 Manuel d'utilisation

Network Technologies

Network Technologies KEEMUX PS/2 KVM Manuel utilisateur

Network Technologies

Network Technologies SM-nXm-C5AV-LCD Manuel utilisateur

Network Technologies

Network Technologies KEEMUX-USBV-xU Manuel d'utilisation

Network Technologies

Network Technologies RACKMUX-V15 Manuel utilisateur

Network Technologies

Network Technologies UNIMUX-DVI-xHD Manuel utilisateur

Network Technologies

Network Technologies IPDU-Sx Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
