NETGEAR DS309 Manuel utilisateur

™

NETGEAR

The DS309 Dual Speed Hub connects PCs to share printers, files,Internet access,

and e-mail communications. One can mix and match 10 and 100 Mbps PCs, servers,

and peripherals with ease and without the high cost and complexity of multiple hubs

and bridges. A switched port enables any number of DS309s to be stacked together

with simple Cat 5 UTP cable for

network expansion

KEY FEATURES

•Auto-sensing

dual-speed ports

•Switched port for

network expansion

•Full connectivity

among devices

•Status indicators

on front and back

•Home and home

office friendly

•Easy, plug-and-play

installation

•Free, 24-hour

phone support

Auto-sensing dual-speed ports

One can connect 10 or 100 Mbps network

devices to the hub. Each port individually

senses and adjusts to run at the proper speed.

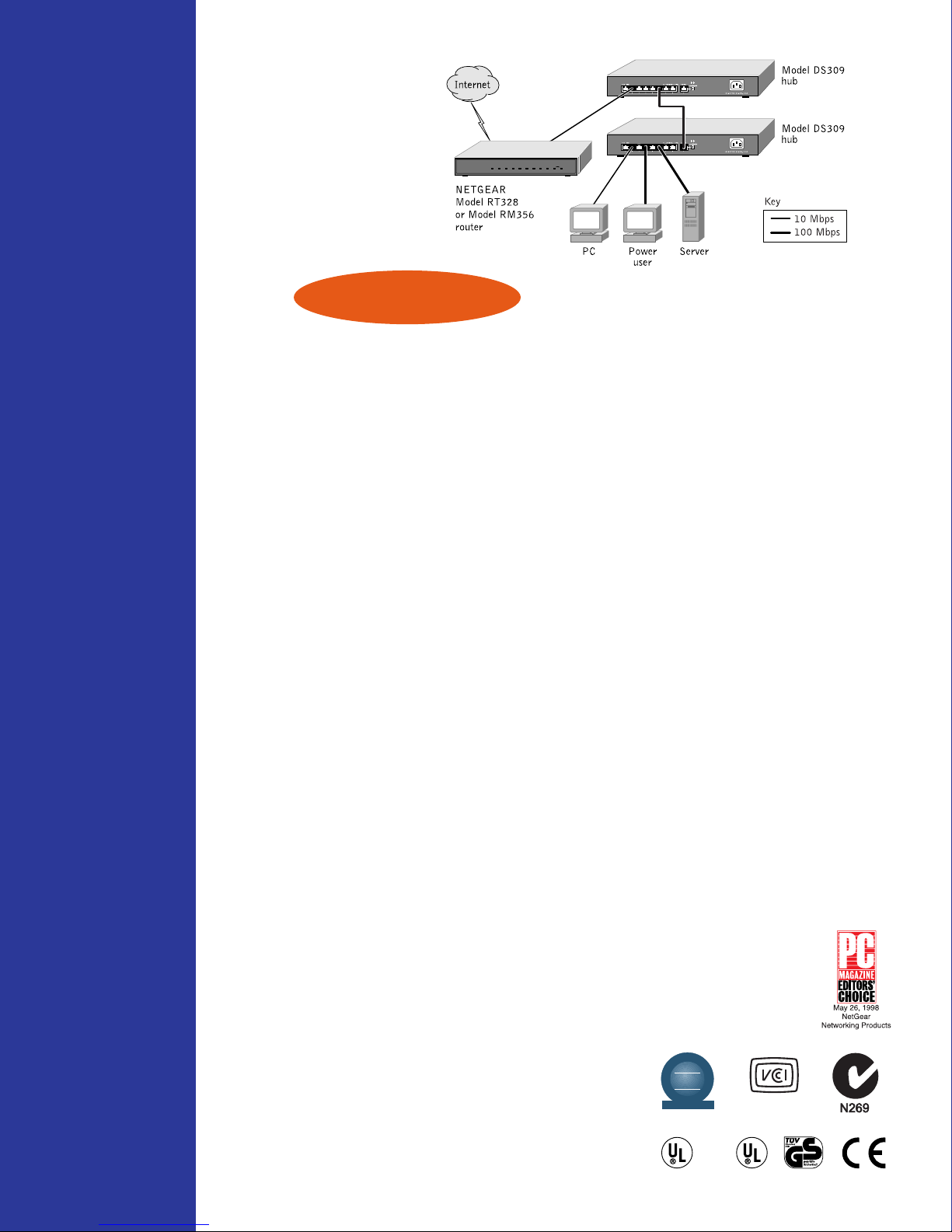

Switched port for network expansion

Any number of DS309s can be stacked together

or to other hubs or switches using simple Cat 5

UTP cable.

Full connectivity among devices

Each unit has a built-in self-learning bridge which

provides the communications link between the 10

and 100 Mbps network devices.

Status indicators on front and back

With status indicators on the front and back

and network cables coming off the back, the user

can easily monitor network operation without

having cables clutter up the desktop.vista network

ports with built-in LEDs help with network setup

and troubleshooting.

Home and home office friendly

The DS309 is Class B EMI compliant which

means it does not electronically interfere with

your home appliances.It features a small, 10-inch

design and can be inconspicuously placed on the

desktop or be tucked away. It provides an internal

power supply, eliminating the need for a bulky

wall transformer.

Easy, plug-and-play installation

Once powered on, the unit starts to operate with

no configuration required.

Free, 24-hour phone support

in English, with local language support in

selected countries.

SMALL OFFICE

HOME OFFICE

SOHO

designed for

MODEL

10/100Mbps DualSpeedHubDS309

PORT

http://netgear.baynetworks.com

Standards Compliance

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

Network Ports

Eight 10 or 100 Mbps RJ-45 ports for PCs

One switched (separate collision domain) 10 or 100 Mbps RJ-45 port for server,

backbone, or PC connection

Status LEDs

Unit Power

10 Mbps segment Utilization %, collision

100 Mbps segment Utilization %, collision

Each hub port 10 or 100 Mbps operations

link, receive data

Switched port 10 or 100 Mbps operations

link, activity (receive or

transmit data)

Dimensions

W 253 mm (10”)

D 180 mm (7”)

H 35 mm (1.4”)

Weight

1.3 kg (2.8 lb)

AC Power

0.15A max

Autosensing 100 to 240V, 50/60 Hz

North America, Japan, UK, Europe, Australia

Electromagnetic Compliance

FCC Part 15 Class B

VCCI Class B

EN55022 (CISPR 22), Class B

C-Tick

Safety Agency Approvals

UL listed (UL 1950)/cUL

IEC950/EN60950

Warranty

Switch - 5 years

Power supply - 1 year

PACKAGE

CONTENTS

•Hub

•Power cord

•User guide

•Warranty card

NETGEAR™is a trademark of Bay Networks, Inc. Other brand and product

names are trademarks or registered trademarks of their respective holders.

•

ISO-9001

REGISTERED

QUALITY

LISTED

ITE

E151382

4C93 C

NETGEAR Inc.

A Nortel Networks Company

4401 Great America Parkway

Santa Clara,CA 95054

USA

Phone: 1-888-NETGEAR

http://netgear.baynetworks.com

Technical Support

Australia 1800-142046

Austria 00800-06384327

France 0800-90-2078

Germany 00800-06384327

Japan 0120-66-5402

Korea 00308-11-0319

New Zealand 0800-444-626

Sweden 020-790086

Switzerland 00800-06384327

UK 171-571-5120

US/Canada 1-800-211-2069

SPECIFICATIONS

http://netgear.baynetworks.com
