NETGEAR Wireless LAN Antennas and Accessories
NETGEAR 18 dBi Patch Panel Directional Antenna - ANT24D18
NETGEAR 9 dBi Omni-directional Antenna - ANT2409
NETGEAR 5 dBi Omni-directional Antenna - ANT24O5
NETGEAR 500 mW Power Booster - ANT24BNA (part of ME103BDL1NA bundle)
NETGEAR Power Injector - ANT24BDC
NETGEAR Antenna Cables
NOTE: To obtain optimal results in
extending wireless range with antenna
installations, it is recommended that a
qualified, professional installer is consulted
for site survey and proper installation.
Optimize WLAN Range and Power
NETGEAR’s line of antennas and accessories for 802.11b and 802.11g devices give you multiple
options for maximizing the reach and performance of your wireless infrastructure devices. Every
WLAN deployment is unique. When planning a network that incorporates wireless, varying facility
sizes, construction materials, distance between transmission points and physical obstructions must
be accounted for. With both directional and omni-directional antennas, low-loss cables, mounting
hardware, and other accessories, installers can customize a value-priced wireless solution that meets
the requirements of even the most challenging applications. All NETGEAR antennas are FCC-approved
to work with the following NETGEAR models: FVM318, FWG114P, ME103 and WG302.
18 dBi Patch Panel Directional Antenna
The ANT24D18 indoor/outdoor directional* antenna provides a 3-in-1 solution for mixed applications in combination
with an 802.11b or 802.11g access point or wireless router. One, it delivers extended access point range in a single floor
environment ideally positioned in the corner of a building. Two, it functions point-to-point so that you can wirelessly
connect LANs between buildings in a campus-type environment. Three, it provides multifloor transmission when placed
on a ceiling, as the higher power output extends the range through typical flooring materials. Includes several mounting
options (fixed wall, wall adjustable, and pole), cable sold separately.
*Directional: Concentrates transmit and receive radio-frequency energy into a cone, or beam, for higher signal strength and reception in a
single direction.
9 dBi Indoor/Outdoor Omni-directional Antenna
The ANT2409 indoor/outdoor antenna provides extended point-to multi-point coverage for wireless 802.11b or 802.11g
devices. Optimal for medium range indoor or outdoor point-to-multi-point applications. Included lightning arrestor
(a $90 value) helps prevent damage due to lightning-induced surges or static electricity in outdoor applications. Typically
hung from crossbars of drop ceilings or on a rooftop, the waterproof and UV resistant ANT2409 includes wall and pole
mounting materials for installation ease, antenna cable and grounding cable not included.

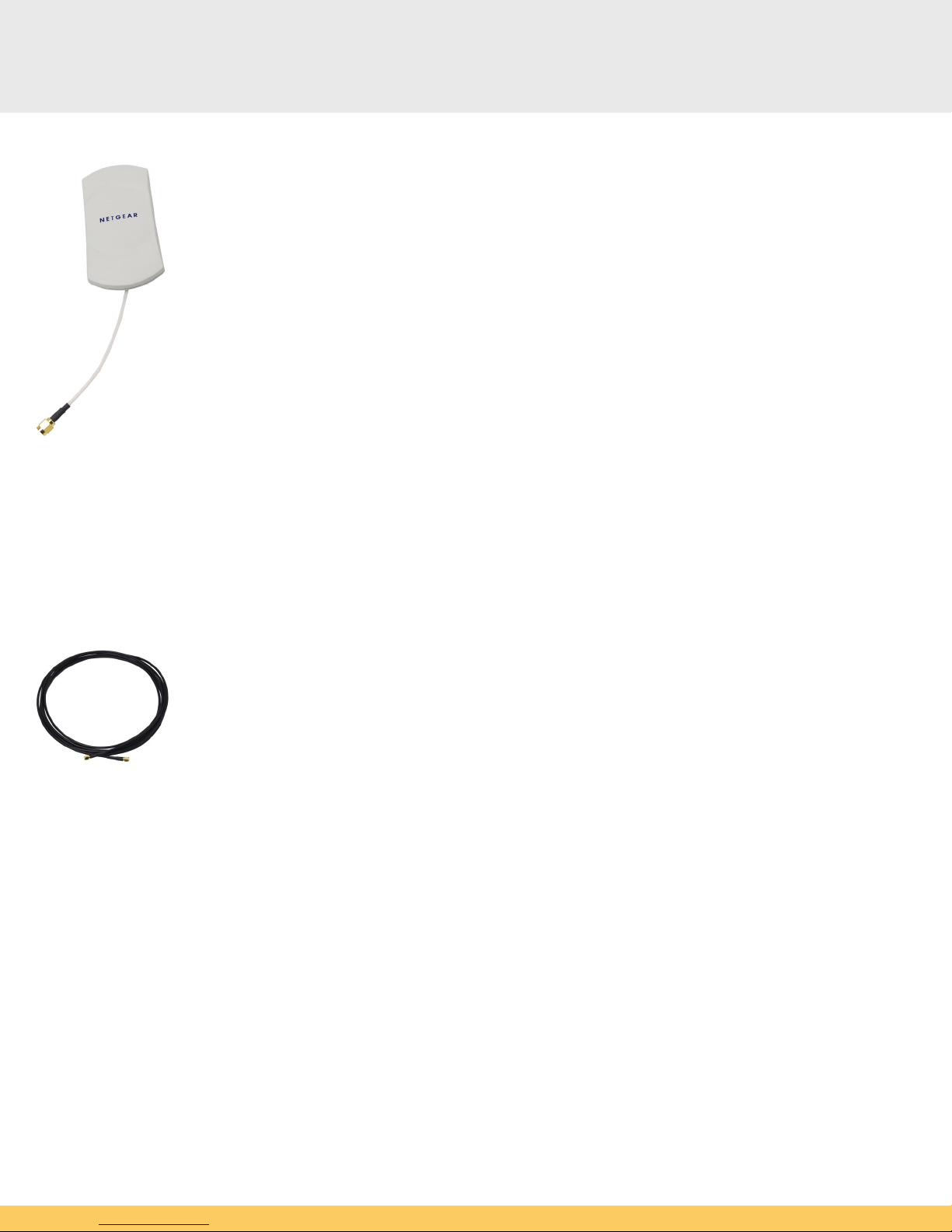

5 dBi Omni-directional Antenna
The ANT24O5 indoor omni-directional** antenna is designed to extend coverage of wireless 802.11b or 802.11g devices.
This antenna is especially useful in optimizing coverage when you want to place your wireless access point or router out of
plain view – in a wiring closet or above a ceiling pad. Locate this antenna at the top of a cubicle, on a ceiling, desktop or
wall, where it is more receptive to radio signals. Ideal placement is on a wall, 2 m high, or on the ceiling facing the area to
cover. Includes mounting brackets, cable sold separately.***
** Omni-directional: Radiates radio-frequency energy equally in all directions for widespread, all-points deployment.
***NETGEAR recommends use of antenna cable up to 5 m long with the ANT24O5 antenna.
500 mW Power Booster****
The 500-milliwatt bi-directional power booster increases the transmission signal from an average 50 mW to 500 mW
and amplifies the signal by 10 dB (10 times) in receive mode. It is used to enable a single access point device to cover a
larger area. Consisting of a bi-directional amplifier, 500 mW (+27 dBm) in transmit mode for +5 to +15 dBm input, it
provides 10 dB gain in receive mode. It can also be used to fully compensate for the loss of long antenna cables without
any reduction of performance, and permits one to position an antenna at a greater distance from a wireless node. Used in
conjunction with a high gain antenna, such as the 18 dBi ANT24D18, it can provide very high outdoor range – up to 120
km or about 74 miles. Easy to install, no configuration required; includes ceiling/wall mount bracket, cable sold separately.
**** NETGEAR has approved this product for use in the United States only. As per FCC regulations, the ANT24BNA booster is sold
as part of a transmission system which includes the ME103 802.11b ProSafe Wireless Access Point and the NETGEAR 3m cable
(ACC-10314-02). This product may only be ordered as part of a bundle p/n: ME103BDL1NA. Use of the ANT24BNA with any other
products is strictly prohibited by FCC regulations. Netgear expressly disclaims the implied warranty of merchantability and fitness for a
particular purpose for any damage caused by misuse of the ANT24BNA.
Power Injector for the 500 mW Booster
An optional accessory for the 500 mW booster, the ANT24BDC power injector provides power through the antenna cable to the
booster. Use this device when the booster is not located near a power outlet. Installed between the access point and the booster, this
device injects up to 12 volts and 2 amps to the booster. The antenna cable from the access point to the injector can be up to 3 m in
length. The cable between the injector and the booster can be up to 10 m long to achieve maximum performance benefits.
Low-loss Antenna Cables
These 1.5 m, 3 m, 5 m, and 10 m antenna cables offer low loss at 2.4 GHz and added flexibility for setting up access points at a greater
distance from a power source. They come with reverse SMA connectors and provide a standard connection optimized for use with
NETGEAR‘s line of WLAN antennas, and Booster/Power Injector products (range can be drastically reduced if longer or higher loss
cables than these are used.)
18 dBi Patch Panel Directional Antenna - ANT24D18
Technical Specifications
Description: 18 dBi Patch Panel Directional Antenna with reverse N female
jack and reverse N to reverse SMA adapter
Typical Application: Indoor/outdoor long range point-to-point connections
Maximum Outdoor Range1: 15.8 km (~9.8 miles)
Frequency Range: 2.400 ~ 2.485 MHz
Gain2:18 dBi
Beam Width: Horizontal 60°
Vertical 30°
Dimensions: 262.8 x 262.8 x 40 mm (10.35 x 10.35 x 1.58 in)
Weight: 1520 g/3.35 lbs.
Package Contents: - 18 dBi Patch Panel Directional Antenna - ANT24D18
(cable required, sold separately)
- Wall and ceiling mount brackets and hanging materials
- One reverse N type to reverse SMA adapter
- Installation guide
- Warranty/Support information card
Warranty: NETGEAR 2-year warranty
1 Range estimation is based on two wireless nodes each with an ANT24D18 antenna attached, associating with each other at 11 Mbps
under ideal line-of-sight conditions.
2 Gain: A ratio of decibels to an isotropic antenna that is commonly used to measure antenna coverage.
9 dBi Indoor/Outdoor Omni-directional
Antenna - ANT2409
Technical Specifications
Description: 9 dBi Omni-directional Antenna with reverse N female connector
Typical Application: Indoor/outdoor medium range point-to-multipoint connections
Frequency Range: 2400 ~ 2485 MHz
Gain2:9 dBi
Polarization: Vertical
Operating Temperature: -30 to 80º C (-22 to 176º F)
Weight: .9 kg/2 lbs.
Package Contents: - Indoor/Outdoor 9 dBi Omni-directional Antenna ANT2409
- Lightning Arrestor
- 2 meter low loss antenna cable (to connect antenna to the lightning arrestor)
- Wall and pole mounting brackets and hanging materials
- One reverse N/SMA Adapter
- Installation guide
- Warranty/Support information card
Warranty: NETGEAR 2-year warrranty
5 dBi Omni-directional Antenna - ANT24O5
Technical Specifications
Description: 5 dBi Omni-directional Antenna
Maximum Outdoor Range3:790m (863.95 yds)
Frequency Range: 2400 to 2500 MHz
Gain: 5 dBi
Polarization: Vertical
Beam Width: Horizontal 120°
Vertical 110°
Operating Temperature: -20 to 65° C (-4 to 149° F)
Storage Temperature: -30 to 80° C (-22 to 176° F)
Dimensions: 99.2 x 53.9 x 27.5 mm (3.91 x 21.2 x 1.08 in.)
Weight: 55 g/.12 lb.
Package Contents: - Indoor 5 dBi Omni-directional Antenna ANT24O5
(cable required, sold separately)
- Ceiling/wall mount bracket
- Installation guide
- Warranty/Support information card
Warranty: NETGEAR 2-year warranty
3 Range estimation is based on two wireless nodes, each with an ANT24O5 antenna attached, associating with each other at 11 Mbps under ideal
line-of-sight conditions.
NETGEAR Antenna Cables
Technical Specifications
Description: NETGEAR low-loss cables with 2 Reverse SMA Connectors extend the
length between NETGEAR wireless access points or routers and the
external antenna without sacrificing range.
Part Number: ACC-10314-01 ACC-10314-02 ACC-10314-03 ACC-10314-04
Cable Length: 1.5 m 3 m 5 m 10 m
(4.9 ft) (9.8 ft) (16.4 ft) (32.8 ft)
Maximum Cable Loss with Connectors: 1.4 dB 2.4 dB 3.7 dB 7.0 dB
Weight: 50 g 145 g 225 g 440 g
(1.76 oz) (5.12 oz) (7.94 oz) (15.53 oz)
Attenuation: 0.21 dB/ft maximum or .659 dB/m maximum at 2.5 GHz
Operating Temperature: -40 to 75° C (-40 to 167° F)
Minimum Bend Radius: 26 mm (1 in)
Package Size: 450 x 280 x .12 mm (17.72 x 11.02 x .004 in)
Warranty: NETGEAR 2-year warranty
4500 Great America Parkway
Santa Clara, CA 95054 USA
Phone: 1-888-NETGEAR (638-4327)
E-mail: [email protected]
www.NETGEAR.com
©2004 NETGEAR, Inc. NETGEAR®, the Netgear Logo,
ProSafe, Everybody’s connecting and Auto Uplink are
trademarks or registered trademarks of Netgear, Inc. in
the United States and/or other countries. Other brand
and product names are trademarks or registered
trademarks of their respective holders. Information is
subject to change without notice.
All rights reserved.
4/2004
D-Antennas-5
NETGEAR 500 mW Power Booster - ANT24BNA
Only sold as part of bundle ME103BDL1NA
Technical Specifications
Description: Bi-directional Power Booster for 802.11b with 2 Female
Reverse SMA Connectors for NETGEAR ME103 802.11b
ProSafe Wireless Access Point
Frequency Range: 2400 to 2500 MHz
Operating Mode: TDD (burst mode)
DC Surge Protection: 600 watts TVS @ 6 VDC
Current Drain (TDD Mode): 700 mA typ. @ 6 VDC
Transmit Power: 26.5 dBm minimum
Transmit Input Power: + 5 dBm minimum
Transmit Ramp Up time: 3 µs maximum
Receiver Gain: 10 dB typical
Receiver Frequency Response: ±1 dB over operating range
Receiver Noise Figure: 5 dB maximum
Receiver Ramp Down Time: 3 µs maximum
RF Connector Insertion Loss: 0.2 dB
RF Connector Recommended
Coupling Nut Torque: .45 to .99 Nm (4.0 to 8.8 in. lbs.)
RF Connector Coupling Nut Retention Force: 22.68 kg (50 lbs.) minimum
RF Connector Contact Captivation Axial: 2.27 kg (5 lbs.) minimum
RF Connector Body: Brass per JIS H3250 C3604 BD, gold plated per MIL-G-45204
RF Connector Contact: Beryllium Copper per QQ-C-530, gold plated per MIL-G-45204
Operating Temperature: 0 to 70° C (32 to 158° F)
Storage Temperature: -30 to 80° C (-22 to 176° F)
Dimensions: 99.2 x 53.9 x 27.5 mm (3.91 x 21.2 x 1.08 in)
Weight: 510 g/1.13 lbs.
Package Contents: - Indoor 500 mW Power Booster ANT24BNA
- Ceiling/wall mount bracket and hanging materials
- Power Supply
- Installation guide
- Warranty/Support information card
Warranty: NETGEAR 1-year warranty
NETGEAR Power Injector - ANT24BDC
Technical Specifications
Description: Power Injector for NETGEAR ANT24BNA Power Booster
with 2 Female Reverse SMA Connectors
Frequency Range: 2400 to 2500 MHz
PTC Fuse: 2.5 A / 30 V
Insertion Loss4: 1.5 dB max. @2.4 to 2.5 GHz
Short Circuit Protect: PTC Fuse 2.5 A / 30 V
DC Supply Voltage: DC, 5 V / to 12 V
Maximum Voltage: 750 VRMS max.
Coupling Nut Torque: .45 to .99 Nm (4.0 to 8.8 in. lbs.)
Operating Temperature: 0 to 70° C (32 to 158° F)
Storage Temperature: -10 to 80° C (14 to 176° F)
Humidity: 10% to 90%
Dimensions: 88.2 x 58.9 x 33.4 mm (3.48 x 3.32 x 1.32 in)
Weight: 220 g (7.76 oz)
Electromagnetic Compliance: FCC Part 15 Class B
Package Contents: - Indoor Power DC Injector ANT24BDC
- Installation guide
- Warranty/Support information card
Warranty: NETGEAR 1-year warranty
4Insertion loss: Attenuation
Please check the NETGEAR web site at
http://www.NETGEAR.com/go/antennas_fcc
for an updated list of approved antenna and
wireless device combinations.
Autres manuels pour ProSafe ANT2409
1
Ce manuel convient aux modèles suivants
4
Autres manuels NETGEAR Matériel réseau
NETGEAR
NETGEAR AX742 - ProSafe 24 Gigabit Stacking Manuel utilisateur
NETGEAR
NETGEAR RN12P0610 - ReadyNAS 3200 Manuel utilisateur
NETGEAR
NETGEAR EX6150 AC1200 Manuel utilisateur
NETGEAR
NETGEAR ND508 - Network Drive - 8 GB Manuel utilisateur
NETGEAR
NETGEAR RND4475 - ReadyNAS NV+ NAS Server Instructions de montage
NETGEAR
NETGEAR Orbi Pro WiFi 6 Mini router Manuel utilisateur
NETGEAR
NETGEAR SSL312-100NAS - ProSafe SSL312 SSL VPN Concentrator... Manuel utilisateur
NETGEAR
NETGEAR ReadyNAS 2120 Manuel utilisateur
NETGEAR
NETGEAR UTM5 - ProSecure Unified Threat Management... Manuel utilisateur
NETGEAR
NETGEAR ProSafe UTM9S Guide de configuration rapide
NETGEAR
NETGEAR Powerline 100 Manuel utilisateur
NETGEAR
NETGEAR FB 104 Manuel utilisateur
NETGEAR
NETGEAR ANT24BDC - Power Injector For The 500 mW... Manuel utilisateur
NETGEAR
NETGEAR RND2175 - ReadyNAS Duo NAS Server Manuel utilisateur
NETGEAR
NETGEAR UTM5 - ProSecure Unified Threat Management... Manuel utilisateur
NETGEAR
NETGEAR STM150 - ProSecure Web And Email Threat Management... Manuel utilisateur
NETGEAR
NETGEAR ProSafe UTM9S Manuel utilisateur
NETGEAR
NETGEAR RNDP600E - ReadyNAS Pro Pioneer Edition NAS... Manuel utilisateur
NETGEAR
NETGEAR ANT24BNA Manuel utilisateur
NETGEAR
NETGEAR ProSafe UTM9S Manuel utilisateur
Manuels Matériel réseau populaires d'autres marques
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manuel utilisateur
Yudor
Yudor YDS-16 Manuel utilisateur
D-Link
D-Link ShareCenter DNS-320L Manuel utilisateur
Samsung
Samsung ES1642dc Instructions d'utilisation
Honeywell Home
Honeywell Home LTEM-PV Instructions de montage
