Quick Start

NETGEAR LTE Modem 2120

LB2120-100AUS, LB2120-100EUS, LB2120-100NAS

3. Provide power to the modem.

a. Connect the power adapter to the modem and plug it

into an electrical outlet.

b. Press the power On/O button on the modem.

c. Wait for the Power LED to light green, which might

take several minutes.

4. Connect the modem to a router or directly to a computer.

To connect the modem to a router, do the following:

a. Connect one end of an Ethernet cable (not provided) to

the yellow Gigabit Ethernet LAN port on the modem.

b. Connect the other end of the Ethernet cable to the

Internet or WAN port on the router.

c. Use another Ethernet cable (not provided) to connect

your computer to a LAN port on the router.

To connect the modem directly to a computer, do the

following:

a. Connect one end of an Ethernet cable (not provided)

to the yellow Gigabit Ethernet LAN port on the

modem.

b. Connect the other end of the Ethernet cable to an

Ethernet port on your computer.

The modem is ready for operation.

Manage Your LTE Modem

¾To access your LTE modem:

1. Launch a web browser from a device that is connected

to the modem.

2. In the address ﬁeld of the web browser, enter

http://192.168.5.1.

3. In the Sign In ﬁeld, enter the default password, and click

the Sign In button. See the modem label for the default

password.

While the password that you enter is unique to your

modem and is secure, we recommend that you change it

to a password that you want to use.

Install Your LTE Modem

1. Install the micro SIM card.

Note: To obtain an activated micro SIM (3FF format) card,

contact your mobile broadband service provider. If you use a

nano SIM (4FF format) card, you must use an adapter.

a. Ensure that power to the modem is o.

b. Remove the SIM card cover on the bottom of the

modem.

c. Unlock the SIM card door.

d. Carefully slide the micro SIM card into the slot.

e. Lock the SIM card door, and close the SIM card cover.

2. Connect the modem to a wireline broadband modem.

a. Connect one end of the Ethernet cable that came in

the package to the blue WAN Gigabit Ethernet port on

the modem.

b. Connect the other end of the Ethernet cable to a

wireline broadband modem, such as a DSL, cable,

or ﬁber optics modem, that provides an Internet

connection.

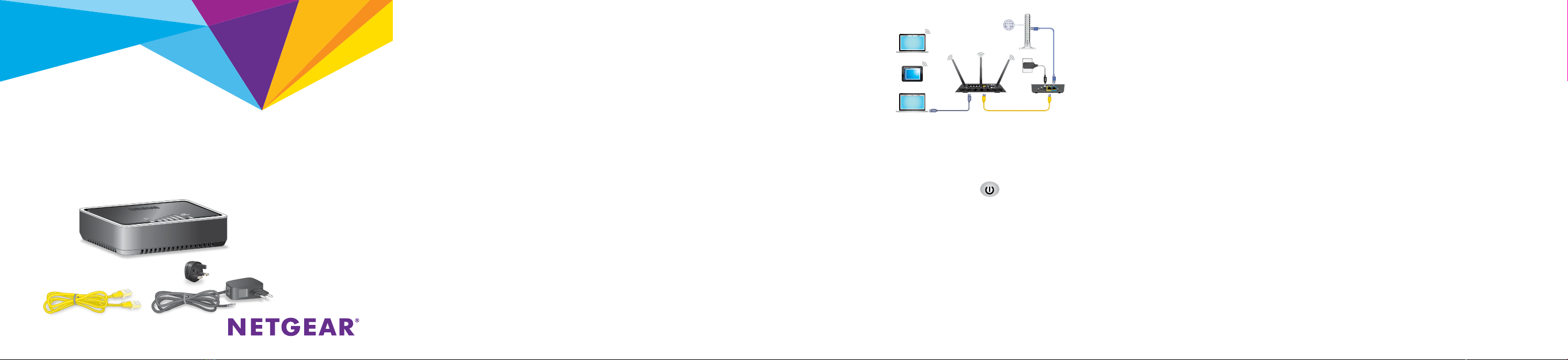

Package Contents

Note: The power adapter is localized

to the country of sale. For some

countries, a converter is included.

LB2120

Wireline Broadband

Modem

Router

NETGEAR INTL LTD

Building 3, University Technology Centre

Curraheen Road, Cork, Ireland

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134, USA

are trademarks of NETGEAR, Inc. Any non‑NETGEAR

trademarks are used for reference purposes only.

December 2016

By default, when the modem powers up with a SIM card installed, it

automatically searches for and connects to your mobile service provider’s

mobile broadband network. This process might take several minutes. The

SIM card that is installed determines the mobile broadband network to

which the modem connects.

However, if the modem does not automatically connect to the mobile

broadband network, the Power LED remains solid amber, and you must

contact your mobile service provider to get the access point name (APN)

proﬁle information and add and activate a custom APN proﬁle in the

modem (see Add and Activate a Custom APN Proﬁle).

Status LEDs

If the modem does not recognize the settings of the installed SIM, contact

your mobile service provider to get information about the APN proﬁle that

you must use. Use the information that your mobile service provider gives

you to conﬁgure a custom APN proﬁle.

¾To add and activate a custom APN proﬁle for a mobile

service provider’s mobile broadband network:

1. Launch a web browser from a device that is connected to the modem.

2. In the address ﬁeld of the web browser, enter http://192.168.5.1.

The limited Dashboard page displays.

3. To access the full Dashboard page and other pages, in the Sign In

ﬁeld, enter the default password, and click the Sign In button.

See the modem label for the default password.

4. Select Settings > Network > APN.

The APN page displays.

5. Click the Add button.

The New APN pop-up window opens.

6. Enter the settings for the new APN proﬁle.

Use the information that your mobile service provider gave you. If

your mobile service provider did not specify some settings, leave the

default settings.

7. Click the Save button.

The new APN proﬁle displays on the page but is not yet the active

proﬁle.

8. Select the radio button next to the APN proﬁle that you just added.

The modem now uses the selected APN proﬁle to establish a

connection with the mobile broadband network of the mobile service

provider.

If you still cannot get an Internet connection, contact your mobile

service provider to verify the information for the APN proﬁle.

Thank you for purchasing this NETGEAR product. You can visit

www.netgear.com/support to register your product, get help, access

the latest downloads and user manuals, and join our community. We

recommend that you use only ocial NETGEAR support resources.

For the current EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

For regulatory compliance information, visit

http://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power

supply.

You can get the user manual online at http://downloadcenter.netgear.com

or through a link in the modem’s web pages.

Power LED

LAN LED

Signal Strength LEDs

(mobile broadband)

Mobile Broadband Internet Connection Add and Activate a Custom APN Proﬁle Support

For more information

about the LEDs, see

the user manual.
