NETGEAR WG511T Manuel utilisateur

These basic setup instructions assume that you will connect to an

access point, and you are not using WEP security. Please refer to the

online help and the Reference Manual on your CD for instructions

on configuring WEP, Ad-hoc mode, or advanced options.

Estimated Completion Time: 5-15 minutes for each notebook PC.

WINDOWS XP BASIC INSTALLATION

1. First, install the WG511T software.

a. Power on your notebook, let the operating system boot up

completely, and log in as needed.

b. Insert the Resource CD for the WG511T into your CD-

ROM drive. The CD main page shown below will load.

c. Click the Install Driver & Utility link.

d. Follow the InstallShield Wizard steps, and click Finish

when done to restart your computer.

2. NEXT, INSTALL THE WG511T WIRELESS PC CARD.

a. Hold the PC Card with the Netgear logo facing up and insert

it into a CardBus slot. After a short delay, the Found New

Hardware Wizard displays.

b. Next you will be prompted to enable the NETGEAR Smart

Wireless Settings Utility configuration utility.

Click Ye s to accept this option.

If you choose No, you must read the Windows XP

documentation for an explanation of how to use the

Windows XP wireless network configuration utility

You will also be prompted to choose the country you are

located in. Select your location from the list.

c. Click Finish to complete the installation. You

will see the WG511T system tray icon on the

lower right portion of the Windows task bar.

3. NOW, CONFIGURE YOUR WG511T AND SAVE THE PROFILE.

a. Click the icon in the Windows system tray to open the

WG511T Smart Wireless Settings Utility.

The utility opens to the Settings tab page.

b. Change the Network Name SSID to match your network.

Tip: To view the available wireless networks, use the drop-

down list or the Networks tab and choose the one you want.

c. Click Apply to activate the connection.

Tip: Create work and home profiles. Then, activate

whichever one you need for your current location.

Note: The status bar at the bottom of the utility reports the speed

of your connection. 108 Mbps speed is only possible when your

wireless network has a 108 Mbps access point such as in the

Netgear WGT624 108 Mbps Wireless Firewall Router.

4. FINALLY, VERIFY WIRELESS NETWORK CONNECTIVITY.

a. Verify that the status monitor information at the bottom of

the utility matches your wireless network

b. Check the WG511T LEDs: both blinking alternately means

attempting to connect; both blinking together indicates a

good connection (fast blinking means data transmission);

off means the card is not plugged in.

c. Verify connectivity to the Internet or network resources.

Note: If you are unable to connect, see troubleshooting tips in

the Basic Installation section of the Reference Manual on the

NETGEAR 108 Mbps Wireless PC Card WG511T Resource CD

(SW-10036-01).

108 Mbps Wireless PC Card 32-bit CardBus WG511T

Quick Installation Guide

Follow these quick steps to install your WG511T

Note: If a Windows XP

logo testing warning

appears, click Continue

Anyway to proceed.

WINDOWS 2000, ME/98 BASIC INSTALLATION

1. FIRST, INSTALL THE WG511T SOFTWARE.

a. Power on your notebook, let the operating system boot up

completely, and log in as needed.

b. Insert the Resource CD for the WG511T into your CD-

ROM drive. The CD main page shown below will load.

c. Click the Install Driver & Utility link.

d. Follow the InstallShield Wizard steps, click Finish when

done, and if prompted, restart your computer.

2. NEXT, INSTALL THE WG511T WIRELESS PC CARD.

a. Hold the PC Card with the Netgear logo facing up and insert

it into a CardBus slot. After a short delay, the Found New

Hardware Wizard displays.

b. Follow the Found New Hardware Wizard steps, click Finish

when done, and if prompted, restart your computer.

c. Next, you will be prompted to choose the country where

you are located. Select your location from the list.

You will now see the WG511T system tray icon

in the lower right area of the Windows task bar.

3. NOW, CONFIGURE YOUR WG511T AND SAVE THE PROFILE.

a. Open the WG511T Smart Wireless Settings Utility by

clicking on the icon in the Windows system tray.

The utility opens to the Settings tab page.

b. Change the Network Name SSID to match your network.

Tip: To view the available wireless networks, use the drop-

down list or the Networks tab and choose the one you want.

c. Click Apply to activate the connection.

Tip: Create work and home profiles. Then, activate

whichever one you need for your current location.

Note: The status bar at the bottom of the utility reports the speed

of your connection. 108 Mbps speed is only possible when your

wireless network has a 108 Mbps access point such as in the

Netgear WGT624 108 Mbps Wireless Firewall Router.

4. FINALLY, VERIFY WIRELESS NETWORK CONNECTIVITY.

a. Verify that the status monitor information at the bottom of

the utility matches your wireless network

b. Check the WG511T LEDs: both blinking alternately means

attempting to connect; both blinking together indicates a

good connection (fast blinking means data transmission);

off means the card is not plugged in.

c. Verify connectivity to the Internet or network resources.

Note: If you are unable to connect, see troubleshooting tips in

the Basic Installation section of the Reference Manual on the

NETGEAR 108 Mbps Wireless PC Card WG511T Resource CD

(SW-10036-01).

Technical Support

PLEASE REFER TO THE SUPPORT INFORMATION CARD THAT SHIPPED

WITH YOUR PRODUCT.

By registering your product at www.NETGEAR.com/register, we can provide you

with timely expert technical support.

NETGEAR, INC. Support Information

Phone: 1-888-NETGEAR (For US & Canada only) - 24 x7 phone support. See

Support Information card for other countries.

E-mail: [email protected] - 24 x 7 online support.

NETGEAR, the Netgear logo, The Gear Guy and Everybody's Con-

necting are trademarks or registered trademarks of Netgear, Inc. in

the United States and/or other countries. Microsoft and Windows are

registered trademarks of Microsoft Corporation in the United States

and/or other countries. Other brand and product names are trade-

marks or registered trademarks of their respective holders. Informa-

Note: If Windows 2000

displays a Digital

Signature Not Found

warning, click Ye s to

continue the installation.

Attention: This device may be used throughput the

European Community, except restrictions apply in

some regions of France. Please see the Reference

Manual on the NETGEAR 108 Mbps Wireless PC Card WG511T Resource CD

(SW-10036-01) for details.

Autres manuels pour WG511T

Table des matières

Autres manuels NETGEAR Matériel informatique

NETGEAR

NETGEAR WG511NA - Wireless G Pc Card Manuel utilisateur

NETGEAR

NETGEAR MA101 MA101 MA101 Manuel utilisateur

NETGEAR

NETGEAR WG511U - Double 108Mbps Wireless A+G PC Card Manuel utilisateur

NETGEAR

NETGEAR MA401 - 802.11b Wireless PC Card Manuel utilisateur

NETGEAR

NETGEAR WG511T Manuel utilisateur

NETGEAR

NETGEAR WG511v2 Manuel utilisateur

NETGEAR

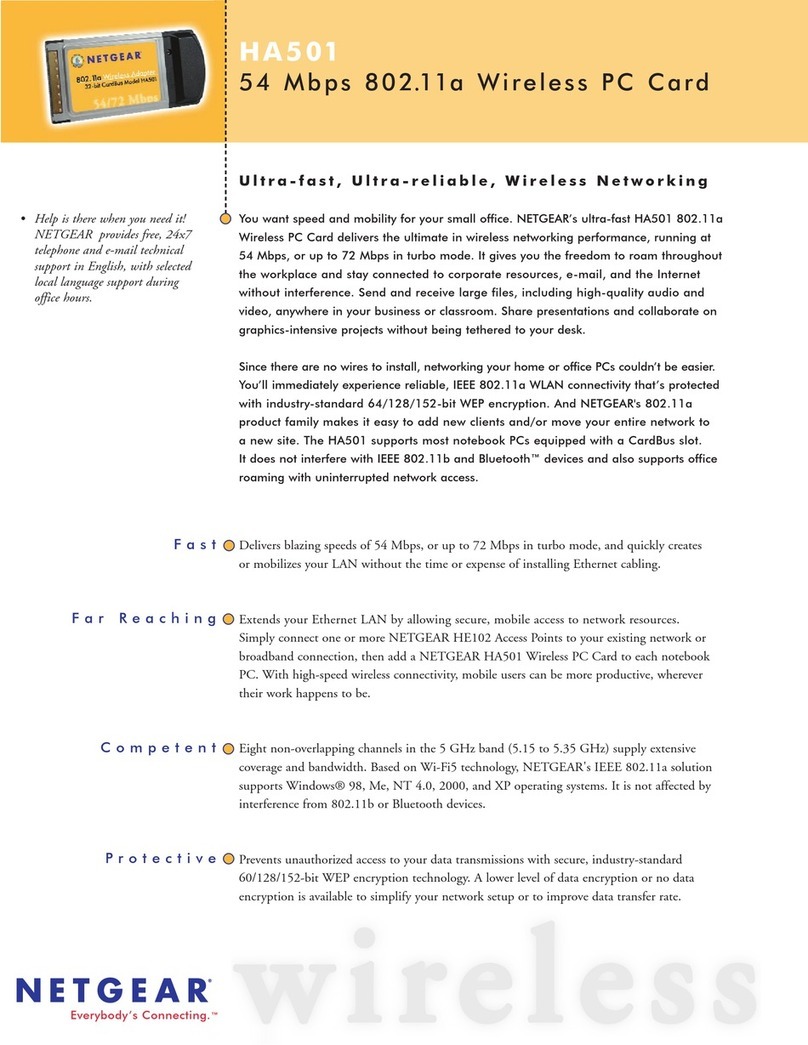

NETGEAR HA501 - 802.11a Wireless 32-Bit Card Bus... Manuel utilisateur
