Table of Contents
Preface................................................................................................ i, ii, iii, iv, v
Chapter 1 System Requirements
Operating Environment ....................................................................................1
VT100 Terminal Settings ..................................................................................1
Chapter 2 Basic Configuration
Unpacking .............................................................................................................2
Components ..........................................................................................................3
NR6-8 ......Front Panel .....................................................................................3
Disk Tray ..........................................................................................................4
NR6-8 ..... Rear View .......................................................................................5
Installing Disks .............................................................................................. 6, 7, 8
Making Connections ........................................................................................... 9
Connecting the Host Interface ........................................................................ 9
Connecting PCIe cable to the server .............................................................. 10
Connecting and Turning on the Power ........................................................... 11
Chapter 3 Maintenance
Replacing a Disk ................................................................................................. 12
Replacing a Power Supply ......................................................................13, 14, 15
Upgrading Memory ............................................................................................. 16
Replacing a FAN module .................................................................................... 17
Appendix
Hardware Specifications .............................................................................. 18, 19
i
www.netcomusa.com
Preface
About this Manual
This manual is designed to make the NR6-8 disk array system as easy to use as
possible. Information contained in this document has been checked for accuracy.
Information and specifications are subject to change without notice.
Copyright Notice
©Copyright 2008 Netcom USA, Inc.
All rights reserved. This disk array system and related documentation are protected by
copyright and are distributed under licenses restricting their use, copying, and distribu-
tion. No part of this documentation may be reproduced in any form by any means with-
out prior written authorization of Netcom USA, Inc. and its licensors, if any.
Conventions
Caution
This symbol is used to remind users to pay attention to important
descriptions regarding usage, maintenance, repair or additional
important information related to this disk array system.
Note
This symbol is used to remind users of useful information that can make
procedures such as configuration easier to accomplish.
ii
www.netcomusa.com
NR6-8 Serial ATA II Disk Array Systems
Important Safety Instructions, Care and Handling
Preface – Important Safety Instructions, Careand Handling
V
Before starting, take a few minutes to read this manual.
Read all of these instructions and save this manual for
later reference.
Protect the disk array system from extremely high or low
temperatures. Let the disk array system warm (or cool)
to room temperature before using it.
Protect the disk array system from being bumped or
dropped. Do not place the disk array system on an
unstable cart, stand, or table. It may fall, causing serious
damage to the product.
Keep the disk array system away from magnetic forces.
Do not use the disk array system near water.
Keep the disk array system away from dust, sand, or dirt.
Gaps and openings in the cabinet are provided for venti-
lation. Never block or cover these openings, because
the disk array system may overheat and become unreli-
able. Don’t place the disk array system on a bed, sofa,
rug, or other similar surfaces.
Do not place the disk array system near or over a radia-
tor or other heat sources.
Refer to the rating plate for the correct voltage and
ensure that the appliance voltage corresponds to the
supply voltage.
iii
www.netcomusa.com
Fan1
Power1
o???GGw???
GGY
NR6-8 Serial ATA II Disk Array Systems
The appliance must be grounded. The disk array system
is equipped with a 3-wire grounded type of power cord.
This power cord will only fit into a grounded type of
power outlet.
If an extension cord or a power center is used with the
disk array system, make sure that the total current con-
sumption of all products plugged into the wall outlet
does not exceed the amperage rating.
Do not place the disk array system where the cord will
be walked on.
Never push any kind of object into the disk array system
through cabinet gaps and openings, since they may
touch dangerous voltage points and cause a risk of fire
or electric shock.
Unplug the power cord from the wall outlet before clean-
ing. Keep the disk array system dry. Do not use liquid
cleaners, aerosol cleaners, or a wet cloth. Use a damp
cloth for cleaning.
Except as specifically explained in this User Manual, do
not attempt to service the disk array system by yourself.
Opening or removing the covers may expose you to
dangerous voltages.
Unplug this product from the wall outlet and refer servic-
ing to qualified service personnel under the following
conditions.
• If the disk array system has been exposed to
water or any liquid.
• If the disk array system has been dropped or the
cabinet damaged.
Users should not remove the cover.
Disconnect all power supply cords before servicing.
Preface – Important Safety Instructions, Careand Handling
iv
www.netcomusa.com
NR6-8 Serial ATA II Disk Array Systems
Preface – Important Safety Instructions, Careand Handling
Placement Notes
• The disk array system LCD panel can be damaged by exposure to
direct sunlight. Limit exposure to subdued or indirect sunlight.
• The disk array system should be used only in clean environments
that are free from airborne contaminants such as dust, dirt, and
smoke. Excessive moisture or oil particles in the air can also hinder
disk array system performance.
• To reduce the possibility of data errors caused by electromagnetic
interference, locate the disk array system at least five feet away
from electrical appliances and equipment that generates magnetic
fields.
Power Supply Safety Notes
• To avoid electric shocks, do not use an extended power cord or an
outlet that does not match the disk array system plug or leaves the
plug exposed.
• The disk array system has a 3-wire grounded plug. The third pin
connects to ground; do not remove it.
• If the power cord or plug is damaged or worn, unplug it immediately
and contact a qualified service technician for maintenance.
• To avoid fire or electric shocks, do not overload electric power out-
lets.
CAUTION : MULTIPLE POWER SOURCES
Disconnect all AC power cords to completely turn power off from the unit.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
CAUTION
Thumbscrews on the rear surface shall be secured by a screwdriver,
screws cannot be loosened by bare hands to prevent unintentional access
to the hazardous parts inside the equipment.
v
www.netcomusa.com
1 System Requirements
Ensure that the following requirements are met before installing the disk array system.
Operating Environment
• 15 cm (6-inches) of space around the NR6-8 for proper ventilation
• ambient temperature of 5°C to 40°C (40°F to 104°F)
• ambient non-condensing relative humidity of 10% to 85%
• dust, smoke, and oil free environment
• no large magnetic fields, such as those generated by a high voltage power cables
and motors, etc.
• no direct sunlight
• a flat, stable surface capable of supporting the NR6-8
VT100 Terminal Settings
Refer to the following table for a summary of VT100 terminal settings required to com-
municate with the NR6-8. Refer to your system manual for instructions on setting up the
VT100 terminal settings.
Item Required Setting
Connection Serial Port (COM1 or COM2)
Protocol RS232 (Asynchronous)
Cabling Null Modem cable
Baud Rate 115200
Data Bits 8
Stop Bit 1
Parity None
1
www.netcomusa.com
Hardware User Manual
SA-4378S
PCI-e to Serial ATA II
DiskArraySystem
2 Basic Configuration
This chapter describes the NR6-8 connections and disk installation.
Unpacking
Contact your supplier if any of the following items are missing or damaged.
Caution
The NR6-8 is heavy. Be careful when lifting and moving it.
Disk Array System Disk Tray Keys PCIe cable
User Manual
Power Cables Controller Card
RS-232 Cable Fix Screw pack M5 Screw pack
Fix Screw Fix Screw pack
Rails (optional) pack M4 UNC #10-32
2
www.netcomusa.com
NR6-8 Serial ATA II Disk Array Systems
2Basic Configuration – Components
Components

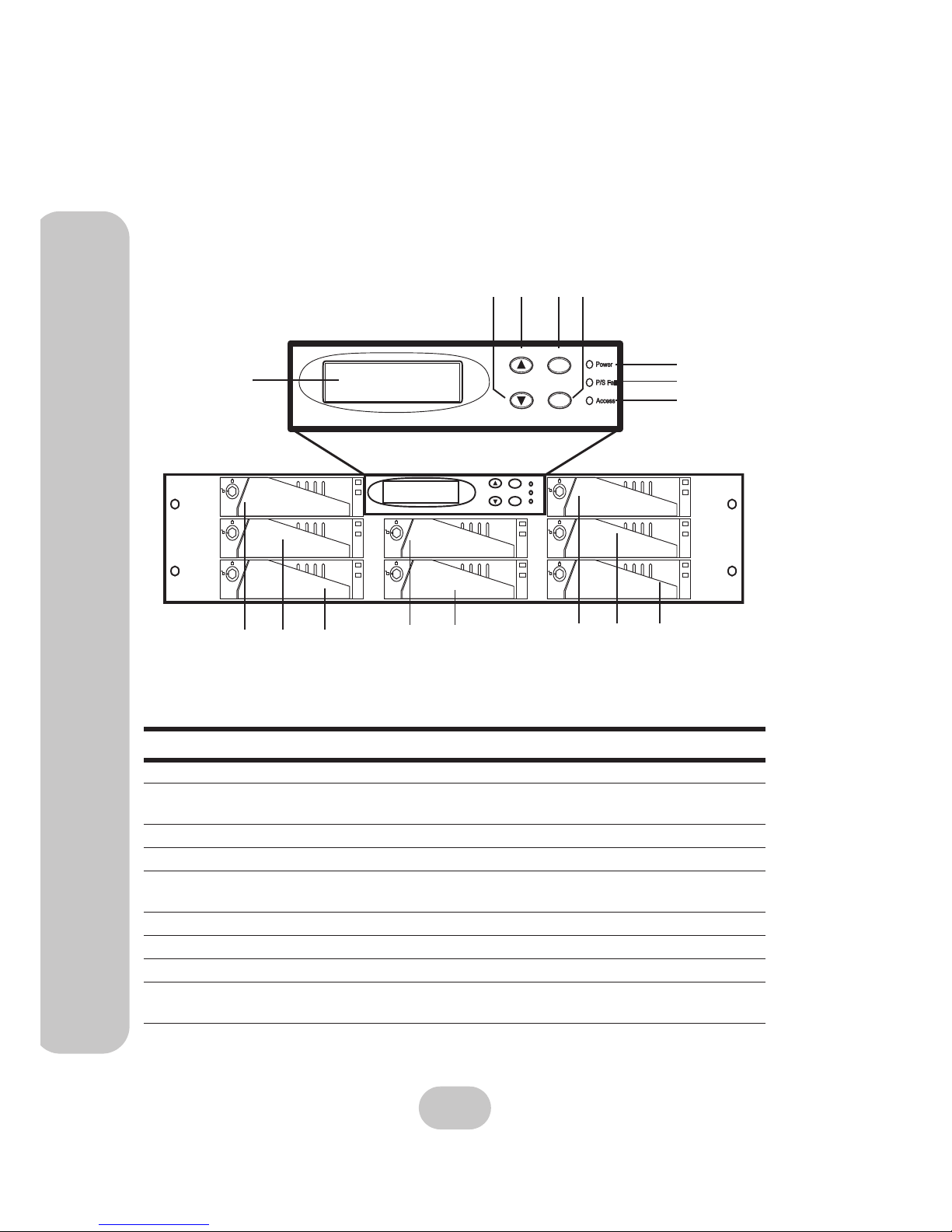

NR6-8 Front Panel
10 11 12 13
ESC
Enter
Power
P/S Fail
Access
ESC
Enter
14
15
16
9
123784 5 6
No. Name Description
1-8 Disk trays 1 to 8 Removable hot swap disk trays.
9LCD panel Displays warning, operating, and configuration
information.
10 Down function button Moves down in the LCD menus.
11 Up function button Moves up in the LCD menus.
12 Escape function button Returns to the previous LCD menu without making
changes.
13 Enter function button Selects a menu item or confirms a choice or entry.
14 Power-on indicator (green) Indicates the NR6-8 power is on.
15 Power supply fail indicator (red) Indicates a failed power supply.
16 Host computer access indicator Indicates data transfer between the NR6-8 and the
host computer.
3
www.netcomusa.com
