Quick Start Guide
3G M2M Router / Plus
NTC-6200 Series
| Wireless M2M
2
Quick start guide
This quick start guide is designed to get you up and running quickly with your new
NTC-6200 Series router. More advanced set up instructions can be found in the
user guide which can be downloaded from
www.netcommwireless.com/product/m2m/ntc-6200.
Package contents
This package includes
1. 1 x NetComm Wireless NTC-6200 Series router (NTC-6200-01 shown)
2. 1 x Six-way terminal block (NTC-6200-01, NTC-6200-02, NTC-6200-11 and NTC-6200-12 only)
3. 2 x 3G antennas
4. 1 x DIN rail mounting bracket
5. 1 x 1.5m Yellow Ethernet cable 8P8C
6. 1 x Two-way terminal block (NTC-6200-03 and NTC-6200-13 only)
7. 1 x Torx screw for SIM tray cover
8. 1 x SIM tray cover
9. 1 x Quick start guide (not shown)
| Wireless M2M
3
NTC-6200 Series - 3G M2M Router / Plus
2
6
7
5
1
34
8
| Wireless M2M
4
Device overview
NTC-6200-01, NTC-6200-02, NTC-6200-11 and NTC-6200-12 models
ITEM DESCRIPTION
1SIM card slot Insert SIM card here.
2Six-way terminal
block connector
Connect power source, ignition and I/O wires here. Power, ignition
and I/O wires may be terminated on the supplied terminal block and
connected to a power source. Refer to the diagram and table under
Step 5 of the Installing your device section for correct wiring of the
terminal block. Operates in the 8-40V DC range.
3Reset button Press and hold for less than 5 seconds to reboot to normal mode.
Press and hold for 5 to 15 seconds to reboot to recovery mode.
Press and hold for 15 to 20 seconds to reset the router to factory
default settings.
4RJ45 PoE
Ethernet port
Connect one or several devices via a network switch here. This
port can also optionally receive Power over Ethernet (802.3af PoE)
in which case the DC power supply can serve as a backup power
source if required. (PoE available on NTC-6200-01 and NTC-6200-
11 only).
5Aux antenna
socket
SMA female connector for auxiliary antenna (receive diversity).
6Mini USB 2.0
OTG port
Provides connectivity for optional external storage or a USB Ethernet
dongle. Supplies up to 0.5A to connected device.
7GPS antenna
socket
SMA female connector for GPS antenna.
8Serial port Female DB9 port supporting 9-wire RS-232, RS-485 or RS-422
(software selectable).
9Main antenna
socket
SMA female connector for main antenna.
| Wireless M2M
5
NTC-6200 Series - 3G M2M Router / Plus
+-i
I/O
1 2 3
l0l0lSERIAL
AUX GPS MAIN
USB
679
8
3
5
14
2
| Wireless M2M
6
Device overview
NTC-6200-03 and NTC-6200-13 models
ITEM DESCRIPTION
1SIM card slot Insert SIM card here.
2Two-way
terminal block
connector
Connect power source wires here. Power wires may be terminated
on the supplied terminal block and connected to a power source.
Refer to the diagram and table under Step 5 of the Installing your
device section for correct wiring of the terminal block.
Operates in the 8-40V DC range.
3Reset button Press and hold for less than 5 seconds to reboot to normal mode.
Press and hold for 5 to 15 seconds to reboot to recovery mode.
Press and hold for 15 to 20 seconds to reset the router to factory
default settings.
4RJ45 Ethernet
port
Connect one or several devices via a network switch here.
5Aux antenna
socket
SMA female connector for auxiliary antenna (receive diversity).
6Mini USB 2.0
OTG port
Provides connectivity for optional external storage or a USB Ethernet
dongle. Supplies up to 0.5A to connected device.
7Serial port Female DB9 port supporting 9-wire RS-232, RS-485 or RS-422
(software selectable).
8Main antenna
socket
SMA female connector for main antenna.
| Wireless M2M
7
NTC-6200 Series - 3G M2M Router / Plus
+-
l0l0lSERIAL
AUX MAIN
USB
68
7
3
5
14
2
| Wireless M2M
8
Getting started
Depending on your individual setup, you may need certain components to
congure your device correctly.
External power supply unit for the NTC-6200 Series router (not included).
Flathead screwdriver for terminating power input wires.
Notebook or PC for advanced conguration.
Additional fasteners and screwdrivers for specic wall/rail mounting.
Mounting options
The NetComm Wireless NTC-6200 Series router can be installed quickly and easily
in a variety of locations.
MOUNT TYPE DESCRIPTION BENEFITS
1Wall mount Flat against the wall Slimline form factor, close
to wall
2Wall mount via
DIN rail mounting
bracket
DIN Rail mounting bracket is secured to
the wall and the router is attached to the
mounting bracket.
Easy to remove
3DIN rail mount DIN Rail mounting bracket is slid or
snapped on to the DIN Rail and the router
is attached to the mounting bracket.
Simplicity, easy to
remove
4Pole mount via
DIN rail mounting
bracket
DIN Rail mounting bracket is secured to a
pole or other xed object using cable ties
and the router is attached to the mounting
bracket.
Easy to remove, exibility
of orientation, variety
of objects to which the
router may be mounted.
5Desk mount Stand on a desk Simplicity, versatility
| Wireless M2M
9
NTC-6200 Series - 3G M2M Router / Plus

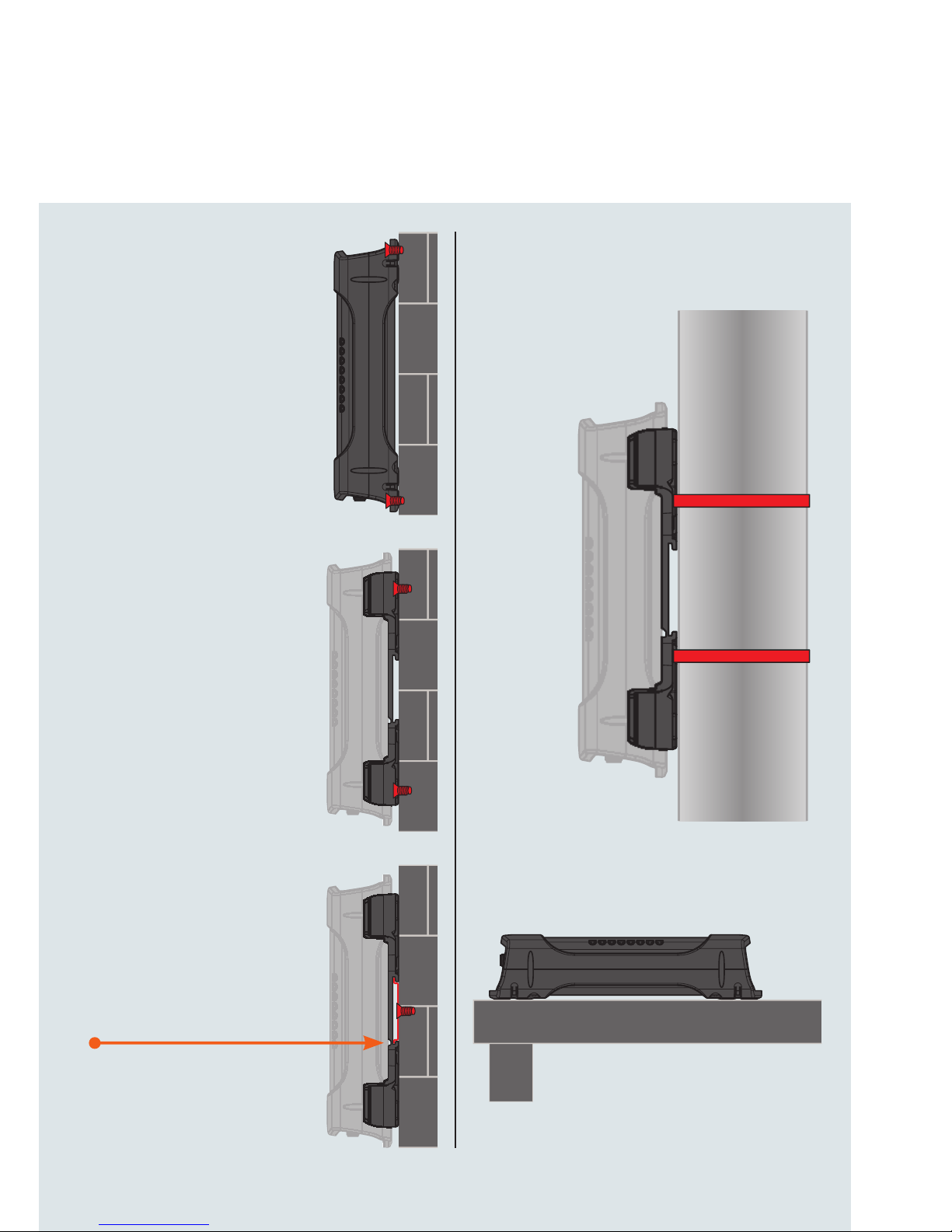

4. Pole mount using
DIN rail bracket
1. Wall mount
2. Wall mount via
DIN rail bracket
3. DIN rail mount
5. Desk mount
V Bend allows you to snap
the DIN bracket onto the
middle of a DIN rail rather
than sliding it onto the end.
| Wireless M2M
10
Overview of LED indicators
LED
ICON
NAME
COLOR
STATE DESCRIPTION
Power Off Power off
Double ash Powering up
On Power on
On Power on in recovery mode
Slow ashing Hardware error
Network On Connected via WWAN
Blinking1Trafc via WWAN
Slow ashing Connecting PDP
On Registered network
Slow ashing Registering network
Slow ashing SIM PIN locked
Fast ashing SIM PUK locked
On Can’t connect
GPS2/
Customizable
LED Indicator
Off GPS function disabled
Double ash GPS function is enabled but no
satellite is detected.
On Satellite detected, acquiring location.
On Satellite detected, location acquired.
Signal
strength
On 3G
On 2G GPRS
On GSM only (no GPRS)
1 The term “blinking” means that the LED may pulse, with the intervals that the LED is on and off
not being equal. The term “ashing” means that the LED turns on and off at equal intervals.
2 GPS not available on NTC-6200-03 and NTC-6200-13.
