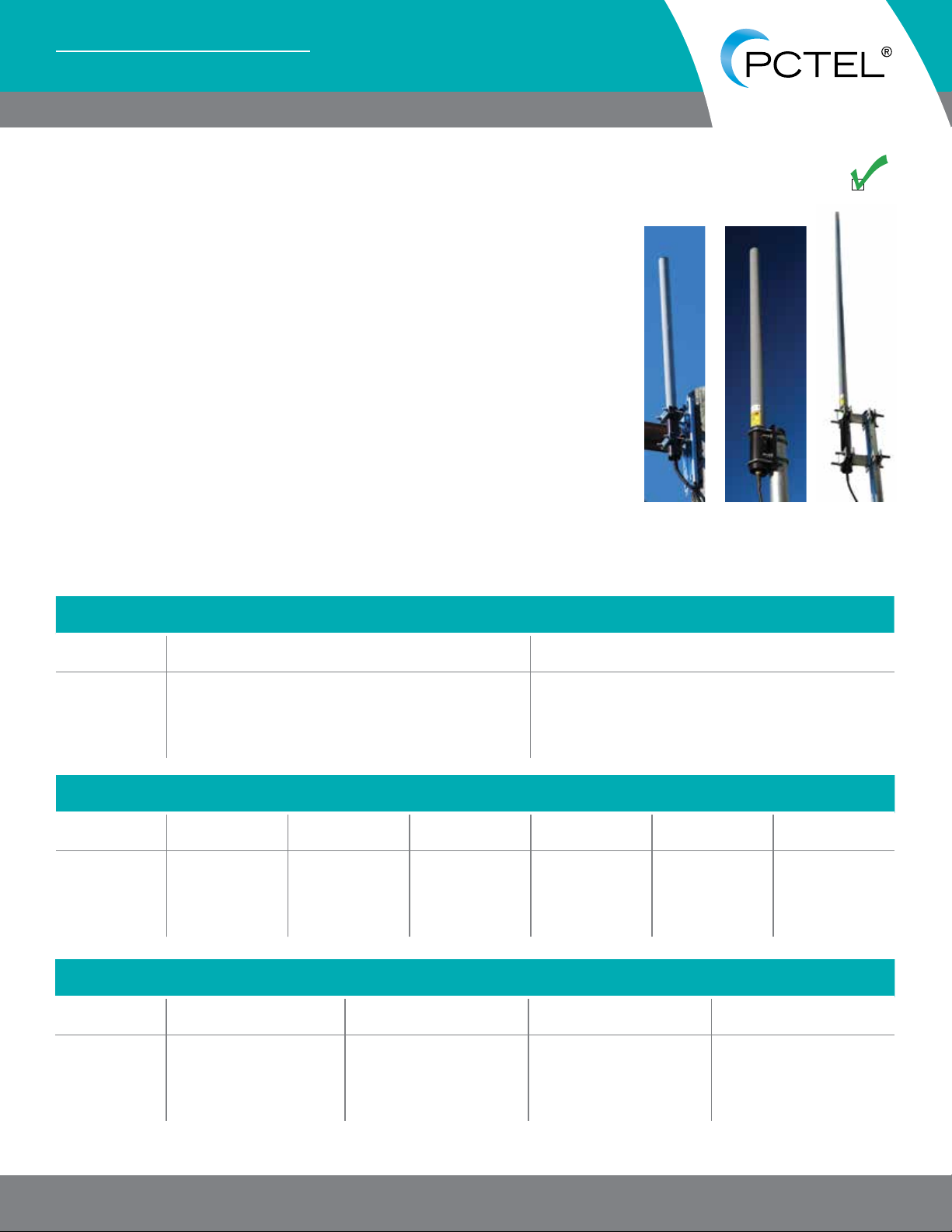

INFRASTRUCTURE ANTENNAS
PCTEL, Inc. WEB: www.antenna.com
The PCTEL BOA omnidirectional base station antennas consist of a linear array, encapsulated
in a heavy-duty berglass radome with a thick-walled 6061-T6 aluminum mounting base.
The rugged and robust design makes these antennas ideal for deployment in harsh
environments where long term reliability and durability cannot be compromised. This
platform is ideal for industrial wireless applications in the SCADA, Utility Smart Grid, Positive
Train Control, Remote Monitoring, Precision Agriculture, and Military/Defense markets.
Features
• UV-stable gray berglass radome
• Versatile mounting brackets included
• Black, hard coat anodized nish on antenna base and mounting brackets
• Galvanized mounting hardware
• Movable drain plug for upright or inverted mounting
• DC grounded for ESD protection
• Stable pattern and gain performance with no eld tuning required
• Temperature rang -40°C to +85°C
• Optional BAM1017 mount compatible with wooden, concrete, or composite utility poles
PCTEL Heavy-Duty Omnidirectional
Base Station Platform
BOA Series
Omnidirectional Carrier Grade Fiberglass Antennas - LMR & Cellular
ELECTRICAL SPECIFICATIONS - RF ANTENNA
Model Frequency Range Gain VSWR Elevation Half
Power Beamwidth Average Power Nominal
Impedance
BOA9025 902-928 MHz 5.1 dBi / 3 dBd < 1.5 25° 250 watts 50 ohms
BOA9028 902-928 MHz 8.1 dBi / 6 dBd < 1.5 13° 250 watts 50 ohms
BOA90211 902-928 MHz 11.1 dBi / 9 dBd < 1.5 6° 250 watts 50 ohms
BOA4409 440-460 MHz 9.1 dBi / 7 dBd <1.7 11° 250 watts 50 ohms
BOA4357 430-470MHz 7.1 dBi / 5 dBd <1.7 18° 250 watts 50 ohms
BOA9025 and
BAM1005
mount
BOA2175 and
MMK5 mount
BOA9025 and
BAM1017
mount
STANDARD CONFIGURATION
Model Connector Mount
BOA9025 N Female bulkhead BAM1005 mast mount included
BOA9028 N Female bulkhead BAM1005 mast mount included
BOA90211 N Female bulkhead MMK5 mast mount included
BOA4409 N Female bulkhead MMK5 mast mount included
BOA4357 N Female bulkhead BAM1005 mast mount included
MECHANICAL & ENVIRONMENTAL SPECIFICATIONS
Model Dimensions Weight Housing Material Rated Wind
BOA9025 2 OD x 55 in (5 x 139.7 cm) 5.0 lbs Fiberglass 125 mph
BOA9028 2 OD x 68 in (5 x 172.7 cm) 6.0 lbs Fiberglass 125 mph
BOA90211 2 OD x 122 in (5 x 309.9 cm 10.0 lbs Fiberglass 125 mph
BOA4409 2 OD x 151 in (5 x 383.5 cm) 12 lbs Fiberglass 125 mph
BOA4357 2 OD x 83 in (5 x 210.8 cm) 7.0 lbs Fiberglass 125 mph
RoHS
