This Operation manual relates to the vehicle tracker ADM500 GLONASS/GPS - LTE/GSM

(hereinafter referred to as tracker) and describes the procedure of its installation and connection as

well as its function and settings.

The Operation manual is designed for professionals who have familiarized themselves with the

rules of repair and installation works execution in vehicles and who have special professional

knowledge in electronic and electric equipment used on various transport means.

The tracker proper work can be guaranteed if it is installed and set by qualified professionals.

To use the tracker properly it is necessary to familiarize with the monitoring system work principles

in general and to understand the function of all its components. For this reason, it is strictly

recommended to get basic knowledge on GLONASS and GPS global navigation satellite systems

functioning, GSM network, issues related to data transmission by means of short message service

(SMS), GPRS and Internet.

Neomatica LLC. Vehicle tracker ADM500 GLONASS/GPS. Ver. 1.1 dtd 22.09.2023 5

1 Purpose and function

The tracker is intended for installation on a vehicle as an additional device that records the

location of the vehicle, its speed, and travel direction. View of the tracker is shown in Figure 1.

Additionally, the voltage level at the analogue inputs and data received from supported sensors

connected via radio channel Bluetooth Low Energy, RS-485 and 1-Wire interfaces. All events and

conditions fixed by the tracker are stored in its non-volatile memory.

The accumulated data is transmitted through the GSM or LTE Cat1 cellular network operator

using packet data transmission technology GPRS, EDGE, LTE-FDD to a dedicated server with a

static IP address or domain name from which it can be received via the Internet for further analysis

and processing in a monitoring center.

The tracker can be configured in any convenient way: locally (via Bluetooth or USB, using the

ADM Configurator (hereinafter referred to as Configurator) or remotely (by sending commands via

SMS or GPRS).

To ensure data security, when the external power is turned off and the GSM network is lost,

the tracker has a non-volatile memory. Data transmission is possible only if there is a GSM or LTE

cellular network supporting a packet data service GPRS, EDGE or LTE-FDD.

Figure 1 –View of the tracker

The vehicle travel route is described in the form of separate points in time. The route point is

saved when at least one event occurs, such as:

−travel direction changes by an angle which is greater than the pre-set one;

−the straight-ahead travel is performed at a distance, which is longer than the pre-set

one;

Neomatica LLC. Vehicle tracker ADM500 GLONASS/GPS. Ver. 1.1 dtd 22.09.2023 6

−the pre-set acceleration limit is broken;

−the time for putting the point while traveling (parking) is expired;

−device status change (description is given in Appendix А. Description of the bits of the

field STATUS);

−an event occurs at analogue input.

In this way, route points might be saved with the time interval from one second to several

minutes allowing for a quality routing, recording any changes without a surfeit of information saved

in the “black box” and increase in GPRS traffic.

After connection to the power supply, the tracker starts receiving data from GLONASS and/or

GPS satellites, locating itself, identifying time, speed, travel direction, and in case of GSM network

availability establishes connection with the server. After connection to the server, the tracker

transmits the data packets with the pre-set frequency or when an event occurs. If for any reason the

connection to the server fails, all the information will be saved in the tracker non-volatile memory

and transmitted as soon as the connection is restored. If there is no signal from GLONASS and/or

GPS satellites and there is GPRS connection the time is synchronized via NTP protocol with one of

the available public servers. The points will be recorded without data about location.

Data transmitted by the tracker:

−GMT date and time;

−coordinates (latitude, longitude, altitude);

−speed, acceleration and travel direction;

−number of satellites when fixing a navigation problem;

−precision loss factor in a horizontal plane;

−voltage values at analogue inputs

−data about events occurred;

−device status;

−data from the sensors connected via radio channel Bluetooth Low Energy;

−data from the sensors connected to RS-485 and 1-Wire.

Neomatica LLC. Vehicle tracker ADM500 GLONASS/GPS. Ver. 1.1 dtd 22.09.2023 7

2 Technical specifications

−GLONASS/GPS/BDS/Galileo/QZSS/SBAS receiver:

chipset: UC6228CI;

frequency bands: GLONASS –L1 (СT-code), GPS - L1 (С/А code), BDS – B1,

Galileo –E1, L1;

sensitivity in cold start/tracking, dBm: -147/-160;

positioning precision, 95% of time, not worse: 3 m.

cold start time: 28s. (at signal level not worse -130dBm);

hot start time: 1s. (at signal level not worse -130dBm);

number of tracking channels: 64;

−Connection standard: LTE/GSM/GPRS/EDGE;

−Category LTE: Cat1

−GSM(SA) Frequency band: 850/900/1800/1900MHz

−GSM(E) Frequency band: 900/1800MHz

−LTE(SA) Frequency band: LTE-FDD B1, LTE-FDD B2, LTE-FDD B3, LTE-FDD B4, LTE-FDD

B5, LTE-FDD B7, LTE-FDD B8, LTE-FDD B28, LTE-FDD B66

−LTE(E) Frequency band: LTE-FDD B1, LTE-FDD B3, LTE-FDD B5, LTE-FDD B7, LTE-FDD B8,

LTE-FDD B20;

−GSM transmitter power:

GSM/GPRS:

GSM850/EGSM900: 4 (2Вт)

DCS1800/PCS1900: 1 (1Вт)

EDGE:

GSM850/EGSM900: E2 (0,5Вт)

DCS1800/PCS1900: E1 (0,4Вт)

LTE: 3 (0,25Вт)

−Number of SIM-cards, form factor: 2, nano-SIM (4FF).

−Number of analogue inputs: 2.

−Analogue inputs features:

voltage measurement range: 0…58,8 V;

discreteness (sensitivity): 57,4 mV;

input resistance: 200 кOhm.

−Number of discrete outputs of “open collector”: 2.

−Characteristics of discrete output of “open collector” type”:

Neomatica LLC. Vehicle tracker ADM500 GLONASS/GPS. Ver. 1.1 dtd 22.09.2023 8

maximum voltage –42V;

maximum commutated current –100mA.

−Interface RS-485: 1.

−Interface 1-Wire: 1.

−Acceleration meter: digital, triaxial.

−Battery: Li-Pol 1000 мА/h 3.7V (3,7 W/h).

−Number of route records: up to 246000.

−PC connection interface: Bluetooth, USB.

−Connection interface with wireless sensors: Bluetooth Low Energy.

−Operation temperature:

with a battery: - 20...+60°С;

without a battery: - 40...+85°С.

−Power voltage: +9...+42 V of unregulated direct current.

−Current consumption (at the supply voltage 12 V):

maximum: 200 mА;

average: 30 mА.

−Dimensions: 128х61х22mm;

−Weight: 113 g.

Neomatica LLC. Vehicle tracker ADM500 GLONASS/GPS. Ver. 1.1 dtd 22.09.2023 9

3 Design

Functionally, the tracker consists of a combined GLONASS/

GPS/BDS/Galileo/QZSS/SBAS/GSM/LTE/Bluetooth module, non-volatile memory, analog

inputs, discrete input, discrete output, digital interface RS-485, digital interface 1-Wire,

accelerometer, LEDs.

The GLONASS/GPS/BDS/Galileo/QZSS/SBAS unit of the combined module is

designed to receive signals from the GLONASS/GPS/BDS/Galileo/QZSS/SBAS satellites and

determine the geographical coordinates of the receiver antenna (latitude, longitude and altitude),

as well as the exact time (GMT), speed and direction of travel.

GSM/LTE unit of the combined module performs the following functions:

−establishment and maintenance of outgoing TCP/IP connection (data reception and

transmission in GPRS, EDGE, LTE-FDD mode);

−reception and sending SMS messages.

For information transmission, the GSM/LTE unit of the combined module establishes and

maintains connection to the server, periodically transmitting information packets. The periods of

data transmission to the server during the parking and during the movement of the vehicle are

different and can be changed by user.

Bluetooth unit of the combined module provides connection to the PC, wireless

information exchange between the tracker and the ADM Configurator as well as data receipt

from wireless sensors.

To display the operating status, the tracker has got 2 LED indicators: green and blue.

The green LED indicates the status of the GLONASS/GPS/BDS/Galileo/QZSS/SBAS unit

of the combined module:

−flashes three times–the GLONASS/GPS/BDS/Galileo/QZSS/SBAS unit is on, but there

is no data from it;

−flashes twice –data from the GLONASS/GPS/BDS/Galileo/QZSS/SBAS unit received,

but the coordinates are invalid;

−flashes once –the GLONASS/GPS/BDS/Galileo/QZSS/SBAS unit has determined the

time and the valid coordinates.

The blue LED indicates the status of the GLONASS/GPS/BDS/Galileo/QZSS/SBAS unit

of the combined module:

Neomatica LLC. Vehicle tracker ADM500 GLONASS/GPS. Ver. 1.1 dtd 22.09.2023 10

−flashes three times - the GSM/LTE unit is disabled for re-initialization;

−flashes twice - the GSM/LTE unit is on, but there is no connection to the server;

−flashes once - the tracker has established connection to the server and successfully

transmits the information packets;

−constantly shines, briefly turning off - SIM card is not available.

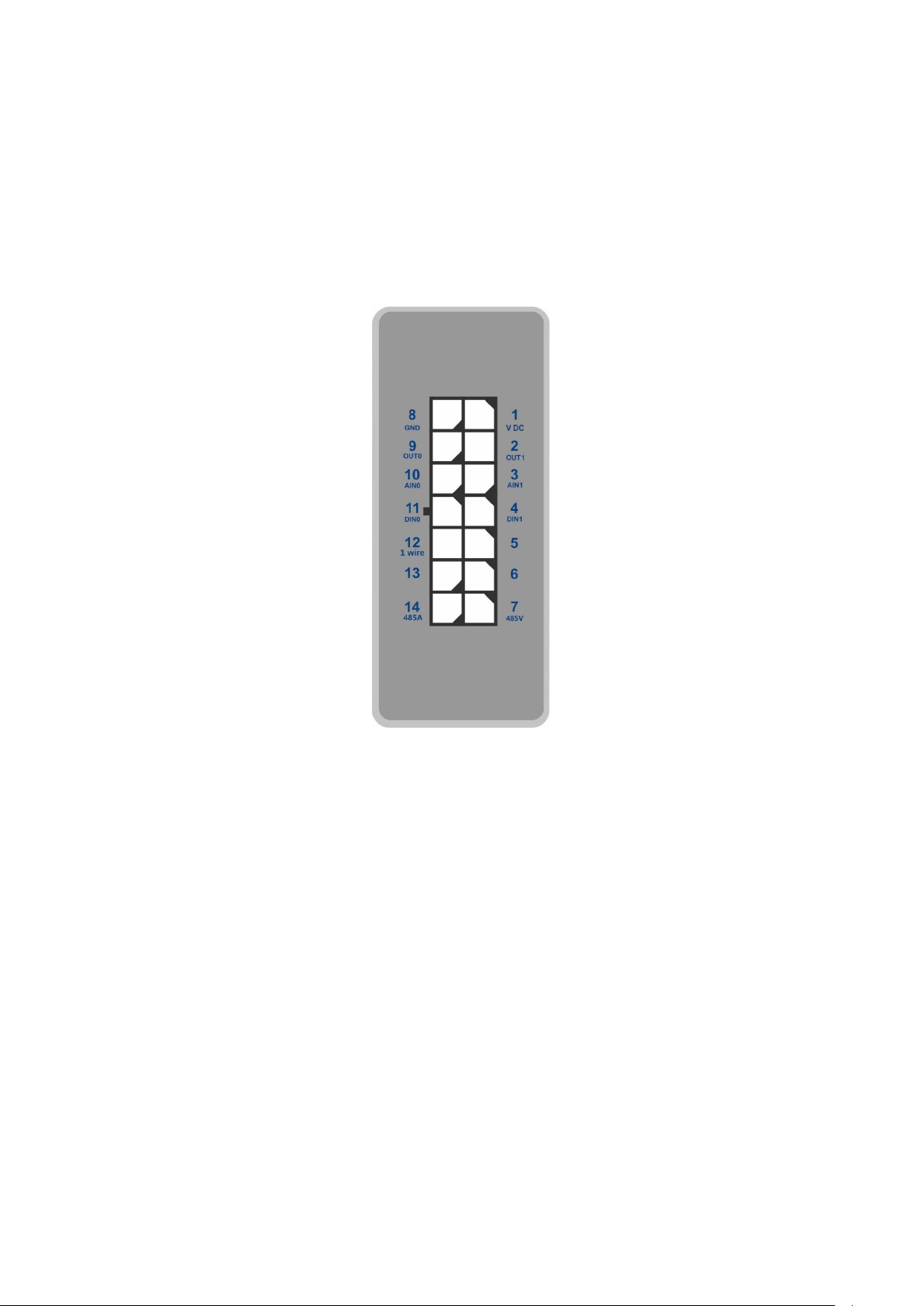

The scheme of tracker connector pins is given in Fig. 2.

Figure 2 –Scheme of pins location

Table des matières

Autres manuels Neomatica GPS

Neomatica

Neomatica ADM333 BLE Manuel utilisateur

Neomatica

Neomatica ADM333 Manuel utilisateur

Neomatica

Neomatica ADM100 Manuel utilisateur

Neomatica

Neomatica ADM007 Manuel utilisateur

Neomatica

Neomatica ADM333 BLE Manuel utilisateur

Neomatica

Neomatica ADM700 3G Manuel utilisateur

Neomatica

Neomatica ADM50 Manuel utilisateur

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
