ENGINE TIMING TOOL SET-VW-1.2L

CT2102

INSTRUCTION MANUAL

IMPORTANT:

These instructions accompanying the product are the original instructions. This

document is part of the product, keep it for the life of the product passing it on to

any subsequent holder of the product. Read all these instructions before

assembling, operating or maintaining this product.

Cannon Tools Limited

Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

1. SPECIFICATION

Kit contains locking pin and clamps for the camshaft, and crankshaft locking pin

for timing 1.2 3-cylinder chain drive engines. These engines are found in Seat,

Skoda and Volkswagen vehicles. Supplied in storage case.

Contents:

T10123 Camshaft Locking Clamp

T10121 Crankshaft Locking Pin

T10120 Camshaft Locking Pin

Warning: Wear approved safety glasses and ear defenders.

2. IMPORTANT SAFETY INFORMATION

a). Read the instruction manual fully. Do not attempt any operation until you have

read and understood this manual.

b). Most important you must know how to use the product.

c). Maintain your tools correctly. A well maintained tool will do the job safely.

Replace any damaged or missing parts immediately with original parts from the

manufacturer.

d). Ensure that a vehicle which has been jacked up is adequately supported with

axle stands.

e). Wear approved eye protection. A full range of personal safety equipment is

available from your dealer.

f). Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back

long hair.

g). DO NOT attempt to start engine or move vehicle whilst in gear with timing

devices fitted.

h). Always display warning notification on steering wheel when timing engine

components.

i). Account for all tools, locking bolts, pins and parts being used and do not leave

them in or near the engine.

j). WARNING! Incorrect camshaft timing can result in contact between valve

head and piston crown causing damage to the engine.

3. TECHNICAL DESCRIPTION

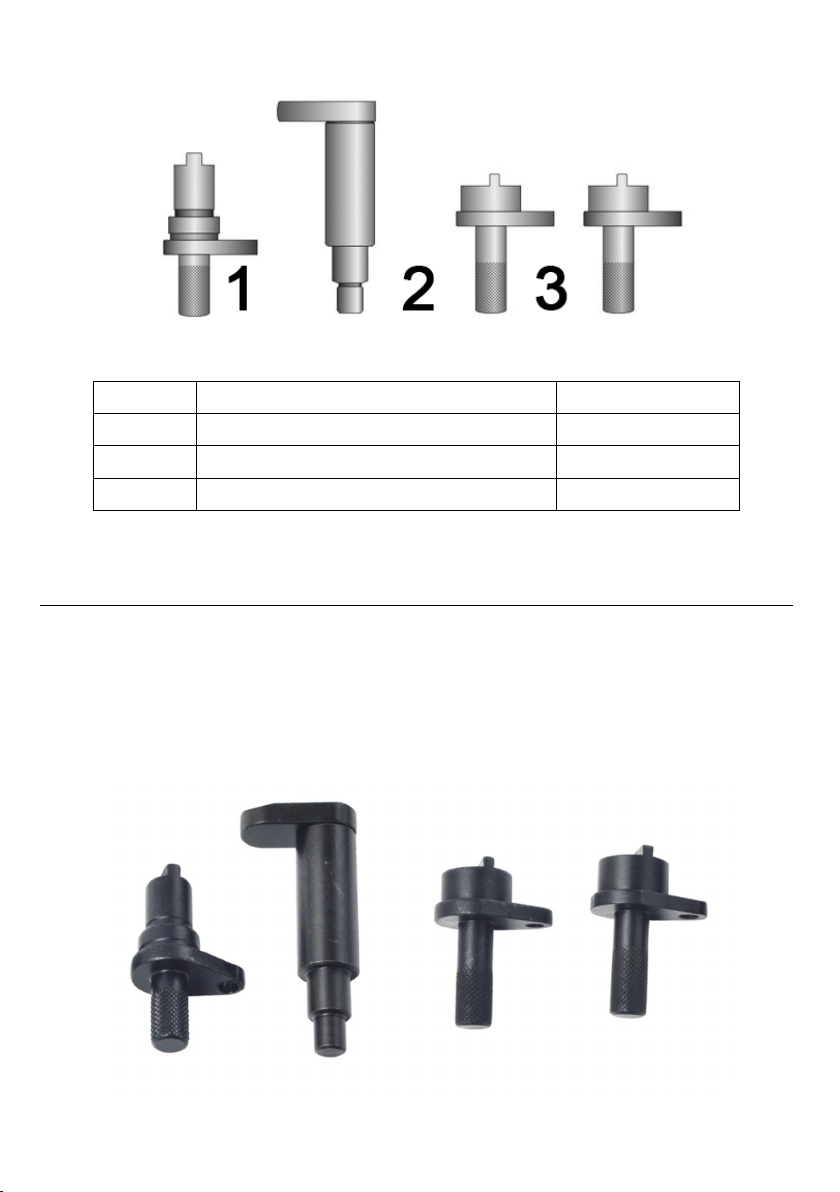

Item Description OEM Number

1 Camshaft Locking Pin T10120

2 Crankshaft Locking Pin T10121

3 Camshaft Locking Clamp x 2 T10123

4. UNPACKING AND CHECKING

Carefully remove the product from the packaging and examine it for any sign of

damage that may have happened during shipping. Lay the contents out and

check them against the parts shown below. If any part is damaged or missing;

please contact the seller and do not attempt to use the product .

5. USING THE TOOL

5.1 APPLICATION:

Models/Engines:

VW. SKODA, SEAT 1.2 12V and 1.2 6V (HTP).

VW: Polo

SEAT: Ibiza, Cordoba

SKODA: Fabia HTP

Engine codes:

AZQ, AWY. BMD. BME (02-07).

6. DISPOSAL

At the end of the machine's working life, or when it can no longer be repaired,

ensure that it is disposed of according to national regulations.

Contact your local authority for details of collection schemes in your area.

In all circumstances:

Do not dispose of this tool with domestic waste.

Do not incinerate.

During decommissioning of the equipment, certain hazards should be

understood and avoided:

Only with the line pressure released shall the equipment be disassembled.

7. EXPLANATION OF SYMBOLS

WARINING!

First read the instruction manual.

Wear safety glasses and ear protection.

Wear gloves.

CANNON TOOLS LTD

Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.

Made in China
