NEFF U1421B2GB Guide de sécurité

How to connect up,

build-in, set up, use and

look after your

U1421 oven

NEFF (UK) Ltd

Table of Contents

Page

Important Information

❑Notes on disposal 3

❑Before connecting your

new appliance 3

❑Appliance safety considerations 4

Introducing: Your New Oven

❑Control panel overview 5

❑Accessories 6

❑Shelf positions 6

Before Using Your Appliance for the

First Time

❑Setting the time of day 7

❑Preliminary cleaning 7

❑Initial burn-in 7

Electronic Timer

❑Minute timer 8

❑Automatic timer 9+10

❑Special functions 10

❑Information 10

Baking Roasting and Grilling

❑Definition of Oven Features 11

❑Switching the oven ON and OFF 12

❑Baking – Main oven 13

❑Roasting – Main oven 14

❑Roasting – Mini oven 15

❑Grilling – Mini oven 15

Cooking Tips and Helpful Hints 16

Defrosting and Cooking – Main oven 17

Page

Cleaning and Care

❑Important cleaning basics 18

❑Enamel and glass 18

❑Stainless steel front 18

❑Oven interior 18

❑Removing/installing the oven door 19

❑Oven light 19

❑Removing shelf railings – Main oven 19

❑Removing shelf railings – Mini oven 19

Service and Repair Information 20

Trouble-shooting Guide 21

Assembly Instructions

❑For the installer and kitchen expert 22

❑Installation of the built-in oven 23

Notes on disposal

❑Old appliances still have some residual

value. An environment-friendly method

of disposal will ensure that valuable raw

materials can be recovered and used

again.

Before you dispose of your old

appliance, make sure that it has been

rendered inoperable.

❑Your new appliance was protected by

suitable packaging while it was on its

way to you. All materials used for this

purpose are environment-friendly and

suitable for recycling. Please make a

contribution to protecting the

environment by disposing of the

packaging appropriately.

Up-to-date information concerning

options for disposing of your old

appliance and the packaging from the

new one can be obtained from your

retailer or local government office.

Before connecting your new

appliance

❑Before using your new appliance, please

read these Instructions for use carefully.

They contain important information

concerning your personal safety as well

as on use and care of the appliance.

❑The Instructions for Use apply to several

versions of this appliance. Accordingly,

you may find descriptions of individual

features that do not apply to your

specific appliance.

❑Please keep the operating and

installation instructions in a safe place;

this important documentation may also

be of use to a possible subsequent

owner.

❑Do not use the appliance if it is

damaged in any way.

❑Installation and connection of the

appliance should be performed

according to the instructions and

connection diagram provided, and

should be entrusted to a competent

electrician. In the event of a damage

that occurs as a result of improper

connection, the warranty will be void.

❑Our appliances meet the applicable

safety regulations for electrical

appliances. Repairs must only be

performed by service engineers trained

by the manufacturer. Repairs carried out

by incompetent service agents can

make the appliance unsafe.

Important Information

Appliance safety

considerations

❑The appliance should only be used for

the preparation of food. ❑If using the Main oven, do not place

greaseproof paper loosely in the oven

(e.g. when heating the oven).

The hot-air fan could draw in the paper

which may damage the heater and fan.

❑Do not insert a baking sheet at the

bottom of the oven, or cover the base of

the oven with aluminium foil, as this

would result in heat build up. Roasting

and baking times would change, and

the enamel would be damaged.

❑Never pour water directly into the hot

oven. Damage to the enamel could

result.

❑Dripping juices may leave spots on the

oven lining. Always place a baking tray

below to prevent this from happening.

❑Never stand or sit on the open oven

door.

❑The oven door must close properly.

Keep the door seal surfaces clean.

❑The surfaces of heating and cooking

appliances get hot during operation.

The interior oven walls and the heating

elements get extremely hot. Always

keep children away from the appliance.

❑Never leave the appliance unattended

when cooking with fat or oil. They can

catch fire if overheated.

❑Clean the oven regularly.

Fatty or oily remants could ignite when

the oven is switched on.

❑Make sure that the power cord does not

get caught in the hot oven door. The

plastic insulation could melt.

❑In the case of a defect, switch off (or

remove) the mains fuse in the building

electrical system.

❑Do not store combustible items in the

oven. They could ignite if the oven is

switched on accidentally.

❑Do not clean the oven with steam or

high-pressure cleaners.

Open the oven door

carefully.

Hot steam may escape.

❑

Mini ovenMain oven

Introducing: Your new Oven

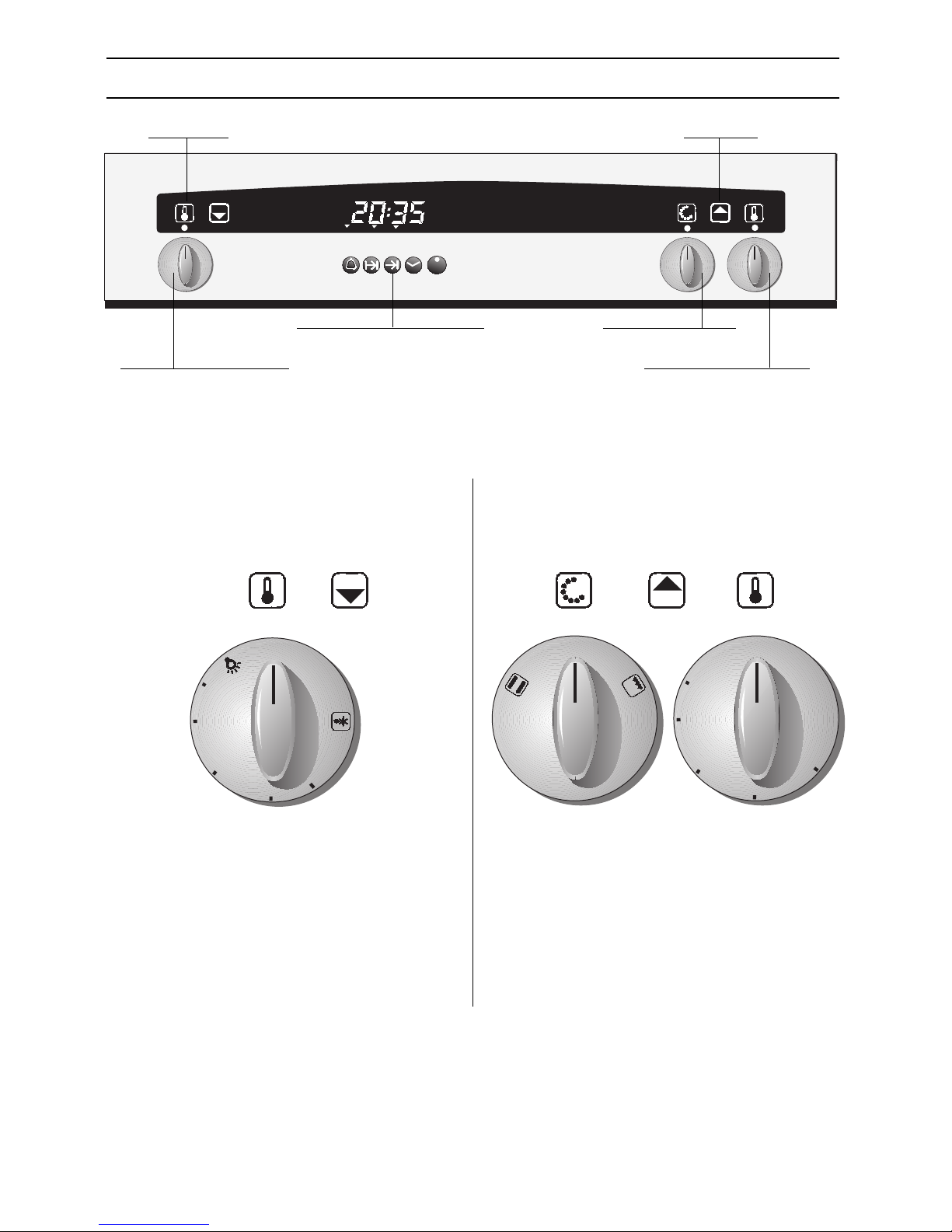

Setting:

50–250

temperature in °C

L, M, H

temperature for

radiant grill

Setting:

eConventional

top and bottom

heat

ZRadiant grill

Setting:

aOven light

50–200 Circotherm temperature in °C

kDefrosting position

000

Temperature selector

with control lamp

Temperature selector

with control lamp

Function selector

Electronic timer controls

Temperature selector Function selector Temperature

selector

●

100

150

200

●

●●

●

● ●

100

150

200

250

●

●●

●

Main oven (circotherm) Mini oven

Main oven

Mini oven

Shelf positions

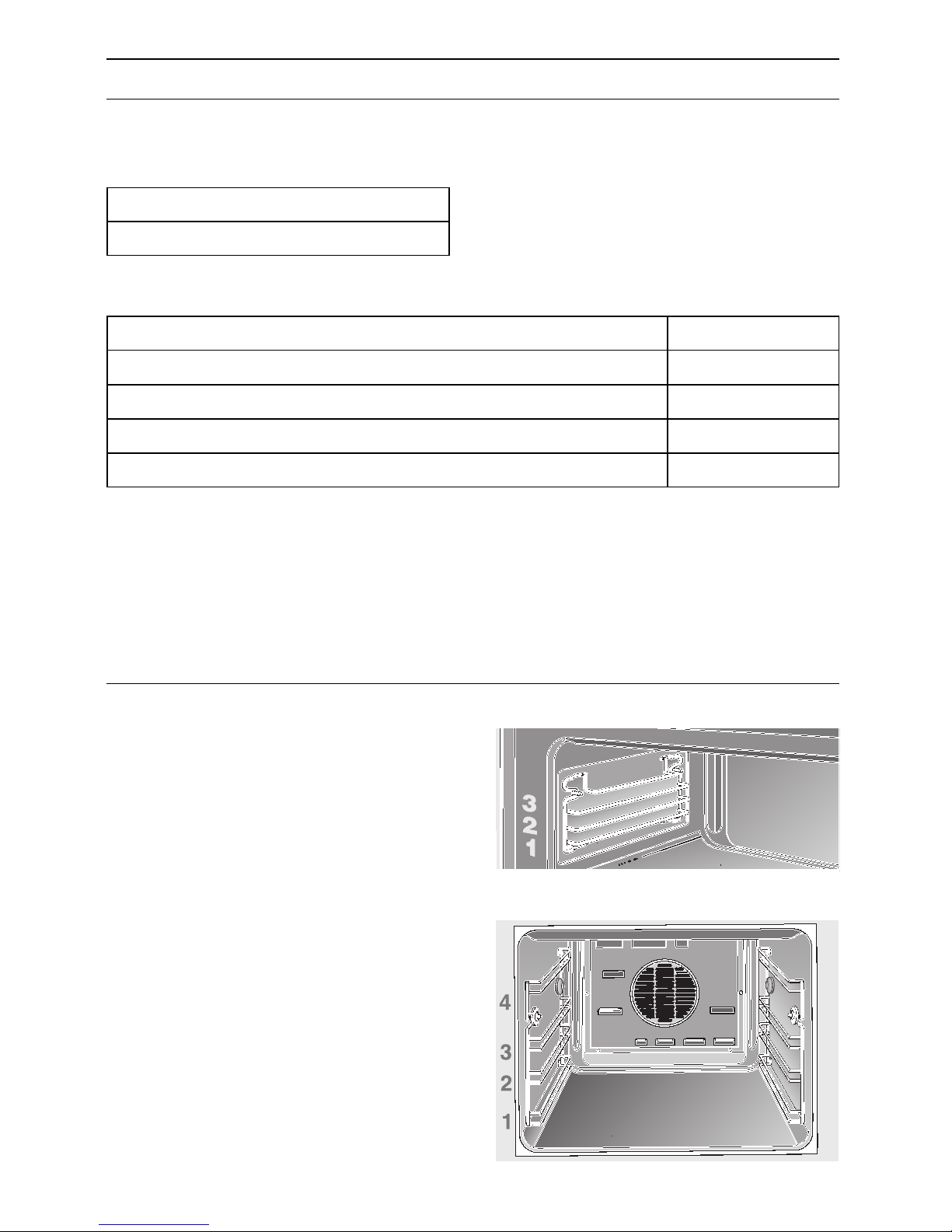

❑Your oven features 3 shelf positions.

The shelf positions are counted from

bottom to top. The numbers are marked

in the oven.

Introducing: Your new Cooker

Accessories

❑Your appliance is supplied with:

Deep roasting pan

Baking tray, aluminium

Baking tray, enamelled

Z 1270 X2

Z 1330 X0

Z 1340 X2

Small grill-set Z 1240 X2

Supplementary equipement set – Telescopic for Main oven Z 1750 X0

3 Wire shelves

1 Roasting/grill pan with grid

Note:

❑The baking tray or roasting pan may

distort while the oven is operating. This

is caused by major temperature

differences on the utensil. These

differences may occur if only one part of

the utensil was covered or if deep-frozen

food, e. g. pizza, was placed on the

utensil.Note:

Note:

The distortion will already subside again

during baking, roasting or grilling.

❑Your oven features 4 shelf positions.

The shelf positions are counted from

bottom to top. The numbers are marked

in the oven.

 When using circotherm, do not

use shelf position »2«, in order not to

block air circulation.

Order no.❑The following accessories can be obtained from the supplier of your

oven:

Before Using Your Appliance for the First Time

Time of day

❑Before you use your appliance for the

first time, it is necessary to set the

current time on the electronic timer.

❑After connecting to the mains, or after a

power failure, the display {:{{ will blink.

Setting the time:

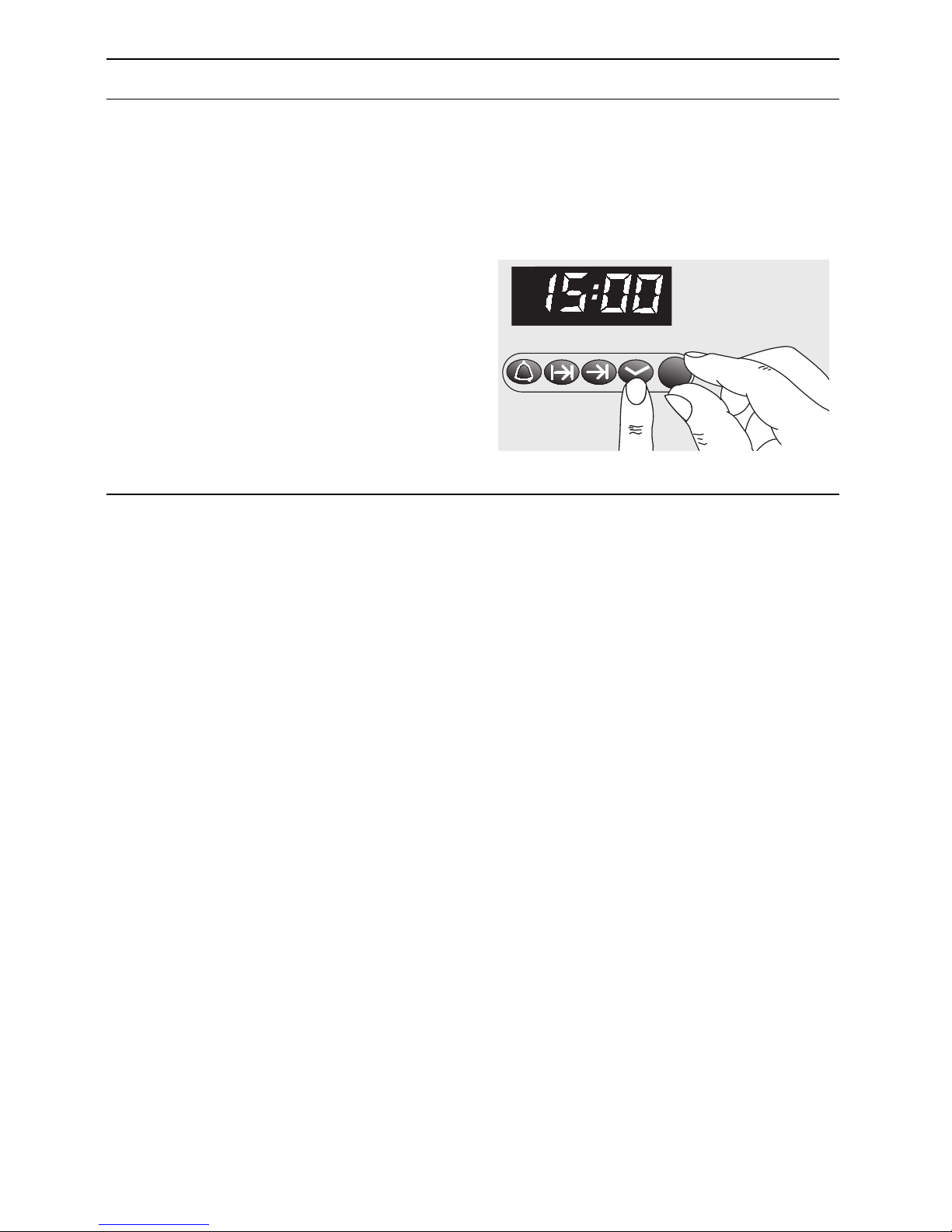

Press the +button and set the current

time with the rotary knob (e.g. |Å:{{).

Note: The time cannot be set if an

automatic function is active (see Electronic

clock for cancelling automatic function).

Preliminary cleaning:

1. Clean the appliance exterior with a soft

moistened cloth.

2. Clean the oven and the accessories with

a hot detergent solution.

Initial burn-in

1. Preheat the empty oven for about

30 minutes.

Select heat for the main and mini oven at

a setting of 190° C.

During the initial burn-in phase, please

open the kitchen windows to dissipate

unpleasant odours.

Electronic timer

❑The electronic timer can be operated

with one hand; after pressing the button,

set the time with the rotary knob.

Adjustments can be made for as long as

the display flashes (4 seconds).

❑Setting the time:

See section ”Before using your

appliance for the first time”.

Minute timer:

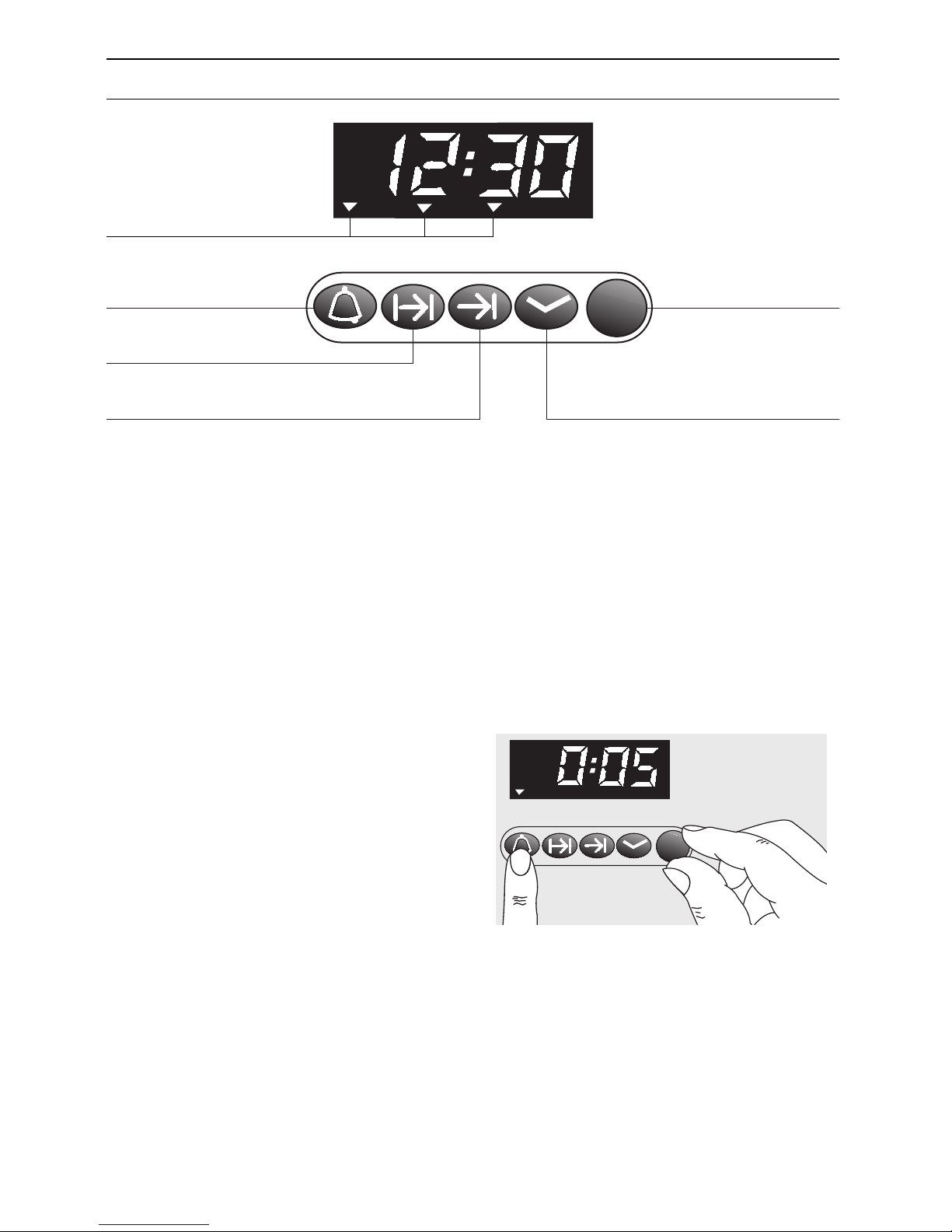

1. Press the tbutton and set the cooking

time (e.g. Åminutes).

When the timer switches on, the

remaining time is displayed.

2. If you want to display the current time,

press the +button.

3. When the time has elapsed, a signal is

emitted and the arrow display flashes.

To stop the signal, press the tbutton.

Minute timer

Cooking time

Off time

Rotary knob

To engage and

disengage, depress

gently.

Setting the timer:

Time

Function indicator

Automatic timer for the main

oven

❑You can switch the oven on and off via

the electronic clock.

Automatic switch off:

❑If you wish to bake or roast food

immediately, it is only necessary to set

the cooking time.

1. Set the oven to the required

temperature.

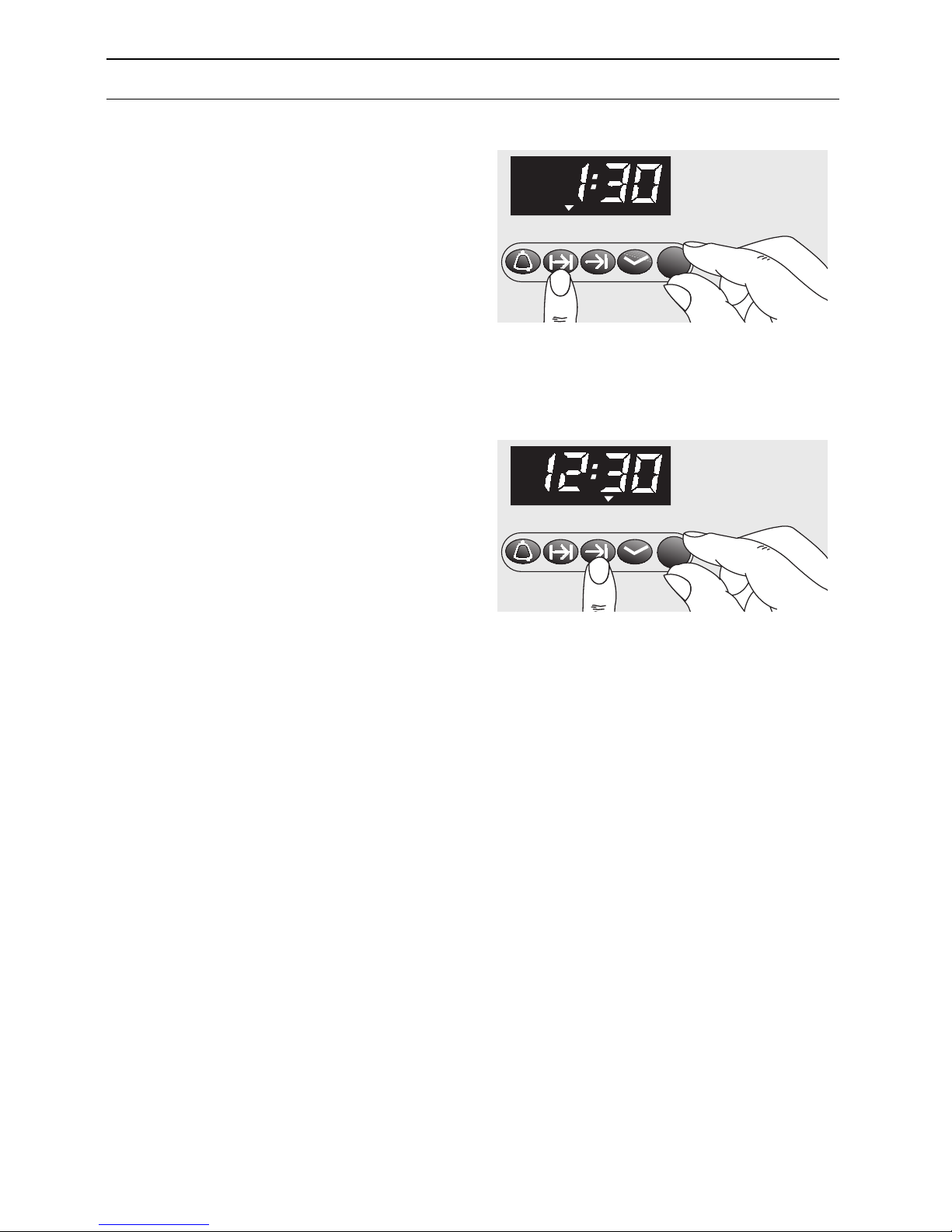

2. Press the gbutton and set the cooking

time with the rotary knob (e.g. |hour

and ~{ minutes).

When the cooking time has been set,

the time of day is displayed.

The ,displayed above the gbutton

indicates automatic mode.

3. When the time has elapsed (e.g. |hour

and ~{ minutes), a signal is emitted and

the ,flashes. The oven is automatically

switched off. To stop the signal, press

the gbutton.

4. Switch the oven off.

5. To end automatic mode, press the g

button again.

Setting the length of cooking time:

Electronic timer

Automatic switch on and switch off:

❑If the food is to be cooked later on, both

the cooking time and Off time must be

set.

1. Set the oven to the required

temperature.

When the settings have been made, the

time of day is displayed.

2. Press the gbutton and set the cooking

time with the rotary knob (e.g. |hour

and ~{ minutes).

3. Press the hbutton and set the Off time

with the rotary knob. The ,displayed

above the hbutton indicates automatic

mode (e.g. |}:~{).

4. The oven is automatically switched on

and off at the preset times (e.g. ||:{{

and |}:~{).

5. When the time has expired, a signal is

emitted and the ,flashes. To stop the

signal, press the hbutton.

6. Switch the oven off.

7. To end automatic mode, press the h

button.

Checking, correcting and cancelling

settings:

1. To check your settings, press the gor

hbutton.

2. If required, correct the settings with the

rotary knob.

3. If you want to cancel your settings, turn

the set time back to {:{{ and switch

the oven off.

Special functions

Masking out the display:

1. Press the +button for 4 seconds.

The display then goes blank and the

time continues running in the

background.

2. To switch on the display, briefly press

the +button.

Dimming the display:

❑Between 22.00 and 6.00 the display is

automatically dimmed.

Note:

❑The automatic timer is best used with

dishes which require little attention.

❑The minute timer and OFF time can be

pre-programmed up to a max. 24 hours.

❑The settings can be displayed at any

time by pressing the relevant button.

❑To cancel the preset time:

Press the gbutton and reset the time

to {:{{.

Setting the length of cooking time:

Setting the end of cooking time:

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NEFF Four

NEFF

NEFF B1832N2GB Guide de sécurité

NEFF

NEFF U1452B2GB Guide de sécurité

NEFF

NEFF C67M70S0GB - annexe 2 Manuel utilisateur

NEFF

NEFF B47FS26G0 Manuel utilisateur

NEFF

NEFF B59CR72 0A Series Manuel utilisateur

NEFF

NEFF B57CR22N0B Manuel utilisateur

NEFF

NEFF B 1554 Series Manuel utilisateur

NEFF

NEFF U2GCH7A.0B Manuel utilisateur

NEFF

NEFF B1322 1 Series Manuel d'utilisation et d'entretien

NEFF

NEFF N70 B54CR31N0B Manuel utilisateur

NEFF

NEFF B58VT68H0 Manuel utilisateur

NEFF

NEFF J1ACE2H 0B Series Manuel utilisateur

NEFF

NEFF B2ACH7A 0 Series Instructions d'utilisation et d'entretien

NEFF

NEFF C49C62 3 Series Manuel utilisateur

NEFF

NEFF C17DR02.0B Manuel utilisateur

NEFF

NEFF J1ACE4H.0B Manuel utilisateur

NEFF

NEFF B57VS22 0 Series Manuel utilisateur

NEFF

NEFF C17MR02G0 Instructions d'utilisation et d'entretien

NEFF

NEFF U17M72 0GB Series Manuel utilisateur

NEFF

NEFF B27CR22 1 Series Manuel utilisateur

NEFF

NEFF B44M42 5GB Series Manuel utilisateur

NEFF

NEFF B57VR22N0B Manuel utilisateur

NEFF

NEFF U17M62 0GB Series Manuel utilisateur

NEFF

NEFF B1320A2GB Guide de sécurité

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur

DeLonghi

DeLonghi XA660 Manuel
