NEC N8141-69F Manuel utilisateur

1U Device Expansion Unit

Configuration Guide

Introduction

This document contains product and configuration information that will enable you to configure your system. The

guide will ensure fast and proper configuration of your storage system.

August 30, 2017

Revision 3.0

NEC Corporation

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 2

Contents

TECHNICAL SPECIFICATION........................................................................................3

Key Features..........................................................................................................................................3

Specification..........................................................................................................................................3

EXTERNAL VIEWS .........................................................................................................4

Front and Rear Views ...........................................................................................................................4

Dimensions (mm)..................................................................................................................................5

UNIT CONFIGURATION..................................................................................................6

1External Tape Drive Enclosure.....................................................................................................6

1.1 Tape Drive Configuration.......................................................................................................6

1.2 SAS Tape Drive Configuration...............................................................................................7

1.3 USB RDX Drive Configuration...............................................................................................9

1.4 SAS and USB Tape/RDX Drive Configuration.....................................................................11

REVISION HISTORY.....................................................................................................14

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 3

Technical Specification

Key Features

Affordable direct attached data protection solution for rack mount systems

Two 5-inch half height drive bays in 1U enclosure

Flexible configuration with SAS and USB tape drive installation

Superior reliability with redundant power supplies

Specification

Model

1U Device Expansion Unit

Part Number

N8141-69F

5-inch Media Bays

Redundant Power Supply

Optional, non-hot plug

Power Supply

100-240 VAC ± 10% 50 / 60 Hz ± 3 Hz

Dimensions (W x D x H )

424.0 x 578.1 x 44.0 mm / 16.7 x 22.7 x 1.7 in (1U)

Maximum Power Consumption

328VA

Maximum Weight

6.1 kg, 13.45 lbs.

Temperature, Relative Humidity (non-condensing)

Operating: 10° to 40° C / 50° to 104° F, 10 to 80%

Non-Operating: -10° to 55° C / 14° to 131° F, 10 to 80%

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 4

External Views

Front and Rear Views

Front View

Legend

Power Switch 1

Error Status LED

Ready LED

Power Unit 2 Status LED

Power Unit 1 Status LED

Fan Unit 2 Status LED

Fan Unit 1 Status LED

Drive Bays

Power Switch 2

Rear View

Legend

AC Inlet

External Connector 1

AC Inlet (Optional)

External Connector 3

External Connector 2

A B C D E

F G H I

C D E

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 5

Dimensions (mm)

44 551

578

425

484

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 6

Unit Configuration

1 External Tape Drive Enclosure

1.1 Tape Drive Configuration

Refer to the section in accordance with type of tape drives installed and number of host adapters.

Type of Tape Drives

Number of Host Adapters

Section

Internal LTO

One SAS HBAs

1.2.1

Two SAS HBAs

1.2.2

Internal RDX

One USB HBAs

1.3.1

Two USB HBAs

1.3.2

Mixing internal LTO and RDX Drives

One SAS and one /USB HBAs

1.4

The tape drive enclosure can be shared with up to two servers, HBAs. See the figures below for typical

tape drive bays configuration.

Two HBA Configuration

ToHBA

SAS Interface

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 7

1.2 SAS Tape Drive Configuration

1.2.1 One SAS HBA

Connection Diagram

Product List

Category

Product Name / Description

Part Number

Storage Controller

Required

SAS Controller

LSI SAS9212-4i4e Host Bus Adapter

6Gb/s SAS, Int. 4 / Ext. 4, 7-pin SATA / SFF-8088, PCIe 2.0 x8

N8103-142

SAS Controller

1 x LSILogic SAS9300-8e 12Gb/s SAS, 8(SFF-8644),

PCIe3.0(x8)

N8803-041

SAS Controller

12Gb/s SAS, Ext. 8(SFF-8644), PCIe3.0(x8)

N8103-197

SAS Controller

LSI SAS9300-8e

12Gb/s SAS, Ext. 8(SFF-8644), PCIe3.0(x8)

N8103-184

SAS Cable

Required

External SAS Cable

2 m, 1 x SFF-8088 to 1 x SFF-8088

K410-191(02)

External SAS cable

2 m, 1x Mini SAS HD -1x Mini SAS

K410-322(02)

Enclosure

Required

1U Device Expansion Unit

2 x 5-inch media bays

N8141-69F

Power Supply

Recommended

Power Unit

non-hot plug power supply

N8181-124F

SAS Cable

Required

Internal SAS Cable

1 x SFF-8088 to 2 x SFF-8482, mount bracket included

K410-335(00)

Drive

2 slots available

Internal LTO (SAS)

LTO3, Half height, Native capacity 400 GB

N8151-126

Internal LTO (SAS)

LTO4, Half height, Native capacity 800 GB

N8151-127

Internal LTO (SAS)

LTO5, Half height, Native capacity 1.5 TB

N8151-128

Internal LTO (SAS)

LTO6, Half height, Native capacity 2.5 TB

N8151-129

Internal LTO (SAS)

LTO7, Half height, Native capacity 6 TB

N8151-136

Internal LTO (SAS)

LTO5, Half height, Native capacity 1.5 TB

N8151-141

Internal LTO (SAS)

LTO6, Half height, Native capacity 2.5 TB

N8151-142

Internal LTO (SAS)

LTO7, Half height, Native capacity 6 TB

N8151-143

NOTE:

Refer to the system configuration of the server to select the appropriate SAS controller and internal LTO drive.

Choose the appropriate SAS cable as follows:

K410-191(02): N8103-142

K410-322(02): N8803-041, N8103-197, and N8103-184

Redundant

PowerSupply

Server

PCI Slot SAS Controller P1 InternalSASCable

P1 Bay #1 Bay #2

SAS Cable Device Expansion Unit

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 8

1.2.2 Two SAS HBA

Connection Diagram

Product List

Category

Product Name / Description

Part Number

Storage Controller

2 Required

SAS Controller

LSI SAS9212-4i4e Host Bus Adapter

6Gb/s SAS, Int. 4 / Ext. 4, 7-pin SATA / SFF-8088, PCIe 2.0 x8

N8103-142

SAS Controller

1 x LSILogic SAS9300-8e 12Gb/s SAS, 8(SFF-8644), PCIe3.0(x8)

N8803-041

SAS Controller

12Gb/s SAS, Ext. 8(SFF-8644), PCIe3.0(x8)

N8103-197

SAS Controller

LSI SAS9300-8e

12Gb/s SAS, Ext. 8(SFF-8644), PCIe3.0(x8)

N8103-184

SAS Cable

2 Required

External SAS Cable

2 m, 1 x SFF-8088 to 1 x SFF-8088

K410-191(02)

External SAS cable

2 m, 1x Mini SAS HD -1x Mini SAS

K410-322(02)

Enclosure

Required

1U Device Expansion Unit

2 x 5-inch media bays

N8141-69F

Power supply

Recommended

Power Unit

non-hot plug power supply

N8181-124F

SAS Cable

2 Required

Internal SAS Cable

1 x SFF-8088 to 2 x SFF-8482, mount bracket included

K410-335(00)

Drive

2 slots available

Internal LTO (SAS)

LTO3, Half height, Native capacity 400 GB

N8151-126

Internal LTO (SAS)

LTO4, Half height, Native capacity 800 GB

N8151-127

Internal LTO (SAS)

LTO5, Half height, Native capacity 1.5 TB

N8151-128

Internal LTO (SAS)

LTO6, Half height, Native capacity 2.5 TB

N8151-129

Internal LTO (SAS)

LTO7, Half height, Native capacity 6 TB

N8151-136

Internal LTO (SAS)

LTO5, Half height, Native capacity 1.5 TB

N8151-141

Internal LTO (SAS)

LTO6, Half height, Native capacity 2.5 TB

N8151-142

Internal LTO (SAS)

LTO7, Half height, Native capacity 6 TB

N8151-143

NOTE:

Refer to the system configuration of the server to select the appropriate SAS controller and internal LTO drive.

Choose the appropriate SAS cable as follows:

K410-191(02): N8103-142

K410-322(02): N8803-041, N8103-197, and N8103-184

Server

PCI Slot SAS Controller P1 InternalSASCable

P1 Bay #1 Bay #2

SAS Cable Device Expansion Unit

Redundant

PowerSupply

PCI Slot SAS Controller P1

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 9

1.3 USB RDX Drive Configuration

1.3.1 One USB Port

Connection Diagram

Product List

Category

Product Name / Description

Part Number

Storage Controller

External USB Controller

1 x USB port

(Standard)

USB Cable

Required

External USB Cable

USB 2.0, 2 m, 1 x external USB to 1 x USB device, mount bracket

included

K410-197(00)

External USB Cable

USB3.0,1.17 m, 1 x external USB to 1 x USB device, mount bracket

included

NOTE:

- The cable is required to connect with a USB3.0 port.

K410-307(1A)

Enclosure

Required

1U Device Expansion Unit

2 x 5-inch media bays

N8141-69F

Power Supply

Recommended

Power Unit

non-hot plug power supply

N8181-124F

Drive

1 slot available

Internal RDX (USB)

N8151-125

Internal RDX (USB)

N8151-139

NOTE:

Choose the appropriate USB cable according to the USB connector on the server.

Refer to the system configuration of the server to select the appropriate internal RDX drive.

USB Connector

Server

P1 Bay #1 Bay #2

Device Expansion Unit

USB Cable

Redundant

PowerSupply

CONFIGURATION GUIDE –1U Device Expansion Unit

NEC Corporation Revision 3.0 –August, 2017 10

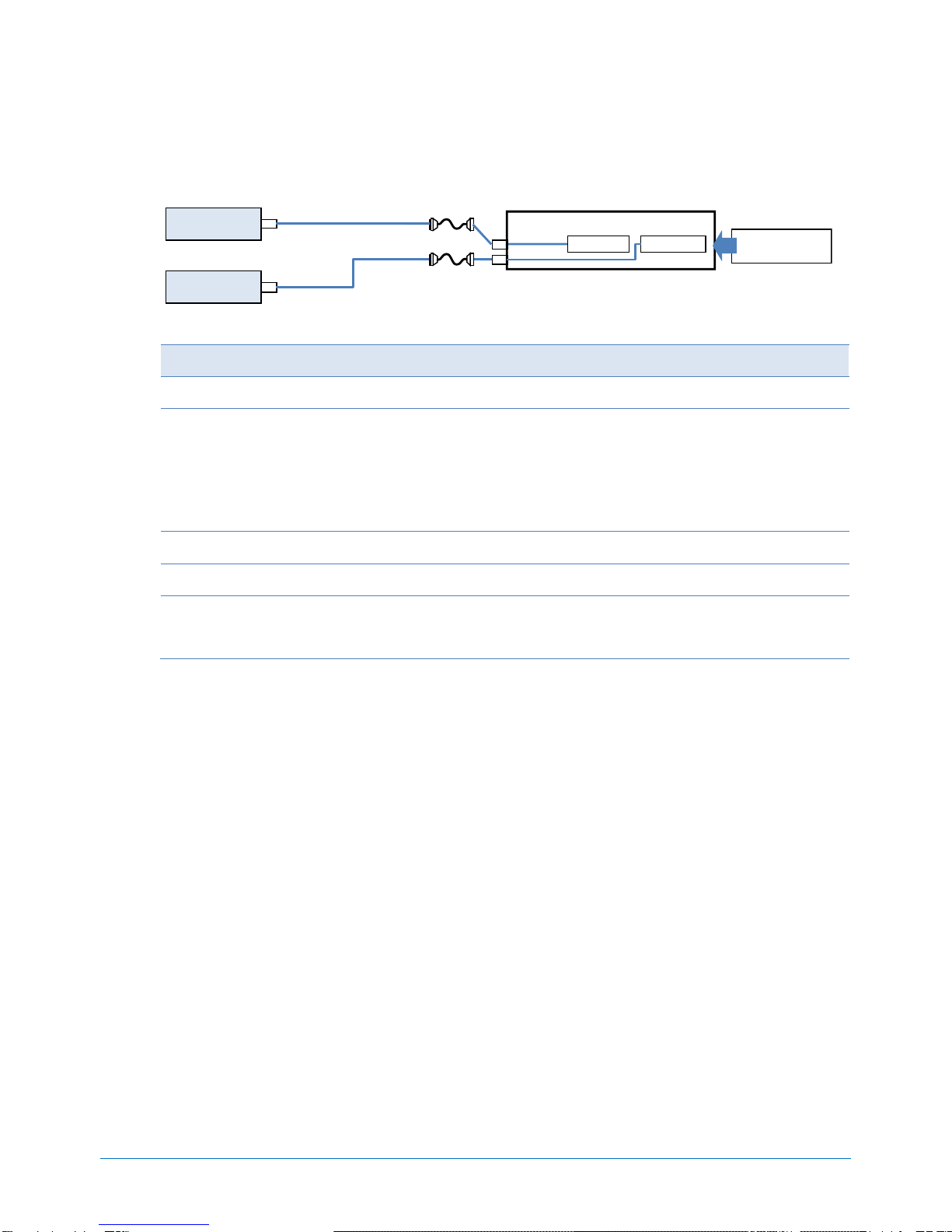

1.3.2 Two USB Ports

Connection Diagram

Product List

Category

Product Name / Description

Part Number

Storage Controller

External USB Controller

1 x USB port

(Standard)

USB Cable

2 Required

External USB Cable

USB 2.0, 2 m, 1 x external USB to 1 x USB device, mount bracket

included

K410-197(00)

External USB Cable

USB3.0,1.17 m, 1 x external USB to 1 x USB device, mount bracket

included

NOTE:

- The cable is required to connect with a USB3.0 port.

K410-307(1A)

Enclosure

Required

1U Device Expansion Unit

2 x 5-inch media bays

N8141-69F

Power Supply

Recommended

Power Unit

non-hot plug power supply

N8181-124F

Drive

1 slot per HBAavailable

Internal RDX (USB)

N8151-125

Internal RDX (USB)

N8151-139

NOTE:

Choose an appropriate USB cable according to the USB connector on the server.

Refer to the system configuration of the server to select the appropriate internal RDX drive.

USB Connector

Server

P1 Bay #1 Bay #2

Device Expansion Unit

USB Cable

Redundant

PowerSupply

USB Cable

Table des matières

Autres manuels NEC Serveur

NEC

NEC 320 Lb EXP351E Manuel utilisateur

NEC

NEC Express 5800 Series Manuel utilisateur

NEC

NEC ServerCare Express5800/FT Manuel de la liste des pièces

NEC

NEC Express5800 120Lh Manuel utilisateur

NEC

NEC EXP801 Manuel d'utilisation

NEC

NEC Express5800/R320f Manuel utilisateur

NEC

NEC NEC Express5800 Series Manuel d'utilisation

NEC

NEC NEC Express5800 Series Manuel utilisateur

NEC

NEC NEC Express5800 Series Manuel utilisateur

NEC

NEC Express5800/T110h-S Manuel utilisateur

NEC

NEC Express5800/B140a-T Manuel d'exploitation et d'entretien

NEC

NEC EXPRESS800 Manuel utilisateur

NEC

NEC EXPRESS5800/120Ed Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

NEC

NEC Express5800 320La Guide de démarrage rapide

NEC

NEC NEC Express5800 Series Manuel utilisateur

NEC

NEC Express5800/1020Ba Manuel utilisateur

NEC

NEC N8100-1223F Manuel utilisateur

NEC

NEC Express5800/T120e Manuel utilisateur

NEC

NEC Express5800/R320c-E4 Manuel utilisateur

NEC

NEC Express5800/R320e-M4 Manuel utilisateur

NEC

NEC Express5800/T120h Manuel utilisateur

NEC

NEC NEC Express5800 Series Manuel utilisateur

NEC

NEC NEC Express5800 Series Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur
