NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 1 of 10

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

Notes and Formulas Pg 1

Distance Charts and Formulas Pg 1-2

Lens Shift Adjustable Range Pg 3

Cabinet Dimensions (Front, Top, Left, Right, Back) Pg 4

Cabinet Dimensions (Bottom) Pg 5

Optional Mount Dimensions Pg 6-7

Ventilation Requirements Pg 8

Input Panel and Button Panel Pg 9

Control Codes Pg 10

Product Description

Type: 3 chip DMD Reflection Type Dimensions: 26.8”(W) x 13.1”(H) x 33.9”(D)

0.69 in. 2x LVDS DMD Weight: 149.9 lbs. / 68kg

Resolution: 1920 x 1080 (16:9)

Brightness: 12,000 Lumens

Fan Noise: 47 dB / 39dB @ 1 meter

Power Consumption: 1392W (max) BTU’s: 3754 BTU/hour

Network Ready, integrated wired and wireless adapter

Powered: Horizontal & Vertical Lens Shift, Zoom, Focus

Lens Specifications

NP-9LS08ZM1: Throw Ratio: ~ 0.9 –1.34:1 Focal Length: 13.3 –19.9mm

Screen Sizes: 100”-500”F/#: 2.5 –3.0

NP-9LS12ZM1: Throw Ratio: 1.28 - 1.83:1 Focal Length: 18.6 –26.7mm

Screen Sizes: 100-500” F/#: 2.5

NP-9LS13ZM1: Throw Ratio: 1.42 –2.24:1 Focal Length: 20.7 –32.7mm

Screen Sizes: 100-500” F/#: 2.5 ___ ______

NP-9LS16ZM1: Throw Ratio: 1.73 –2.88:1 Focal Length: 25.2 –42.0mm

Screen Sizes: 100-500” F/#: 2.5

NP-9LS20ZM1: Throw Ratio: 2.23 –4.16:1 Focal Length: 32.2 –60.3mm

Screen Sizes: 100-500” F/#: 2.5 ___ ______

NP-9LS40ZM1: Throw Ratio: 4.43 –6.76:1 Focal Length: 62.1 –97.8mm

Screen Sizes: 100-500” F/#: 2.5 ___ ______

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed

scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table..

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 2 of 10

Formulas: 16:9 Aspect Ratio (PH1202HL—1080)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size

varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to

calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas: Definitions: 16:9 Screen Formulas

NP-9LS08ZM1: C(Wide) = 0.912W –2.094 ------ C(Tele) = 1.369W –2.094 W = Image Width W = H x 16/9

NP-9LS12ZM1: C(Wide) = 1.283W –2.118 ------ C(Tele) = 1.833W –2.118 H = Image Height (size) H = W x 9/16

NP-9LS13ZM1: C(Wide) = 1.423W –2.189 ------ C(Tele) = 2.250W –2.189 C = Throw distance Screen Diagonal = W x 18.358/16

NP-9LS16ZM1: C(Wide) = 1.726W + 2.205 ------ C(Tele) = 2.891W + 2.205 16:10 Screen Formulas

NP-9LS20ZM1: C(Wide) = 2.222W + 3.024 ------ C(Tele) = 4.156W + 3.024 W = H x 16/10

NP-9LS40ZM1: C(Wide) = 4.278W - 4.110 ------ C(Tele) = 6.739W –4.118 H = W x 10/16

Screen Diagonal = W x 18.868/16

Distance Chart for popular 16:9 Screens (1080p)

Diagonal

Width(W)

Height (H)

inches inches inches

50 44 25 37.6 - 57.6 N/A - N/A N/A - N/A N/A - N/A N/A - N/A N/A - N/A

65 57 32 49.8 - 75.8 N/A - N/A N/A - N/A N/A - N/A N/A - N/A 247.5 - 387.49

73 64 36 56.3 - 85.5 N/A - N/A N/A - N/A N/A - N/A N/A - N/A 277.9 - 435.41

78 68 38 59.5 - 90.4 N/A - N/A N/A - N/A N/A - N/A N/A - N/A 293.1 - 459.37

92 80 45 70.9 - 107.4 100.5 - 144.6 111.6 - 177.8 135.9 - 229.1 180.8 - 335.5 346.4 - 543.24

98 85 48 75.7 - 114.7 107.4 - 154.4 119.2 - 189.8 145.1 - 244.5 192.6 - 357.67 369.2 - 579.18

108 94 53 83.8 - 126.9 118.8 - 170.7 131.8 - 209.8 160.4 - 270.2 212.4 - 394.61 407.2 - 639.08

131 114 64 101.7 - 153.7 143.9 - 206.6 159.6 - 253.8 194.2 - 326.7 255.8 - 475.88 490.9 - 770.87

161 140 79 126.0 - 190.2 178.1 - 255.5 197.5 - 313.8 240.2 - 403.8 315.1 - 586.71 604.9 - 950.57

194 169 95 151.9 - 229.1 214.6 - 307.6 238.0 - 377.8 289.3 - 486.1 378.3 - 704.93 726.6 - 1142.3

226 197 111 177.9 - 268.1 251.1 - 359.8 278.4 - 441.8 338.4 - 568.3 441.5 - 823.14 848.3 - 1333.9

259 226 127 203.8 - 307.0 287.6 - 412.0 318.9 - 505.8 387.5 - 650.5 504.7 - 941.36 970.0 - 1525.6

292 254 143 229.8 - 345.9 324.0 - 464.1 359.3 - 569.8 436.6 - 732.8 567.9 - 1059.6 1091.7 - 1717.3

324 283 159 255.7 - 384.9 360.5 - 516.3 399.8 - 633.8 485.7 - 815.0 631.1 - 1177.8 1213.4 - 1909

400 349 212 316.2 - 475.7 445.6 - 638.0 494.1 - 783.1 600.2 - 1006.8 778.5 - 1453.5 1497.1 - 2356

500 436 265 395.5 - 594.8 557.3 - 797.5 617.8 - 978.8 750.3 - 1258.3 971.8 - 1815 1869.3 - 2942.3

NP-9LS40ZM1

4.43-6.76:1

inches

Zoom Lenses

Screen Size (16:9)

1.73-2.88:1

NP-9LZ08ZM1

NP-9LS12ZM1

NP-9LS13ZM1

NP-9LS16ZM1

0.9-1.34:1

1.28-1.83-1

inches

1.42-2.24:1

NP-9LS20ZM1

2.23-4.16:1

inches

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 3 of 10

Lens Shift Adjustable Range

Lens Shift Range for Desktop and Ceiling Mount

Application

The diagram below shows the location of the image

position in the lens. The lens can be shifted within

the shaded area as shown using the normal

projection position as a starting point.

Note: Projector is set out of the box at maximum

lens shift, which is how it is depicted above.

(W: width of projected image, H: height of projected

image)

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 4 of 10

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the PH1202HL.

Dimensions are in inches. For millimeters multiply by 25.4.

Note: Dimensions below shown without lens

(1.781)

(6.482)

(4.433)

22.304

Ø2.758

5.596

36.6

2.7

2.5

3.7

33.9

Lens

NP-9LS12ZM

29.3182.286

26.8

EXHAUST

17.51

8.35

19.42

28.58

32.46

AC Inlet

Co ntrol Pan e l Inpu t Pa nel

LENS LOCATION

LENS * dimension

NP-9LS08ZM1 5.28"

NP-9LS12ZM1 3.69"

NP-9LS13ZM1 3.69"

NP-9LS16ZM1 3.69"

NP-9LS20ZM1 3.30"

NP-9LS40ZM1 2.29"

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 5 of 10

Cabinet Dimensions

11.034

11.822 11.822

5.911

6-M6 Depth 10mm

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 6 of 10

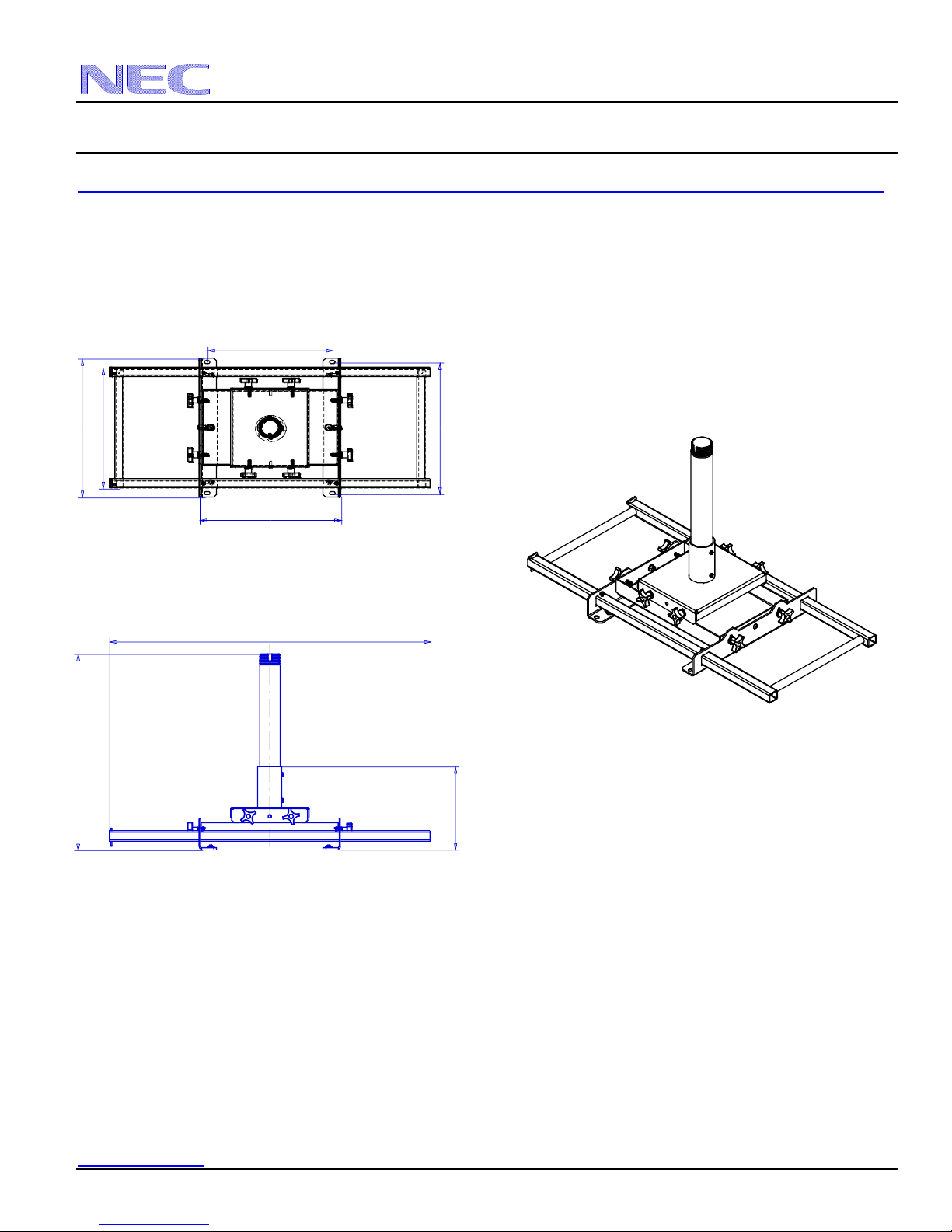

Optional Mount Dimensions (NC1100CM)

28 . 18

11 . 00

12.48

10.86

11.81

12 . 44

17.65

7.50

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 7 of 10

PH1202HL with Optional Mount (NC1100CM)

7. 82

18.87

10. 27

22. 10

28.18

29. 81

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 8 of 10

Ventilation Requirements

If there are walls on both sides of the projector :

If there’s a wall behind the projector :

For ceiling mounting :

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 9 of 10

Input Panel

Button Panel

NEC Display Solutions of America, Inc.

PH1202HL1 Installation Guide

Desktop and Ceiling Mount Rev 1.0

www.necdisplay.com PH12012HL1 Page 10 of 10

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT BNC 02H 03H 00H 00H 02H 01H 02H 0AH

INPUT SELECT BNC (CV) 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT BNC (Y/C) 02H 03H 00H 00H 02H 01H 0BH 13H

INPUT SELECT HDBaseT 02H 03H 00H 00H 02H 01H 20H 28H

INPUT SELECT HDMI 02H 03H 00H 00H 02H 01H A1H A9H

INPUT SELECT DisplayPort 02H 03H 00H 00H 02H 01H A6H AEH

INPUT SELECT SLOT 02H 03H 00H 00H 02H 01H ABH B3H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: One bit

X on/off: None

Communications: Full duplex

PC Control Connector (D-Sub 9P)

Note 1 : Pins 1, 4, 6, and 9 are used inside the projector.

Note 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

Note 3: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
