NEC NP43 Series Manuel utilisateur

NEC Display Solutions of America, Inc.

NP43/64 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necdisplay.com NP43/64 Page 1 of 6

Contents

Product Description, Lens Specs, Notes and Formulas Pg 1

Diagrams & Distance Charts Pg 2

Cabinet Dimensions Pg 3-4

Ceiling Mount Dimensions Pg 5

Input Panel and Control Codes Pg 6

Product Description

Type: .55 DDR DMD™ projector Dimensions: 9.7”(W) x 3.5”(H) x 7.2”(D)

Weight: NP43/64:3.7lbs

Resolution: 1024 x 768 Brightness: NP43: 2300 Lumens

Fan Noise: 37 dB / 32 dB @ 1 meter NP64: 3000 Lumens

Power Consumption: NP43: 265W (max) BTU’s: NP43: 908 BTU/hour

NP64: 300W (max) NP64: 996 BTU/hour

Lens Specifications

Throw Ratio: 1.8 – 2.2 (for 100” diagonal) Focal Length: 20.4 –24.5mm

Offset Angle: 12.3° - 14.8° (for 100” diagonal) F/#: 2.2 – 2.34

Screen Sizes: 30” - 300” diagonal (4:3) Manual Zoom/Power Focus (w/autofocus)

Notes

For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

All calculations are based on a 4:3 aspect ratio.

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary 5%.

Formulas

The Projection Formulas use the image width for calculation. For proper projection placement, determine the image width

for the desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the width for “W” in

the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2:

Definitions: 4:3 Screen Formulas:

W = Image Width W = H x 4/3

H = Image Height (size) H = W x 3/4

B = Vertical distance between lens center and screen center Screen Diagonal = W x 5/4

C = Throw distance

D = Vertical distance between lens center and screen top

(screen bottom for desktop application)

Projection Formulas:

B= 0.481W

C(wide) = 1.830W –0. 600

C (tele) = 2.203W – 0.800

α(wide) = tan¯¹ (B/C(wide))

α(tele) = tan¯¹ (B/C(tele))

NEC Display Solutions of America, Inc.

NP43/64 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necdisplay.com NP43/64 Page 2 of 6

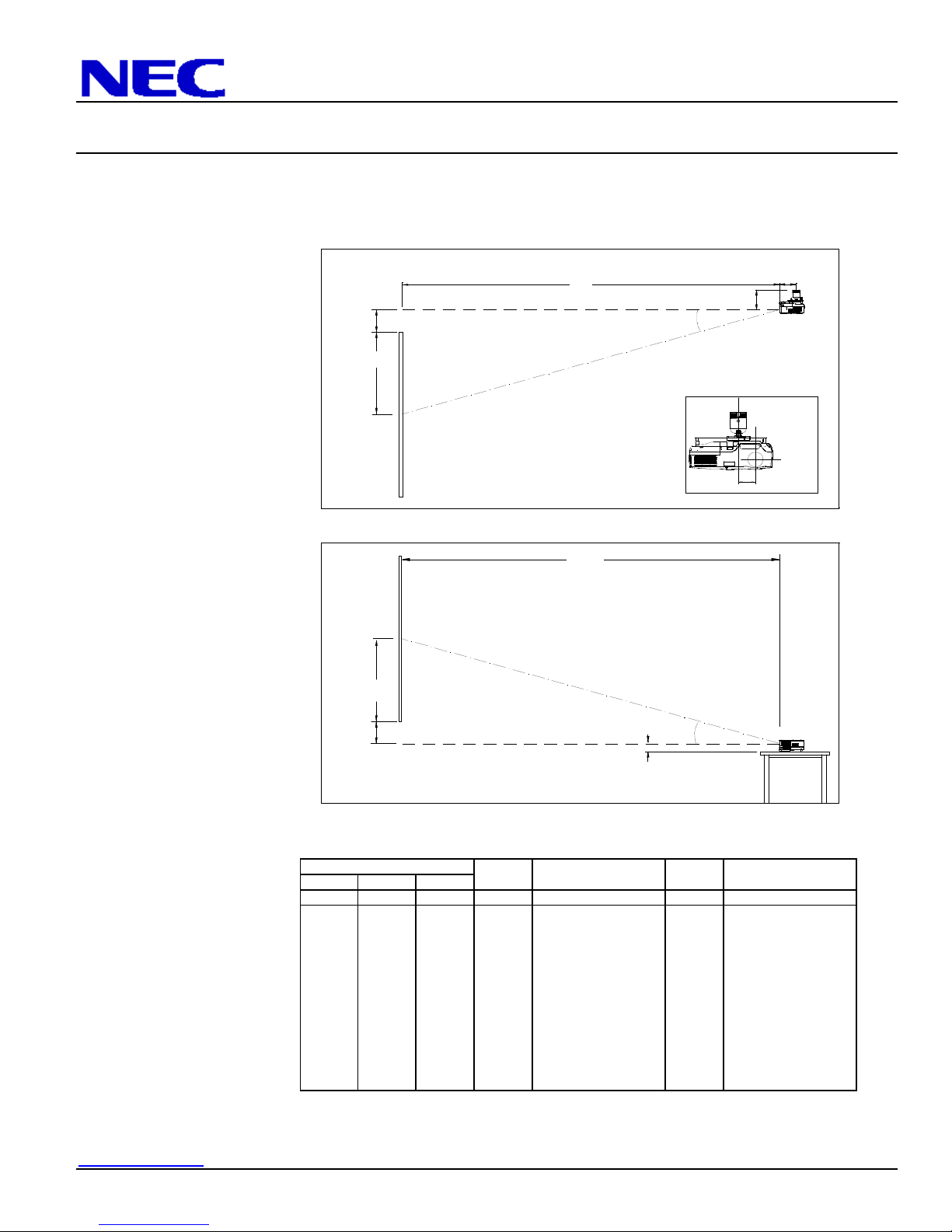

Diagrams and Distance Charts

The following diagrams show the relationship between projector position and the screen. Refer to the chart below for data.

Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mounted

Lens Ctr

Screen Ctr

Throw Distance

Screen Top

4.75"

5.71"

Lens Offset From

Mount Pipe

1.95"

NEC

Desktop

Lens Ctr

Screen Ctr

Throw Distance

Screen Bottom

2.28"

Distance Chart for popular 4:3 screens

Screen Size BD

Diagonal Width Height wide - tele wide - tele

inch inch inch inch inch

33 26 20 13 - 57 3 - 12.6

60 48 36 23 87 - 104 5 14.9 - 12.4

72 58 43 28 104 - 126 6 14.9 - 12.4

84 67 50 32 122 - 147 7 14.8 - 12.4

90 72 54 35 131 - 157 8 14.8 - 12.4

100 80 60 38 145 - 175 8 14.8 - 12.3

120 96 72 46 174 - 210 10 14.8 - 12.3

150 120 90 58 219 - 263 13 14.7 - 12.3

180 144 108 69 263 - 317 15 14.7 - 12.3

200 160 120 77 292 - 352 17 14.7 - 12.3

260 208 156 100 380 - 458 22 14.7 - 12.3

300 240 180 115 439 - 529 25 14.7 - 12.3

Cα

inch degree

Note: For screen sizes not indicated on the projection table, use the formulas on page 1.

NEC Display Solutions of America, Inc.

NP43/64 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necdisplay.com NP43/64 Page 3 of 6

Cabinet Dimensions

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

ventilation

speaker

NEC Display Solutions of America, Inc.

NP43/64 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necdisplay.com NP43/64 Page 4 of 6

Cabinet Dimensions (continued)

The following drawings show the cabinet dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

Lamp

ventilationintake

1 - M3 x 16 max

2 - M3 x 25 max

for mount

NEC Display Solutions of America, Inc.

NP43/64 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necdisplay.com NP43/64 Page 5 of 6

Optional Ceiling Mount Dimensions (Model #: NP40CM)

The following drawings show the ceiling mount dimensions.

Dimensions are in inches. For millimeters multiply by 25.4.

4.125

(RD1)

3.549

(RD2)

2.013

(RD3)

4.125

(RD1)

1.877

(RD2)

NEC Display Solutions of America, Inc.

NP43/64 Installation Guide

Ceiling Mounted and Desktop Rev 1.0

______________________________________________________________________________________________________________________

www.necdisplay.com NP43/64 Page 6 of 6

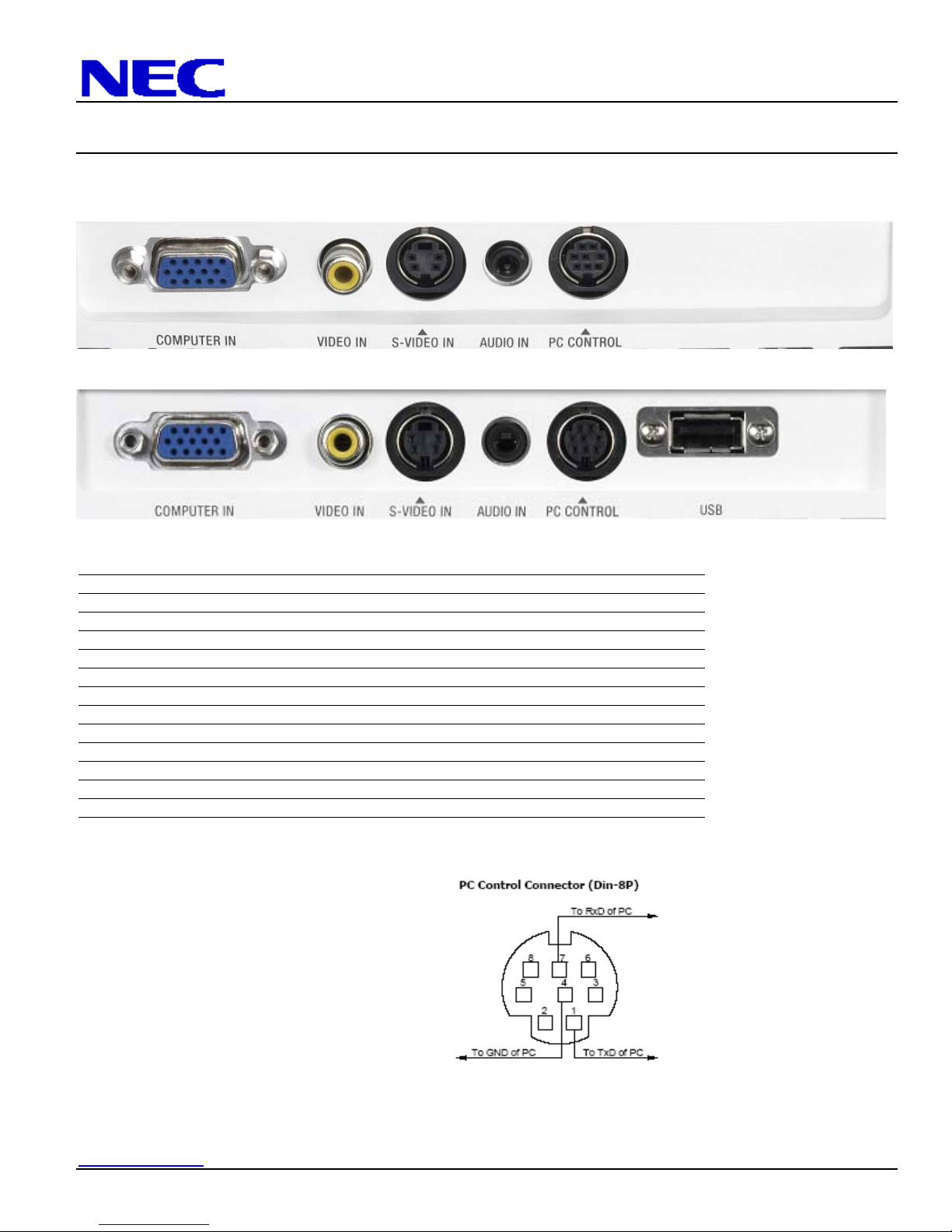

Input Panel

NP43

NP64

PC Control Codes

Function CodeData

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

PICTUREMUTEON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUNDMUTEOFF 02H 13H 00H 00H 00H 15H

AUTO FUNCTIONS EXECUTE 03H B6H 00H 00H 01H 01H BBH

PROJECTOR INFORMATION REQUEST 00H BFH 00H 00H 01H 02H C2H

INFORMATION REQUEST 03H 8AH 00H 00H 00H 8DH

Note: Contact your NEC rep for codes not listed.

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps

Data Length: 8 bits

Parity: No Parity

Stop Bit: One Bit

X on/off: None

Communications: Full duplex

NOTE 1 : Pins 2, 3, 5, and 6 are used inside the projector.

NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.
