NEC OLR-501 Manuel utilisateur

NEC Display Solutions of America, Inc.

www.necdisplay.com OLR-501

IR Touch Overlay

Installation Guide for the OLR-501 Rev 1.0

1.0 Contents

Guide Purpose Page 1

Notes and Warnings Page 1

Equipment Page 2

Dimensional Drawings Page 2

Installation Procedure Page 3

2.0 Purpose

2.1 This procedure describes the steps to install the IR touch overlay onto the C501 display.

3.0 Notes and Warnings

3.1 Prior to installing the overlay, remove the NEC badge from the bottom edge of the monitor.

3.2 The overlay contains tempered glass. Use caution when handling.

3.3 The overlay has an integrated USB cable located along the bottom edge of the overlay. Ensure the

cable is not pinched, crushed, or damaged during installation.

3.4 Installation requires two persons at all times to ensure the touch frame does not bend or torque.

3.5 Once the touch screen is installed, do not lift the monitor by grasping or holding the touch screen

overlay.

3.6 Contact NEC Display Solutions support if you have any questions or require additional installation

guidance support.

500 Park Boulevard, Suite 1100

Itasca, IL 60143

Phone: (800) 632-4662

www.necdisplay.com OLR-501

NEC Display Solutions of America, Inc.

IR Touch Overlay

Installation Guide for the OLR-501 Rev 1.0

4.0 Equipment

5.0 Dimensional Drawings

(1) C501 IR Overlay

(1) Spare #6-32 Philips flathead

machine screw

NEC Display Solutions of America, Inc.

www.necdisplay.com OLR-501

IR Touch Overlay

Installation Guide for the OLR-501 Rev 1.0

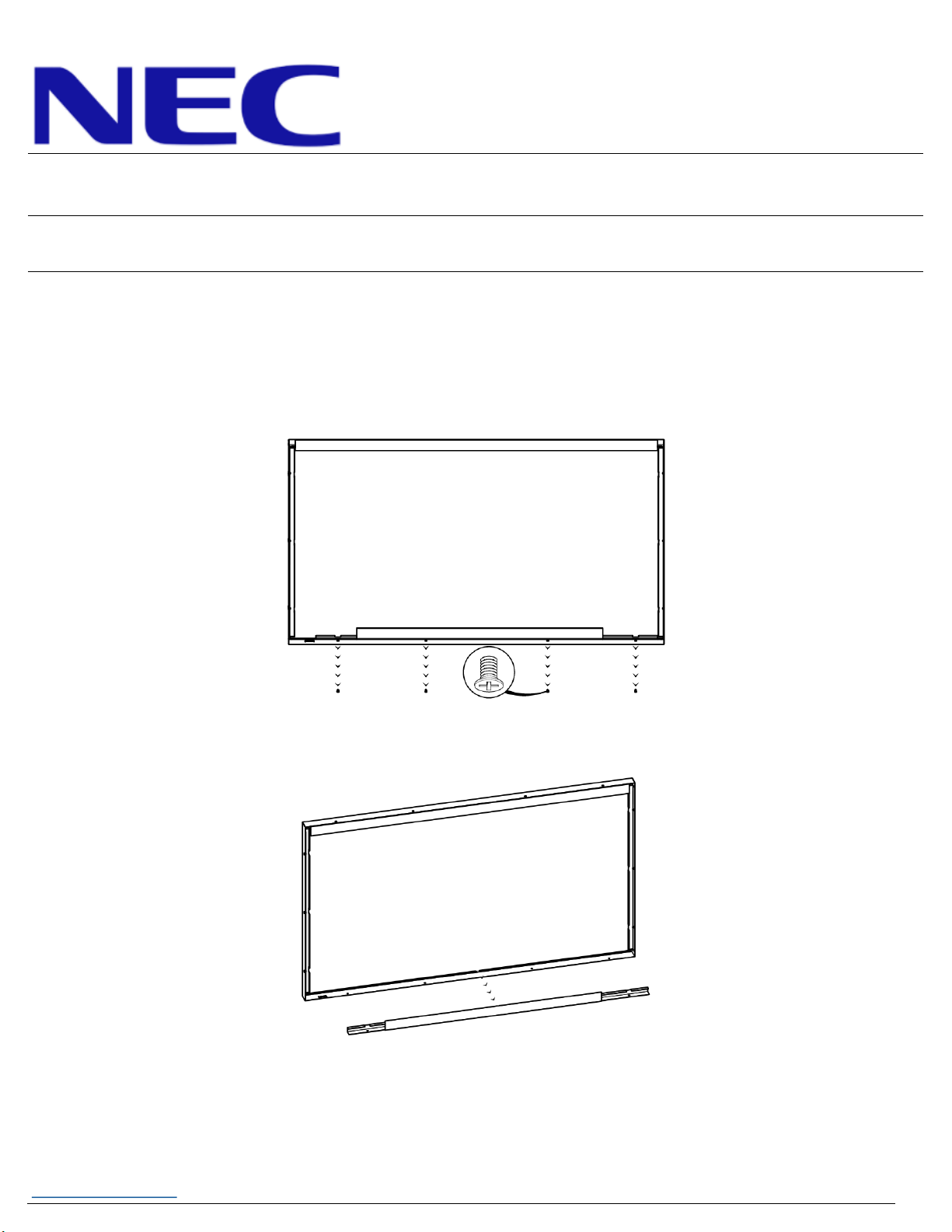

6.0 Installation Procedure

6.1 Remove the overlay from the packaging. Place the overlay face down on a padded surface and verify

the material contents (see Equipment on Page 2).

6.2 Use a #2 Philips screwdriver to remove the four (4) #6-32 flathead screws securing the bottom

bracket to the overlay.

6.2.1 Do NOT remove any remaining screws from the overlay.

6.4 Use a cloth and mild cleaner to clean the monitor and inside surface of the overlay.

6.4.1 Do not use any chemical solvents, such as acidic or alkali solutions.

6.4.2 If available, use compressed air after cleaning to remove any lint or dust.

6.3 Remove the bottom bracket from the overlay.

6.3.1 Set the screws and bracket aside for reuse in steps 6.9 and 6.10.

www.necdisplay.com OLR-501

NEC Display Solutions of America, Inc.

IR Touch Overlay

Installation Guide for the OLR-501 Rev 1.0

6.5 With the help from at least one partner, gently install the overlay on the monitor.

6.5.1 Hook the top bracket of the overlay on the top of the monitor.

6.5.2 Slide the overlay toward the bottom of the monitor. The sides of the overlay will slide past the

sides of the monitor.

6.5.3 Lower the overlay down to the monitor surface.

Step 6.5.1 Step 6.5.2 Step 6.5.3

6.6 Be sure the USB cable is toward the bottom of the monitor and is not crushed or pinched

during installation.

6.7 Be sure not to scratch or damage the monitor or glass surface while installing the overlay.

6.8 Double check the monitor panel and overlay glass for dirt, smudges, or dust before securing

the overlay to the monitor.

6.9 Return the bottom bracket to its original position.

6.10 Replace the four (4) #6-32 flathead screws to secure the bottom bracket to the overlay.

6.12 Touch overlay hardware installation completed. Attach the USB output cable to your PC or media

player and enjoy your new touch capabilities!
