NEC LED-E012i Manuel
Installation and
Maintenance manual
LED Display Kit
[Models for indoor use]
LED-E012i-108
LED-E012i-217
LED-E015i-135
LED-E018i-162
LED-E025i-217
MODELS: LED-E012i, LED-E015i, LED-E018i, LED-E025i
Table of Contents
Important Information...................................................................English-1
About the LED lamps ......................................................................English-4
Lamp break-in ...................................................................................................... English-4
Contents.........................................................................................English-5
Parts Name ....................................................................................English-7
Installation Example ......................................................................English-8
1. Installation location....................................................................................................... 8
2. Installation Setup ....................................................................................................... 10
3. Wiring ....................................................................................................................... 22
4. Installing the pixel card ............................................................................................... 27
Screen Conguration ....................................................................English-29
Image Setting ..............................................................................English-38
Maintenance.................................................................................English-40
Troubleshooting ...........................................................................English-43
1. Display problems ........................................................................................................ 43
2. State monitoring using the software.............................................................................. 44
Specications ...............................................................................English-49
Diagram .......................................................................................English-50
English - 1
Important Information
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE
THE FOLLOWING WHEN SETTING UP AND
USING THE LED DISPLAY SYSTEM:

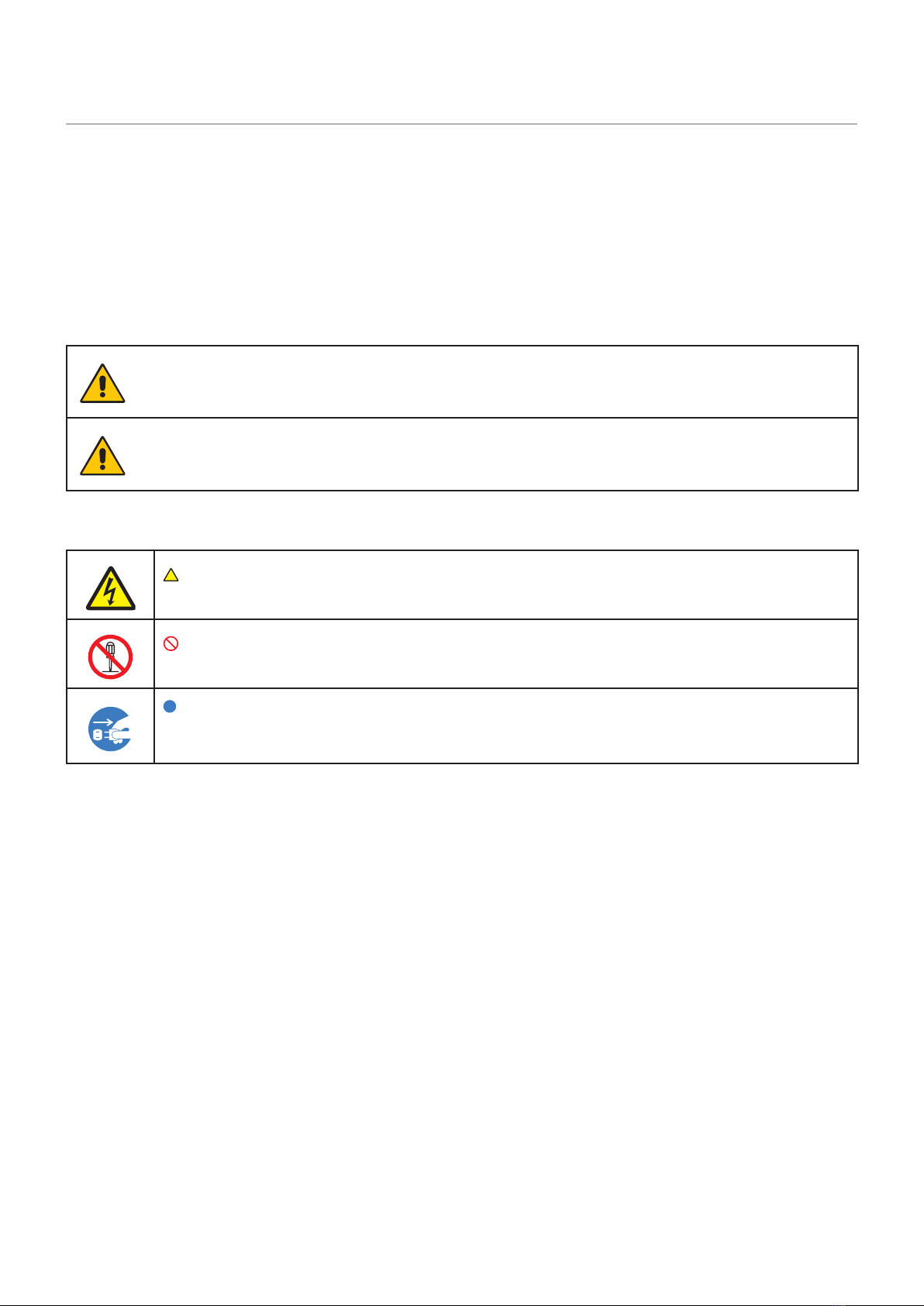

About the Symbols
To ensure safe and proper use of the product, this manual uses a number of symbols to prevent
injury to you and others as well as damage to property. The symbols and their meanings are
described below. Be sure to understand them thoroughly before reading this manual.
WARNING
Failing to heed this symbol and handling the product
incorrectly could result in accidents leading to major
injury or death.
CAUTION
Failing to heed this symbol and handling the product
incorrectly could result in personal injury or damage to
surrounding property.
Examples of symbols
Indicates a warning or caution.
This symbol indicates you should be careful of electric shocks.
Indicates a prohibited action.
This symbol indicates something that must be prohibited.
Indicates a mandatory action.
This symbol indicates that the power cord should be unplugged from the
power outlet.
English - 2
● Be sure to read the following before using the product to use it correctly and safely.
WARNING
Do not apply vibrations or shocks to the
product.
Do not install the product to unstable
locations or locations subject to vibrations.
Always ask a technician to perform the
installation.
Do not connect the cables with wet hands.
Otherwise, it may cause an injury or an
electrical shock.
Do not repair or modify the product yourself.
Otherwise, it may cause an injury, a re or an
electrical shock.
In case of thunder, do not touch the power
cord. Otherwise, it may cause an electrical
shock.
Connect the product to the correct voltage.
If the product is connected to a voltage other
than the specied voltage, it may lead to a
re or an electrical shock.
In case of a malfunction (nothing is displayed
on the screen, etc.) or if smoke, abnormal
heat, or a strange sound or odor is generated,
turn the power off and immediately ask a
technician or your retailer for repair.
Install the product so that the vents are not
obstructed.
Make sure there are enough people available
to ensure safety (at least two people) when
installing or moving the product. Otherwise, it
may lead to an injury.
Be sure to ground the product. If the product
is not grounded, there is a risk of electrical
shock in case a malfunction occurs.
In case foreign matter has entered into the
product, immediately disconnect the power
supply and stop using the product.
After the installation, if a problem such as
loose screws occurs, immediately ask a
technician or your retailer for repair.
Do not put objects into the product.
Otherwise, it may cause a re or an electrical
shock.
In case the product is in contact with water
or another liquid, immediately disconnect the
power supply and stop using the product. If
you continue using the product in that state,
it may lead to a malfunction, a re, or an
electrical shock.
English - 3
This product can only be serviced in the country where it was purchased.
CAUTION
Do not damage the power cord. Do not put
heavy objects on it, place it near heaters, pull
it with excessive strength, or apply a strong
force on it while it is bent.
A damaged power cord may cause a re or an
electrical shock.
Do not install the product in narrow places
where heat tends to build up.
Do not use the product in an environment
with low heat dissipation.
Otherwise, it may cause a malfunction.
The RJ-45 port of the product is for use
with the product only. Do not connect it to a
network. Connecting this port to a network
that may receive over-voltage current may
cause damage to the product or an electrical
shock.
Do not use the product in a vehicle or another
means of transportation.
Do not use or store the product in the
following places.
• Near heaters
• Places with lots of humidity or dust, or
places subject to oily smoke
• Places where water or oil may splash
• Places with lots of corrosive gases, such as
near hot springs
• Places where the product may freeze
• Do not place the product on its side, face
down, or upside down.
• Places with lots of vibrations
If you will not be using the product for a long
time, disconnect it from the power distributor
for safety purposes.
Disconnect the power supply when
performing the maintenance.
Install the product in accordance with the
local laws and regulations.
Do not place the product under direct sunlight
or near heaters.
This product is designed to be used indoors.
Do not use it outdoors. Otherwise, it may
cause a malfunction.
English - 4
About the LED lamps
LED lamps are sensitive to static electricity and surge voltage, which may damage their components
and decrease their reliability.
Take measures against static electricity during the installation. Do not touch the LED display areas.
The LED lamps may absorb and hold moisture during the LED module installation or if not used for
a long time. Therefore, in such cases, the brightness must be increased gradually during a break-in
period before setting the normal brightness.
If the LED lamps are lit with 100% brightness while moisture is retained, the temperature will rise very
quickly and the water inside the lamps will evaporate and expand. This will cause the encapsulating
resin to expand, which may lead to separation of the boundary surface inside the LED lamps. This
separation can cause the LED lamps not to light up properly.
Lamp break-in
Congure the brightness settings as shown below with a video displayed on the LED module.
After a break-in period of approximately 3 hours, the LED module can be used under normal
conditions.
Time since start-up: 0
(just after start-up)
1 hour 2 hours 3 hours
Full white Normal operation70%50%
80%60%40%
Brightness
value 20%
Normal operation
Video content
English - 5
Contents
The supplied parts are as follows.
In case one of these parts is missing or damaged, contact the retailer.
Parts Specications Quantity
LED-E012i-108 LED-E015i-135 LED-E018i-162 LED-E012i-217 LED-E025i-217
Bottom frame 1 1 1 2
Bottom frame
connecting part
- - - 1
Bottom frame
connecting screw
PM3 - - - 8
KM3 - - - 8
Mounting bar 2 2 3 4
Alignment bar 2 2 2 2
Cabinet hanger pin Head diameter
10 mm x 25 mm
16 20 36 64
Bottom frame
screw
M6 x 16 6 6 9 12
Over frame (top) 1 1 1 1
Over frame (left,
right)
2 2 2 2
Corner frame 2 2 2 2
Slot nut M3 x 13 mm 12 15 18 24
Screw for the slot
nut
M3 x 10 mm 12 15 18 24
English - 6
Parts Specications Quantity
LED-E012i-108 LED-E015i-135 LED-E018i-162 LED-E012i-217 LED-E025i-217
Cabinet alignment
bracket
35 x 35 x 6 mm 10 12 14 18
Fixing screw for the
cabinet alignment
bracket
Hexagonal socket
head screw (M4
x 12)
40 48 56 72
Pixel card 64 100 144 256
Cabinet 600 mm x 337.5
mm
16 25 36 64
Connection screw
for LED modules
M6 x 26 mm 56 90 132 240
LED controller Novastar MCTRL
660Pro
1 1 1 - 1
Novastar MCTRL
4K
- - - 1 -
LAN cable for the
LED modules
750 mm - - - - 4
200 mm 12 20 30 48 56
LAN cable for the
LED controller
20000 mm 4 5 6 8 8
24000 mm - - - 8 -
Power cord for the
LED modules
950 mm 2 2 - -
300 mm - 1 6 8
Power cord for the
LED controller
1 1 1 1
Power cord
connector
WAGO (2pcs) 4 6 12 16
WAGO (3pcs) 2 3 6 8
USB ash memory 1 1 1 1
Safety Manual 1 1 1 1
Packing list 1 1 1 1
English - 7
Parts Name
5
3 4
1
2
6
7
5
3 4
1Pixel card
2Cabinet
3LAN cable input/output
4LAN cable input (not used with this product)
5Power cord input/output
6Hub board
7Power unit
English - 8
Installation Example
1. Installation location
Before the installation, be sure to review the following safety precautions to ensure proper and safe
installation.
CAUTION
• Ask a technician to perform the installation.
• Make sure the product is moved and installed by enough people to ensure safety.
• Make sure that the beams or the other structures to which the product is installed have enough strength to
support the weight of the product, and make sure that the product is securely xed.
• Do not install directly the product to a surface that has not enough strength.
• When installing the product in a narrow place (in a wall, etc.), leave gaps around the LED screens as
shown in the gure below to prevent an increase in the temperature. The gure below is only an example.
Pay particular attention to the installation environment (heat from the external environment, direct
sunlight, heat generated by the number of displays) in order to facilitate cooling of the LED modules.
If cooling is not sufcient, take measures, such as increasing the distance from the walls or installing a
forced-air cooling system.
Ask a technician or your retailer for more details.
A A
C
B
B
A B C
min distance to sides min. distance to top and bottom Distance between wall and system
60 mm 60 mm 20 mm
