856-129808-101-00
Keep this manual carefully along with the product
N8101-601F/602F/603F/604F/605F
Xeon Processor Kit
User’s Guide
The User's Guide is intended to allow you to install and use the Xeon Processor Kit.
N8101-601F/602F/603F/604F/605F correctly and safely.
Read this manual thoroughly before handling the Kit.
In addition, refer to this guide whenever you want to know how to use the Kit or some
malfunction occurs. Always keep this guide at hand so that you can see it when necessary.
For the server in which the Kit is installed, refer to the User’s Guide of the server.
Read “Notes on Use” carefully before handling the Kit.
WARNING
Indicates the presence of a hazard that may result in death or serious personal injury.
Unplug the power
cord!
When you install the option or delete it, unplug the power
cord and extract the cable that has connected to another
one.
Otherwise, an electric shock or fire may be caused.
Precaution against
electric shock
Prohibition of
disassembly
Indicates that
improper use
may cause fire.
Do not disassemble, repair, or modify the server. Otherwise,
an electric shock or fire may be caused.
Precaution
against electric
shock
856-129808-101-00
Notes On Use
Please be sure to protect the following notes after picking out this product from a box.
Do not use the server in the place where dust, water or liquid may pour.
Do not use the server in the place where the strong electromagnetic waves generate
Do not touch the terminals of the processor and the processor socket.
Transfer to Third Party
Make sure to provide this manual and all the accessories along with the product to a third party.
856-129808-101-00
Introduction
This processor kit is that used on Express5800/E120d-M.
･N8101-601F:Intel®Xeon® processor E5-2407 clock 2.20GHz 4c/4t 80W
･N8101-602F:Intel®Xeon® processor E5-2430 clock 2.20GHz 6c/12t 95W
･N8101-603F:Intel®Xeon® processor E5-2430L clock 2GHz 6c/12t 60W
･N8101-604F:Intel®Xeon® processor E5-2450L clock 1.80GHz 8c/16t 70W
･N8101-605F:Intel®Xeon® processor E5-2470 clock 2.30GHz 8c/16t 95W
Composition article
This kit including the following parts, please check it.
Number N8101-
No. Name 601F 602F 603F 604F 605F Comment
Intel®Xeon® processor
E5-2407 1 － － － －
Intel®Xeon® processor
E5-2430 － 1 － － －
Intel®Xeon® processor
E5-2430L － － 1 － －
Intel®Xeon® processor
E5-2450L － － － 1 －
1
Intel®Xeon® processor
E5-2470 － － － － 1
2 Xeon Processor Kit
User’s Guide 1 This book.
856-129808-101-00
Install the Xeon Processor Kit
1．Preparation point to be checked
You need to remove server module when installing the processor :
Lift the lever while pushing the locking mechanism toward right. Hold the handle, and pull out the server
module horizontally,.
Important If you remove the server module from module enclosure, wait at least 30 seconds
before insert it again into enclosure.
２．Install the Xeon Processor Kit
Follow steps below to install the processor.
1. Locate the CPU socket to which you are going to install a processor.
CPU2
CPU1
856-129808-101-00

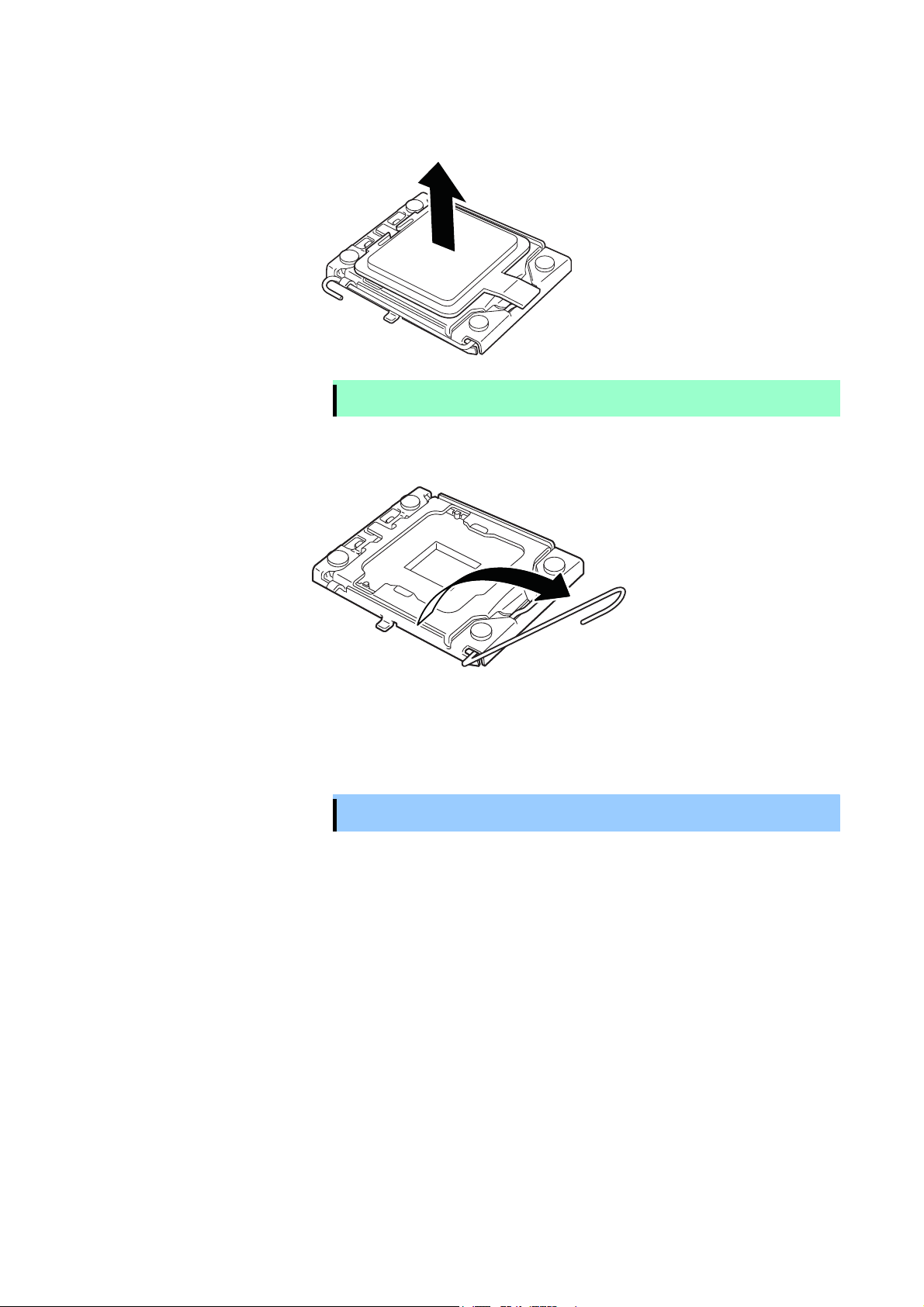

2. Remove the protective cover from the CPU socket.
Note Keep the removed protective cover for future use.
3. Push down the socket lever once to unlatch it from the hook, then slowly open the lever until it stops.
4. Lift the plate.
Important Do not touch the socket contacts.
856-129808-101-00
5. Put the additional processor on the CPU socket slowly and gently.
For easy installation, hold edges of processor with your thumb and index fingers so that the notch
is aligned with the key on the CPU socket.
Important Be sure to hold the processor only at the edges.
Pay attention not to touch the bottom of the processor (pin section).
Note Insert the processor while aligning the notch on the processor with the key on the CPU
socket.
Bring down the processor straight without tilting or sliding it in the socket.
6. Lightly push the processor to the CPU socket, and close the plate.
7. Close the socket lever to fix the processor.
856-129808-101-00
8. Put the heat sink on the processor and fix the heat sink with four screws.
Temporarily tighten the four screws diagonally, then tighten them securely.
Make sure that the screw aligns with the screw hole. If not, the screw may damage the motherboard.
Important Use the heat sink that comes with your server, when you install the CPU1
(Basic).
Need the additional heat sink (N8101-609F), when you install the CPU2
(Optional).
Note Make sure the location to put the heat sink.
856-129808-101-00
9. Make sure that the heat sink is installed on a level with the motherboard.
Note If the heat sink is not level, remove it, and then install it again.
The following probably causes the heat sink not to be level:
– The CPU is not positioned correctly.
– All screws are not completely tightened.
Do not move the secured heat sink.
10. Continue to install or remove internal optional devices, mount and connect the server, and turn the
server on.
11. Run BIOS Setup Utility (SETUP) to confirm the following settings. Refer to Chapter 2 (1. System BIOS) in
"Maintenance Guide".
Advanced Processor Configuration Processor Information
[CPU ID]
[L2 Cache RAM]
[L3 Cache RAM]
N8101-601F/602F/603F/604F/605F
Xeon Processor Kit User’s Guide
*856-129808-101-00S*
*856-129808-101-00*
