NCR MSR Series Manuel
7409-K227/K229
MSR
Kit Instructions
Issue A
Revision Record
Issue
Date
Remarks
A
Feb 2013
First issue
1
Introduction
This kit provides an MSR module that mounts on the side of the 7409 Display Head.
There are two versions:
•JIS MSR (7409-K227)
•ISO MSR (7409-K229)
32011
2
Installation Procedures
Warning: Disconnect the AC power cord before disassembling the Terminal.
1. Remove the Display Head from its mount.
Removing the 7409 from the Table Top Mount
a. Release the Mounting Plate Latches and tilt the display back. Relock the
latches.
26901
Mounting Plate Latches
3
b. Loosen the captive screw that secures the Cable Cover and remove the cover.
26690
Cable Cover Captive Screw
c. Disconnect the cables from the I/O Panel.
4
d. Release the Mounting Plate Latches and remove the 7409 from the mount.
26659
Mounting Plate Latches
Baseplate
Removing the 7409 from the Fixed Angle Mount
a. Remove the screws (2) in the sides of the Fixed Angle Mount.
26681
Screw
(One on each side)
5

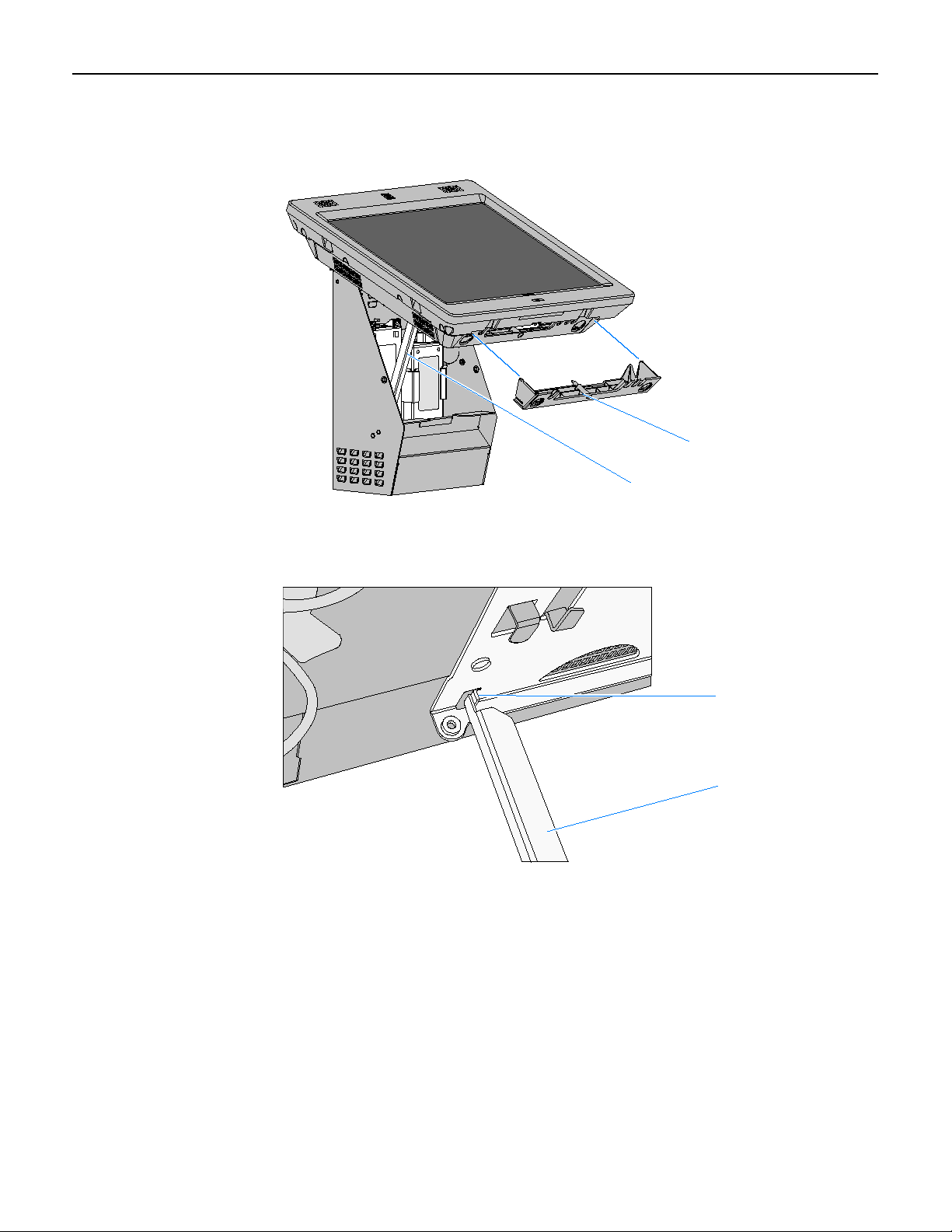

b. Rest the bottom of the display on the Display Support.
26680
Display Support
Cable Cover Captive Screw
Note: Place the Display Support behind the extension on then Display Hinge
Bracket.
24753
Display Support
Bracket Extension
c. Loosen the captive screw that secures the Cable Cover and remove the cover.
6
d. Disconnect the cables from the I/O Panel.
Note: The Power Cable connector locksinto position when connected to the
terminal and cannot be removed by simply pulling on the cable. You must
grasp the connector and slide the outside housing out from the terminal to
unlock it from the terminal connector.
e. Slide the Locking Brackets (2) to the unlocked position.
24747
7
f. Remove the display from the Fixed Angle Mount.
24629
g. Disconnect the Power Cord from the I/O Panel on the terminal.
2. Lay the terminal face down on a flat surface.
3. Loosen the captive screws (2) that secure the Rear Cover.
26903
Captive Screws
Rear Cover
8
4. Pivot the Rear Cover to the open position.
26651a
Rear Cover Latches
5. Remove the Rear cover by squeezing the Rear Cover Latches together as indicated
above.
