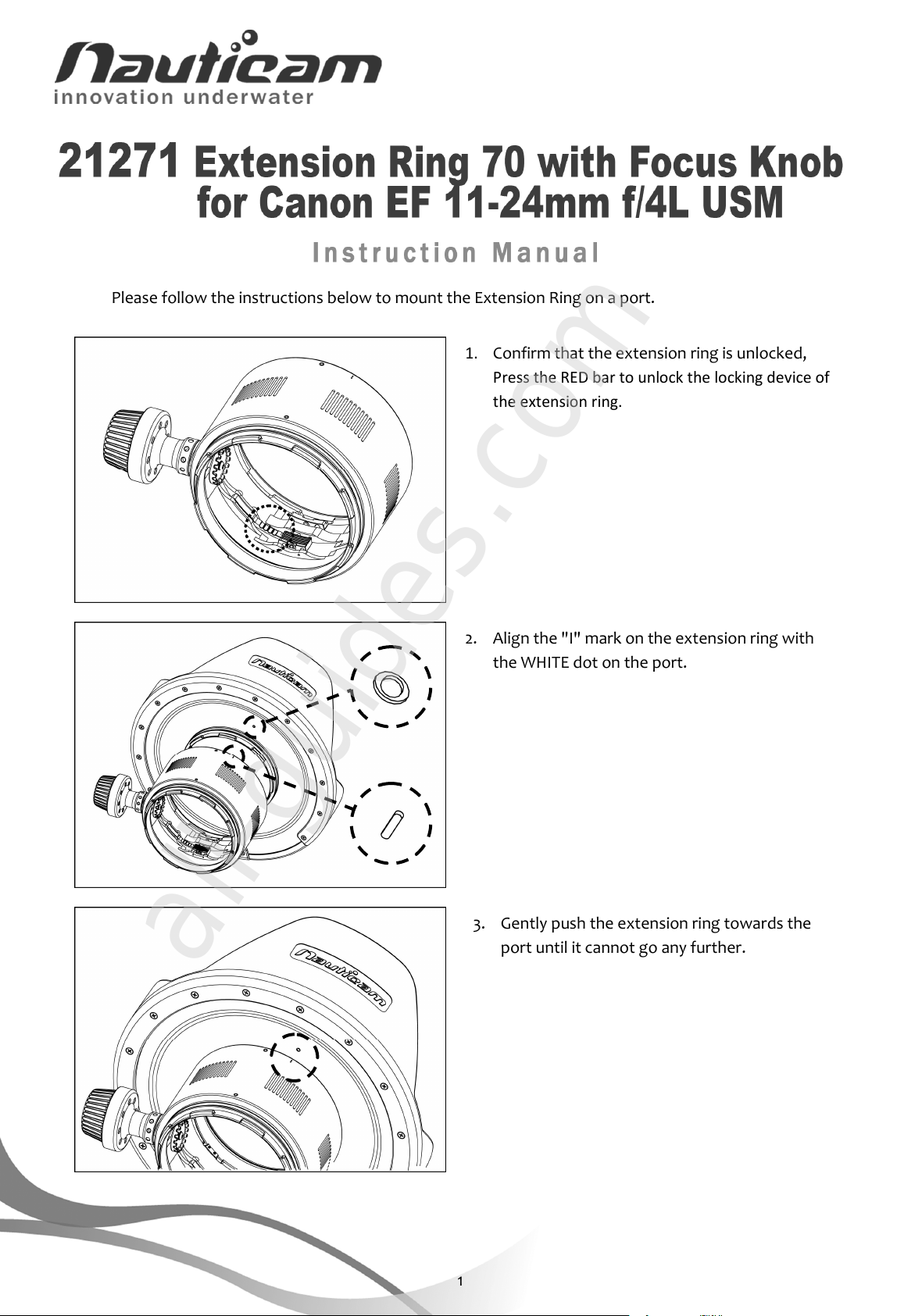

Please follow the instructions below to mount the Extension Ring on a port.

1.

Confirm that the e

xtension rin

g is unlocked,

Press the RED bar to unlock the locking device of

the extension ring.

2.

Align the " " mark on the extension ring with

the WH TE dot on the port.

3.

Gently push the extensio

n ring towards the

port until it cannot go any further.

1

All manuals and user guides at all-guides.com

all-guides.com

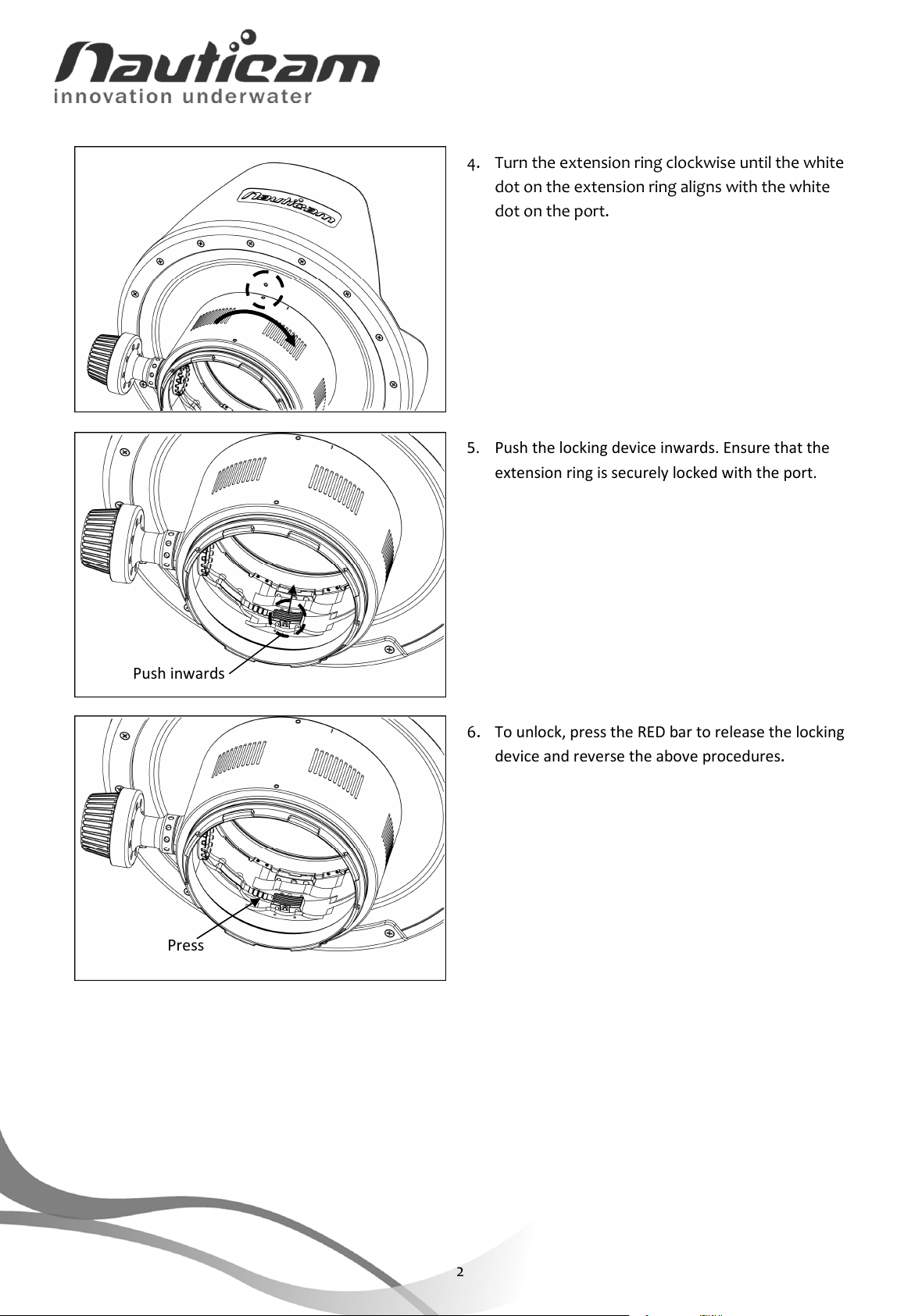

4.

Turn the extension ring clockwise until the white

dot on the extension ring aligns with the white

dot on the port.

5.

Push the locking device inwards. Ensure that the

extension ring is securely locked with the port.

6.

To unlock press the RED bar to release the locking

device and reverse the above procedures.

2

Press

Push inwards

All manuals and user guides at all-guides.com

*Please refer to the housing manual for procedures to mount the port on the housing.

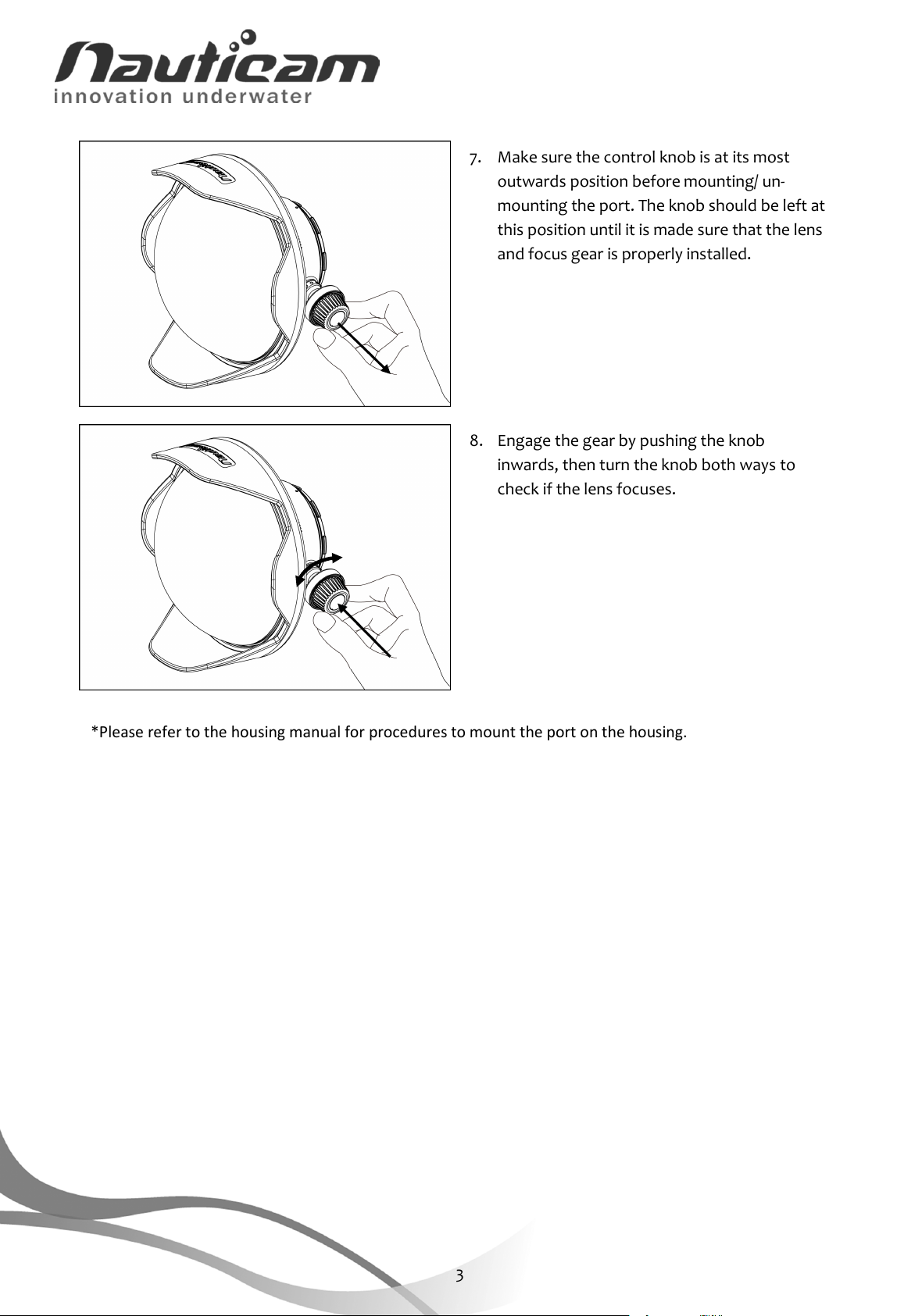

7.

M

ake sure the control k

nob is at its most

outwards position before mounting/ un-

mounting the port. The knob should be left at

this position until it is made sure that the lens

and focus gear is properly installed.

8.

Engage the gear by pushing the knob

inwards, then turn the knob both ways to

check if the lens focuses.

3

All manuals and user guides at all-guides.com

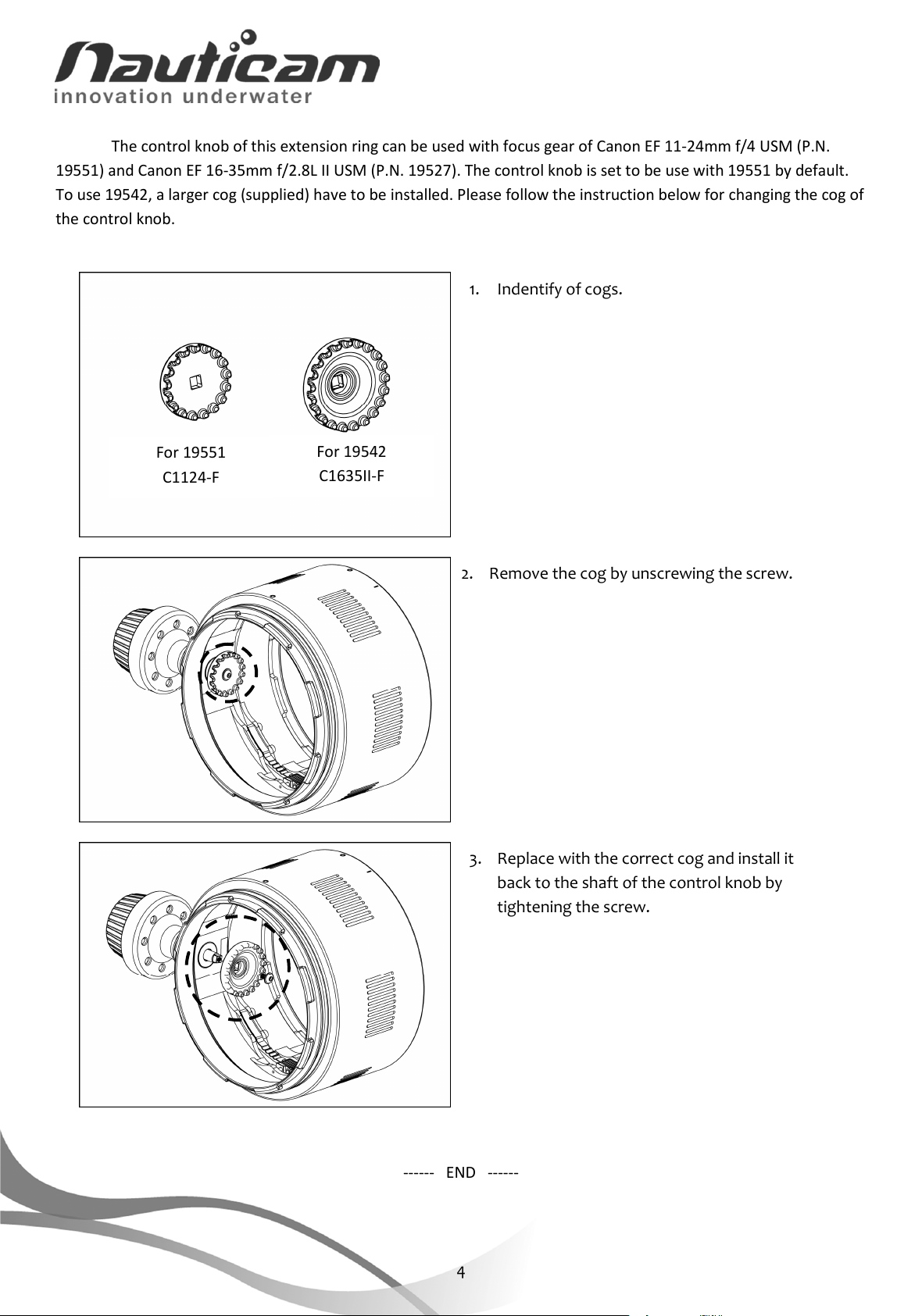

The control knob of this extension ring can be used with focus gear of Canon EF 11-24mm f/4 USM (P.N.

19551) and Canon EF 16-35mm f/2.8L II USM (P.N. 19527). The control knob is set to be use with 19551 by default.

To use 19542 a larger cog (supplied) have to be installed. Please follow the instruction below for changing the cog of

the control knob.

------ END ------
