INSTRUCTION MANUAL

for Nauticam Cinema Gear Set for

Canon RF 24-70mm F/2.8L IS USM

PN# 16346

Thank you for your purchase of a NAUTICAM

product.

At NAUTICAM, we pride ourselves in the ability to

recognize the requirements of professional as well

as amateur underwater photographers and fulfill

them through the innovative designs of our

products. We strive to achieve a high level of user-

friendliness by allowing stress-free installation and

easy operation of all important functions of the

camera.

Each product is individually inspected and water

pressure tested to ensure optimum quality.

Please read this manual carefully before using the

product, this will maximize its performance as well

as its lifetime.

FORWORD

Current as of 06/13/2023

All NAUTICAM Products are warranted against

any material and manufacturing defects for two

years from the date of purchase for consumer

use. This warranty only applies to products

purchased from authorized NAUTICAM dealers

and does not extend beyond the original retail

purchaser.

To return your product for service, please contact

your regional authorized service center(s). Please

note that this warranty only applies when the

product is purchased in the territory where the

service center is located.

NAUTICAM does not hold responsibility for

damage, of any nature, to any equipment used

with and/or placed within our products.

NAUTICAM accepts no liability for any loss of

captured images or the inability to capture images

even if it is due to the malfunctioning of our

products.

Unauthorized modifications and/or repairs of our

products will automatically invalidate the

warranty.

•After installation of the port combo, please

make sure the O-ring (s) are free from debris

and uneven surface issues.

•A water-tight/vacuum test without the camera

inside the housing is highly recommended after

the changing of port and O-ring(s).

•Do not use lubricants from other brands with

the silicone rubber O-ring on this housing, only

use the lubricant provided by NAUTICAM.

•Discontinue use immediately should you notice

any leakage.

•Do not open the product in a wet or sandy

environment. Protect the interior from moisture

and debris in order to prevent malfunction or

leakage.

•Defective products should be shipped to our

distributors for service, unauthorized

disassembling and/or modifications could

result in malfunction or leakage.

•When travelling by air, do not travel with any

port installed as this may lead to a pressure

difference between the atmosphere and inside

the housing.

PRECAUTIONS

PACKAGE CONTENTS

•Make sure that you have all the included items listed below before using this product.

•If some items are missing or damaged, contact us and the local Nauticam dealer.

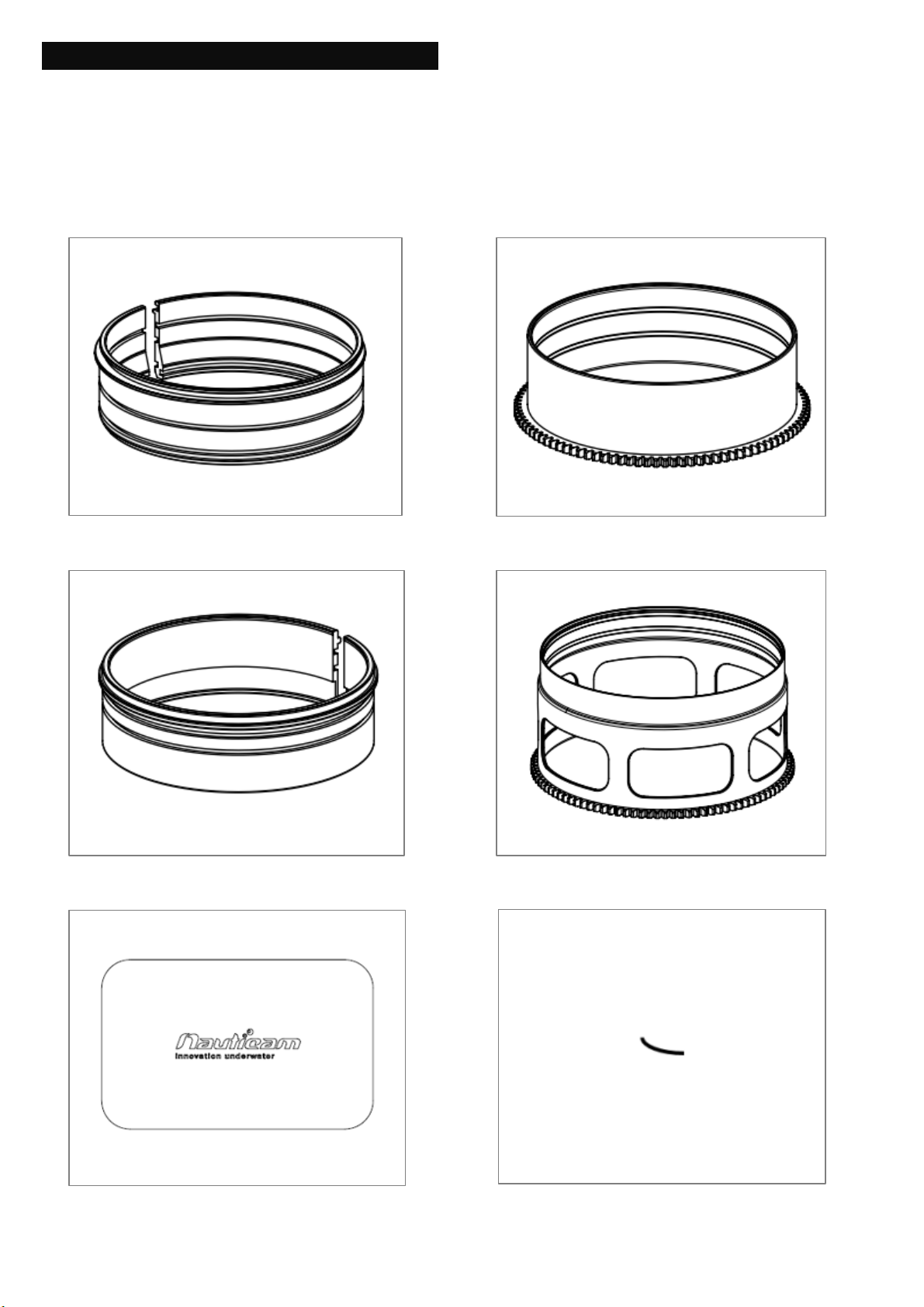

Plastic C-ring for zoom gear RF2470-Z Cinema Zoom Gear

Spare Rubber grips x 6

Manual Instruction Card

Plastic C-ring for focus gear RF2470-F Cinema Focus Gear

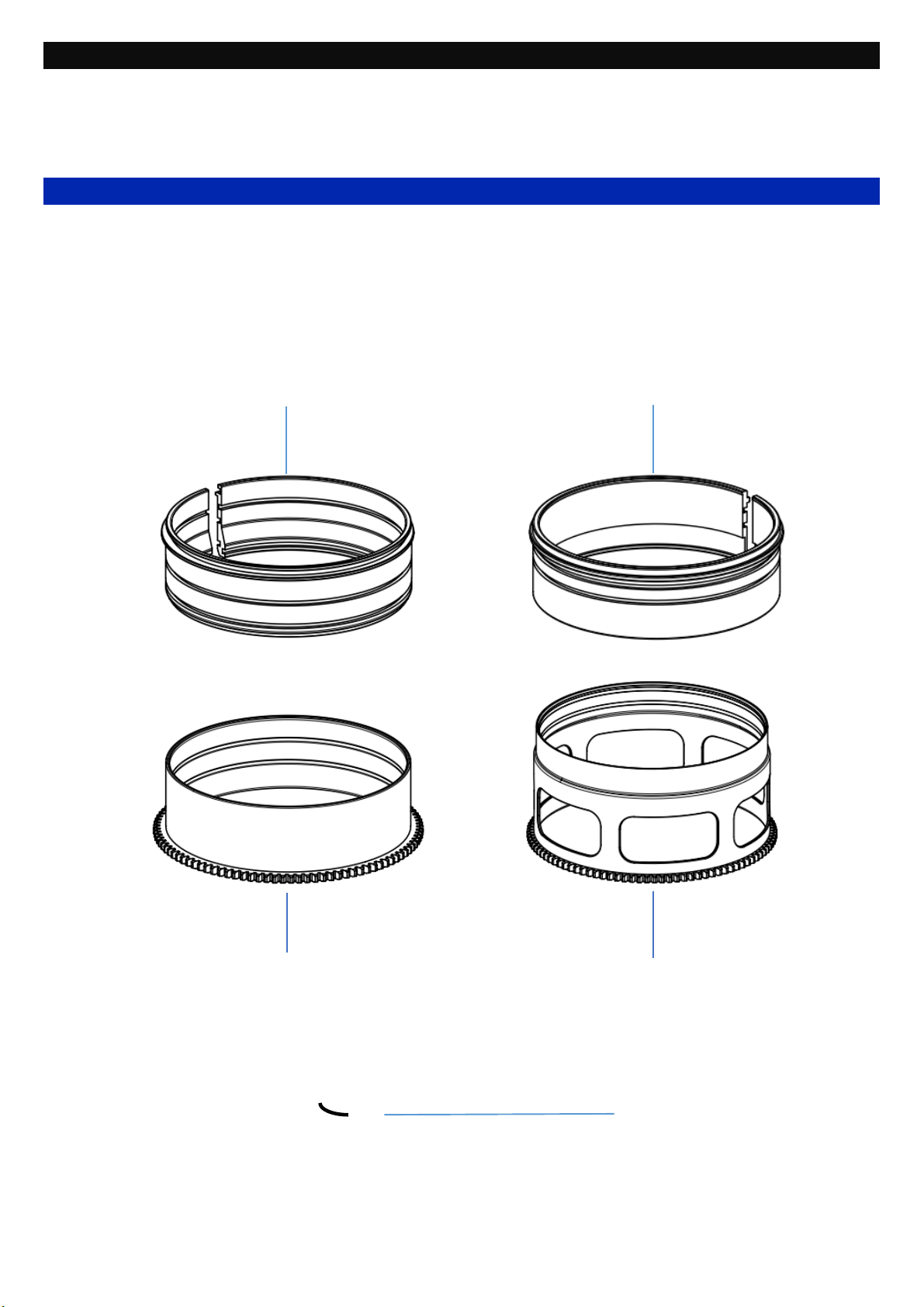

IDENTIFICATION OF PARTS

Plastic C-ring for zoom gear

RF2470-Z Cinema Zoom Gear

Plastic C-ring for focus gear

RF2470-F Cinema Focus Gear

Spare rubber grips

MOUNT THE GEARS ON A LENS

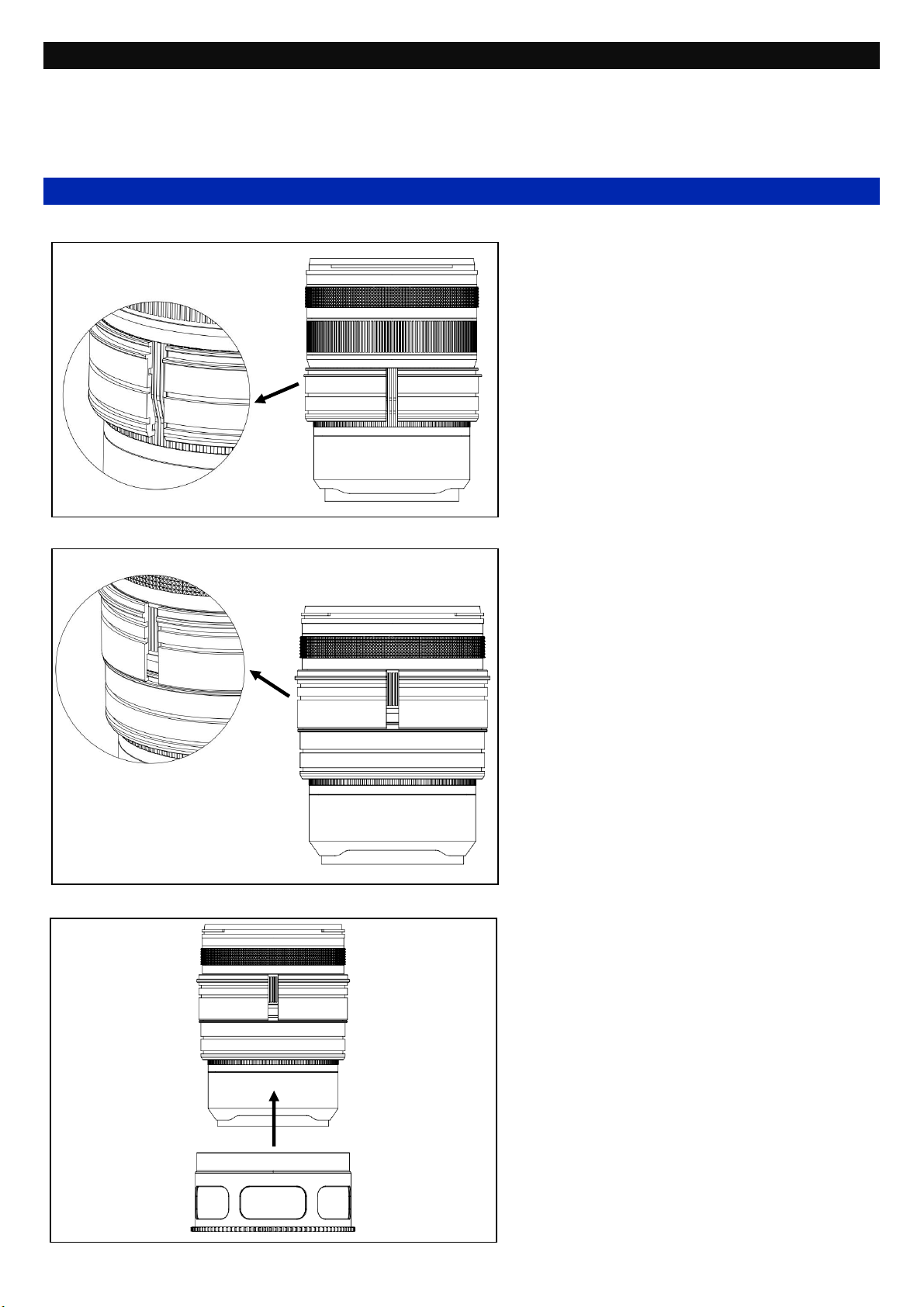

1. Insert the plastic C-ring for zoom gear as

shown and place it over the lens.

2. Insert the plastic C-ring for focus gear

as shown and place it over the lens and

plastic C-ring for zoom gear.

3. Insert the focus gear on a plastic C-ring

for the focus gear until it reaches the

flange of the plastic C-ring.

MOUNT THE GEARS ON A LENS

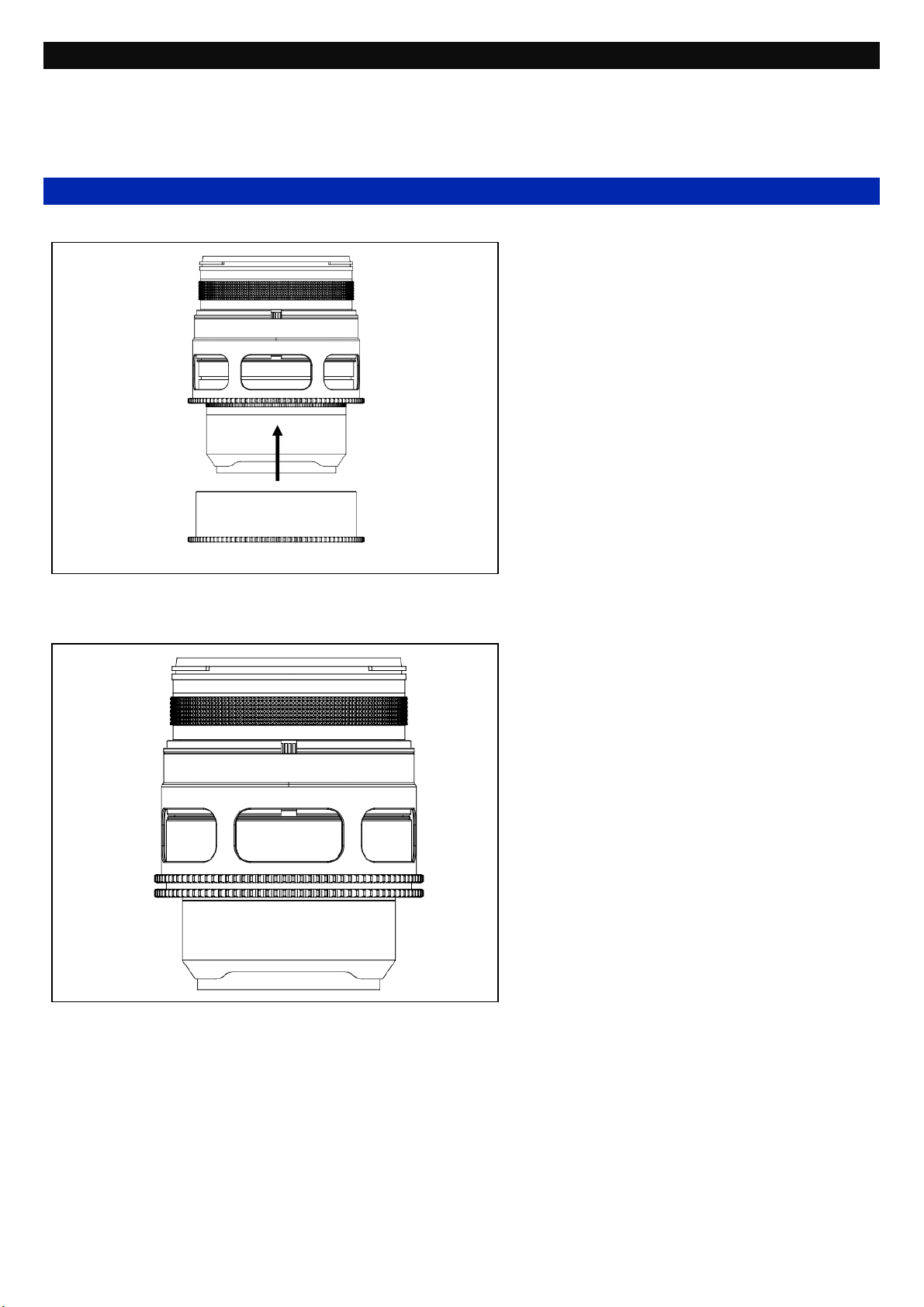

4. Insert the zoom gear on a plastic C-ring

for the zoom gear until it reaches the

flange of the plastic C-ring.

5. To remove the Cinema Gear Set for

Canon RF 24-70mm F/2.8L IS USM,

reverse the above steps.

The tightness between the Cinema Gear

Set for Canon RF 24-70mm F/2.8L IS

USM and the lens can be adjusted by

removing or adding rubber grips on

either sides of the plastic C-ring, spare

rubber grips are included in the

package.

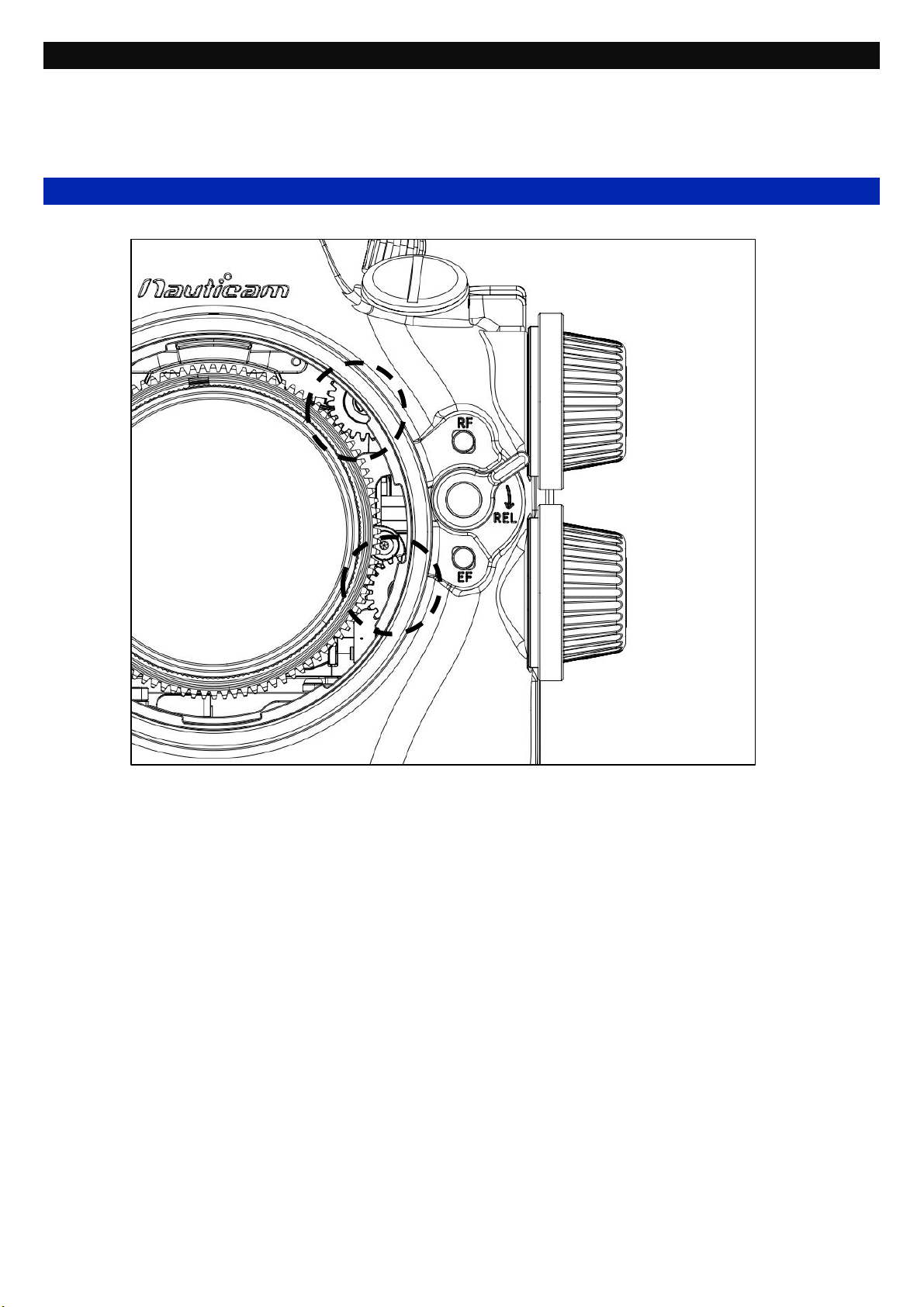

CONTROL THE GEAR

1. The Cinema Gear Set for Canon RF 24-70mm F/2.8L IS USM

2. Can be controlled by zoom/focus knobs of the housing.

After mount the camera and lens (with gear installed) on the housing,

confirm that the zoom/focus knobs operates correctly.

SPECIFICATIONS

#16346

Nauticam

Cinema Gear Set for Canon RF

-70mm F/2.8L IS USM

Dimensions:

Zoom

gear : DIA102mm × 29.5mm

Focus

gear : DIA102mm × 49.2mm

Type:

Zoom and Focus gears

Compatible

lens

Canon RF 24

-70mm F/2.8L IS USM

Remark:

Nauticam supports only e-manuals. Please download

corresponding product manuals on google drive

https://bit.ly/Nauticammanual,or contact us for e-

manuals.

CARE AND MAINTENANCE

•Soak the housing system in fresh water after

each use, during which all control buttons/knobs

should be operated a few times to avoid the

accumulation of salt residue; wipe the housing

with a towel before opening.

•After removing the housing from the rinse tank,

carefully press the housing lock safety button for

a few times to avoid the accumulation of salt

residue.

•After each day of diving, it is advisable to have

both the housing main O-ring and port O-ring

removed from its groove with the O-ring remover

and inspected for damage. Also check that the

O-ring retains its original circular shape; never

stretch the O-ring excessively or remove it with a

sharp object. The O-ring groove should be

cleaned to ensure it is free from any salt deposit

or foreign material; lightly coat the O-ring with the

provided lubricant before reinstalling it in the

groove. A damaged O-ring should be discarded

immediately and replaced only with one that is

provided by NAUTICAM.

Please refer to "Nauticam Product Care and

Maintenance Guide" for more details.
