User's Guide

SLUU763A–December 2011–Revised November 2015

bq2026 Evaluation Software

The purpose of the bq2026 evaluation board and the bq2026EVM evaluation software is to demonstrate

the functionality of the bq2026. The bq2026 evaluation board supports both the bq2026DBZR (SOT23-3)

and bq2026LPR (TO-92) packages but only one package can be evaluated/programmed at any time.

The bq2026 is a 1.5K-bit serial EPROM containing a factory-programmed, unique 48-bit identification

number, 8-bit family code, and a 64-bit status register.

The bq2026 is ideal for applications such as battery pack configuration parameters, record maintenance,

asset tracking, product revision status, and access-code security.

Contents

1 Kit Contents................................................................................................................... 2

2 bq2026-Based Circuit Module.............................................................................................. 2

2.1 Test Points........................................................................................................... 2

3 bq2026EVM Circuit Module Schematic................................................................................... 2

4 bq2026EVM Circuit Module Physical Layouts ........................................................................... 3

5 bq2026EVM Circuit Module Bill of Materials............................................................................. 5

6 bq2026EVM Circuit Module Performance Specification Summary.................................................... 6

7 bq2026EVM Hardware and Software Setup ............................................................................. 6

7.1 Drivers and Software Installation` ................................................................................ 6

7.2 Hardware Connection .............................................................................................. 6

8 Software Operation.......................................................................................................... 7

8.1 Evaluation Software Pages........................................................................................ 7

8.2 ROM CMD........................................................................................................... 7

8.3 DATA................................................................................................................. 8

List of Figures

1 bq2026EVM Schematic..................................................................................................... 2

2 bq2026EVM Silk Screen.................................................................................................... 3

3 bq2026EVM Top Assembly ................................................................................................ 4

4 bq2026EVM Top Layer ..................................................................................................... 4

5 bq2026EVM Bottom Layer.................................................................................................. 5

6 ROM CMD Page............................................................................................................. 8

7 DATA Page................................................................................................................... 9

List of Tables

1 Test Points.................................................................................................................... 2

2 Bill of Materials............................................................................................................... 5

3 Performance Specification Summary ..................................................................................... 6

4 Wire Connection ............................................................................................................. 7

SLUU763A–December 2011–Revised November 2015 bq2026 Evaluation Software

Kit Contents

www.ti.com

1 Kit Contents

1. bq2026EVM REVA board

2 bq2026-Based Circuit Module

The bq2026-based circuit module is ideal for programming the 1.5K-bit EPROM and the STATUS bytes of

the bq2026 IC. The circuit module includes a SOT23 single socket, a bq2026 IC, a Zener diode for host

protection during EPROM programming, and a programming circuit that generates a 12-V pulse when

used with a power supply and a control signal. In a typical application, only the bq2026 IC and a pullup

resistor is required.

2.1 Test Points

Table 1. Test Points

Test Point Signal Name Description

J1-1 VSS Device ground

J1-2 PROG Input for timing of EPROM programming pulse

J1-3 SDQ SDQ single-wire communication bus

J2-1 12V High voltage for EPROM programming

J2-2 VSS Programming ground

J3 Connect for EPROM programming

3 bq2026EVM Circuit Module Schematic

The schematic shows the circuit for the bq2026 implementation.

Figure 1. bq2026EVM Schematic

2bq2026 Evaluation Software SLUU763A–December 2011–Revised November 2015

Submit Documentation Feedback

www.ti.com

bq2026EVM Circuit Module Physical Layouts

4 bq2026EVM Circuit Module Physical Layouts

This section contains the board layout and assembly drawings for the bq2026EVM circuit module.

Figure 2. bq2026EVM Silk Screen

SLUU763A–December 2011–Revised November 2015 bq2026 Evaluation Software

bq2026EVM Circuit Module Physical Layouts

www.ti.com

Figure 3. bq2026EVM Top Assembly

Figure 4. bq2026EVM Top Layer

4bq2026 Evaluation Software SLUU763A–December 2011–Revised November 2015

Submit Documentation Feedback

www.ti.com

bq2026EVM Circuit Module Bill of Materials

Figure 5. bq2026EVM Bottom Layer

5 bq2026EVM Circuit Module Bill of Materials

Table 2 presents the bill of materials required for the bq2026EVM circuit module.

Table 2. Bill of Materials

Count RefDes Description Size MFR Part Number

2 D1, D2 Diode, Zener, 5.6-V, 350-mW SOT-23 Diodes, Inc. BZX84C5V6

1 J3 Header, 2-pin, 100-mil spacing, (36-pin strip) 0.100 x 2 Sullins PTC36SAAN

3 R1, R2, R6 Resistor, Chip, 100-Ω, 1/16-W, 5% 603 Std Std

1 R3 Resistor, Chip, 100-kΩ, 1/16-W, 5% 603 Std Std

1 R4 Resistor, Chip, 10-kΩ, 1/16-W, 5% 603 Std Std

1 R5 Resistor, Chip, 15-kΩ, 1/16-W, 5% 603 Std Std

0 R7*, R8* Resistor, Chip, 2.7-kΩ, 1/16-W, 5% 603 Std Std

1 XU1 Socket, SOT-23, 6P SOT-23-6 WELLS-CTI 499-P44-20

1 J1 Header, Friction Lock Ass'y, 4-pin Right Angle 0.400 x 0.500 Molex 22-05-3041

1 J2 Terminal Block, 2-pin, 6-A, 3.5-mm 0.27 x 0.25 inch OST ED1514

0 GND* Test Point, Black, 1-mm 0.038 Keystone 5001

0 SDQ* Test Point, Red, 1-mm 0.038 Keystone 5000

2 U2,U3* Socket Pin - Install First DIA_038, PIN_013-020, EXP_146, Tyco 50935

B125

1 Q1 MOSFET, N-ch, 60-V, 115-mA, 1.2-ΩSOT23 Vishay-Liteon 2N7002-7-F

1 Q2 MOSFET, Pch, -20-V, 3.7-A, 65 mΩSOT23 IR IRLML6402

1 -- PCB, 2 In x 1.25 In x 0.125 In Any bq2026EVM Board

1 N/A Shunt, 100-mil, Black 0.1 3M 929950-00

1 U1 bq2026, IC, 1.5K Serial EPROM With SDQ Interface SOT-23 TI bq2026DBZR

SLUU763A–December 2011–Revised November 2015 bq2026 Evaluation Software

bq2026EVM Circuit Module Performance Specification Summary

www.ti.com

6 bq2026EVM Circuit Module Performance Specification Summary

Table 3. Performance Specification Summary

Specification Min Typ Max Unit

Voltage Pullup (VUP) 2.65 5.5 V

Programming Voltage(VPP) 11.5 12 V

7 bq2026EVM Hardware and Software Setup

7.1 Drivers and Software Installation`

This section describes how to install the bq2026EVM PC software and how to connect the different

components of the EVM.

Perform the following steps to install the bq2026 evaluation software:

1. Insert the CD ROM into a CD ROM drive.

2. Select the CD ROM drive using My Computer or File Manager.

3. Select the ReadMeFirst.txt file.

4. Select the Software/EV2300 Drivers directory of the CD, and run SETUP.EXE.

5. Plug the EV2300 into a USB port.

6. Wait until system prompt new hardware found appears. Choose select location manually, and use the

browse button to point to C:\WINDOWS\TI\USB1.

7. Answer continue to the warning that drivers are not certified with Microsoft.

8. After installation finishes, another system prompt new hardware found appears. Repeat preceding

procedure, but point to C:\WINDOWS\TI\USB2.

9. Answer continue to the warning that drivers are not certified with Microsoft. Installation of drivers is

now finished.

10. For Windows 98, point to directory TIUSBWin98.

11. After installing the USB drivers for EV2300, double-click on the Setup.exe icon that is under the

Software/bq2026 Evaluation Software folder.

12. Follow the instructions on screen during the installation of evaluation software.

13. The setup program installs a Windows application group.

7.2 Hardware Connection

The bq2026EVM has three hardware components:

1. The bq2026EVM circuit module

2. The PC interface board, (EV2300)

3. The PC

Perform the following steps to configure the hardware for interface to the PC:

1. Connect the bq2026EVM board with the EV2300 PC interface board using Table 4 as a pin connection

guide.

2. Connect the USB cable to the EV2300 and the PC USB port.

The bq2026EVM is now set up for normal operation.

6bq2026 Evaluation Software SLUU763A–December 2011–Revised November 2015

Submit Documentation Feedback

www.ti.com

Software Operation

Table 4. Wire Connection

bq2026EVM REVA EV2300

SDQ HDQ

VSS GND

PROG VOUT

To program the EPROM of bq2026EVM, a 12-V pulse must be generated on the SDQ line. The

bq2026EVM board has an additional circuit included that permits generating this pulse when using a

power supply set to 12 V and the VOUT output of the EV2300. The evaluation software controls this pulse

for EPROM programming.

When programming the EPROM, it is expected that a 12-V supply be connected to the bq2026EVM board

at the 12-V input terminal of the bq2026EVM board. Ensure that the ground of the power supply is

connected to VSS of the board.

A jumper (J3) must be connected when using the EPROM programming circuit.

7.2.1 Normal Operation

Normal operation includes performing any of the ROM commands, reading the 1.5K-bit EPROM and

reading the EPROM Status Memory.

7.2.2 EPROM Programming

To program EPROM registers, a 12-V pulse must be sent across the SDQ line during a write command.

See the bq2026 data sheet (SLUS938) for a specific description of EPROM programming requirements.

When programming EPROM registers, the following must be ensured:

• J3 jumper is connected.

• VOUT output of EV2300 is connected to PROG input of bq2026EVM board.

• Power supply set to 12 V is connected across the 12-V and VSS inputs of bq2026EVM board.

8 Software Operation

Run the program from the Start →Programs →Texas Instruments →bq2026 Evaluation Software menu

sequence.

8.1 Evaluation Software Pages

This section describes the function of each page of the evaluation program.

8.2 ROM CMD

This page provides all the ROM commands for bq2026 (see Figure 6).

8.2.1 Sections Within the ROM CMD Page

Read ROM — The ID ROM of the device on the SDQ communication line is displayed when READ ID is

clicked.

SLUU763A–December 2011–Revised November 2015 bq2026 Evaluation Software

Software Operation

www.ti.com

Figure 6. ROM CMD Page

8.3 DATA

This page (see Figure 7) allows the user to program the 1.5K-bit EPROM with desired values and to

program the STATUS bytes. It requires that the hardware is set up as described in the EPROM

programming of this user's guide.

8.3.1 1.5K-Bit EPROM

The EPROM memory map is organized in six pages of 32 bytes each. All registers can be read by clicking

on the Read Memory button. As the registers of a specific page are being read, the page number is

highlighted in red.

The two methods of programming the EPROM using the evaluation program follow.

1. Click on a specific grid that corresponds to the register that needs to be written. Write the hexadecimal

value of the data that needs to be written, and then press ENTER.

2. The other method of programming the EPROM is by importing a data file that contains all the values to

be programmed. The data file has the file extension .epr. An example of a data file is included with the

evaluation program. To create additional data files, modify the example file so that the values on the

right side of the file represent the desired values. Save the file with a different name ensuring that the

extension .epr is used. To import a file into the grid, go to File →Open Data File, and select the

appropriate file. Once the file is opened, the grid is filled in with the values contained in the data file.

8bq2026 Evaluation Software SLUU763A–December 2011–Revised November 2015

Submit Documentation Feedback

www.ti.com

Software Operation

Click on the Write Memory button so that the values are programmed into the EPROM.

A data file can also be saved by going to File|Save Data File. The data that is saved in the file is the data

displayed on the grids representing the EPROM memory map.

8.3.2 Status Bytes

This section allows the user to read or write the EPROM Status bytes of the bq2026. The registers are

programmed by clicking on the appropriate grid, entering the desired value, and pressing ENTER.

Note that the status registers are EPROM. Once a bit has been cleared, it cannot be set.

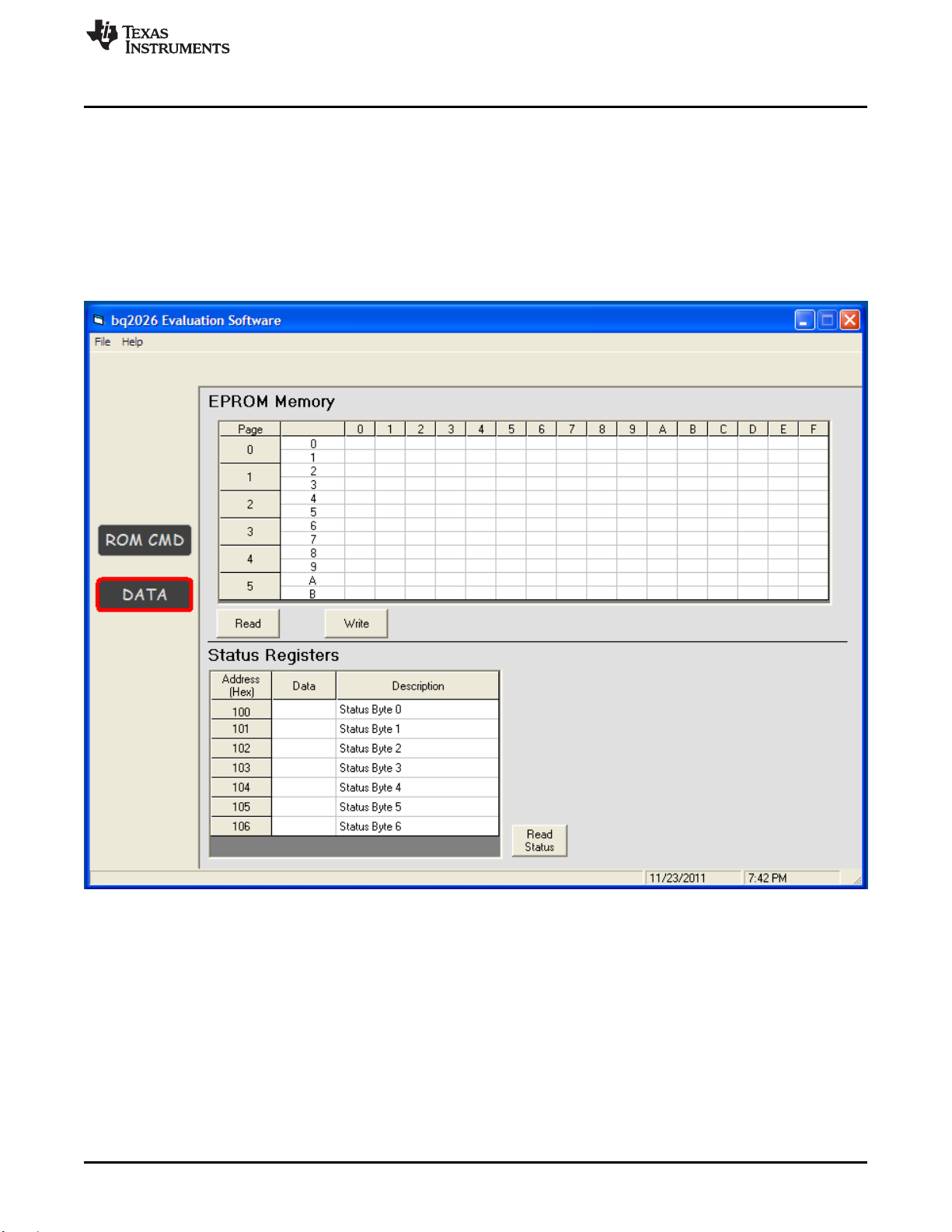

Figure 7. DATA Page

SLUU763A–December 2011–Revised November 2015 bq2026 Evaluation Software

Revision History

www.ti.com

Revision History

Changes from Original (December 2011) to A Revision ................................................................................................ Page

• Deleted list items 2: "Personal computer (PC) interface board EV2300" and 3: "USB cable (type A-B)" from Section 1... 2

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

10 Revision History SLUU763A–December 2011–Revised November 2015

Submit Documentation Feedback

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels National Semiconductor Carte mère

National Semiconductor

National Semiconductor LME49600 Manuel utilisateur

National Semiconductor

National Semiconductor ADC14071EVAL Manuel utilisateur

National Semiconductor

National Semiconductor ADC14DC105 Manuel utilisateur

National Semiconductor

National Semiconductor bq24188 Manuel utilisateur

National Semiconductor

National Semiconductor TAS2557 Manuel utilisateur

National Semiconductor

National Semiconductor ADC16DV160HFEB Manuel utilisateur

National Semiconductor

National Semiconductor ADC14071 Manuel utilisateur

National Semiconductor

National Semiconductor LMX2531LQ1312E Manuel utilisateur

National Semiconductor

National Semiconductor LMX2531LQ1146E Manuel utilisateur

National Semiconductor

National Semiconductor DRV2605EVM-BT Manuel utilisateur

National Semiconductor

National Semiconductor LM32 Manuel utilisateur

National Semiconductor

National Semiconductor LMH1981 Manuel utilisateur

National Semiconductor

National Semiconductor ADC081500DEV Manuel utilisateur

National Semiconductor

National Semiconductor ADC10DV200 Manuel utilisateur

National Semiconductor

National Semiconductor ADS42B4 Series Manuel utilisateur

National Semiconductor

National Semiconductor LM48821 Manuel utilisateur

National Semiconductor

National Semiconductor LMX2531LQ3010E Manuel utilisateur

National Semiconductor

National Semiconductor LM26LV Manuel utilisateur

National Semiconductor

National Semiconductor LMH1983 Manuel utilisateur

National Semiconductor

National Semiconductor TSW3070EVM Manuel utilisateur

National Semiconductor

National Semiconductor DAC121C085 Manuel utilisateur

National Semiconductor

National Semiconductor ADC121S625B Manuel utilisateur

National Semiconductor

National Semiconductor UCD3138ACCEVM149 Manuel utilisateur

National Semiconductor

National Semiconductor LMX2531LQ1700E Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
