SCC-CI20 Current Input Module

USER GUIDESCC-CI20 Current Input Module

The SCC-CI20 converts current to voltage by passing it through a precision

249 Ωresistor and sending the resulting voltage to the E Series DAQ device

as a 0 to +5 V signal. The SCC-CI20 accepts up to two current sources at a

maximum of 20 mA. A differential instrumentation amplifier buffers each

input signal.

Conventions

The following conventions are used in this guide:

<> Angle brackets that contain numbers separated by an ellipsis represent

a range of values associated with a bit or signal name—for example,

P1.<3..0>.

»The »symbol leads you through nested menu items and dialog box options

to a final action. The sequence File»Page Setup»Options directs you to

pull down the File menu, select the Page Setup item, and select Options

from the last dialog box.

This icon denotes a note, which alerts you to important information.

This icon denotes a caution, which advises you of precautions to take to

avoid injury, data loss, or a system crash. When this symbol is marked on

the product, refer to the Read Me First: Safety and Radio-Frequency

Interference document, shipped with the product, for precautions to take.

When symbol is marked on a product, it denotes a warning advising you to

take precautions to avoid electrical shock.

When symbol is marked on a product, it denotes a component that may be

hot. Touching this component may result in bodily injury.

bold Bold text denotes items that you must select in software, such as menu

items and dialog box options. Bold text also denotes parameter names.

SCC-CI20 Current Input Module User Guide 2 ni.com

italic Italic text denotes variables, emphasis, a cross reference, or an introduction

to a key concept. This font also denotes text that is a placeholder for a word

or value that you must supply.

monospace Text in this font denotes text or characters that you should enter from the

keyboard, sections of code, programming examples, and syntax examples.

This font is also used for the proper names of disk drives, paths, directories,

programs, subprograms, subroutines, device names, functions, operations,

variables, filenames, and extensions.

SC-2345 SC-2345 refers to both the SC-2345 connector block and configurable

connector.

SCC SCC refers to any SCC Series signal conditioning module.

What You Need to Get Started

To set up and use the SCC-CI20, you need the following items:

❑SC-2345/2350 with one of the following:

–SCC-PWR01

– SCC-PWR02 and the PS01 power supply

– SCC-PWR03—requires a 7 to 42 VDC power supply

(not included)

❑One or more SCC-CI20 modules

❑SC-2345/2350 User Manual, available at ni.com

❑SCC-CI20 Current Input Module User Guide

❑SCC Quick Start Guide, available at ni.com

❑Read Me First: Safety and Radio-Frequency Interference

❑SC-2345 Quick Reference Label

❑68-pin E Series DAQ device, documentation, and 68-pin cable

❑1/8 in. flathead screwdriver

❑Numbers 1 and 2 Phillips-head screwdrivers

❑Wire insulation strippers

❑NI-DAQ (current version) for Windows 2000/NT/XP/Me

©National Instruments Corporation 3 SCC-CI20 Current Input Module User Guide

Note Software scaling of measurements is not supported on the Macintosh operating

system. Refer to the Specifications section for more information.

Device Specific Information

Note For general SCC module installation and signal connection information, and

information about the SC-2350 carrier, refer to the SCC Quick Start Guide, available for

download at ni.com/manuals.

Installing the Module

Caution Refer to the Read Me First: Safety and Radio-Frequency Interference document

before removing equipment covers or connecting/disconnecting any signal wires.

You can plug the SCC-CI20 into any analog input socket on the SC-2345.

It can function either as a single-stage module or as the first stage of a

dual-stage signal conditioning configuration. The socket you choose

determines which E Series DAQ device channels receive the SCC-CI20

signals.

For single-stage input conditioning, plug the SCC-CI20 into any socket

J(X+1), where Xis 0 to 7, and connect the input signals to the module as

describedinthe Connecting the InputSignalssection.

If you use the SCC-CI20 in a dual-stage configuration, you must use it as

the first stage. Plug the SCC-CI20 into any socket J(X+9) and plug the

second-stage SCC into socket J(X+1), where Xis 0 to 7. Connect the input

signals to the SCC-CI20as describedin the Connecting the InputSignals

section. The SC-2345 connects the output signals of the SCC-CI20 to the

inputs of the second-stage SCC. One example of a second-stage module

compatible with the SCC-CI20 is a lowpass filter module (SCC-LPXX).

Sockets J9 to J16 are also available for digital input/output (DIO)

conditioning or control. Refer to the SC-2345/2350 User Manual for more

information on configuring, connecting, and installing SCC modules.

Connecting the Input Signals

Note The signal names have changed. Refer to ni.com/info and enter rdtntg to

confirm the signal names.

Each screw terminal is labeled by pin number <1..4>. Pins 1 and 2 form a

differential channel routed to E Series DAQ device channel X+8, and pins

3 and 4 form a second differential channel routed to E Series DAQ device

SCC-CI20 Current Input Module User Guide 4 ni.com

channel X. The value of Xis determined by the number of the SC-2345

socket, J(X+1) or J(X+9), where you plug in the SCC-CI20. Figure 1 shows

the SCC-CI20 signal connections.

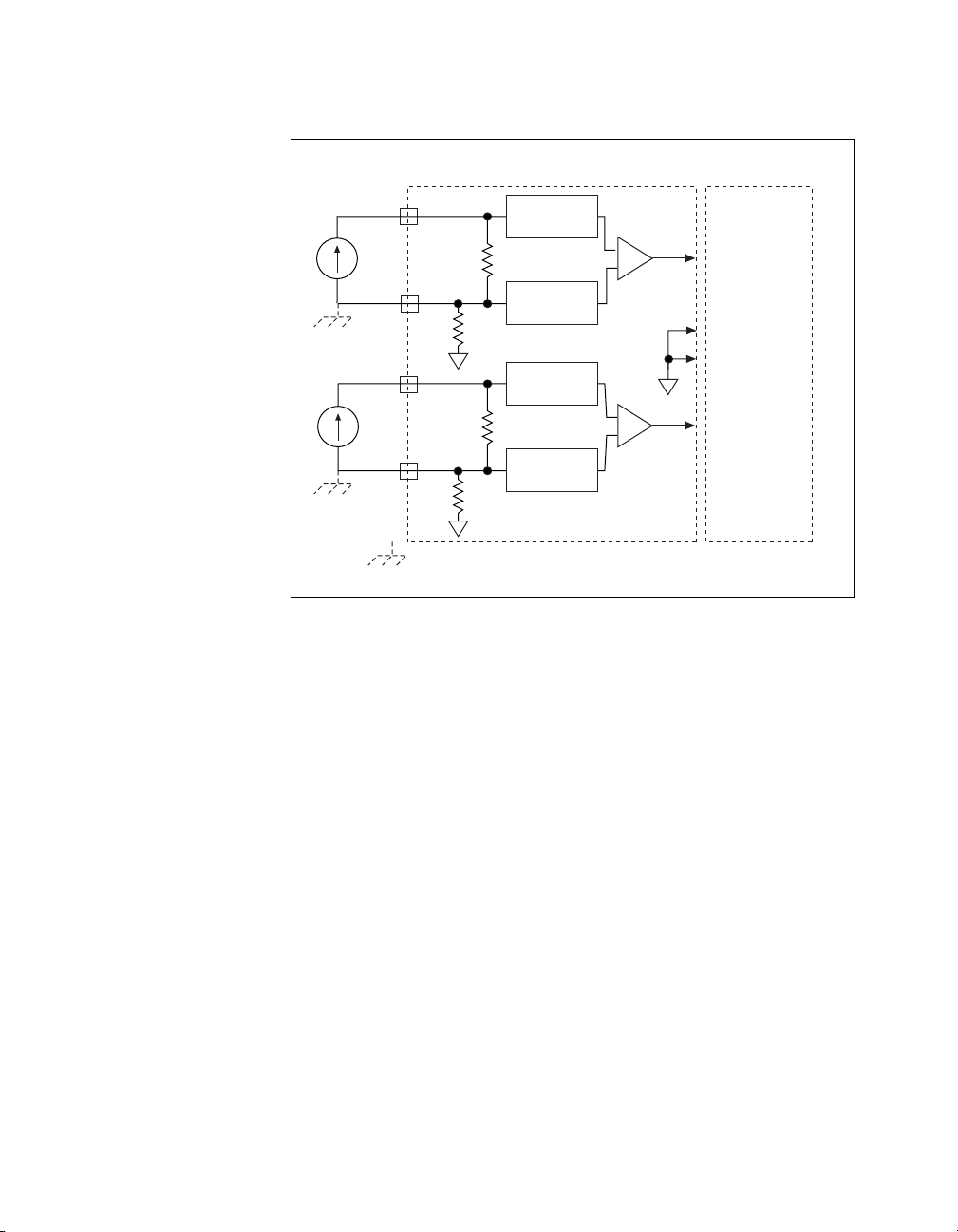

Figure 1. SCC-CI20 Signal Connections

The input signal source can be floating or ground-referenced. The

SCC-CI20 has high-impedance bias resistors typically required for floating

sources, so you do not need external bias resistors referenced to ground.

Replacing the Input Resistors

Incorrect connections can damage the input resistors and possibly other

components of the module. Spare 249 Ωresistors are available inside the

SCC-CI20. To open the SCC-CI20, complete the following steps:

1. Remove the screw from the back (wide unlabeled side).

2. Turn the front (wide labeled side) toward you.

3. Place the screw-terminal receptacle to the left.

4. Slide the top cover to the right.

5. Lift off the cover.

Signal

Source

AI (X )

AI (X+8)

SCC-C120 E Series DAQ Device

Overvoltage

Protection

Overvoltage

Protection

–

Overvoltage

Protection

Overvoltage

Protection

–

Signal source may be floating or ground-referenced.

AI SENSE

AI GND

10 MΩ

©National Instruments Corporation 5 SCC-CI20 Current Input Module User Guide

The input resistors are socketed so that you can replace them when

necessary. Figure 2 shows the locations of the input and spare resistors.

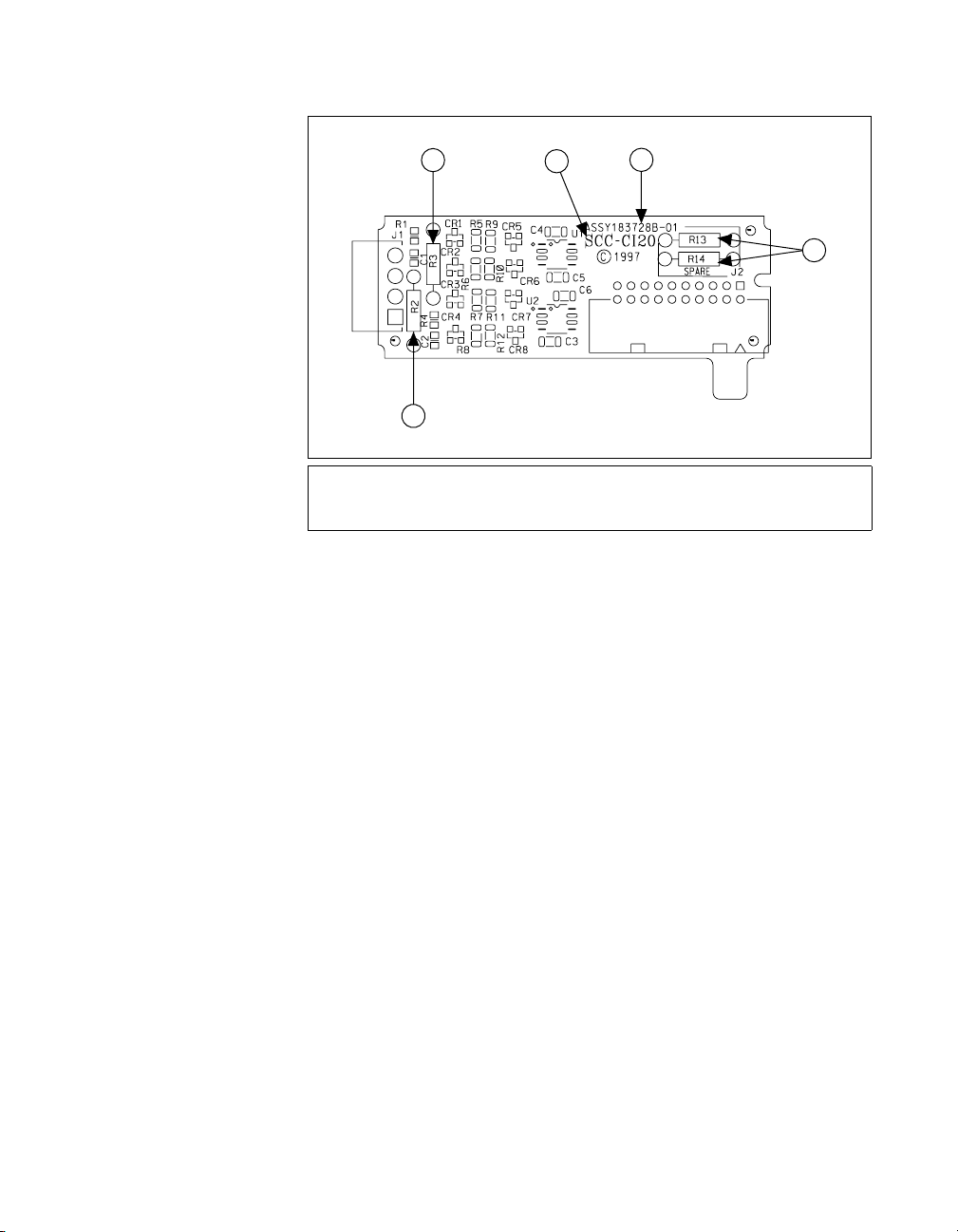

Figure 2. SCC-CI20 Parts Locator Diagram

For information about how to configure the SCC-CI20 module using

NI-DAQmx, refer to the SCC Quick Start Guide.

Using the SC-C120 when Scaling Voltage Measurements

If you configured the SCC-CI20 using Measurement & Automation

Explorer (MAX) and you are using NI-DAQ, the reading you get from the

E Series DAQ device accounts for the voltage-to-current conversion and

returns milliamps, not volts. Otherwise you must convert the raw voltage

measurement to a current measurement. To make this conversion, use the

following formula:

where Iis in milliamps and Vis in volts.

1 Input Resistor for AI (X )

2ProductName

3AssemblyNumber

4 Spare Resistors

5 Input Resistor for AI (X+8)

0.249

-------------=

SCC-CI20 Current Input Module User Guide 6 ni.com

Specifications

These ratings are typical at 25 °C unless otherwise stated.

Analog Input

Number of input channels.......................2 DIFF

Input range ..............................................0 to 20 mA

Input resistor

Value................................................249 Ω

Tolerance .........................................0.05%

Temperature coefficient

of resistance .....................................10 ppm/°C

Maximum power dissipation ...........0.25 W

Maximum input current ..........................32 mA

Output range ...........................................0 to +5 V

Output slew rate......................................0.75 V/µs min

Gain error................................................±0.1% max1

Temperature stability of gain error.........±0.006%/°C max

Offset error .............................................±0.6 mV max1

Temperature stability of offset error.......±21 µV/°C max

Dynamic Response

Bandwidth (–3 dB, amplitude ≤4 mA) ...10 kHz

Output slew rate......................................0.75 V/µs min

1 Temperature range is 23 °C ±5 °C.

©National Instruments Corporation 7 SCC-CI20 Current Input Module User Guide

Power Requirement

Analog power ......................................... 100 mW max

+15 V .............................................. 3.2 mA max

–15 V............................................... 3.2 mA max

Digital power (+5 V).............................. 0.0 mW

Operating voltage range

+15 V .............................................. ±10%

–15 V............................................... ±10%

Physical

Dimensions............................................. 8.89 cm ×2.92 cm ×1.85 cm

(3.50 in. ×1.15 in. ×0.73 in.)

I/O connectors........................................ One 20-pin right-angle

male connector,

one 4-pin screw terminal

Wire gauge range ................................... 28 to 16 AWG

Maximum Working Voltage

Maximum working voltage refers to the signal voltage (I×249 Ω) plus the

common-mode voltage.

Channel-to-earth..................................... ±15 V, Installation Category I

Channel-to-channel ................................ ±15 V, Installation Category I

Environmental

Operating temperature............................ 0 to 50 °C

Storage temperature ............................... –20 to 70 °C

Humidity ................................................ 10 to 90% RH, noncondensing

Maximum altitude .................................. 2,000 m

Pollution Degree (indoor use only)........ 2

SCC-CI20 Current Input Module User Guide 8 ni.com

Safety

The SCC-CI20 is designed to meet the requirements of the following

standards of safety for electrical equipment for measurement, control,

and laboratory use:

• IEC 61010-1, EN 61010-1

• UL 3111-1, UL 61010B-01

• CAN/CSA C22.2 No. 1010.1

Note For UL and other safety certifications, refer to the product label, or visit

ni.com/hardref.nsf, search by model number or product line and click the appropriate

link in the Certification column.

Electromagnetic Compatibility

Emissions................................................EN 55011 Class A at 10 m

FCC Part 15A above 1 GHz

Immunity ................................................EN 61326:1997 + A2:2001,

Table 1

CE, C-Tick, and FCC Part 15 (Class A) Compliant

Note For EMC compliance, operate this device with shielded cabling.

CE Compliance

This product meets the essential requirements of applicable European

directives, as amended for CE marking, as follows:

Low-Voltage Directive (safety)..............73/23/EEC

Electromagnetic Compatibility

Directive (EMC) .....................................89/336/EEC

Note Refer to the Declaration of Conformity (DoC) for this product for any additional

regulatory compliance information. To obtain the DoC for this product, visit

ni.com/hardref.nsf, search by model number or product line, and click the

appropriate link in the Certification column.

©National Instruments Corporation 9 SCC-CI20 Current Input Module User Guide

SCC-CI20 Module Pin Assignments

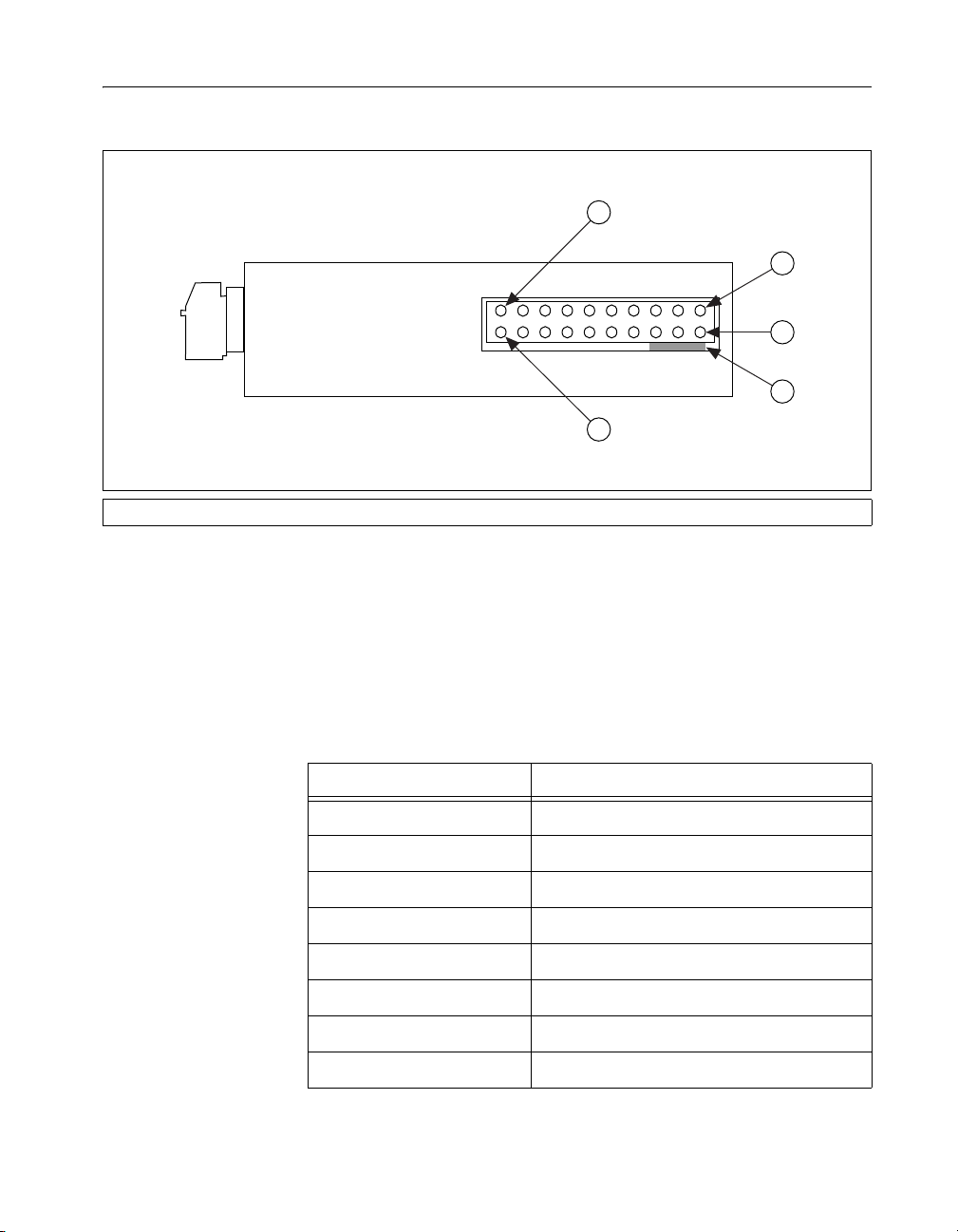

Figure 3 shows the I/O connector pins on the bottom of the module.

Figure 3. SCC Module Bottom View

Table 1 lists the signal connection corresponding to each pin. AI (X) and

AI (X+8) are the analog input signal channels of the E Series DAQ device.

AI GND is the analog input ground signal and is the reference for AI (X)

and AI (X+8). A GND is the reference for the ±15V supplies. AI GND and

A GND connect to the SC-2345 at the SCC-PWR connector. Pins 17 to 20

accept signals from a first-stage module if you are cascading two modules.

1Pin1 2Pin2 3PWBKey 4 Pin 19 5Pin20

Table 1. SCC-CI20 Pin Signal Assignments

Pin Number Signal

1E Series AI (X)

2E Series AI GND

3 —

4E Series AI (X+8)

5 —

6E Series AI GND

7 —

8E Series AI GND

National Instruments™, NI™, ni.com™, and NI-DAQ™ are trademarks of National Instruments

Corporation. Product and company names mentioned herein are trademarks or trade names of their

respective companies. For patents covering National Instruments products, refer to the appropriate

location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.

371068B-01 Mar04

*371068B-01*

9 —

10 —

11 E Series A GND

12 —

13 +15 V

14 –15 V

15 —

16 —

17 AI (X)– (from first stage)

18 AI (X+8)+ (from first stage)

19 AI (X)+ (from first stage)

20 AI (X+8)– (from first stage)

Table 1. SCC-CI20 Pin Signal Assignments (Continued)

Pin Number Signal

Table des matières

Autres manuels National Instruments Système d'E/S

National Instruments

National Instruments NI 9225 Manuel utilisateur

National Instruments

National Instruments PXIe-7820 Manuel utilisateur

National Instruments

National Instruments PXIe-7862R Manuel utilisateur

National Instruments

National Instruments TBX-68 Manuel utilisateur

National Instruments

National Instruments AT E Series Manuel utilisateur

National Instruments

National Instruments NI 9226 Manuel

National Instruments

National Instruments FieldPoint FP-DO-400 Manuel utilisateur

National Instruments

National Instruments SCXI-1162HV Manuel utilisateur

National Instruments

National Instruments NI 9226 Manuel utilisateur

National Instruments

National Instruments NI-6589 Manuel utilisateur

National Instruments

National Instruments PXIe-4339 Manuel utilisateur

National Instruments

National Instruments NI 9236 Manuel utilisateur

National Instruments

National Instruments FD-11634 Manuel utilisateur

National Instruments

National Instruments PCIe-7820R Manuel utilisateur

National Instruments

National Instruments NI 6115/6120 Manuel utilisateur

National Instruments

National Instruments REM-11120 Manuel utilisateur

National Instruments

National Instruments USB-443 Series Manuel

National Instruments

National Instruments NI 9754 Manuel utilisateur

National Instruments

National Instruments NI-9228 Manuel

National Instruments

National Instruments SCXI SCXI-1102 Manuel

National Instruments

National Instruments PXI-7842 Manuel utilisateur

National Instruments

National Instruments SC-2071 Manuel utilisateur

National Instruments

National Instruments NI 9375 Manuel utilisateur

National Instruments

National Instruments NI USB-6008 Manuel utilisateur

Manuels Système d'E/S populaires d'autres marques

WAGO

WAGO 750-344 Manuel utilisateur

Teknim

Teknim TWM-1887 Mode d’emploi

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuel utilisateur

BERGHOF

BERGHOF ECC DIO 16/16 Mode d’emploi

Advantech

Advantech PCM-27J3AU Manuel d'installation et d'exploitation

Festo

Festo CP-E08-M12-CL Manuel utilisateur

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuel utilisateur

Hitachi

Hitachi HX-RIO3 Series Manuel utilisateur

NUUO

NUUO SCB-A08 Manuel utilisateur

M-system

M-system R3Y-RS8 Manuel utilisateur

jablotron

jablotron JB-110N Manuel utilisateur

Omron

Omron SYSMAC C200H Manuel utilisateur

DOLD

DOLD SAFEMASTER M Manuel utilisateur

ABB

ABB OPT-MF-001 Manuel utilisateur

Omron

Omron SYSMAC C2000H Manuel utilisateur

Helmholz

Helmholz TB20 Manuel utilisateur

ICP DAS USA

ICP DAS USA tM-AD2 Manuel utilisateur

Automationdirect.com

Automationdirect.com DL305 Manuel utilisateur
