USER GUIDE

NI TBX-68

Unshielded 68-Pin Screw Terminal Accessory

The NI TBX-68, shown in Figure 1, is an unshielded I/O accessory with 68 screw terminals for

easy signal connection to a National Instruments 68-pin DAQ device.

Note The TBX-68 accessory is excluded from the scope of the low-voltage

directive (LVD) and electromagnetic compatibility (EMC) directive. The

CE marking indicates compliance with the RoHS directive 2011/65/EU.

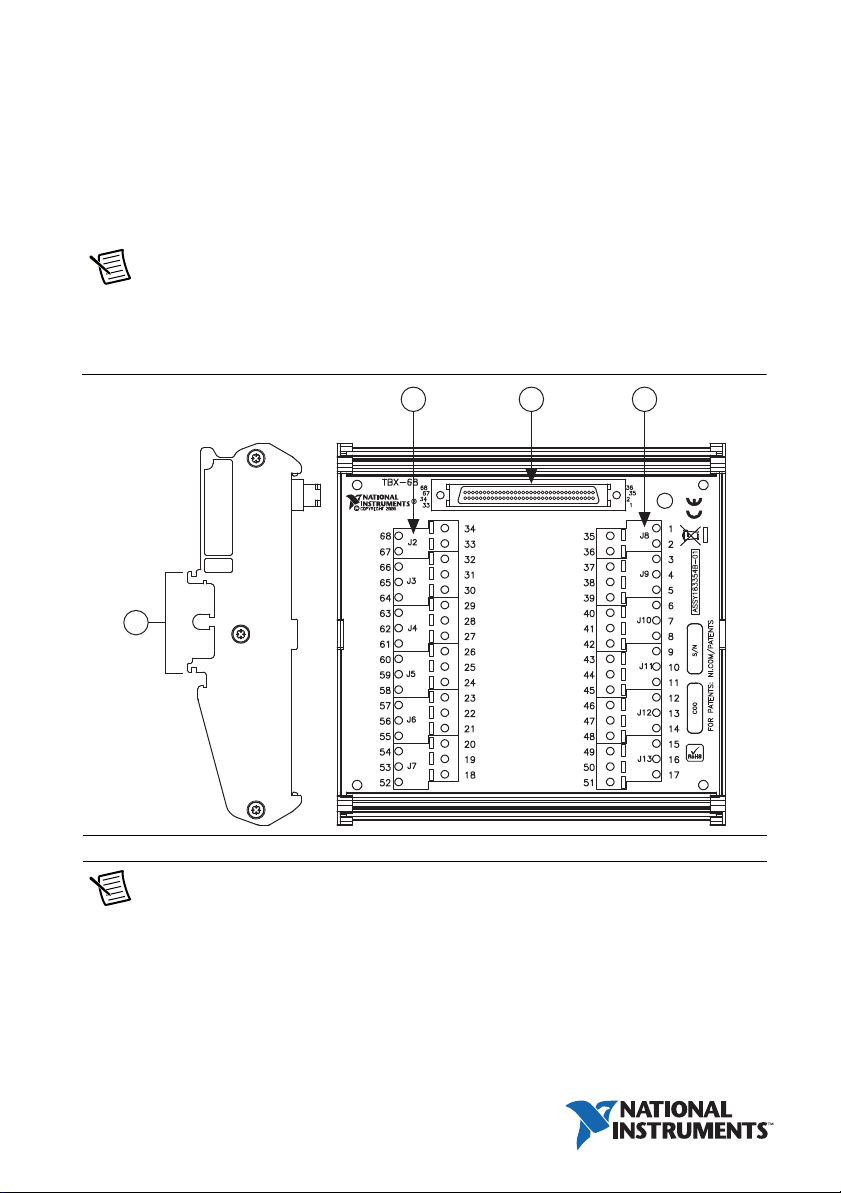

Figure 1. TBX-68 Parts Locator Diagram

Note If the accessory is missing any of the components in Figure 1, contact NI.

1 Attached DIN Rail Clip 2 Screw Terminals 3 68-Pin I/O Connector

2|ni.com |NI TBX-68 User Guide

What You Need to Get Started

To set up and use your TBX-68, you need the following:

TBX-68 accessory kit(s)1

Compatible 68-pin DAQ device and device documentation

The correct cable(s) for your device

0.125 in. flathead screwdriver

12-30 AWG wire

Wire cutters

Wire insulation stripper

Getting Started with the TBX-68

Remove all cables from the TBX-68 before getting started. If you have not already installed

your DAQ device, refer to the installation guide that came with your DAQ device for

instructions. Complete the following steps to set up the TBX-68.

1. (Optional) Mount the TBX-68 to a standard 35 mm DIN rail using the attached clip on the

back of the accessory.

2. Connect the wires to the screw terminals by stripping 6 mm (0.25 in.) of insulation,

inserting the wires into the screw terminals, and securely tightening the screws with the

flathead screwdriver to a torque of 0.8 N · m (7 lb · in.). Refer to your device documentation

for the DAQ device pinout and signal information.

Caution Do not connect input voltages >30 Vrms/42 Vpk/60 VDC to the TBX-68.

The TBX-68 is not designed for any input voltages >30 Vrms/42 Vpk/60 VDC, even if

a user-installed voltage divider reduces the voltage to within the input range of the

DAQ device. Input voltages >30 Vrms/42 Vpk/60 VDC can damage the TBX-68, all

devices connected to it, and the host computer.

Caution Do not use for measurements within Categories II, III, or IV.

3. Connect the TBX-68(s) to the DAQ device using the appropriate cable(s) for your device.

4. Launch Measurement & Automation Explorer (MAX). In the left panel, expand Devices

and Interfaces to confirm that your DAQ device is recognized, and then configure your

device settings.

5. Test specific device functionality. Run a Test Panel in MAX by right-clicking your DAQ

device and selecting Test Panels. Click Start to test the device functions.

When you have finished using the TBX-68, power off any external signals connected to the

TBX-68 before you power off your computer.

1 You can use up to two TBX-68 accessories with M/X Series devices with two connectors.

NI TBX-68 User Guide |© National Instruments |3

Specifications

These specifications are typical at 25 °C unless otherwise noted.

Caution Do not connect hazardous voltages (>30 Vrms/42 Vpk/60 VDC) to the

TBX-68.

Physical Characteristics

Dimensions ....................................................... 12.8 cm × 12.5 cm × 6.0 cm

(5.02 in. × 4.93 in. × 2.36 in.)

Weight............................................................... 251 g (8.8 oz)

I/O connector .................................................... One 68-pin male SCSI connector

Screw terminals ................................................ 68, all I/O signals are available at

screw terminals

Wire gauge................................................ 12-30 AWG

Torque....................................................... 0.8 N · m (7 lb · in.)

Environmental

Temperature

Operating .................................................. 0 to 70 °C

Storage ...................................................... -20 to 70 °C

Relative humidity

Operating .................................................. 5 to 90% RH, noncondensing

Storage ...................................................... 5 to 90% RH, noncondensing

Pollution Degree ............................................... 2

Maximum altitude............................................. 2,000 m

Indoor use only.

Environmental Management

NI is committed to designing and manufacturing products in an environmentally responsible

manner. NI recognizes that eliminating certain hazardous substances from our products is

beneficial to the environment and to NI customers.

For additional environmental information, refer to the Minimize Our Environmental Impact web

page at ni.com/environment. This page contains the environmental regulations and

directives with which NI complies, as well as other environmental information not included in

this document.

373987A-01 Feb13

Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on National Instruments trademarks. Other

product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National

Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the

National Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party

legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance

for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data.

Waste Electrical and Electronic Equipment (WEEE)

EU Customers At the end of the product life cycle, all products must be sent to

a WEEE recycling center. For more information about WEEE recycling centers,

National Instruments WEEE initiatives, and compliance with WEEE Directive

2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/

weee.

Related Documentation

For more information about using the TBX-68 with your DAQ device, refer to the following

resources:

• Documentation for your DAQ device at ni.com/manuals

•Measurement & Automation Explorer Help

•NI-DAQmx Help

• NI KnowledgeBase at ni.com/kb

• NI Developer Zone at ni.com/zone

Where to Go for Support

The National Instruments Web site is your complete resource for technical support. At

ni.com/support you have access to everything from troubleshooting and application

development self-help resources to email and phone assistance from NI Application Engineers.

National Instruments corporate headquarters is located at 11500 North Mopac Expressway,

Austin, Texas, 78759-3504. National Instruments also has offices located around the world to

help address your support needs. For telephone support in the United States, create your service

request at ni.com/support and follow the calling instructions or dial 512 795 8248. For

telephone support outside the United States, visit the Worldwide Offices section of ni.com/

niglobal to access the branch office Web sites, which provide up-to-date contact information,

support phone numbers, email addresses, and current events.
