GETTING STARTED GUIDE

NI PXIe-7868R

R Series Reconfigurable I/O Module (AI, AO, DIO) for PXI Express,

6 AI, 18 AO, 48 DIO, 1 MS/s AIO, 512 MB DRAM,

Kintex-7 325T FPGA

This document describes how to begin using the NI PXIe-7868R.

Safety Guidelines

Caution Do not operate the NI PXIe-7868R in a manner not specified in this

document. Product misuse can result in a hazard. You can compromise the safety

protection built into the product if the product is damaged in any way. If the product

is damaged, return it to NI for repair.

Caution This icon denotes a caution, which advises you to consult documentation

where this symbol is marked.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance, operate this product only with

shielded cables and accessories.

Caution To ensure the specified EMC performance, the length of all I/O cables

must be no longer than 3 m (10 ft).

Preparing the Environment

Ensure that the environment in which you are using the NI PXIe-7868R meets the following

specifications.

Operating temperature

(IEC 60068-2-1, IEC 60068-2-2)

0 °C to 55 °C

Operating humidity (IEC 60068-2-56) 10% RH to 90% RH, noncondensing

Pollution degree 2

Maximum altitude 2,000 m

Indoor use only.

Note Refer to the device specifications on ni.com/manuals for complete

specifications.

2| ni.com | NI PXIe-7868R Getting Started Guide

Unpacking the Kit

Caution To prevent electrostatic discharge (ESD) from damaging the device,

ground yourself using a grounding strap or by holding a grounded object, such as

your computer chassis.

1. Touch the antistatic package to a metal part of the computer chassis.

2. Remove the device from the package and inspect the device for loose components or any

other sign of damage.

Caution Never touch the exposed pins of connectors.

Note Do not install a device if it appears damaged in any way.

3. Unpack any other items and documentation from the kit.

Store the device in the antistatic package when the device is not in use.

Verifying the Kit Contents

Verify that the following items are included in the NI PXIe-7868R kit.

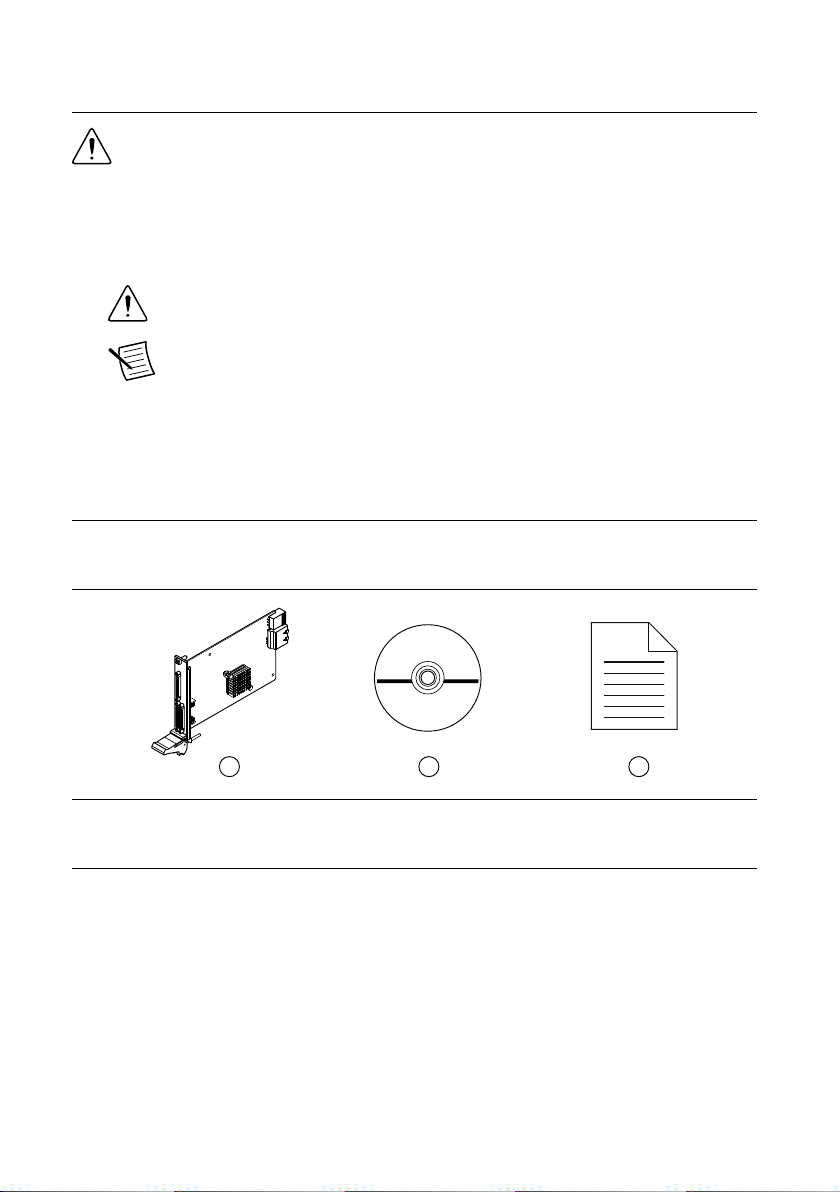

Figure 1. NI PXIe-7868R Kit Contents

1. Hardware

2. NI-RIO Media

3. Getting Started Guide

NI PXIe-7868R Getting Started Guide | © National Instruments | 3

Installing Software on the Host Computer

Before using the NI PXIe-7868R, you must install the following application software and

device drivers on the host computer.

1. LabVIEW 2017 or later

2. LabVIEW Real-Time Module 2017 or later1

3. LabVIEW FPGA Module 2017 or later

4. NI R Series Multifunction RIO Device Drivers July 2017 or later

Visit ni.com/info and enter the Info Code softwareversion for minimum software support

information.

Installing the NI PXIe-7868R

Caution To prevent damage to the NI PXIe-7868R caused by ESD or

contamination, handle the module using the edges or the metal bracket.

1. Ensure the AC power source is connected to the chassis before installing the module.

The AC power cord grounds the chassis and protects it from electrical damage while you

install the module.

2. Power off the chassis.

3. Inspect the slot pins on the chassis backplane for any bends or damage prior to

installation. Do not install a module if the backplane is damaged.

4. Remove the black plastic covers from all the captive screws on the module front panel.

5. Identify a supported slot in the chassis. The following figure shows the symbols that

indicate the slot types.

Figure 2. Chassis Compatibility Symbols

NI PXIe-1062Q

12 3 45

1. PXI Express System Controller Slot

2. PXI Peripheral Slot

3. PXI Express Hybrid Peripheral Slot

4. PXI Express System Timing Slot

5. PXI Express Peripheral Slot

NI PXIe-7868R modules can be placed in PXI Express peripheral slots, PXI Express

hybrid peripheral slots, or PXI Express system timing slots.

6. Touch any metal part of the chassis to discharge static electricity.

1LabVIEW Real Time Module is only required when the R Series board is used in a chassis where

the PXIe Controller is running a real-time operating system.

4| ni.com | NI PXIe-7868R Getting Started Guide

7. Place the module edges into the module guides at the top and bottom of the chassis. Slide

the module into the slot until it is fully inserted.

Figure 3. Module Installation

PXI-1000B

1. Chassis

2. System Controller

3. Hardware Module

4. Front-Panel Mounting Screws

5. Module Guides

6. Power Switch

8. Secure the module front panel to the chassis using the front-panel mounting screws.

Note Tightening the top and bottom mounting screws increases mechanical

stability and also electrically connects the front panel to the chassis, which can

improve the signal quality and electromagnetic performance.

9. Cover all empty slots using EMC filler panels or fill using slot blockers to maximize

cooling air flow, depending on your application.

10. Power on the chassis.

Verifying Hardware Installation for Host Targets

You can verify that the system recognizes the NI PXIe-7868R by using Measurement &

Automation Explorer (MAX).

1. Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by

clicking the MAX desktop icon.

2. Expand Devices and Interfaces.

3. Verify that the device appears under Devices and Interfaces.

If the device does not appear, press <F5> to refresh the view in MAX. If the device does

not appear after refreshing the view, visit ni.com/support for troubleshooting information.

NI PXIe-7868R Getting Started Guide | © National Instruments | 5

Verifying Hardware Installation for Remote

Targets

You can verify that the system recognizes the NI PXIe-7868R by using Measurement &

Automation Explorer (MAX).

1. Launch MAX on the host computer.

2. Expand Remote Targets in the configuration tree and locate your system.

3. Install LabVIEW Real-Time Module 2017 and NI RIO Device Drivers July 2017 or later

on your Remote Target.

a) Refer to the Installing Software on the Host Computer section for information about

installing software on the host.

b) Refer to the PXI Express Controllers User Manual at ni.com/manuals for

information on installing software on the target.

4. Under Remote Targets, find and expand Devices and Interfaces.

If the device does not appear, press <F5> to refresh the view in MAX. If the device does

not appear after refreshing the view, visit ni.com/support for troubleshooting information.

Connecting the NI PXIe-7868R

NI recommends using the following cables and accessories with the NI PXIe-7868R:

6| ni.com | NI PXIe-7868R Getting Started Guide

Table 1. Recommended Cables and Accessories

Connector Type Connector Block Cables

Multifunction

Connector 0

(RMIO)

SCB-68A Noise

Rejecting, Shielded I/O

Connector Block

(782536-01)

• SHC68-68-RMIO Shielded Cable for the

Reconfigurable MIO Connector, 68 pin

D-Type to 68 pin VHDCI, 1m

(189588-01)

• SHC68-68-RMIO Shielded Cable for the

Reconfigurable MIO Connector, 68 pin

D-Type to 68 pin VHDCI, 2m

(189588-02)

Analog Output

Connector 2

(RAO)

Digital Connector

1 (RDIO)

SCB-68 HSDIO

Shielded 68-Pin

Connector Block for

Reconfigurable DIO &

HSDIO Products

(782914-01)

• SHC68-C68-RDIO2 Shielded High

Speed Digital Cable for the

Reconfigurable DIO Connector, 1m

(156166-01)

• SHC68-C68-RDIO2 Shielded High

Speed Digital Cable for the

Reconfigurable DIO Connector, 2m

(156166-02)

Note The SCB-68A DIP switches must be set for Direct Feedthrough mode for use

with R Series devices. Visit ni.com/info and enter the Info Code scb68acables for

more information on the SCB-68A accessory.

Note NI is not liable for connections that exceed any of the maximum ratings of

input or output signals on the NI PXIe-7868R and on the computer chassis. Refer to

the NI PXIe-7868R Specifications, available at ni.com/info for the maximum input

and output ratings for each signal.

NI PXIe-7868R Getting Started Guide | © National Instruments | 7

Pinout

+5V

DIO0

DIO1

DIO2

DIO3

DIO4

DIO5

DIO6

DIO7

DIO9

DIO11

DIO13

DIO15

AO7

AO6

AO5

AO4

AO3

AO2

AO1

AO0

AISENSE

AIGND6

AI5+

AIGND4

AI4+

AI3+

AIGND2

AI2+

AI1+

AIGND0

AI0+

+5V

DGND

DIO8

DIO10

DIO12

DIO14

AOGND7

AOGND6

AOGND5

AOGND4

AOGND3

AOGND2

AOGND1

AOGND0

AIGND7

AI5–

AIGND5

AI4–

AI3–

AIGND3

AI2–

AI1–

AIGND1

AI0–

68 34

67 33

66 32

65 31

64 30

63 29

62 28

61 27

60 26

59 25

58 24

57 23

56 22

55 21

54 20

53 19

52 18

51 17

50 16

49 15

48 14

47 13

46 12

45 11

44 10

43 9

42 8

41 7

40 6

39 5

38 4

37 3

36 2

35 1

CONNECTOR 0

(RMIO)

TERMINAL 34 TERMINAL 1

TERMINAL 35

TERMINAL 68

AO15

AO14

AO13

AO12

AO11

AO10

AO9

AO8

AO17

AO16

AOGND15

AOGND14

AOGND13

AOGND12

AOGND11

AOGND10

AOGND9

AOGND8

AOGND17

AOGND16

68 34

67 33

66 32

65 31

64 30

63 29

62 28

61 27

60 26

59 25

58 24

57 23

56 22

55 21

54 20

53 19

52 18

51 17

50 16

49 15

48 14

47 13

46 12

45 11

44 10

43 9

42 8

41 7

40 6

39 5

38 4

37 3

36 2

35 1

CONNECTOR 2

(RAO)

TERMINAL 68

TERMINAL 34 TERMINAL 1

TERMINAL 35

DIO30

GND

DIO28

GND

DIO26

GND

DIO24

GND

DIO22

GND

DIO20

GND

DIO18

GND

DIO16

GND

DIO14

GND

DIO12

GND

DIO10

GND

DIO8

GND

DIO6

GND

DIO4

GND

DIO2

GND

DIO0

GND

EXTCLKIN

GND

DIO31

DIO29

GND

DIO25

GND

DIO23

GND

DIO27

GND

DIO21

GND

DIO19

GND

DIO17

GND

DIO15

GND

DIO13

GND

DIO11

GND

DIO9

GND

DIO7

GND

DIO5

GND

DIO3

GND

DIO1

GND

68 34

67 33

66 32

65 31

64 30

63 29

62 28

61 27

60 26

59 25

58 24

57 23

56 22

55 21

54 20

53 19

52 18

51 17

50 16

49 15

48 14

47 13

46 12

45 11

44 10

43 9

42 8

41 7

40 6

39 5

38 4

37 3

36 2

35 1

CONNECTOR 1

(RDIO)

TERMINAL 68

TERMINAL 34 TERMINAL 1

TERMINAL 35

Table 2. NI PXIe-7868R Signal Descriptions

Signal Description

AI+ Positive analog input signal connection

AI- Negative analog input signal connection

AISENSE Reference connection for NRSE measurements

AIGND Ground reference for the analog input signal

AO Analog output signal connection

AOGND Ground reference for the analog output signal

8| ni.com | NI PXIe-7868R Getting Started Guide

Table 2. NI PXIe-7868R Signal Descriptions (Continued)

Signal Description

DIO Digital input/output signal connection

DGND Ground reference for the digital signal

EXTCLKIN External clock input source that can be used for source synchronous

acquisitions. The provided clock source must be stable and glitch-free.

GND Ground connection

Supply (+5 Vout) 5 V power output connection for external devices

NC No connection

The NI PXIe-7868R is protected from overvoltage and overcurrent conditions.

Note Refer to the NI PXIe-7868R Specifications, available at ni.com/manuals for

more information.

Note The pinout label on the lid of the SCB-68A accessory is incompatible with

the NI PXIe-7868R. Refer to the NI 78xxR Pinout Labels for the SCB-68A, available

at ni.com/manuals for the compatible pinout labels.

Where to Go Next

SUPPORT

Services

ni.com/services

NI Community

ni.com/community

Software Support

ni.com/info>swsupport

Support

ni.com/support

SOFTWAREHARDWARE

NI PXIe-7868R Specifications

ni.com/manuals

PXI Express Controller Documentation

ni.com/manuals

PXI Express Chassis Documentation

ni.com/manuals

Configuring a Project

NI-RIO Help

Learn LabVIEW Basics

ni.com/gettingstarted

NI R Series Examples

NI Example Finder

NI PXIe-7868R User Manual

ni.com/manuals

Worldwide Support and Services

The NI website is your complete resource for technical support. At ni.com/support, you have

access to everything from troubleshooting and application development self-help resources to

email and phone assistance from NI Application Engineers.

Visit ni.com/services for NI Factory Installation Services, repairs, extended warranty, and

other services.

Visit ni.com/register to register your NI product. Product registration facilitates technical

support and ensures that you receive important information updates from NI.

A Declaration of Conformity (DoC) is our claim of compliance with the Council of the

European Communities using the manufacturer’s declaration of conformity. This system

affords the user protection for electromagnetic compatibility (EMC) and product safety. You

can obtain the DoC for your product by visiting ni.com/certification. If your product supports

calibration, you can obtain the calibration certificate for your product at ni.com/calibration.

10 | ni.com | NI PXIe-7868R Getting Started Guide

Autres manuels pour R Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels National Instruments Système d'E/S

National Instruments

National Instruments PCIe-7856R Manuel utilisateur

National Instruments

National Instruments FieldPoint cFP-1808 Manuel utilisateur

National Instruments

National Instruments SCC-DI01 Manuel utilisateur

National Instruments

National Instruments AT-MIO-16 Manuel utilisateur

National Instruments

National Instruments NI 9401 Manuel utilisateur

National Instruments

National Instruments NI 9247 Manuel utilisateur

National Instruments

National Instruments 6527 Manuel d'utilisation et d'entretien

National Instruments

National Instruments 9425E Manuel utilisateur

National Instruments

National Instruments NI PXIe-4300 Manuel utilisateur

National Instruments

National Instruments PXIe-7822 Manuel utilisateur

National Instruments

National Instruments PCIe-7846 Manuel utilisateur

National Instruments

National Instruments PCI-6238 Manuel utilisateur

National Instruments

National Instruments USB-9213 Manuel utilisateur

National Instruments

National Instruments NI 9469 Manuel utilisateur

National Instruments

National Instruments NI 9269 Manuel

National Instruments

National Instruments NI 9234E Manuel utilisateur

National Instruments

National Instruments DAQ PCI-1200 Manuel utilisateur

National Instruments

National Instruments PXIe-4339 Manuel

National Instruments

National Instruments 24-Bit Half/Full-Bridge Analog Input Module NI... Manuel utilisateur

National Instruments

National Instruments NI 9209 Manuel utilisateur

National Instruments

National Instruments PXI-8211 Manuel utilisateur

National Instruments

National Instruments USB-9421 Manuel utilisateur

National Instruments

National Instruments NI 9754 Manuel utilisateur

National Instruments

National Instruments cRIO-9075 Manuel utilisateur

Manuels Système d'E/S populaires d'autres marques

WAGO

WAGO 750-344 Manuel utilisateur

Teknim

Teknim TWM-1887 Mode d’emploi

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuel utilisateur

BERGHOF

BERGHOF ECC DIO 16/16 Mode d’emploi

Advantech

Advantech PCM-27J3AU Manuel d'installation et d'exploitation

Festo

Festo CP-E08-M12-CL Manuel utilisateur

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuel utilisateur

Hitachi

Hitachi HX-RIO3 Series Manuel utilisateur

NUUO

NUUO SCB-A08 Manuel utilisateur

M-system

M-system R3Y-RS8 Manuel utilisateur

jablotron

jablotron JB-110N Manuel utilisateur

Omron

Omron SYSMAC C200H Manuel utilisateur

DOLD

DOLD SAFEMASTER M Manuel utilisateur

ABB

ABB OPT-MF-001 Manuel utilisateur

Omron

Omron SYSMAC C2000H Manuel utilisateur

Helmholz

Helmholz TB20 Manuel utilisateur

ICP DAS USA

ICP DAS USA tM-AD2 Manuel utilisateur

Automationdirect.com

Automationdirect.com DL305 Manuel utilisateur
