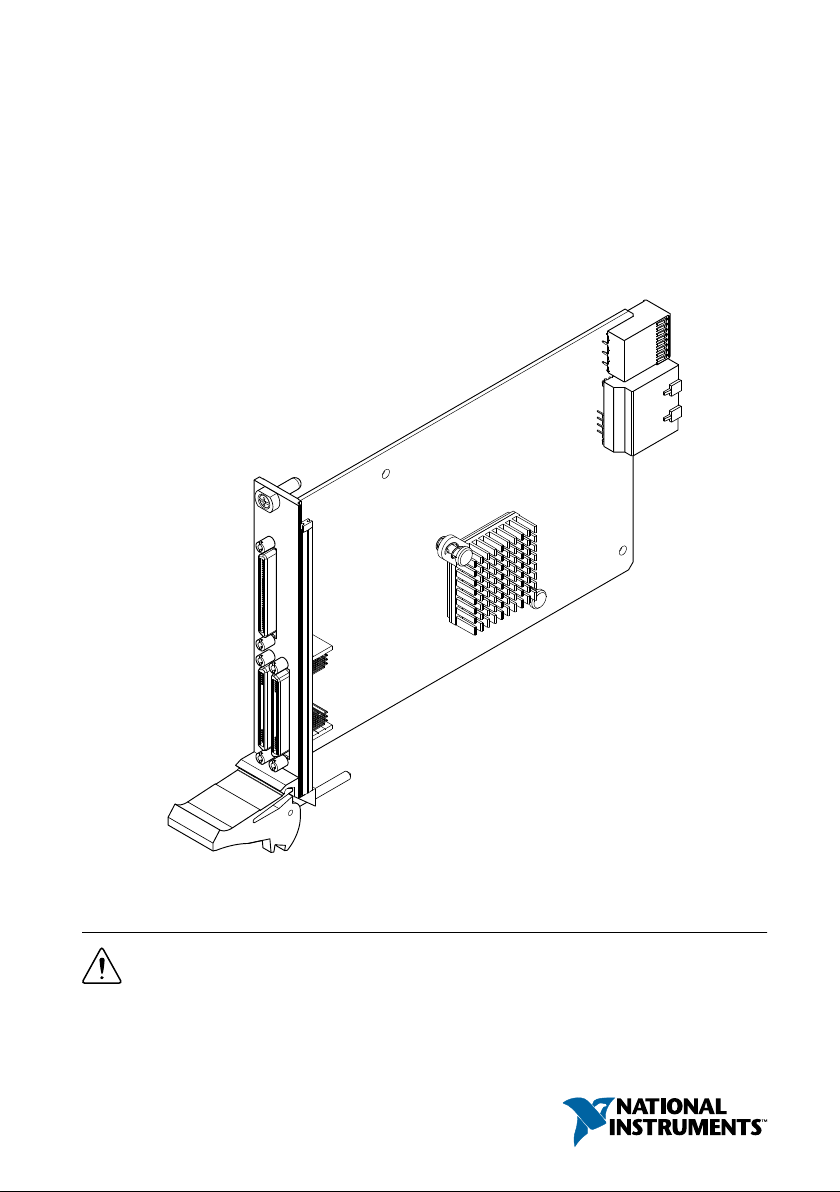

GETTING STARTED GUIDE
NI PXIe-7867R
R Series Reconfigurable I/O Module (AI, AO, DIO) for PXI Express,
6 AI, 18 AO, 48 DIO, 1 MS/s AIO, 512 MB DRAM,
Kintex-7 160T FPGA
This document describes how to begin using the NI PXIe-7867R.
Safety Guidelines
Caution Do not operate the NI PXIe-7867R in a manner not specified in this
document. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to NI for repair.
Caution This icon denotes a caution, which advises you to consult documentation
where this symbol is marked.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) stated in the product specifications. These requirements
and limits provide reasonable protection against harmful interference when the product is
operated in the intended operational electromagnetic environment.
This product is intended for use in industrial locations. However, harmful interference may
occur in some installations, when the product is connected to a peripheral device or test object,
or if the product is used in residential or commercial areas. To minimize interference with
radio and television reception and prevent unacceptable performance degradation, install and
use this product in strict accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved by National
Instruments could void your authority to operate it under your local regulatory rules.
Caution To ensure the specified EMC performance, operate this product only with
shielded cables and accessories.
Caution To ensure the specified EMC performance, the length of all I/O cables
must be no longer than 3 m (10 ft).
Preparing the Environment
Ensure that the environment in which you are using the NI PXIe-7867R meets the following
specifications.
Operating temperature
(IEC 60068-2-1, IEC 60068-2-2)
0 °C to 55 °C
Operating humidity (IEC 60068-2-56) 10% RH to 90% RH, noncondensing
Pollution degree 2
Maximum altitude 2,000 m
Indoor use only.
Note Refer to the device specifications on ni.com/manuals for complete
specifications.
2| ni.com | NI PXIe-7867R Getting Started Guide
Unpacking the Kit
Caution To prevent electrostatic discharge (ESD) from damaging the device,
ground yourself using a grounding strap or by holding a grounded object, such as
your computer chassis.
1. Touch the antistatic package to a metal part of the computer chassis.
2. Remove the device from the package and inspect the device for loose components or any
other sign of damage.
Caution Never touch the exposed pins of connectors.
Note Do not install a device if it appears damaged in any way.
3. Unpack any other items and documentation from the kit.
Store the device in the antistatic package when the device is not in use.
Verifying the Kit Contents
Verify that the following items are included in the NI PXIe-7867R kit.

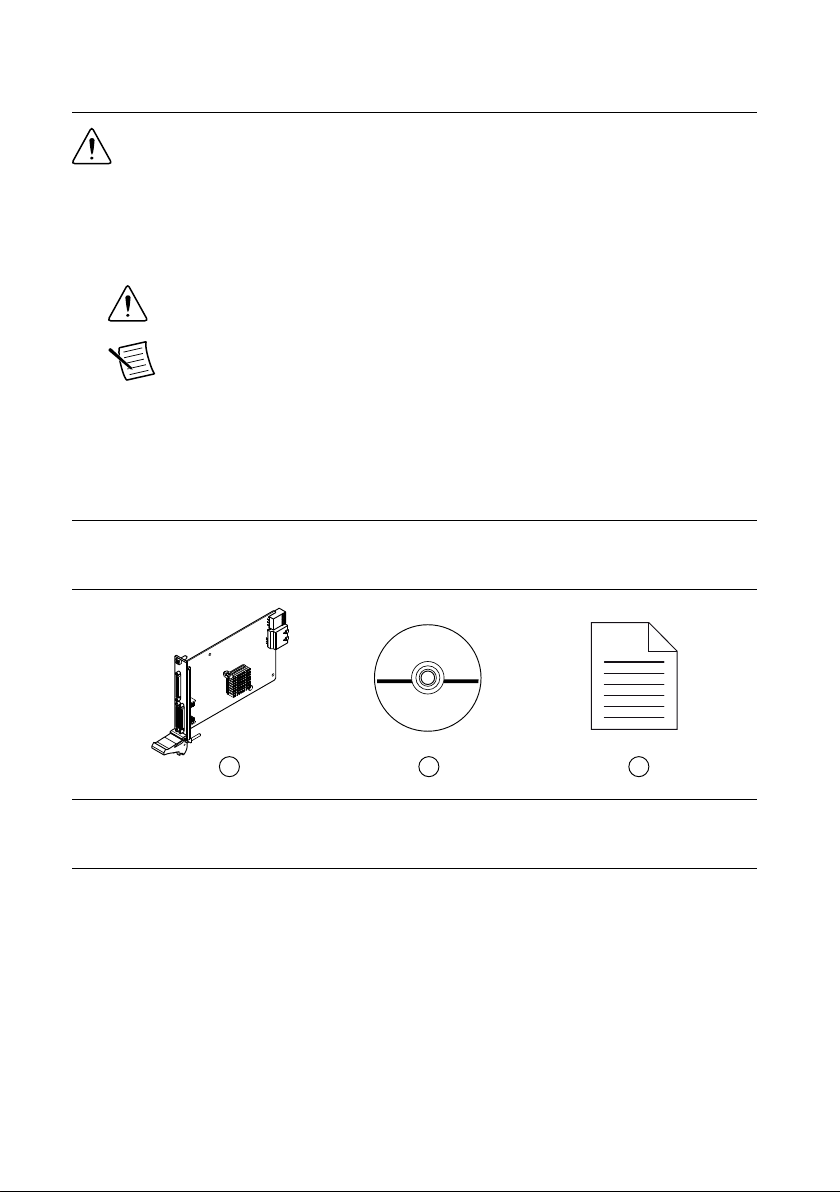

Figure 1. NI PXIe-7867R Kit Contents
3
2
1
1. Hardware
2. NI-RIO Media
3. Getting Started Guide
NI PXIe-7867R Getting Started Guide | © National Instruments | 3
Installing Software on the Host Computer
Before using the NI PXIe-7867R, you must install the following application software and
device drivers on the host computer.
1. LabVIEW 2017 or later
2. LabVIEW Real-Time Module 2017 or later1
3. LabVIEW FPGA Module 2017 or later
4. NI R Series Multifunction RIO Device Drivers July 2017 or later
Visit ni.com/info and enter the Info Code softwareversion for minimum software support
information.
Installing the NI PXIe-7867R
Caution To prevent damage to the NI PXIe-7867R caused by ESD or
contamination, handle the module using the edges or the metal bracket.
1. Ensure the AC power source is connected to the chassis before installing the module.
The AC power cord grounds the chassis and protects it from electrical damage while you
install the module.
2. Power off the chassis.
3. Inspect the slot pins on the chassis backplane for any bends or damage prior to
installation. Do not install a module if the backplane is damaged.
4. Remove the black plastic covers from all the captive screws on the module front panel.
5. Identify a supported slot in the chassis. The following figure shows the symbols that
indicate the slot types.

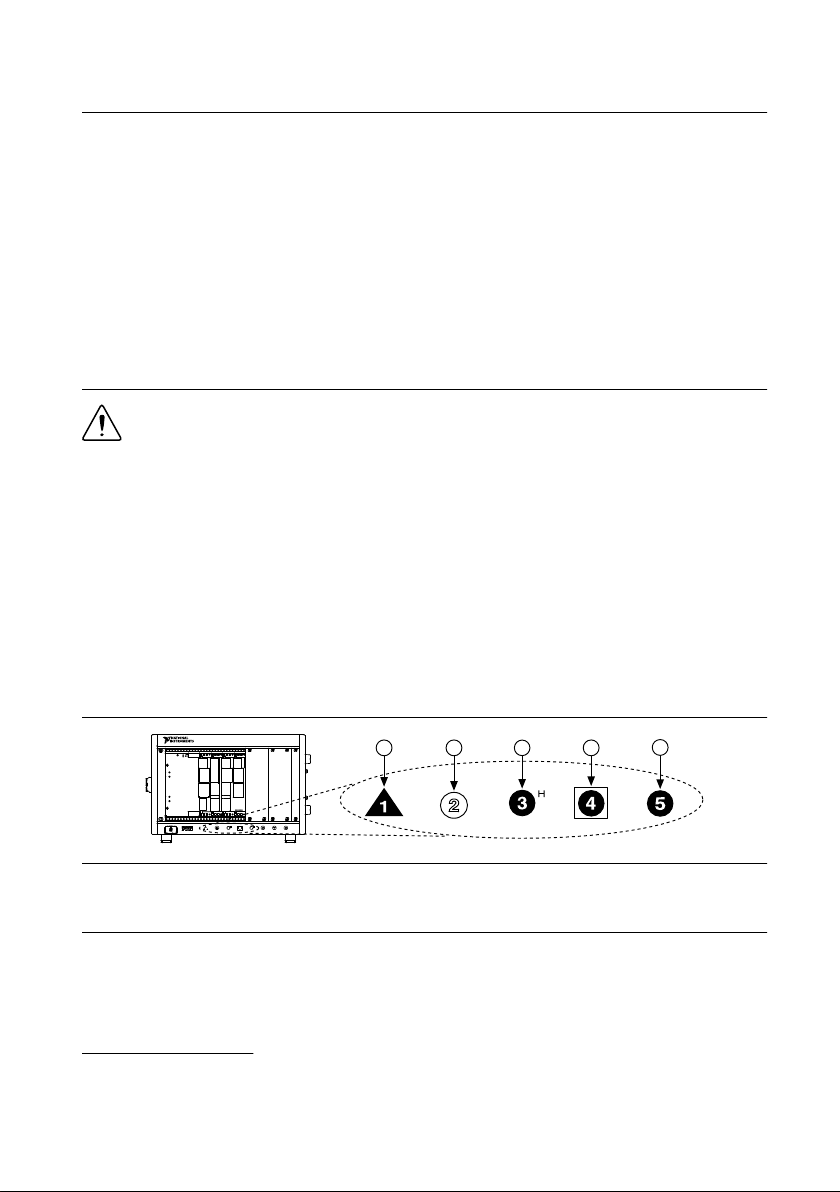

Figure 2. Chassis Compatibility Symbols
NI PXIe-1062Q
12 3 45
1. PXI Express System Controller Slot
2. PXI Peripheral Slot
3. PXI Express Hybrid Peripheral Slot
4. PXI Express System Timing Slot
5. PXI Express Peripheral Slot
NI PXIe-7867R modules can be placed in PXI Express peripheral slots, PXI Express
hybrid peripheral slots, or PXI Express system timing slots.
6. Touch any metal part of the chassis to discharge static electricity.
1LabVIEW Real Time Module is only required when the R Series board is used in a chassis where
the PXIe Controller is running a real-time operating system.
4| ni.com | NI PXIe-7867R Getting Started Guide
7. Place the module edges into the module guides at the top and bottom of the chassis. Slide
the module into the slot until it is fully inserted.

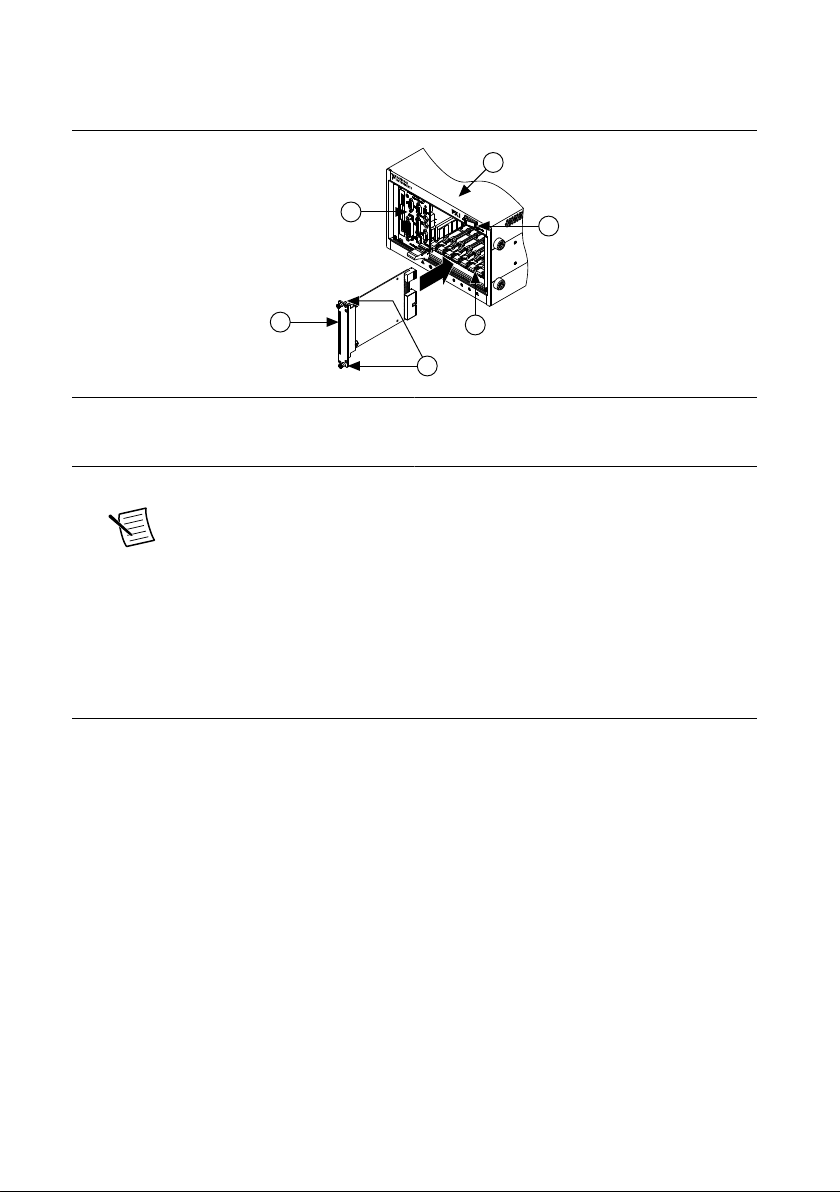

Figure 3. Module Installation
PXI-1000B
1
2
3
4
5
6
1. Chassis
2. System Controller
3. Hardware Module
4. Front-Panel Mounting Screws
5. Module Guides
6. Power Switch
8. Secure the module front panel to the chassis using the front-panel mounting screws.
Note Tightening the top and bottom mounting screws increases mechanical
stability and also electrically connects the front panel to the chassis, which can
improve the signal quality and electromagnetic performance.
9. Cover all empty slots using EMC filler panels or fill using slot blockers to maximize
cooling air flow, depending on your application.
10. Power on the chassis.
Verifying Hardware Installation for Host Targets
You can verify that the system recognizes the NI PXIe-7867R by using Measurement &
Automation Explorer (MAX).
1. Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by
clicking the MAX desktop icon.
2. Expand Devices and Interfaces.
3. Verify that the device appears under Devices and Interfaces.
If the device does not appear, press <F5> to refresh the view in MAX. If the device does
not appear after refreshing the view, visit ni.com/support for troubleshooting information.
NI PXIe-7867R Getting Started Guide | © National Instruments | 5
Verifying Hardware Installation for Remote
Targets
You can verify that the system recognizes the NI PXIe-7867R by using Measurement &
Automation Explorer (MAX).
1. Launch MAX on the host computer.
2. Expand Remote Targets in the configuration tree and locate your system.
3. Install LabVIEW Real-Time Module 2017 and NI RIO Device Drivers July 2017 or later
on your Remote Target.
a) Refer to the Installing Software on the Host Computer section for information about
installing software on the host.
b) Refer to the PXI Express Controllers User Manual at ni.com/manuals for
information on installing software on the target.
4. Under Remote Targets, find and expand Devices and Interfaces.
If the device does not appear, press <F5> to refresh the view in MAX. If the device does
not appear after refreshing the view, visit ni.com/support for troubleshooting information.
Connecting the NI PXIe-7867R
NI recommends using the following cables and accessories with the NI PXIe-7867R:
6| ni.com | NI PXIe-7867R Getting Started Guide
Table 1. Recommended Cables and Accessories
Connector Type Connector Block Cables
Multifunction
Connector 0
(RMIO)
SCB-68A Noise
Rejecting, Shielded I/O
Connector Block
(782536-01)
• SHC68-68-RMIO Shielded Cable for the
Reconfigurable MIO Connector, 68 pin
D-Type to 68 pin VHDCI, 1m
(189588-01)
• SHC68-68-RMIO Shielded Cable for the
Reconfigurable MIO Connector, 68 pin
D-Type to 68 pin VHDCI, 2m
(189588-02)
Analog Output
Connector 2
(RAO)
Digital Connector
1 (RDIO)
SCB-68 HSDIO
Shielded 68-Pin
Connector Block for
Reconfigurable DIO &
HSDIO Products
(782914-01)
• SHC68-C68-RDIO2 Shielded High
Speed Digital Cable for the
Reconfigurable DIO Connector, 1m
(156166-01)
• SHC68-C68-RDIO2 Shielded High
Speed Digital Cable for the
Reconfigurable DIO Connector, 2m
(156166-02)
Note The SCB-68A DIP switches must be set for Direct Feedthrough mode for use
with R Series devices. Visit ni.com/info and enter the Info Code scb68acables for
more information on the SCB-68A accessory.
Note NI is not liable for connections that exceed any of the maximum ratings of
input or output signals on the NI PXIe-7867R and on the computer chassis. Refer to
the NI PXIe-7867R Specifications, available at ni.com/info for the maximum input
and output ratings for each signal.
NI PXIe-7867R Getting Started Guide | © National Instruments | 7

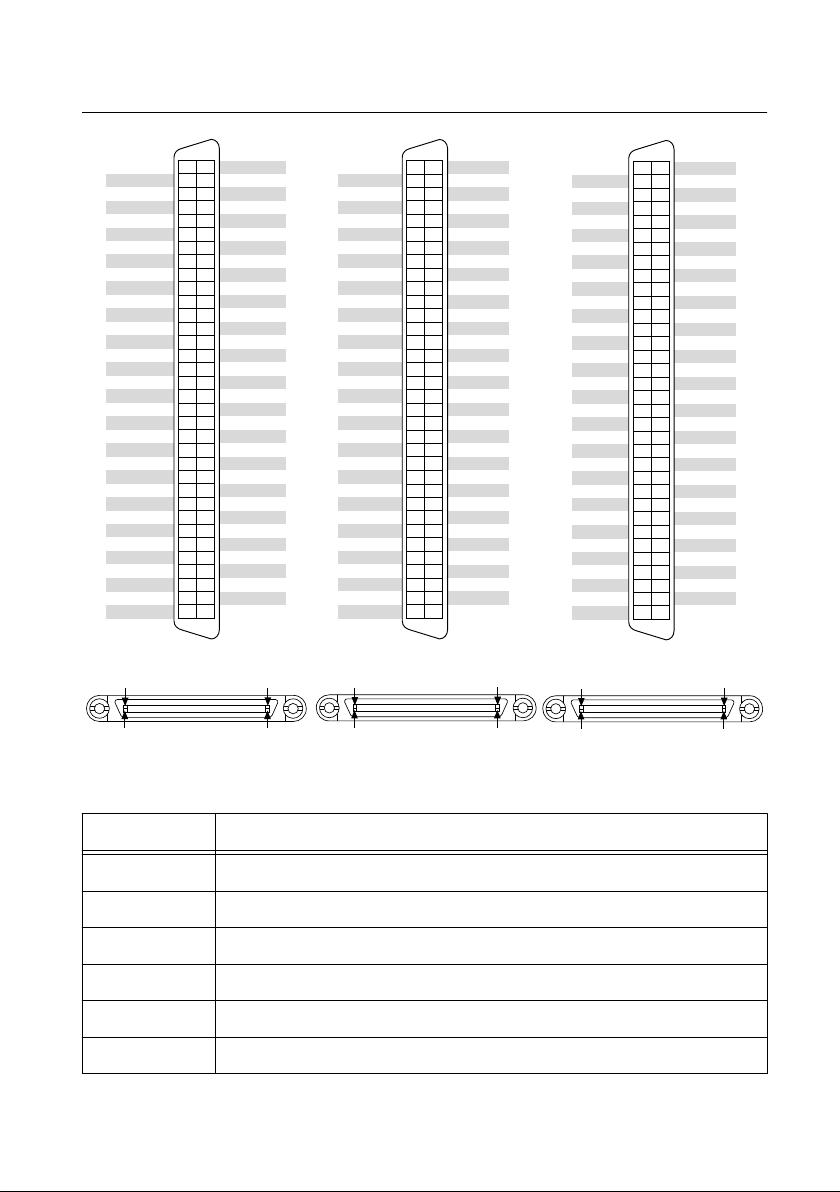

Pinout
+5V
DIO0
DIO1
DIO2
DIO3
DIO4
DIO5
DIO6
DIO7
DIO9
DIO11
DIO13
DIO15
AO7
AO6
AO5
AO4
AO3
AO2
AO1
AO0
AISENSE
NC
AIGND6
NC
AI5+
AIGND4
AI4+
AI3+
AIGND2
AI2+
AI1+
AIGND0
AI0+
+5V
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DIO8
DIO10
DIO12
DIO14
AOGND7
AOGND6
AOGND5
AOGND4
AOGND3
AOGND2
AOGND1
AOGND0
NC
NC
AIGND7
NC
AI5–
AIGND5
AI4–
AI3–
AIGND3
AI2–
AI1–
AIGND1
AI0–
68 34
67 33
66 32
65 31
64 30
63 29
62 28
61 27
60 26
59 25
58 24
57 23
56 22
55 21
54 20
53 19
52 18
51 17
50 16
49 15
48 14
47 13
46 12
45 11
44 10
43 9
42 8
41 7
40 6
39 5
38 4
37 3
36 2
35 1
CONNECTOR 0
(RMIO)
TERMINAL 34 TERMINAL 1
TERMINAL 35
TERMINAL 68
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
AO15
AO14
AO13
AO12
AO11
AO10
AO9
AO8
NC
AO17
NC
AO16
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
AOGND15
AOGND14
AOGND13
AOGND12
AOGND11
AOGND10
AOGND9
AOGND8
NC
AOGND17
NC
AOGND16
NC
NC
NC
NC
NC
NC
NC
NC
NC
68 34
67 33
66 32
65 31
64 30
63 29
62 28
61 27
60 26
59 25
58 24
57 23
56 22
55 21
54 20
53 19
52 18
51 17
50 16
49 15
48 14
47 13
46 12
45 11
44 10
43 9
42 8
41 7
40 6
39 5
38 4
37 3
36 2
35 1
CONNECTOR 2
(RAO)
TERMINAL 68
TERMINAL 34 TERMINAL 1
TERMINAL 35
DIO30
GND
DIO28
GND
DIO26
GND
DIO24
GND
DIO22
GND
DIO20
GND
DIO18
GND
DIO16
GND
DIO14
GND
DIO12
GND
DIO10
GND
DIO8
GND
DIO6
GND
DIO4
GND
DIO2
GND
DIO0
GND
EXTCLKIN
GND
DIO31
DIO29
GND
GND
DIO25
GND
DIO23
GND
DIO27
GND
DIO21
GND
DIO19
GND
DIO17
GND
DIO15
GND
DIO13
GND
DIO11
GND
DIO9
GND
DIO7
GND
DIO5
GND
DIO3
GND
DIO1
GND
GND
GND
68 34
67 33
66 32
65 31
64 30
63 29
62 28
61 27
60 26
59 25
58 24
57 23
56 22
55 21
54 20
53 19
52 18
51 17
50 16
49 15
48 14
47 13
46 12
45 11
44 10
43 9
42 8
41 7
40 6
39 5
38 4
37 3
36 2
35 1
CONNECTOR 1
(RDIO)
TERMINAL 68
TERMINAL 34 TERMINAL 1
TERMINAL 35
Table 2. NI PXIe-7867R Signal Descriptions
Signal Description
AI+ Positive analog input signal connection
AI- Negative analog input signal connection
AISENSE Reference connection for NRSE measurements
AIGND Ground reference for the analog input signal
AO Analog output signal connection
AOGND Ground reference for the analog output signal
8| ni.com | NI PXIe-7867R Getting Started Guide
Table 2. NI PXIe-7867R Signal Descriptions (Continued)
Signal Description
DIO Digital input/output signal connection
DGND Ground reference for the digital signal
EXTCLKIN External clock input source that can be used for source synchronous
acquisitions. The provided clock source must be stable and glitch-free.
GND Ground connection
Supply (+5 Vout) 5 V power output connection for external devices
NC No connection
The NI PXIe-7867R is protected from overvoltage and overcurrent conditions.
Note Refer to the NI PXIe-7867R Specifications, available at ni.com/manuals for
more information.
Note The pinout label on the lid of the SCB-68A accessory is incompatible with
the NI PXIe-7867R. Refer to the NI 78xxR Pinout Labels for the SCB-68A, available
at ni.com/manuals for the compatible pinout labels.
NI PXIe-7867R Getting Started Guide | © National Instruments | 9
Where to Go Next
SUPPORT
Services
ni.com/services
NI Community
ni.com/community
Software Support
ni.com/info>swsupport
Support
ni.com/support
SOFTWAREHARDWARE
NI PXIe-7867R Specifications
ni.com/manuals
PXI Express Controller Documentation
ni.com/manuals
PXI Express Chassis Documentation
ni.com/manuals
Configuring a Project
NI-RIO Help
Learn LabVIEW Basics
ni.com/gettingstarted
NI R Series Examples
NI Example Finder
NI PXIe-7867R User Manual
ni.com/manuals
Worldwide Support and Services
The NI website is your complete resource for technical support. At ni.com/support, you have
access to everything from troubleshooting and application development self-help resources to
email and phone assistance from NI Application Engineers.
Visit ni.com/services for NI Factory Installation Services, repairs, extended warranty, and
other services.
Visit ni.com/register to register your NI product. Product registration facilitates technical
support and ensures that you receive important information updates from NI.
A Declaration of Conformity (DoC) is our claim of compliance with the Council of the
European Communities using the manufacturer’s declaration of conformity. This system
affords the user protection for electromagnetic compatibility (EMC) and product safety. You
can obtain the DoC for your product by visiting ni.com/certification. If your product supports
calibration, you can obtain the calibration certificate for your product at ni.com/calibration.
10 | ni.com | NI PXIe-7867R Getting Started Guide
Autres manuels pour R Series
14
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels National Instruments Système d'E/S
National Instruments
National Instruments NI 9229 Manuel utilisateur
National Instruments
National Instruments IMAQ SCB-100 Manuel utilisateur
National Instruments
National Instruments FD-11637 Manuel utilisateur
National Instruments
National Instruments NI 9264 Manuel utilisateur
National Instruments
National Instruments SCC-68 Manuel utilisateur
National Instruments
National Instruments 9361 Manuel utilisateur
National Instruments
National Instruments C Series Manuel
National Instruments
National Instruments NI SCB-68 HSDIO Mode d’emploi
National Instruments
National Instruments PXIe-7846R Manuel utilisateur
National Instruments
National Instruments NI 9211E Manuel utilisateur
National Instruments
National Instruments R Series Manuel utilisateur
National Instruments
National Instruments SCC-68 Manuel utilisateur
National Instruments
National Instruments Quadrature Input Module FP-QUAD-510 Manuel utilisateur
National Instruments
National Instruments NI 6581 Manuel utilisateur
National Instruments
National Instruments PCI-6238 Manuel utilisateur
National Instruments
National Instruments NI 9265 Manuel d'utilisation et d'entretien
National Instruments
National Instruments USB-6501 Manuel utilisateur
National Instruments
National Instruments 9219 Manuel utilisateur
National Instruments
National Instruments PXIe-4480 Manuel utilisateur
National Instruments
National Instruments 7831R Manuel utilisateur
