USER GUIDE AND SPECIFICATIONS

NI USB-9229/9239

4-Channel, 24-Bit Analog Voltage Input Module

This user guide describes how to use the National Instruments

USB-9229/9239 and lists the device specifications. In this document,

the NI USB-9229 and NI USB-9239 are referred to inclusively as the

NI USB-9229/9239.

Introduction

The NI USB-9229/9239 provides a USB interface for four channels of

24-bit simultaneous analog input with integrated signal conditioning. The

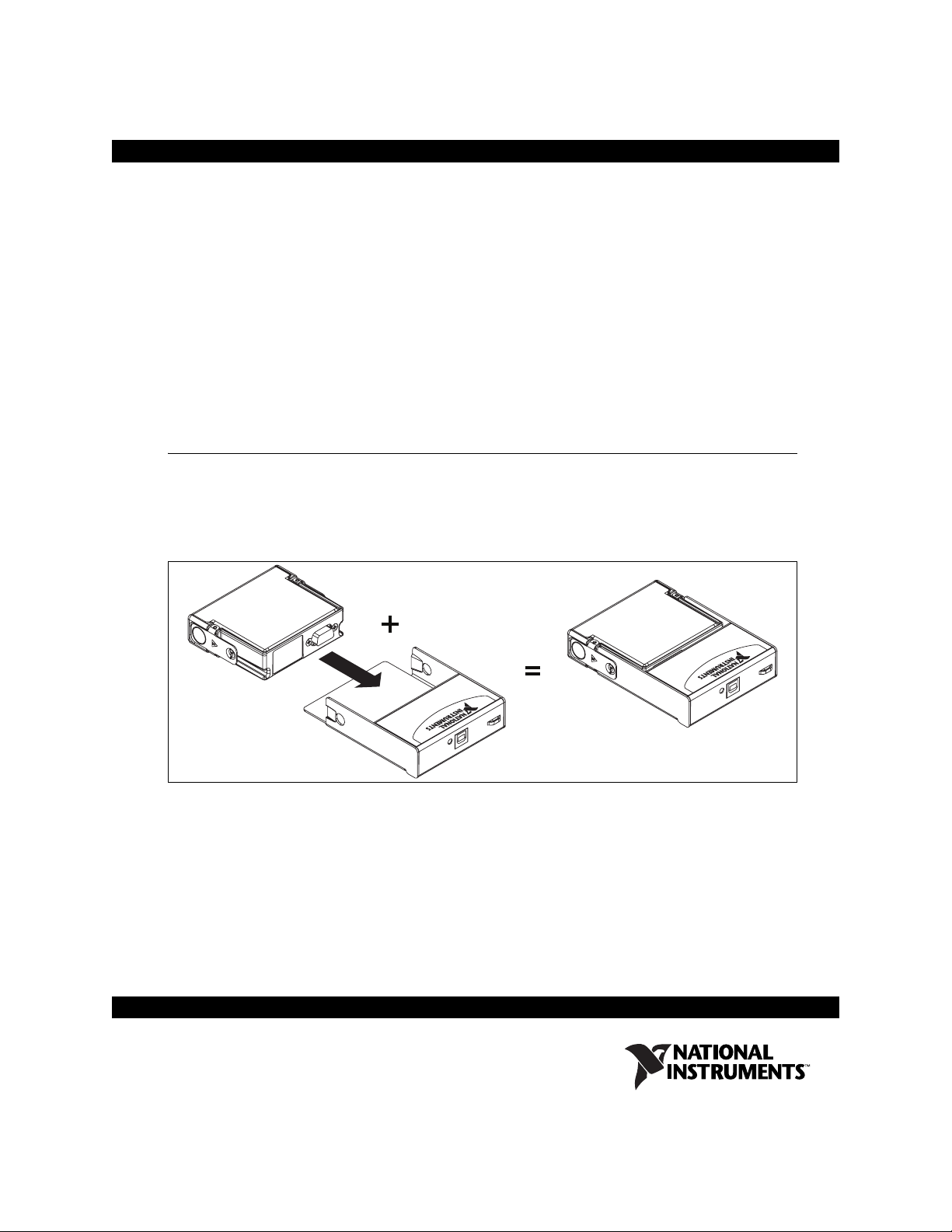

NI USB-9229/9239 consists of two components: an NI 9229/9239 module

and an NI USB-9162 carrier, as shown in Figure 1.

Figure 1. NI USB-9229/9239 Components

NI 9229/9239

NI USB-9162

NI USB-9229/9239

Hi-SPeed USB Carrier

NI USB-9162

Hi-Speed USB Carrier

NI USB-9162

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI USB-9229/9239 User Guide and Specifications 2 ni.com

Dimensions

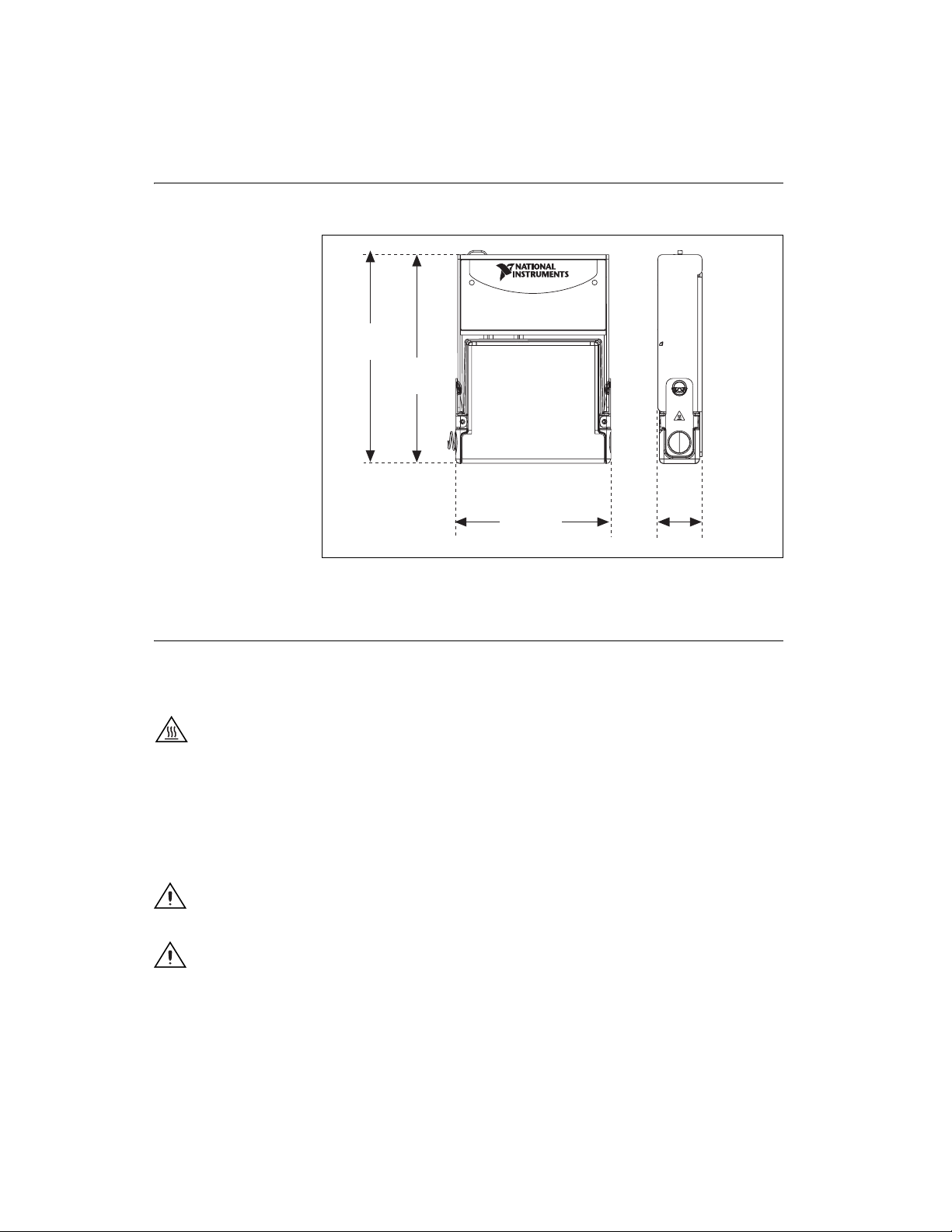

Figure 2 shows the NI USB-9229/9239 device dimensions.

Figure 2. NI USB-9229/9239 Device in Millimeters (Inches)

Safety Guidelines

Operate the NI USB-9229/9239 only as described in these operating

instructions.

Hot Surface This icon denotes that the component may be hot. Touching this component

may result in bodily injury.

Safety Guidelines for Hazardous Voltages

If hazardous voltages are connected to the module, take the following

precautions. A hazardous voltage is a voltage greater than 42.4 Vpk or

60 VDC to earth ground.

Caution Ensure that hazardous voltage wiring is performed only by qualified personnel

adhering to local electrical standards.

Caution Do not mix hazardous voltage circuits and human-accessible circuits on the same

module.

Hi-Speed USB Carrier

NI USB-9162

120.68 mm

(4.751 in.)

118.26 mm

(4.656 in.)

88.12 mm

(3.469 in.)

25.34 mm

(0.998 in.)

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 3 NI USB-9229/9239 User Guide and Specifications

Caution Make sure that devices and circuits connected to the module are properly

insulated from human contact.

Caution When module terminals are hazardous voltage LIVE (>42.4Vpk/60 VDC), you

must ensure that devices and circuits connected to the module are properly insulated from

human contact. You must use the NI 9971 connector backshell kit to ensure that the

terminals are not accessible.

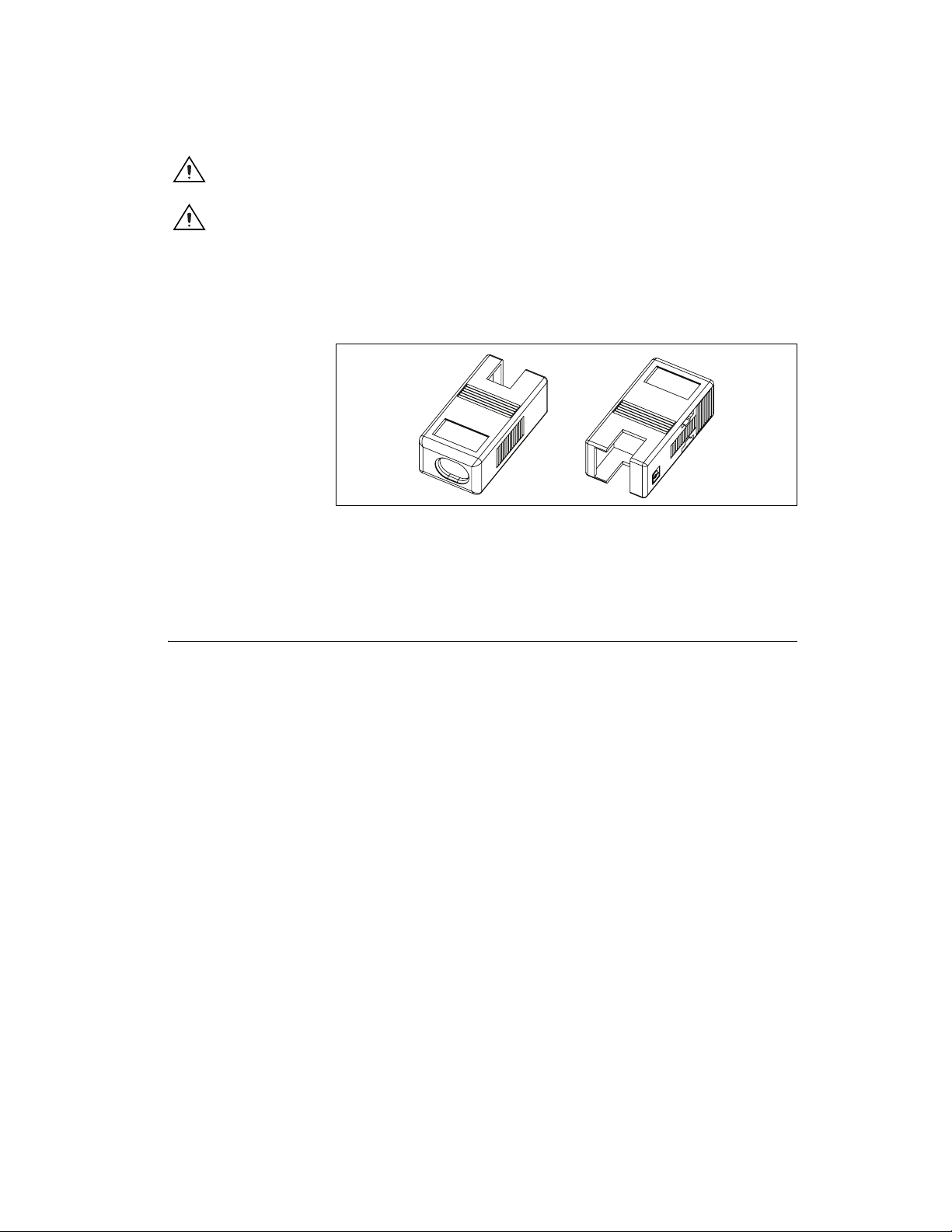

Figure 3 shows the NI 9971 connector backshell.

Figure 3. NI 9971 Connector Backshell

Refer to the Installing the NI USB-9229/9239 Device for more information

about installing the backshell.

Related Documentation

Each application software package and driver includes information about

writing applications for taking measurements and controlling measurement

devices. The following references to documents assume you have

NI-DAQmx 8.7 or later, and where applicable, version 7.1 or later of the

NI application software.

NI-DAQmx for Windows

The DAQ Getting Started Guide describes how to install your NI-DAQmx

for Windows software, your NI-DAQmx-supported DAQ device, and

how to confirm that your device is operating properly. Select Start»All

Programs»National Instruments»NI-DAQ»DAQ Getting Started

Guide.

The NI-DAQ Readme lists which devices are supported by this version of

NI-DAQ. Select Start»All Programs»National Instruments»NI-DAQ»

NI-DAQ Readme.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI USB-9229/9239 User Guide and Specifications 4 ni.com

The NI-DAQmx Help contains general information about measurement

concepts, key NI-DAQmx concepts, and common applications that are

applicable to all programming environments. Select Start»All

Programs»National Instruments»NI-DAQ»NI-DAQmx Help.

LabVIEW

If you are a new user, use the Getting Started with LabVIEW manual

to familiarize yourself with the LabVIEW graphical programming

environment and the basic LabVIEW features you use to build data

acquisition and instrument control applications. Open the Getting Started

with LabVIEW manual by selecting Start»All Programs»National

Instruments»LabVIEW»LabVIEW Manuals or by navigating to the

labview\manuals directory and opening LV_Getting_Started.pdf.

Use the LabVIEW Help, available by selecting Help»Search the

LabVIEW Help in LabVIEW, to access information about LabVIEW

programming concepts, step-by-step instructions for using LabVIEW, and

reference information about LabVIEW VIs, functions, palettes, menus, and

tools. Refer to the following locations on the Contents tab of the LabVIEW

Help for information about NI-DAQmx:

•Getting Started»Getting Started with DAQ—Includes overview

information and a tutorial to learn how to take an NI-DAQmx

measurement in LabVIEW using the DAQ Assistant.

•VI and Function Reference»Measurement I/O VIs and

Functions—Describes the LabVIEW NI-DAQmx VIs and properties.

•Taking Measurements—Contains the conceptual and how-to

information you need to acquire and analyze measurement data in

LabVIEW, including common measurements, measurement

fundamentals, NI-DAQmx key concepts, and device considerations.

LabWindows/CVI

The Data Acquisition book of the LabWindows/CVI Help contains

measurement concepts for NI-DAQmx. This book also contains Taking

an NI-DAQmx Measurement in LabWindows/CVI, which includes

step-by-step instructions about creating a measurement task using the DAQ

Assistant. In LabWindowsTM/CVITM, select Help»Contents, then select

Using LabWindows/CVI»Data Acquisition.

The NI-DAQmx Library book of the LabWindows/CVI Help contains

API overviews and function reference for NI-DAQmx. Select Library

Reference»NI-DAQmx Library in the LabWindows/CVI Help.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 5 NI USB-9229/9239 User Guide and Specifications

Measurement Studio

If you program your NI-DAQmx-supported device in Measurement Studio

using Visual C++, Visual C#, or Visual Basic .NET, you can interactively

create channels and tasks by launching the DAQ Assistant from MAX or

from within Visual Studio .NET. You can generate the configuration code

based on your task or channel in Measurement Studio. Refer to the DAQ

Assistant Help for additional information about generating code. You also

can create channels and tasks, and write your own applications in your

ADE using the NI-DAQmx API.

For help with NI-DAQmx methods and properties, refer to the NI-DAQmx

.NET Class Library or the NI-DAQmx Visual C++ Class Library included

in the NI Measurement Studio Help. For general help with programming in

Measurement Studio, refer to the NI Measurement Studio Help, which is

fully integrated with the Microsoft Visual Studio .NET help. To view

this help file in Visual Studio. NET, select Measurement Studio»

NI Measurement Studio Help.

To create an application in Visual C++, Visual C#, or Visual Basic .NET,

follow these general steps:

1. In Visual Studio .NET, select File»New»Project to launch the New

Project dialog box.

2. Find the Measurement Studio folder for the language you want to

create a program in.

3. Choose a project type. You add DAQ tasks as a part of this step.

ANSI C without NI Application Software

The NI-DAQmx Help contains API overviews and general information

about measurement concepts. Select Start»All Programs»National

Instruments»NI-DAQ»NI-DAQmx Help.

The NI-DAQmx C Reference Help describes the NI-DAQmx Library

functions, which you can use with National Instruments data acquisition

devices to develop instrumentation, acquisition, and control applications.

Select Start»All Programs»National Instruments»NI-DAQ»

NI-DAQmx C Reference Help.

.NET Languages without NI Application Software

With the Microsoft .NET Framework version 1.1 or later, you can use

NI-DAQmx to create applications using Visual C# and Visual Basic .NET

without Measurement Studio. You need Microsoft Visual Studio

.NET 2003 or Microsoft Visual Studio 2005 for the API documentation to

be installed.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI USB-9229/9239 User Guide and Specifications 6 ni.com

The installed documentation contains the NI-DAQmx API overview,

measurement tasks and concepts, and function reference. This help is fully

integrated into the Visual Studio .NET documentation. To view the

NI-DAQmx .NET documentation, go to Start»Programs»National

Instruments»NI-DAQ»NI-DAQmx .NET Reference Help. Expand

NI Measurement Studio Help»NI Measurement Studio .NET Class

Library»Reference to view the function reference. Expand

NI Measurement Studio Help»NI Measurement Studio .NET Class

Library»Using the Measurement Studio .NET Class Libraries to

view conceptual topics for using NI-DAQmx with Visual C# and Visual

Basic .NET.

To get to the same help topics from within Visual Studio, go to Help»

Contents. Select Measurement Studio from the Filtered By drop-down

list and follow the previous instructions.

Device Documentation and Specifications

NI-DAQmx includes the Device Document Browser, which contains

online documentation for supported DAQ, SCXI, and switch devices, such

as help files describing device pinouts, features, and operation, and PDF

files of the printed device documents. You can find, view, and/or print the

documents for each device using the Device Document Browser at any

time by inserting the CD. After installing the Device Document Browser,

device documents are accessible from Start»All Programs»National

Instruments»NI-DAQ»Browse Device Documentation.

Note You can also download these documents at ni.com/manuals.

Training Courses

If you need more help getting started developing an application with

NI products, NI offers training courses. To enroll in a course or obtain a

detailed course outline, refer to ni.com/training.

Technical Support on the Web

For additional support, refer to ni.com/support or zone.ni.com.

Installing the Software

Software support for the NI USB-9229/9239 for Windows Vista/XP/2000

is provided by NI-DAQmx. The DAQ Getting Started Guide, which you

can download at ni.com/manuals, offers NI-DAQmx users step-by-step

instructions for installing software and hardware, configuring channels and

tasks, and getting started developing an application.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 7 NI USB-9229/9239 User Guide and Specifications

Installing Other Software

If you are using other software, refer to the installation instructions that

accompany your software.

Example Programs

The NI-DAQmx CD contains example programs that you can use to get

started programming with the NI USB-9229/9239. Refer to the NI-DAQmx

for USB Devices Getting Started Guide that shipped with your device, and

is also accessible from Start»All Programs»National Instruments»

NI-DAQ, for more information.

Installing the NI USB-9229/9239 Device

Before installing the device, you must install the software you plan to use

with the device. Refer to the Installing the Software section of this guide

and the documentation included with the software for more information.

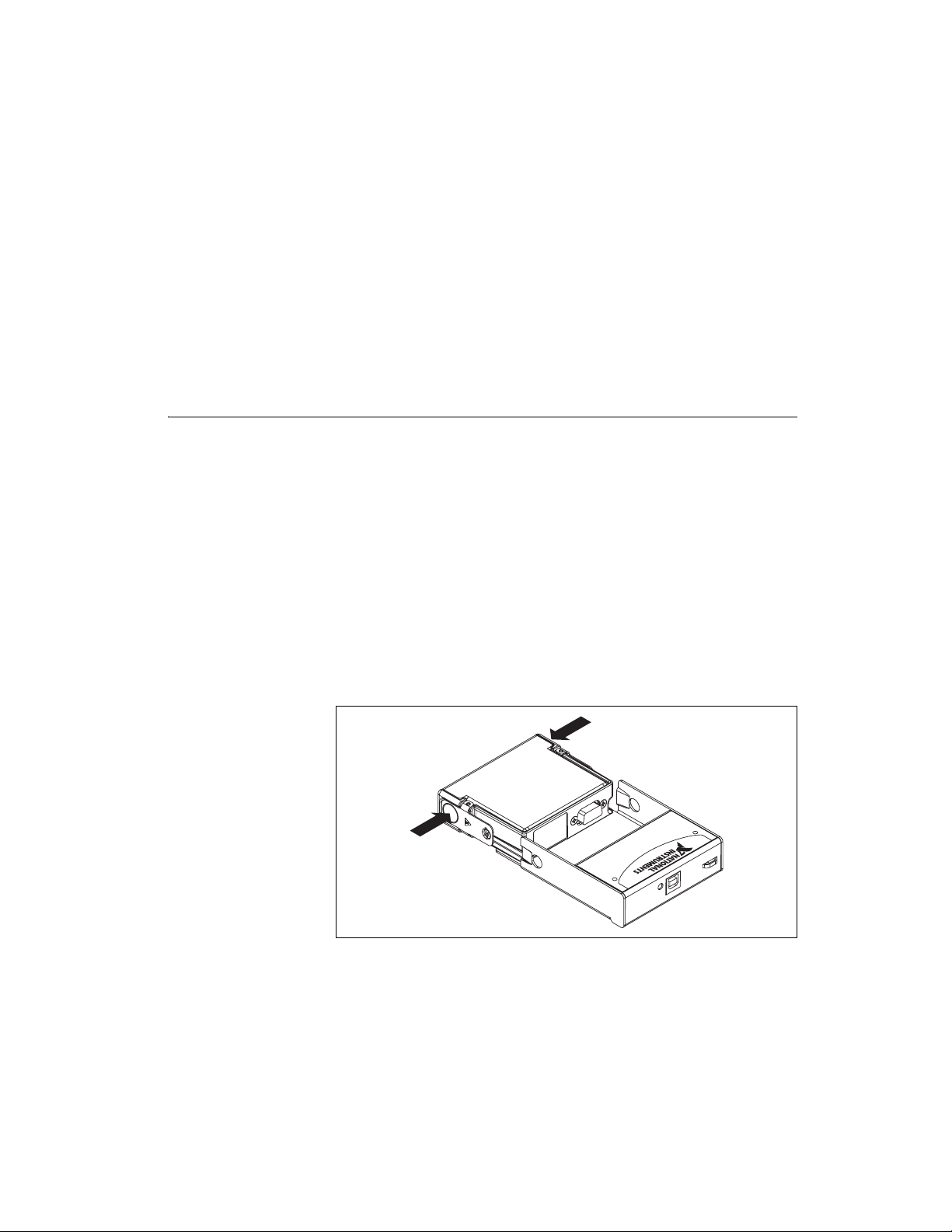

Installing the NI 9229/9239 Device into the NI USB-9162 Carrier

The NI 9229/9239 module and NI USB-9162 carrier are packaged

separately. Refer to Figure 4, while completing the following assembly

steps:

1. Make sure that no signals are connected to the NI 9229/9239 module

and the USB cable is not connected to the device.

2. Remove the protective cover from the 15-pin D-SUB connector.

3. Align the I/O module with the carrier, as shown in Figure 4.

Figure 4. Module Installation

4. Squeeze the latches and insert the NI 9229/9239 module into the

NI USB-9162 carrier.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

NI USB-9229/9239 User Guide and Specifications 8 ni.com

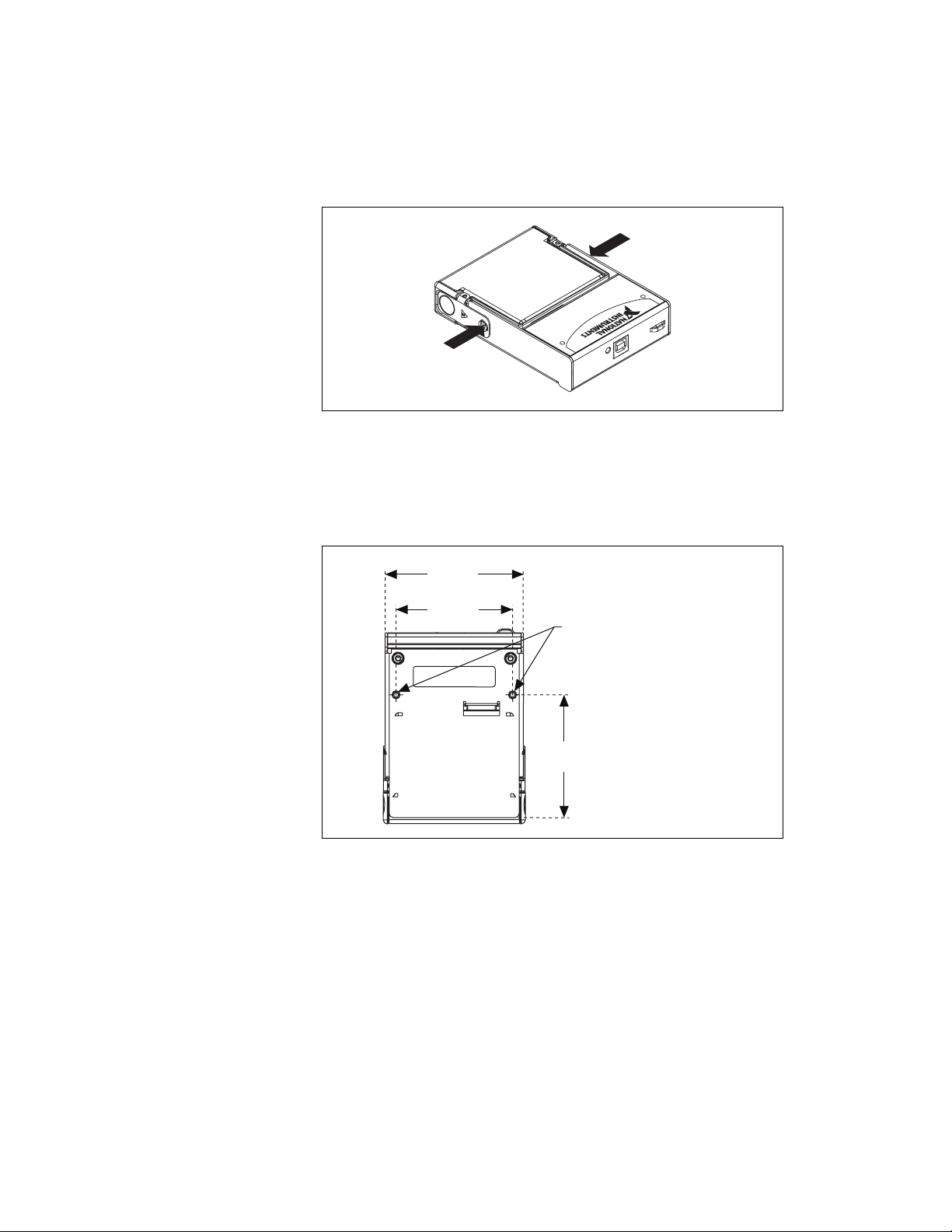

5. Press firmly on the connector side of the NI 9229/9239 module until

the latches lock the module into place, as shown in Figure 5.

Figure 5. Locking Module into Place

Mounting the NI USB-9229/9239 to a Panel

Threaded inserts are located in the NI USB-9229/9239 for mounting it to a

panel. Refer to Figure 6 for dimensions.

Figure 6. Module Dimensions In Millimeters (Inches)

Connecting the NI USB-9229/9239 to a Computer

Plug one end of the USB cable into the NI USB-9229/9239 and the other

end into an available USB port on the computer. Refer to the NI-DAQmx

for USB Devices Getting Started Guide that shipped with your device, and

is also accessible from Start»All Programs»National Instruments»

NI-DAQ,for more information.

72.2 mm

(2.84 in.)

85.7 mm

(3.37 in.)

76.1 mm

(3.00 in.)

Threaded Insert

M3 x 0.5

8.5 mm (0.34 in.) Max Depth

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

©National Instruments Corporation 9 NI USB-9229/9239 User Guide and Specifications

LED Indicator

The NI USB-9229/9239 device has a green LED next to the USB

connector. The LED indicator indicates device status, as listed in Table 1.

When the device is connected to a USB port, the LED blinks steadily to

indicate that the device is initialized and is receiving power from the

connection.

If the LED is not blinking, it may mean that the device is not initialized or

the computer is in standby mode. In order for the device to be recognized,

the device must be connected to a computer that has NI-DAQmx installed

on it. If your device is not blinking, make sure your computer has the latest

version of NI-DAQmx installed on it, and the computer is not in standby

mode.

Wiring the NI USB-9229/9239

Note Table 2 illustrates the accessories available from ni.com for use with the

NI USB-9229/9239.

The NI USB-9229/9239 has four 2-terminal detachable screw-terminal

connectors that provide connections for four simultaneously sampled,

isolated analog input channels. Connect the positive signal of the signal

source to the AI+ terminal, and connect the negative signal of the signal

Table 1. LED State/Device Status

LED State Device Status

Not lit Device not connected or in suspend.

On, not blinking Device connected, but no module installed.

Single-blink Operating normally.

Double-blink Connected to USB Full-Speed port. Device

performance might be affected. Refer to the

Specifications section for more information.

Quadruple-blink Device error. Refer to ni.com/support.

Table 2. Accessories

Accessory Accessory Description

NI 9971 Strain relief and high-voltage backshell

NI 9976 2-position screw-terminal plug

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Autres manuels pour NI USB-9229

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels National Instruments Système d'E/S

National Instruments

National Instruments 9232 Manuel utilisateur

National Instruments

National Instruments PCIe-7856R Manuel utilisateur

National Instruments

National Instruments DAQ PCI-1200 Manuel utilisateur

National Instruments

National Instruments PXI-6238 Manuel utilisateur

National Instruments

National Instruments FlexRIO NI 6581B Manuel utilisateur

National Instruments

National Instruments FieldPoint FP-AI-112 Manuel utilisateur

National Instruments

National Instruments PXIe-4357 Manuel utilisateur

National Instruments

National Instruments SC-2061 Manuel utilisateur

National Instruments

National Instruments USB-9265 Manuel utilisateur

National Instruments

National Instruments R Series Manuel utilisateur

National Instruments

National Instruments NI 9265 Manuel d'utilisation et d'entretien

National Instruments

National Instruments SC Express Series Manuel utilisateur

National Instruments

National Instruments sbRIO-9219 Manuel utilisateur

National Instruments

National Instruments NI USB-9234 Manuel utilisateur

National Instruments

National Instruments SCXI-1104 Manuel utilisateur

National Instruments

National Instruments NI 9229 Manuel utilisateur

National Instruments

National Instruments DAQPad-6508 Manuel utilisateur

National Instruments

National Instruments PXIe-7846R Manuel utilisateur

National Instruments

National Instruments NI-6587 Manuel utilisateur

National Instruments

National Instruments 9225 Manuel utilisateur

National Instruments

National Instruments DAQPad-1200 Manuel utilisateur

National Instruments

National Instruments NI 9263 Manuel utilisateur

National Instruments

National Instruments E Series Manuel utilisateur

National Instruments

National Instruments SCC-AI Series Manuel utilisateur

Manuels Système d'E/S populaires d'autres marques

WAGO

WAGO 750-344 Manuel utilisateur

Teknim

Teknim TWM-1887 Mode d’emploi

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuel utilisateur

BERGHOF

BERGHOF ECC DIO 16/16 Mode d’emploi

Advantech

Advantech PCM-27J3AU Manuel d'installation et d'exploitation

Festo

Festo CP-E08-M12-CL Manuel utilisateur

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuel utilisateur

Hitachi

Hitachi HX-RIO3 Series Manuel utilisateur

NUUO

NUUO SCB-A08 Manuel utilisateur

M-system

M-system R3Y-RS8 Manuel utilisateur

jablotron

jablotron JB-110N Manuel utilisateur

Omron

Omron SYSMAC C200H Manuel utilisateur

DOLD

DOLD SAFEMASTER M Manuel utilisateur

ABB

ABB OPT-MF-001 Manuel utilisateur

Omron

Omron SYSMAC C2000H Manuel utilisateur

Helmholz

Helmholz TB20 Manuel utilisateur

ICP DAS USA

ICP DAS USA tM-AD2 Manuel utilisateur

Automationdirect.com

Automationdirect.com DL305 Manuel utilisateur
