INSTALLATION GUIDE

NI PXI-8186/8187

This document contains information about installing your

NI PXI-8186/8187 controller in a PXI chassis.

For complete configuration and troubleshooting information (including

information about BIOS setup, adding RAM, and so on), refer to the

NI PXI-8186/8187 User Manual. The manual is in PDF format on the

recovery CD included with your controller and on the National Instruments

Web site, ni.com.

Installing the NI PXI-8186/8187

This section contains general installation instructions for the

NI PXI-8186/8187. Consult your PXI chassis user manual for specific

instructions and warnings.

1. Plug in your chassis before installing the NI PXI-8186/8187. The

power cord grounds the chassis and protects it from electrical damage

while you install the module. (Make sure the power switch is

turned off.)

Caution To protect both yourself and the chassis from electrical hazards, leave the chassis

powered off until you finish installing the NI PXI-8186/8187 module.

2. Remove any filler panels blocking access to the system controller slot

(Slot 1) in the chassis.

3. Touch the metal part of the case to discharge any static electricity that

might be on your clothes or body.

4. Remove the protective plastic covers from the four bracket-retaining

screws as shown in Figure 1.

NI PXI-8186/8187 Installation Guide 2 ni.com

Figure 1. Removing Protective Screw Caps

5. Make sure the injector/ejector handle is in its downward position.

Align the NI PXI-8186/8187 with the card guides on the top and

bottom of the system controller slot.

Caution Do not raise the injector/ejector handle as you insert the NI PXI-8186/8187. The

module will not insert properly unless the handle is in its downward position so that it does

not interfere with the injector rail on the chassis.

6. Hold the handle as you slowly slide the module into the chassis until

the handle catches on the injector/ejector rail.

7. Raise the injector/ejector handle until the module firmly seats

into the backplane receptacle connectors. The front panel of the

NI PXI-8186/8187 should be even with the front panel of the chassis.

8. Tighten the four bracket-retaining screws on the top and bottom of the

front panel to secure the NI PXI-8186/8187 to the chassis.

9. Check the installation.

1 Protective Screw Cap (4X)

©National Instruments Corporation 3 NI PXI-8186/8187 Installation Guide

10. Connect the keyboard and mouse to the appropriate connectors. If you

are using a PS/2 keyboard and a PS/2 mouse, use the Y-splitter adapter

included with your controller to connect both to the PS/2 connector.

11. Connect the VGA monitor video cable to the VGA connector.

12. Connect devices to ports as required by your system configuration.

13. Power on the chassis.

14. Verify that the controller boots. If the controller does not boot, refer to

the What If the NI PXI-8186/8187 Does Not Boot? section.

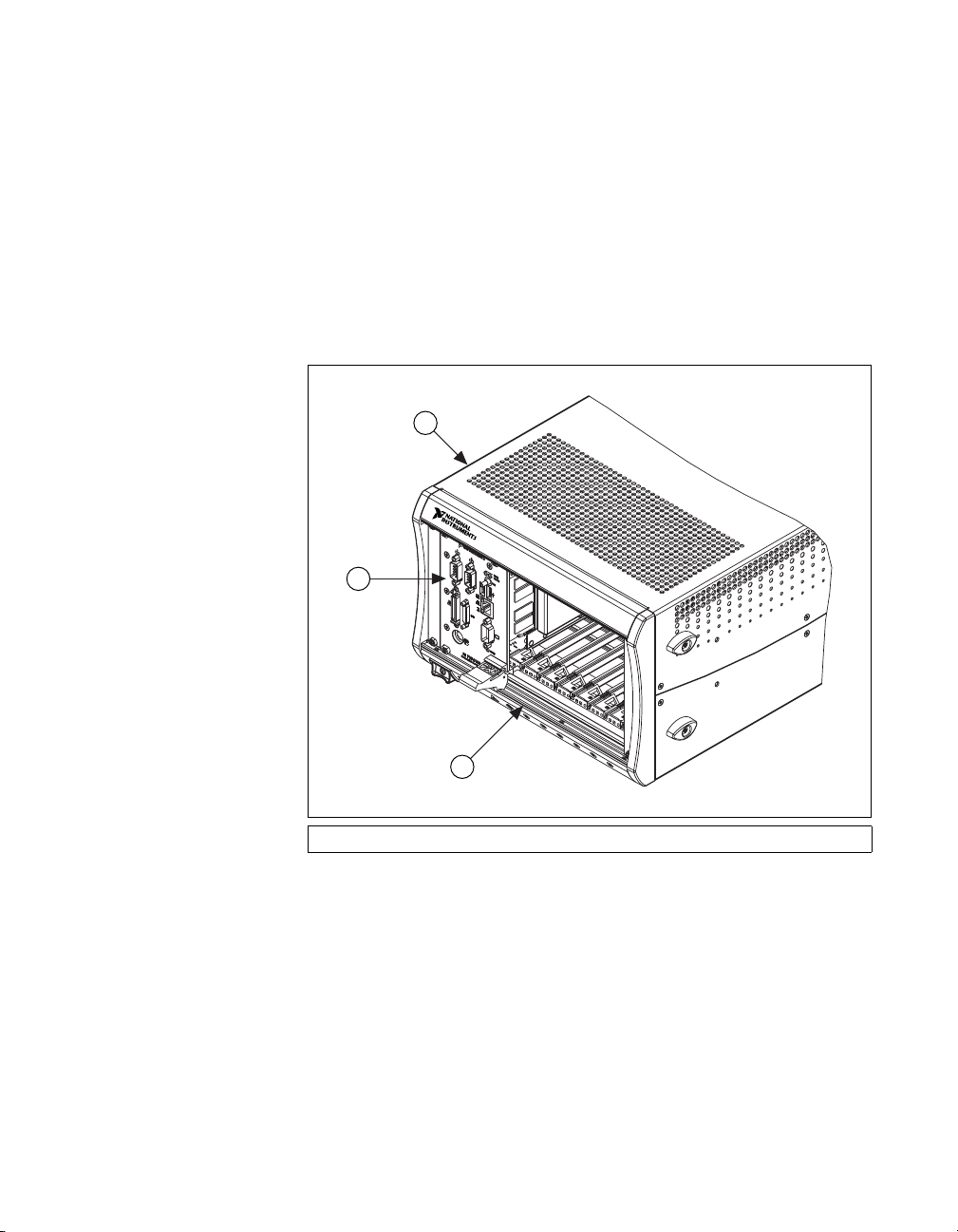

Figure 2 shows an NI PXI-8186 installed in the system controller slot of a

National Instruments PXI-1042 chassis. You can place PXI devices in any

other slot.

Figure 2. NI PXI-8186 Controller Installed in a PXI Chassis

How to Remove the Controller from the PXI Chassis

The NI PXI-8186/8187 controller is designed for easy handling. Complete

the following steps to remove the unit from the PXI chassis:

1. Power off the chassis.

2. Remove the bracket-retaining screws in the front panel.

3. Press the injector/ejector handle down.

4. Slide the unit out of the chassis.

1 PXI-1042 Chassis 2 NI PXI-8186 Controller 3 Injector/Ejector Rail

NI PXI-1042

National Instruments™, NI™, and ni.com™ are trademarks of National Instruments Corporation.

Product and company names mentioned herein are trademarks or trade names of their respective

companies. For patents covering National Instruments products, refer to the appropriate location:

Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.

323683B-01 Jun04

*323683B-01*

What If the NI PXI-8186/8187 Does Not Boot?

Several problems can cause a controller not to boot. Here are some things

to look for and possible solutions.

Things to Notice:

• Which LEDs come on? The Power OK LED should stay lit.

The Drive LED should blink during boot as the disk is accessed.

• What appears on the display? Does it hang at some particular point

(BIOS, Operating System, and so on)? If nothing appears on the

screen, try a different monitor. Does your monitor work with a

different PC? If it hangs, note the last screen output that you saw for

reference when consulting National Instruments technical support.

• What has changed about the system? Did you recently move the

system? Was there electrical storm activity? Did you recently add

a new module, memory chip, or piece of software?

Things to Try:

• Make sure the chassis is plugged in to a working power source.

• Check any fuses or circuit breakers in the chassis or other power

supply (possibly a UPS).

• Make sure the controller module is firmly seated in the chassis.

• Remove all other modules from the chassis.

• Remove any nonessential cables or devices.

• Try the controller in a different chassis.

• Try a similar controller in this same chassis.

• Recover the hard drive on the controller.

• Clear the CMOS.
