GETTING STARTED GUIDE

NI cRIO-9037

Embedded CompactRIO Controller with Real-Time Processor and

Reconfigurable FPGA

This document describes how to begin using the National Instruments cRIO-9037.

Safety Guidelines

Caution Do not operate the cRIO-9037 in a manner not specified in this document.

Product misuse can result in a hazard. You can compromise the safety protection

built into the product if the product is damaged in any way. If the product is

damaged, return it to NI for repair.

Safety Guidelines for Hazardous Locations

The cRIO-9037 is suitable for use in Class I, Division 2, Groups A, B, C, D, T4 hazardous

locations; Class I, Zone 2, AEx nA IIC T4 Gc and Ex nA IIC T4 Gc hazardous locations; and

nonhazardous locations only. Follow these guidelines if you are installing the cRIO-9037 in a

potentially explosive environment. Not following these guidelines may result in serious injury

or death.

Caution Do not disconnect the power supply wires and connectors from the

controller unless power has been switched off.

Caution Do not disconnect I/O-side wires or connectors unless power has been

switched off or the area is known to be nonhazardous.

Caution Do not remove modules unless power has been switched off or the area is

known to be nonhazardous.

Caution Substitution of components may impair suitability for Class I, Division 2,

or Zone 2.

Caution The system must be installed in an enclosure certified for the intended

hazardous (classified) location, having a tool secured cover/door, where a minimum

protection of at least IP54 is provided.

Caution The USB host ports, USB device port, and mini DisplayPort require the

retention accessories listed in the following table for hazardous locations. All cables

must be used in a conduit or cable gland to wire to a nonhazardous location. Do not

disconnect a cable unless the cRIO-9037 is powered off or the area is known to be

nonhazardous.

Table 1. Hazardous Location Retention Accessories

Port Required Accessory Part Number

USB Host Port NI Industrial USB Extender Cable 152166-xx

USB Device Port NI Locking USB Cable 157788-01

Mini DisplayPort Mini DisplayPort Cable Retention Bracket 156866-01

2| ni.com | NI cRIO-9037 Getting Started Guide

Special Conditions for Hazardous Locations Use in Europe and

Internationally

The cRIO-9037 has been evaluated as Ex nA IIC T4 Gc equipment under DEMKO 12

ATEX 1202658X and is IECEx UL 14.0089X certified. Each device is marked II 3G and is

suitable for use in Zone 2 hazardous locations, in ambient temperatures of -20 °C ≤ Ta ≤

55 °C.

Caution Transient protection shall be provided that is set at a level not exceeding

140% of the peak rated voltage value of 85 V at the supply terminals to the

equipment.

Caution The system shall only be used in an area of not more than Pollution

Degree 2, as defined in IEC/EN 60664-1.

Caution The system shall be mounted in an ATEX/IECEx-certified enclosure with

a minimum ingress protection rating of at least IP54 as defined in IEC/EN 60079-15.

Caution The enclosure must have a door or cover accessible only by the use of a

tool.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with

radio and television reception and prevent unacceptable performance degradation, install and

use this product in strict accordance with the instructions in the product documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance, operate this product only with

shielded cables and accessories. The DC power input cables may be unshielded.

Caution To ensure the specified EMC performance, you must use an isolated cable

with the RS-485 serial port, such as NI part number 184428-01.

Caution To ensure the specified EMC performance, the length of any cable

connected to the video and V2 ports must be no longer than 3 m (10 ft). The length

of any cable connected to the RS-232 and RS-485 ports must be no longer than

NI cRIO-9037 Getting Started Guide | © National Instruments | 3

30 m (100 ft). The length of any cable connected to the USB host ports must be no

longer than 5 m (16 ft).

Caution The USB device port is intended only for use in device configuration,

application deployment, debug, and maintenance.

Caution To ensure the specified EMC performance, product installation requires

either special considerations or user-installed, add-on devices. Refer to the following

sections for more information.

Related Information

Connecting the cRIO-9037 to Ground on page 8

Connecting the cRIO-9037 to Power on page 9

Special Conditions for Marine Applications

Some products are Lloyd’s Register (LR) Type Approved for marine (shipboard) applications.

To verify Lloyd’s Register certification for a product, visit ni.com/certification and search for

the LR certificate, or look for the Lloyd’s Register mark on the product.

Caution In order to meet the EMC requirements for marine applications, install the

product in a shielded enclosure with shielded and/or filtered power and input/output

ports. In addition, take precautions when designing, selecting, and installing

measurement probes and cables to ensure that the desired EMC performance is

attained.

Preparing the Environment

Ensure that the environment in which you are using the cRIO-9037 meets the following

specifications.

Operating temperature

(IEC 60068-2-1, IEC 60068-2-2)

-20 °C to 55 °C

Operating humidity (IEC 60068-2-78) 10% RH to 90% RH, noncondensing

Pollution Degree 2

Maximum altitude 5,000 m

Indoor use only.

Note Refer to the device specifications on ni.com/manuals for complete

specifications.

4| ni.com | NI cRIO-9037 Getting Started Guide

Unpacking the Kit

Caution To prevent electrostatic discharge (ESD) from damaging the device,

ground yourself using a grounding strap or by holding a grounded object, such as

your computer chassis.

1. Touch the antistatic package to a metal part of the computer chassis.

2. Remove the device from the package and inspect the device for loose components or any

other sign of damage.

Caution Never touch the exposed pins of connectors.

Note Do not install a device if it appears damaged in any way.

3. Unpack any other items and documentation from the kit.

Store the device in the antistatic package when the device is not in use.

Verifying the Kit Contents

Verify that the following items are included in the cRIO-9037 kit.

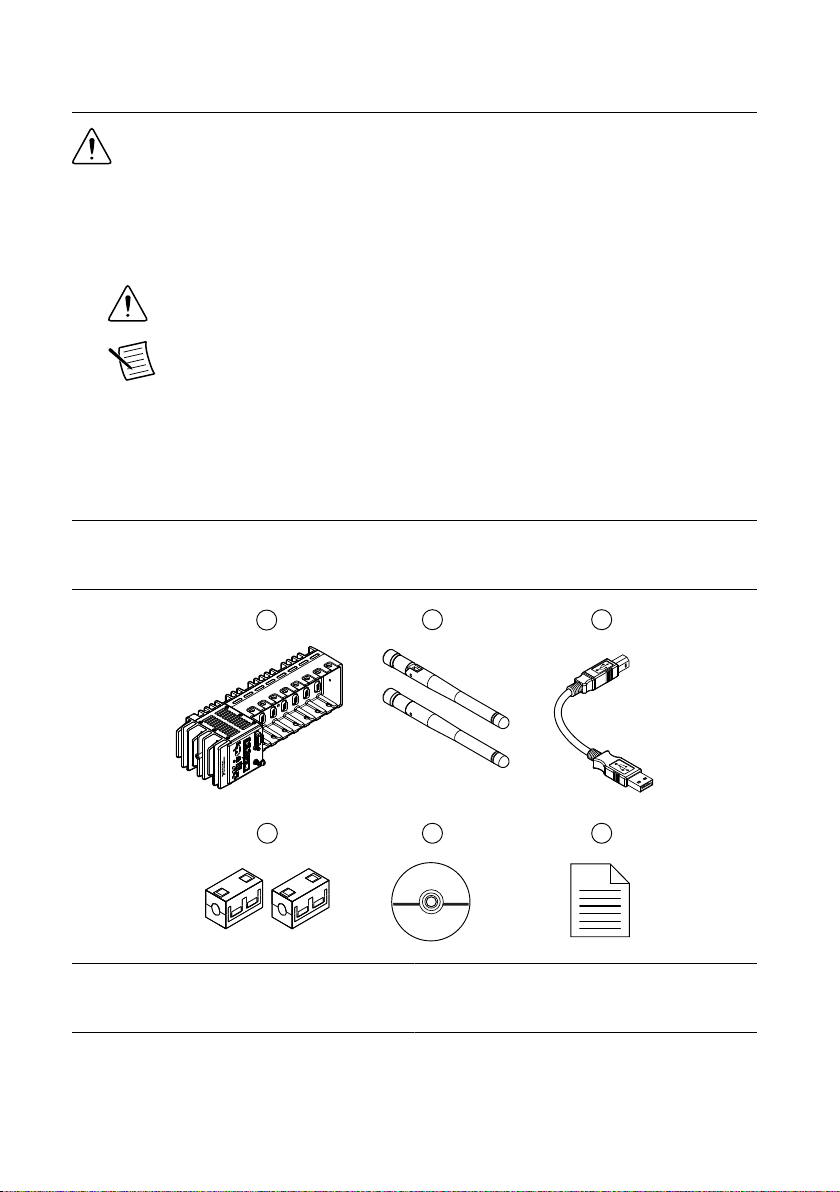

Figure 1. cRIO-9037 Kit Contents

1. cRIO Device with Power Connector

2. Antenna (x2)

3. USB A-to-B Cable

4. Ferrite (x2)

5. cRIO Device Drivers Media

6. Getting Started Guide

NI cRIO-9037 Getting Started Guide | © National Instruments | 5

Installing Software on the Host Computer

Before using the cRIO-9037, you must install the following application software and device

drivers on the host computer in this order:

1. LabVIEW 2015 SP1 or later

2. LabVIEW Real-Time Module 2015 SP1 or later

3. LabVIEW FPGA Module 2015 SP1 or later1

4. NI CompactRIO Device Drivers August 2016 or later

For minimum software support information, visit ni.com/info and enter the Info Code

swsupport.

Installing C Series Modules

Complete the following steps to install a C Series module.

1. Verify that power is not connected to the I/O connector(s) on the C Series module. If the

system is in a nonhazardous location, the cRIO-9037 can be powered on when you install

modules.

2. Press the latches on the C Series module.

1LabVIEW FPGA Module is not required when using Scan Interface mode. To program the user-

accessible FPGA on the cRIO-9037, LabVIEW FPGA Module is required.

6| ni.com | NI cRIO-9037 Getting Started Guide

3. Align the C Series module with a slot and seat it in the slot until the latches lock in place.

Removing C Series Modules

Verify that power is not connected to the I/O connector(s) on the C Series module before you

remove a module from the cRIO-9037. If the system is in a nonhazardous location, the

cRIO-9037 can be powered on when you remove modules.

Installing the Antennas

Complete the following steps to install the antennas on the cRIO-9037.

Note NI recommends connecting both antennas for optimal wireless performance

and reliability.

1. Screw an antenna to the primary wireless connector. Hand tighten the antenna to the

connector.

2. Screw an antenna to the secondary wireless connector. Hand tighten the antenna to the

connector.

NI cRIO-9037 Getting Started Guide | © National Instruments | 7

Connecting the cRIO-9037

The cRIO-9037 has the following connectors, LEDs, and buttons.

Figure 2. cRIO-9037 Front Panel

1 2 3

10 7

1. LEDs

2. Ethernet Ports

3. Power Connector

4. Antenna Port 2

5. Antenna Port 1

6. Ground Screw

7. WLAN LED

8. RS-232 Serial Port

9. RS-485/422 (DTE) Serial Port

10. USB Host Ports

11. Mini DisplayPort

12. Cable Retention Mounts

13. USB Device Port

14. Power and Reset Buttons

Connecting the cRIO-9037 to Ground

You must connect the cRIO-9037 grounding terminal to the grounding electrode system of the

facility.

What to Use

• Ring lug

• Wire, 1.3 mm2 (16 AWG) or larger

• Screwdriver, Phillips #2

What to Do

Complete the following steps to ground the cRIO-9037.

1. Attach the ring lug to the wire.

2. Remove the grounding screw from the grounding terminal on the cRIO-9037.

3. Attach the ring lug to the grounding terminal.

8| ni.com | NI cRIO-9037 Getting Started Guide

4. Tighten the grounding screw to 0.5 N · m (4.4 lb · in.) of torque.

5. Attach the other end of the wire to the grounding electrode system of your facility using a

method that is appropriate for your application.

Caution If you use shielded cabling to connect to a C Series module with a plastic

connector, you must attach the cable shield to the chassis grounding terminal using

1.3 mm2 (16 AWG) or larger wire. Attach a ring lug to the wire and attach the wire

to the chassis grounding terminal. Solder the other end of the wire to the cable

shield. Use shorter wire for better EMC performance.

For more information about ground connections, visit ni.com/info and enter the Info Code

emcground.

Connecting the cRIO-9037 to Power

The cRIO-9037 requires a 9 V to 30 V external power supply. The cRIO-9037 filters and

regulates the supplied power and provides power for the C Series modules. The cRIO-9037

has a primary power input, V1, and a secondary power input, V2.

The POWER LED on the cRIO-9037 indicates which power input is in use, as shown in the

following table.

Table 2. POWER LED Indicators

LED Color LED Pattern Indication

Green Solid The cRIO-9037 is powered from the V1 input.

Yellow Solid The cRIO-9037 is powered from the V2 input.

— Off The cRIO-9037 is powered off.

Caution Do not connect V2 to a DC mains supply or to any supply that requires a

connecting cable longer than 3 m (10 ft). A DC mains supply is a local DC

electricity supply network in the infrastructure of a site or building.

What to Use

• Ferrite

• Screwdriver, 2.54 mm (0.10 in.) flathead

• Primary power supply, 9 V to 30 V, 46 W minimum

• (Optional) Secondary power supply, 9 V to 30 V, 46 W minimum

NI recommends the power supplies listed in the following table for the cRIO-9037.

NI cRIO-9037 Getting Started Guide | © National Instruments | 9

Table 3. NI Power Supplies

Power Supply Part Number

NI PS-15 Industrial Power Supply

(24 VDC, 5 A, 100 VAC to 120 VAC/200 VAC to 240 VAC input)

781093-01

NI PS-10 Desktop Power Supply

(24 VDC, 5 A, 100 VAC to 120 VAC/200 VAC to 240 VAC input)

782698-01

What to Do

Complete the following steps to connect a power supply to the cRIO-9037.

1. Ensure that your power supply is powered off.

2. Install the ferrite on the negative and positive leads of the power supply, as shown in the

following figure.

Figure 3. Installing a Ferrite on the Power Leads

1. Pass the leads through the ferrite twice, leaving 50 mm to 75 mm (2 in. to 3 in.) between the ferrite and

the end of the leads.

2. Close the ferrite around the leads.

3. Remove the power connector from the cRIO-9037.

Caution Do not tighten or loosen the terminal screws on the power connector

while the cRIO-9037 is powered on.

4. Connect the primary power supply and optional secondary power supply to the power

connector, as shown in the following figure.

10 | ni.com | NI cRIO-9037 Getting Started Guide

Autres manuels pour cRIO-9037

Table des matières

Autres manuels National Instruments Contrôleurs

National Instruments

National Instruments VXI-MXI-Express Series Manuel utilisateur

National Instruments

National Instruments NI 9683 Manuel utilisateur

National Instruments

National Instruments NI PXI-8104 Manuel utilisateur

National Instruments

National Instruments SCXI USB-1357 Manuel utilisateur

National Instruments

National Instruments NI cRIO-905x Series Manuel utilisateur

National Instruments

National Instruments Network Adapter NI PXIe-6672 Manuel utilisateur

National Instruments

National Instruments IC-3171 Manuel utilisateur

National Instruments

National Instruments cDAQ-9132 Manuel du propriétaire

National Instruments

National Instruments IC-3120 Manuel utilisateur

National Instruments

National Instruments NI cRIO-9002 Manuel utilisateur

National Instruments

National Instruments NI 8350 Manuel utilisateur

National Instruments

National Instruments cRIO-FRC II Manuel utilisateur

National Instruments

National Instruments NI cRIO-9022 Manuel utilisateur

National Instruments

National Instruments PXIe-8820 Manuel utilisateur

National Instruments

National Instruments PXI-8115 Manuel utilisateur

National Instruments

National Instruments 73 Series Manuel utilisateur

National Instruments

National Instruments cRIO-9064 Manuel utilisateur

National Instruments

National Instruments cRIO-9023 Manuel utilisateur

National Instruments

National Instruments PXI Series Manuel utilisateur

National Instruments

National Instruments CVS-1457RT Manuel utilisateur

National Instruments

National Instruments CompactRIO cRIO-9035 Manuel utilisateur

National Instruments

National Instruments UMI-7774 Manuel utilisateur

National Instruments

National Instruments cRIO-9033 Manuel utilisateur

National Instruments

National Instruments IC-3173 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur

National Instruments cRIO-9037 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques
