USER GUIDE AND TERMINAL BLOCK

SPECIFICATIONS

NIPXIe-4304/4305 and TB-4304

32 Ch, 24-bit, 5 kS/s or 51.2 kS/s Simultaneous Filtered Data

Acquisition Module

This document explains how to install, configure, and set up the NI PXIe-4304 and

NI PXIe-4305 (NI PXIe-4304/4305) simultaneous filtered modules with the NI TB-4304

terminal block. Driver support for the NI PXIe-4304/4305 was first available in

NI-DAQmx 15.1.1. For the list of devices supported by a specific release, refer to the

NI-DAQmx Readme, available on the version-specific download page or installation media.

Note The keying of these terminal blocks prevents them from connecting to other

modules that could be damaged by the voltage present on the terminal block.

However, you should only use these terminal blocks with their supported modules.

Contents

Electromagnetic Compatibility Guidelines .............................................................................. 2

What You Need to Get Started ................................................................................................. 2

Installation ................................................................................................................................ 3

Install the Software ........................................................................................................... 3

Unpack and Install the Module......................................................................................... 3

Connect the Signals .......................................................................................................... 5

Install the Terminal Block ................................................................................................ 8

Confirm NI PXIe-4304/4305 Module Recognition.......................................................... 9

Run Test Panels ................................................................................................................ 10

Take an NI-DAQmx Measurement .................................................................................. 11

NI-DAQmx Channels and Tasks.............................................................................. 11

Configure a Task Using the DAQ Assistant in MAX .............................................. 11

Use Your NI PXIe-4304/4305 Module in an Application................................................ 12

Programming Examples ........................................................................................... 12

Terminal Block Removal..........................................................................................................12

Module Removal ...................................................................................................................... 13

Create a Simulated Device .......................................................................................................14

More Information ..................................................................................................................... 14

Troubleshooting................................................................................................................ 15

2|ni.com |NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications

Specifications (TB-4304).......................................................................................................... 15

Calibration ........................................................................................................................15

Electrical ...........................................................................................................................15

Mechanical........................................................................................................................ 15

Physical .............................................................................................................................16

Environmental Specifications ........................................................................................... 16

Operating Environment............................................................................................. 16

Storage Environment ........................................................................................................17

Shock and Vibration ......................................................................................................... 17

Safety ................................................................................................................................ 17

Safety Standards ............................................................................................................... 17

Electromagnetic Compatibility ................................................................................................. 18

CE Compliance ................................................................................................................. 18

Online Product Certification............................................................................................. 18

Environmental Management............................................................................................. 18

World Wide Support and Services............................................................................................20

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) stated in the product specifications. These requirements

and limits provide reasonable protection against harmful interference when the product is

operated in the intended operational electromagnetic environment.

This product is intended for use in industrial locations. However, harmful interference may

occur in some installations, when the product is connected to a peripheral device or test object,

or if the product is used in residential or commercial areas. To minimize interference with radio

and television reception and prevent unacceptable performance degradation, install and use this

product in strict accordance with the instructions in the product documentation.

Furthermore, any modifications to the product not expressly approved by National Instruments

could void your authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance, operate this product only with

shielded, twisted pair cables and shielded accessories.

Caution To ensure the specified EMC performance, the length of all I/O cables

must be no longer than 30 m (100 ft).

What You Need to Get Started

To set up and use a NI PXIe-4304/4305 module with a TB-4304 terminal block, you need the

following items:

Hardware

– NI PXIe-4304/4305 module

– TB-4304 terminal block

NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications |© National Instruments |3

– NI PXI Express chassis

– Cabling and sensors as required for your application

Tools

– Number 1 and 2 Phillips-head screwdrivers

– 1/8 in. flathead screwdriver

– Long-nose pliers

– Wire cutter

– Wire insulation stripper

Documentation

–NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications

–NI PXIe-4304/4305 User Manual

– PXI Express chassis user manual

You can download needed documents from ni.com/manuals.

Installation

Install the Software

Note You must be an administrator to install NI software and devices on your

computer.

Ensure that the following software is installed before installing the PXIe-4304/4305 and

TB-4304 hardware:

1. Your application software, such as LabVIEW, LabWindows™CVI™or .NET.

2. NI-DAQmx—NI PXIe-4304/4305 modules were first supported in NI-DAQmx 15.1.1.

Note For detailed NI software version support, refer to the NI-DAQmx Readme.

Back up any applications before upgrading software or modifying the application.

Unpack and Install the Module

Remove the packaging and inspect the module. Contact NI if the module is damaged. Do not

install a damaged module.

Caution The module is static sensitive. Always properly ground yourself and the

equipment when handling or connecting to the module.

4|ni.com |NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications

Complete the following steps to install the NI PXIe-4304/4305 module while referring to

Figures 1 and 2:

Note To maintain forced air cooling in the PXI Express system, refer to the

Maintain Forced-Air Cooling Note to Users.

1. Plug in your chassis before installing the NI PXIe-4304/4305. The power cord grounds the

chassis and protects it from electrical damage while you install the module.

2. Make sure the chassis is powered off.

Caution To protect yourself, the chassis, and the NI PXIe-4304/4305 from

electrical hazards, leave the chassis powered off until you finish installing the

NI PXIe-4304/4305 module.

3. Touch a metal part on the chassis to discharge any accumulated static electricity.

4. Identify a supported PXI Express slot in the chassis. NI PXIe-4304/4305 modules can be

placed only in PXI Express Peripheral slots, PXI Express Hybrid Peripheral slots, and

PXI Express System Timing slots. Refer to the chassis documentation for details.

Figure 1. Symbols for PXI Express/PXI Express Hybrid/PXI Slots

5. Remove the filler panel, and touch any metal part of the chassis to discharge static

electricity.

6. Place the module edges into the module guides at the top and bottom of the slot.

Caution When installing the module, make sure both edges are positioned inside

the guides and that the module components do not come into contact with adjacent

modules.

7. Slide the module along the guides until it reaches the rear connector then seat the module

by pushing the front panel until it is flush with the front panel of the chassis.

8. Secure the module to the chassis using the front-panel captive screws, shown in Figure 2.

Tighten the screws to 0.31 N·m (2.7 lb · in.).

1 PXI Express System Controller Slot

2 PXI Peripheral Slot

3 PXI Express Hybrid Peripheral Slot

4 PXI Express System Timing Slot

NI PXIe-1062Q

1 2 34

NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications |© National Instruments |5

Figure 2. Installing NI PXIe-4304/4305 Modules

Connect the Signals

Caution For EMC compliance, operate this product with shielded cables and

accessories.

To connect signals to the terminal block, refer to Figures 3 and 4 while completing the following

steps:

Note You can find the pinout names and locations in Measurement & Automation

Explorer (MAX) at any time by right-clicking the device name under Devices and

Interfaces and selecting Device Pinouts.

1. Loosen the captive top cover screws and remove the top cover.

2. Loosen the strain-relief screws and remove the strain-relief bar.

3. Prepare the shielded signal wire by stripping the insulation no more than 7 mm (0.28 in.).

4. Run the shielded signal wires through the strain-relief opening.

1CaptiveScrews

NIPXIe-1062Q

COOLING CLEARANCEAND FANFILTER MAINTENANCE REQUIRED.SEEMANUAL.

6|ni.com |NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications

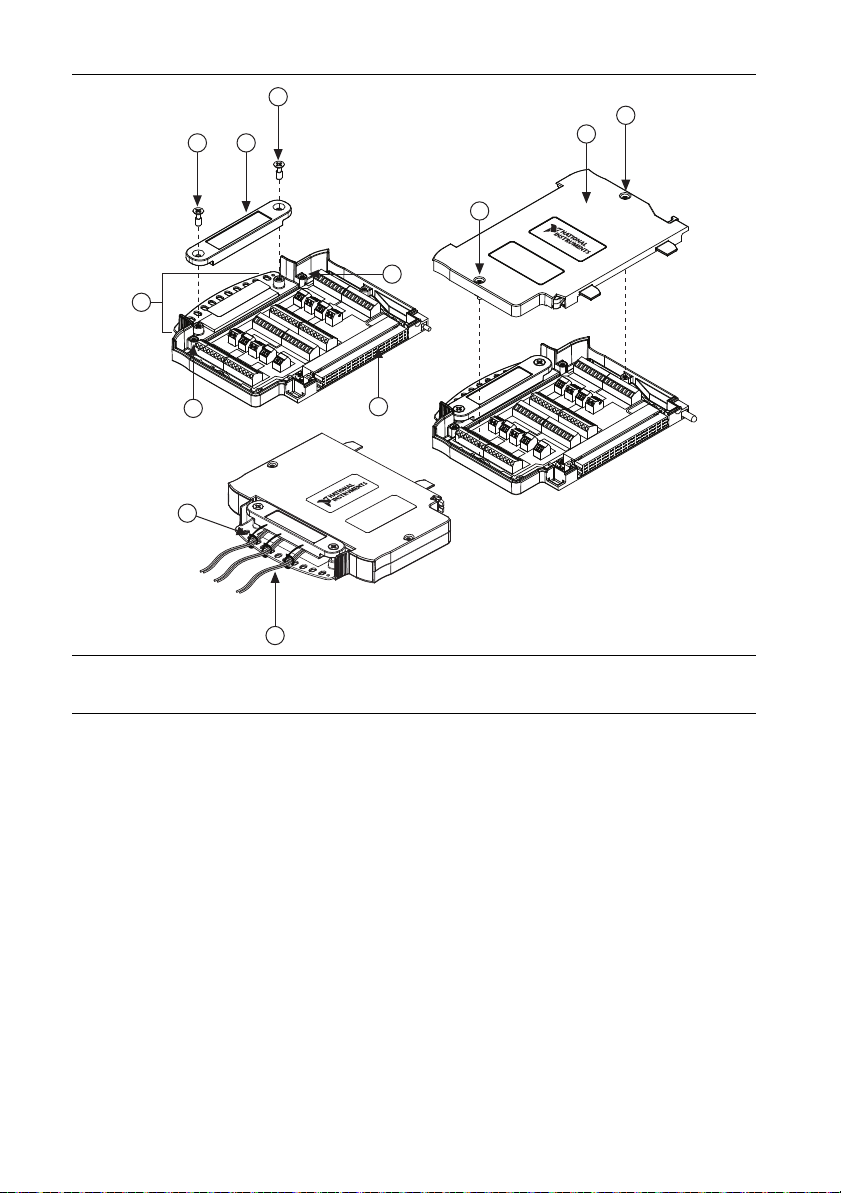

Figure 3. TB-4304 Parts Locator Diagram

5. Insert the stripped end of the shielded signal wires fully into the appropriate terminal. Refer

to the label next to each screw terminal to determine the function of the terminal. The

NI PXIe-4304/4305 User Manual provides more detailed wiring information. Make sure no

exposed wire extends past the screw terminal. Exposed wire increases the risk of a short

circuit that can cause circuit failure.

1 Strain-Relief Screws

2 Strain-Relief Bar

3 Tie Wrap Holes

4 Ground Lugs

5 Terminal Block to Module Connector

6 Captive Top Cover Screws

7 Top Cover

8 Tie Wraps

9 Shielded Signal Wires

1 2

NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications |© National Instruments |7

Figure 4. TB-4304 Circuit Board Parts Locator Diagram

Note Refer to the NI PXIe-4304/4305 User Manual for wiring diagrams showing

how to connect sensors to the TB-4304.

6. Tighten the terminal screws to a torque of 0.2 to 0.25 N · m (1.77 to 2.21 lb · in.).

Caution Any wires connected to the ground must be sufficiently insulated from

high voltage.

7. Use the ground lugs to attach a shield wire to the ground.

Note Refer to the NI PXIe-4304/4305 User Manual for details about shielding the

signals.

8. Reinstall the strain-relief bar and tighten the strain-relief screws.

9. Use tie wraps to connect the shielded signal wires to the tie-wrap holes for additional strain

relief when necessary.

10. Reinstall the top cover and tighten the captive top cover screws.

Note For information about sensors, go to ni.com/sensors.

AI3-

AI3+

AI2+

AI4+

AI4-

AI5-

AI7-

AI7+

AI6-

AI6+

AI5+

AI0+

AI0-

AI1-

AI2+

AI1+

AI9+

AI9-

AI10+

AI13+

AI13-

AI14+

AI15+

AI15-

AI14-

AI12+

AI11+

AI10-

AI8+

AI11-

AI8-

AI12-

AI7+

AI7-

AI18+

AI21+

AI21-

AI22+

AI23+

AI23-

AI22-

AI20+

AI19+

AI18-

AI6+

AI19-

AI6-

AI20-

AI5+

AI5-

AI16+

AI29+

AI29-

AI30+

AI31+

AI31-

AI30-

AI28+

AI17+

AI16-

AI4+

AI17-

AI4-

AI28-

FOR PATENTS: NI.COM/PATENTS

NI TB-4304

S/N

158016B-02L

UL94V-0

AIGND AIGND

J21J4188

J6 J8

J10 J121818

8181

AIGND AIGND

J15

J17

J11 J13 J18

J16J14

8181

R5 R6 R4

CR1

CR2

PFI0

DGND

8|ni.com |NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications

Install the Terminal Block

Refer to Figure 5 to install the terminal block on the module while completing the following

steps:

1. Move the TB-4304 into position in front of the NI PXIe-4304/4305 and engage the

alignment feature with the guide on the associated module.

Figure 5. Installing the TB-4304 on the NI PXIe-4304/4305 Module

2. Attach the TB-4304 to the NI PXIe-4304/4305 module by pushing the terminal block

straight into the module. A spring mechanism will lock in the bottom of the terminal block.

3. Tighten the mounting screw at the top of the TB-4304 to attach it to the NI PXIe-4304/4305

module.

Note For safety purposes and to prevent damage to equipment when high voltages

are present, all NI PXIe-4304/4305 modules and TB-4304 terminal blocks are keyed

to prevent connection between incompatible terminal blocks, modules, and/or cables.

4. Power on the chassis.

1 PXI Express Controller

2 PXI Express Chassis

3 Mounting Screw

4 TB-4304 Terminal Block

5 NI PXIe-4304/4305 Module

6 Alignment Feature

NI PXIe-1062Q

COOLINGCLEARANCEANDFANFILTERMAINTENANCEREQUIRED.SEE MANUAL.

COOLINGCLEARANCEAND FANFILTERMAINTENANCE REQUIRED.SEEMANUAL.

NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications |© National Instruments |9

Figure 6 shows an example NI PXIe-4304/4305 system setup.

Figure 6. Sample NI PXIe-4304/4305 System

Confirm NI PXIe-4304/4305 Module Recognition

To confirm module recognition, complete the following steps:

Note Software support for the NI PXIe-4304/4305 is provided by NI-DAQmx.

The DAQ Getting Started Guide, which you can download at ni.com/manuals,

offers step-by-step NI-DAQmx instructions for installing software and hardware,

configuring channels and tasks, and getting started developing an application. For

detailed NI software version support, refer to the NI-DAQmx Readme.

1. Launch MAX.

2. Expand Devices and Interfaces, and expand the chassis in which the module is located to

confirm that MAX detects the module and terminal block. The terminal block should

appear beneath its associated module. If your module or terminal block is not listed, press

<F5> to refresh MAX. If the module is still not recognized, go to

ni.com/support/daqmx.

1 Terminal Block 2 Signal Input

NI PXIe-1062Q

COOLING CLEARANCEAND FAN FILTER MAINTENANCEREQUIRED.SEEMANUAL.

COOLING CLEARANCE AND FANFILTERMAINTENANCE REQUIRED.SEE MANUAL.

10 |ni.com |NI PXIe-4304/4305 and TB-4304 User Guide and Terminal Block Specifications

Tip Using an NI-DAQmx simulated device, you can test NI-DAQmx applications

without installing hardware. Refer to the Create a Simulated Device section for

instructions for creating NI-DAQmx simulated devices.

3. Right-click the module name and select Self-Test. When the self-test completes, a

verification message appears. If an error occurs, refer to ni.com/support/daqmx.

For information about sensors, go to ni.com/sensors.

Run Test Panels

1. In MAX, expand Devices and Interfaces select the chassis in which the module is located.

2. Right-click the device, and select Test Panels.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels National Instruments Unité de contrôle

National Instruments

National Instruments NI 9436 Manuel utilisateur

National Instruments

National Instruments NI 6013 Guide de démarrage rapide

National Instruments

National Instruments PXIe-4322 Manuel utilisateur

National Instruments

National Instruments NI 9375 Manuel utilisateur

National Instruments

National Instruments NI-9361 Manuel

National Instruments

National Instruments NI PXIe-4140 Manuel utilisateur

National Instruments

National Instruments LabVIEW Robotics Module Manuel utilisateur

National Instruments

National Instruments 5174 Manuel utilisateur

National Instruments

National Instruments NI FlexRIO PXI-7952R Manuel utilisateur

National Instruments

National Instruments SCXI-1502 Manuel utilisateur

National Instruments

National Instruments FD-11634 Manuel utilisateur

National Instruments

National Instruments FBUS-HSE/H1 LD Manuel utilisateur

National Instruments

National Instruments NI 9210 Manuel utilisateur

National Instruments

National Instruments NI PCIe-1430 Manuel utilisateur

National Instruments

National Instruments PXIe-4302 Manuel utilisateur

National Instruments

National Instruments NI PXI-6682 Manuel utilisateur

National Instruments

National Instruments SC Express PXIe-4330 Manuel

National Instruments

National Instruments FIeldPoint FP-AO-200 Manuel utilisateur

National Instruments

National Instruments NI DCM-2316 Manuel utilisateur

National Instruments

National Instruments NI PXI-665 Series Manuel utilisateur

National Instruments

National Instruments NI 9759 Manuel utilisateur

National Instruments

National Instruments NI PXI-4220 Manuel utilisateur

National Instruments

National Instruments VMEpc 600 series Manuel utilisateur

National Instruments

National Instruments PXIe-8246 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
