PXIe-8822/42/62 Getting Started

Caution Using the PXIe-8822/42/62 controller in a manner not described

in this guide can impair the protection the controller provides.

Unpacking

The PXIe-8822/42/62 ships in an antistatic package to prevent electrostatic

discharge from damaging device components. To prevent such damage when

handling the device, ground yourself using a grounding strap or by holding a

grounded object, such as your computer chassis, and complete the following steps:

1. Touch the antistatic package to a metal part of the chassis before removing

the device from the package.

Caution Never touch the exposed pins of connectors.

2. Remove the device from the package and inspect the device for loose

components or any other sign of damage.

3. Notify NI if the device appears damaged in any way. Do not install a damaged

device into your chassis.

Installing the PXIe-8822/42/62 into a PXI Express

Chassis

To install the PXIe-8822/42/62 into a PXI Express chassis, complete the following

steps.

1. Plug in your chassis before installing the PXIe-8822/42/62. The power cord

grounds the chassis and protects it from electrical damage while you install

the module.

PXIe-8822/42/62 Getting Started

Caution In some NI chassis, you must ensure that the power LED

is o. For more information about chassis power behavior, refer to

the user manual for the specific chassis.

Caution To protect both yourself and the chassis from electrical

hazards, leave the chassis o until you finish installing the

PXIe-8822/42/62.

2. Remove any panels blocking access to the system controller slot (Slot 1) in the

chassis.

3. Touch the metal part of the chassis case to discharge any static electricity that

might be on your clothes or body.

4. Remove the protective plastic covers from the four bracket-retaining screws as

shown in the following figure.

Figure 1. Removing Protective Plastic Covers (PXIe-8862 Shown)

1. Protective Screw Cap (4x)

5. Make sure the injector/ejector handle is in its downward position. Align the

PXIe-8822/42/62 with the card guides on the top and bottom of the system

controller slot.

Caution Do not raise the injector/ejector handle as you insert

the PXIe-8822/42/62. The module will not insert properly unless the

handle is in its downward position so that it does not interfere with

the injector rail on the chassis.

ni.com

PXIe-8822/42/62 Getting Started

6. Hold the handle as you slowly slide the module into the chassis until the

handle catches on the injector/ejector rail.

7. Raise the injector/ejector handle until the module firmly seats into the

backplane receptacle connectors. The front panel of the PXIe-8822/42/62

should be even with the front panel of the chassis.

8. Tighten the four bracket-retaining screws on the top and bottom of the front

panel to secure the PXIe-8822/42/62 to the chassis.

9. Check the installation.

10. Connect the keyboard and mouse to the appropriate connectors.

11. Connect the DisplayPort monitor video cable or adapter to the DisplayPort

connector.

12. Connect devices to ports as required by your system configuration.

13. Power on the display.

14. Power on the chassis.

15. Verify that the controller boots. If it does not boot, refer to the

Troubleshooting section.

The following figure shows a PXIe-8862 controller installed in the system

controller slot of an NI PXI Express chassis.

PXIe-8822/42/62 Getting Started

Figure 2. PXIe-8862 Installed in a PXI Express Chassis

1. PXI Express Chassis

2. PXIe-8862 Controller

3. Injector/Ejector Rail

PXIe-8822/42/62 Front Panel

The following figures show the PXIe-8822/42/62 front panel layouts.

ni.com

PXIe-8822/42/62 Getting Started

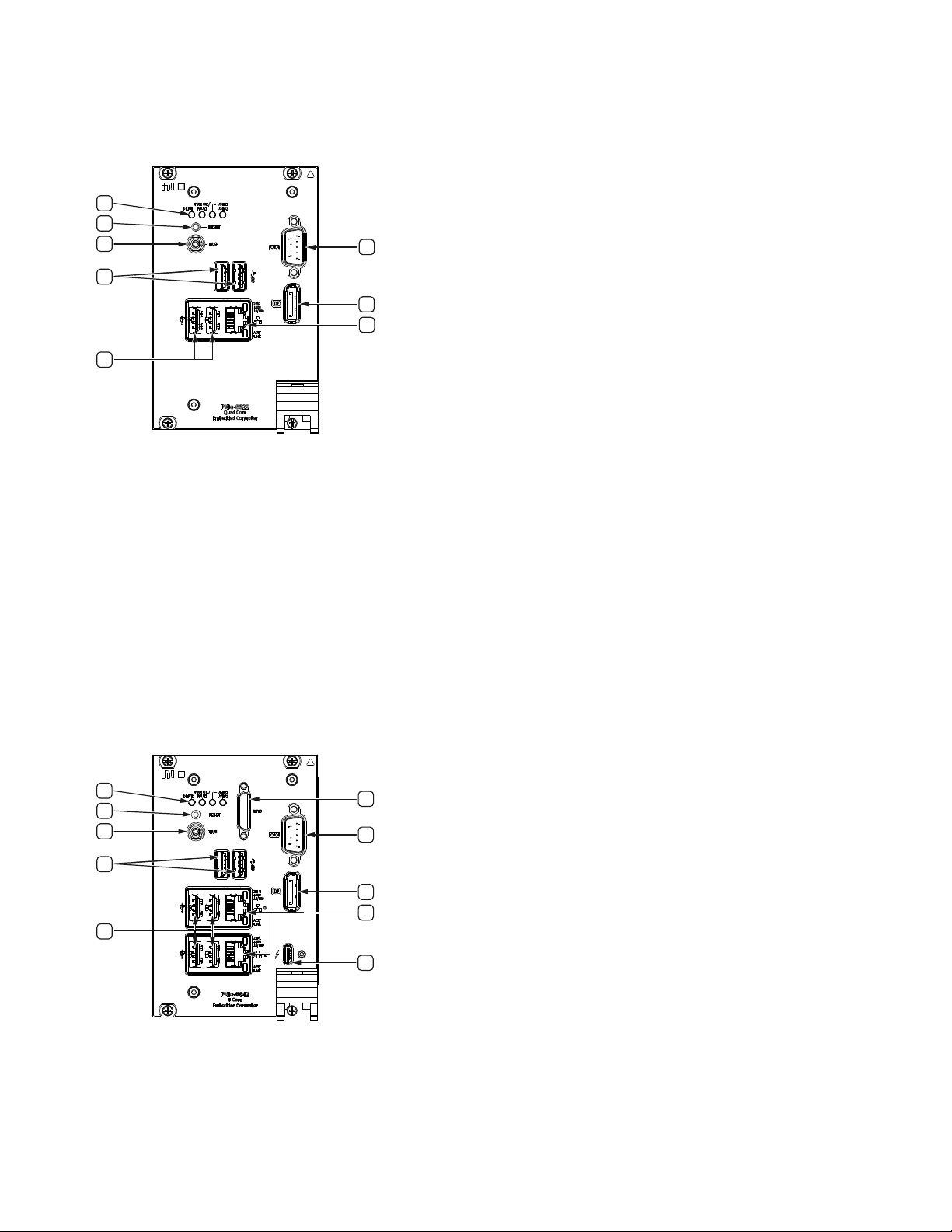

Figure 3. PXIe-8822 Front Panel Layout

1. RS-232 Serial

2. DisplayPort 1.4

3. Ethernet

4. USB 2.0

5. USB 3.2

6. Trigger

7. Reset Button

8. LEDs

Figure 4. PXIe-8842 Front Panel Layout

1. GPIB

PXIe-8822/42/62 Getting Started

2. RS-232 Serial

3. DisplayPort 1.4

4. Ethernet

5. Thunderbolt 4

6. USB 2.0

7. USB 3.2

8. Trigger

9. Reset Button

10. LEDs

Figure 5. PXIe-8862 Front Panel Layout

1. GPIB

2. RS-232 Serial

3. DisplayPort 1.4

4. Ethernet

5. Thunderbolt 4

6. USB 2.0

7. DisplayPort 1.4

8. USB 3.2

9. Trigger

10. Reset Button

ni.com

PXIe-8822/42/62 Getting Started

11. LEDs

Figure 6. PXIe-8862 with Removable Hard Drive Front Panel Layout

1. GPIB

2. RS-232 Serial

3. DisplayPort 1.4

4. Ethernet

5. Thunderbolt 4

6. USB 2.0

7. Removable Hard Drive

8. DisplayPort 1.4

9. USB 3.2

10. Trigger

11. Reset Button

12. LEDs

Front Panel Connectors

The following table lists various peripherals and their corresponding

PXIe-8822/42/62 external connectors, bus interfaces, and functions.

PXIe-8822/42/62 Getting Started

Peripheral External Connector Description

Video (DisplayPort 1.4) DisplayPort Intel HD Graphics

Thunderbolt 4 USB Type C (2 ports) Thunderbolt 4 compliant,

supports USB, PCI Express, and

DisplayPort

Serial COM1 (9-pin DSUB) RS-232 serial port

Ethernet Port 0 LAN (RJ45) 10M/100M/1000M/2.5G

Ethernet connection

Intel I225

Wake on LAN supported

Ethernet Port 1 LAN (RJ45) 10M/100M/1000M/2.5G

Ethernet connection

Intel I225

Wake on LAN supported

USB 2.0 USB 4-pin Series A stacked

receptacle (4 ports)

Hi-Speed USB 2.0

USB 3.2 Gen 1 USB 9-pin Series A stacked

receptacle (2 ports)

SuperSpeed USB, backwards

compatible with USB 2.0

PXI trigger Trigger (SMB) Routing PXI triggers to or from

the backplane trigger bus

GPIB GPIB (25-pin Micro D) General-Purpose Interface Bus,

IEEE 488.2

Front Panel Features

The PXIe-8822/42/62 has two front panel LEDs that show PC status and two user

LEDs:

■ DRIVE LED—Indicates when an access to the internal drive is occurring.

■ PWR OK/FAULT LED—Indicates the controller status. The LED indicates one

of the following states:

ni.com

PXIe-8822/42/62 Getting Started
