Your GEM-P400 Security System

ARMED

&20387(5,=(' 6(&85,7< 6<67(0

STATUS



GEMINI

1 2 3 4















Oi230a

page 1 Tuesday, September 16, 1997 08:26

Oi230a

page 2 Tuesday, September 16, 1997 08:26

Congratulations on your purchase of an advanced GEMINI-P400 Security System. Meticulously developed by a leading

manufacturer of state-of-the-art security products, this system will provide you with unprecedented peace-of-mind & incorpo-

rates some of the most sophisticated features available today. Above all, it has been designed an extra step, to provide all those

operating it with very easy, intuitive use. Please carefully review the information contained in this manual, so that you and all

potential users of the system familiarize yourselves with its operation, and can therefore take full advantage of GEMINI’s many

convenience features and amenities.

Your system consists of a control panel (a computer housed within a white metal panel enclosure), one or more GEMINI

Decorator Keypads for controlling the system, and various security detection devices. These detection devices are divided

among separate areas known as “zones”, set up throughout your premises. Each zone number corresponds to a Zone light on

your Keypad’s display area.

When a zone’s number is ON (or lit), it indicates that one or more detection device(s) assigned to that area are active or open.

For example, if Zone 1 is the front door, and it is open, the 1on the keypad display will be lit. If zone 2 is a motion detector, and

there is movement in that area, 2will light. Depending upon the actual layout your security professional has chosen to properly

protect your premises, each zone may function a little differently: The zone protecting your front door may be programmed

as an Exit/Entry zone to allow you time to enter the premises and disarm the system , without inadvertently sounding the alarm.

Alternatively, a zone protecting a window could be designated as an “instant” zone, so that if it is entered or opened while the

system is on/armed, there will be an immediate alarm.

Your easy GEMINI Keypad puts super-simple system control at your fingertips. Most keypad commands involve

entering your four digit User Code. This includes Arming (or activating) and Disarming (or deactivating) the system. Simply put,

ARMED means the system is ON; DISARMED means the system is OFF. If the system is OFF and you want to turn it ON, just

enter your Code. To turn the system back OFF, enter your code again.

It’s easy, just always remember, in the event of an

alarm, entering your User Code will silence all Sirens.

Your keypad is your command and status center, it keeps you

informed visibly, using its zone and status lights and audibly, using its built-in keypad sounder. For more information, please see

Keypad Controls and Indicators on page 5.

Introduction

Oi230a

page 3 Tuesday, September 16, 1997 08:26

Introduction

System Information

Central Station Phone Number: ____________________

Central Station Account Number: ____________________

For Service Call: ____________________

Entry Delay: ____________________

Exit Delay: ____________________

Alarm Time-out: ____________________

Table of Contents

Keypad Controls and Indicators ................................... 5

Arming your System (When Leaving) ........................... 6

Protecting Yourself While Home .................................. 7

Emergency Keys .......................................................... 8

Disarming the System .................................................. 9

Silencing an Alarm....................................................... 9

Special Functions ........................................................ 10

System Troubles .......................................................... 11

Programming User Codes ............................................ 13

Glossary ....................................................................... 14

Important - Test Your System Weekly !

1Bell / Battery Test

Test your bell or siren by pressing



followed by



This will cause the bell or siren to sound for 2 seconds

andalso initiate a test of the battery .

2 Zone Test

Walk throughout the premises opening each protected

door or window, and activating each motion sensor.

Check the keypad to see that each respective zone

number displays in the window.

3Central Station Communication Test

(This test should only be performed on weekends or at a

time designated by your alarm company)

1.Notify Central Station of the impending test.

2. Secure all zones to light Status Light on your keypad.

3. Enter your User Code followed by



to Arm the system.

4. Violate your alarm by opening a window / door etc.

5. The siren or bell should sound and the system will send

the alarm signals to the Central Station

6.Enter your User Code followed by



to silence the alarm.

7. Call Central Station to insure that the alarm signals were

received properly.

Oi230a

page 4 Tuesday, September 16, 1997 08:26

ARMED

&20387(5,=(' 6(&85,7< 6<67(0

STATUS



GEMINI

1 2 3 4















Keypad Controls and Indicators

Trouble Light



will light and the Keypad

sounder will pulse to indicate that a system trou-

ble is present. (See System troubles, Page 11)

Status Light will light when all zones are secure

and system is ready to be Armed.

Armed Light will light when system is Armed,

and will flash when system is in Alarm

Press



followed by the corresponding

Function number to enable special functions and

options. (See Special Functions, Page 10)

To Bypass a zone, press



and the zone

number to be bypassed, and then Arm system.

Press



to reset Fire Zone, clear miss-

entered codes, reset Alarm Memory, etc.

Zone Lights (1 throu

h 4) will li

ht to indicate

that the correspondin

Zone is open, and will

flash to indicate a zone in alarm.

Press



to bypass all

interior pro-

tective de-

vices such

as motion

sensors, etc.

Numerical

Keys 1-9, 0.

Used to en-

ter User

Codes, Zone

numbers,

etc.

Emergency Keys Press simultaneously

to signal an emergency condition.

Press:





for Auxiliary Emergency or





for Police Emergency.

(Programmable)

Press



after entering

User Code

when Arming

or Disarming

System.

Press



to remove

entry delay

from the Exit/

Entry door.

Oi230a

page 5 Tuesday, September 16, 1997 08:26

Arming Your System When Leaving

1Before armin

your system, make sure the

reen Status li

ht is ON. This indicates that all of your protective zones are

secure. If any zones are open, the correspondin

Zone number will be lit. Secure these zones before proceedin

. If any

zones cannot be secured, see Bypassin

zones below.

2 Enter your user code and press



.The

reen Status li

ht will

o out, the red Armed li

ht will li

ht.

• If you make a mistake enterin

your code, press



, re-enter the code and press



3 Leave the premises throu

h the Exit/Entry door. If the keypad

ives a steady tone you have taken too lon

. Enter your code

ain to disarm system and then re-enter code and leave.

Easy Arm

The optional Easy Arm feature allows the system to be armed by simply pressin



This will allow the easy armin

of the system by someone who is not a re

ular system user.

Bypassing Zones

If an open zone cannot be immediately fixed it can be left unprotected, or

bypassed

,while the rest of the system is Armed.

To bypass a zone:

1Press



followed by the number of the zone to be bypassed. The bypassed zone’s number will flash slowly.

2 Enter your user code and press



.The

reen Status li

ht will

o out and the red Armed li

ht will li

ht.

3 Leave the premises throu

h the Exit/Entry door.

When the system is subsequently disarmed, all bypassed zones will be reset, ready to be armed a

ain. If it is necessary to

bypass any inoperative zone(s), it is important to have the zone(s) repaired as soon as possible.

A bypassed zone does not provide any protection, compromising system security.

Arming Your System

Oi230a

page 6 Tuesday, September 16, 1997 08:26

Protecting Yourself While at Home

1 Before armin

your system, make sure the

reen Status li

ht is ON. This indicates that all of your protective zones are

secure. If any zones are open, the correspondin

zone number will be lit. Secure those zones before proceedin

2 Enter your User Code and press



.The

reen Status li

ht will

o out, and the red Armed li

ht will li

ht.

3Before your exit delay expires, press



to bypass any interior zones, deactivatin

devices such as motion sensors,

and allowin

free movement throu

hout the premises. The Zone li

ht of any bypassed zones will flash slowly.

Your system may have been programmed for Automatic Interior Bypass , in which case it will recognize that you have

not left the premises and will automatically bypass any interior zones.

Instant Mode

Pressing



will cancel the Entry delay , activating the “Instant” mode. This is typically done in the evening when all family

members are home for the night. Instant Mode can be activated at any time after the system has been armed. The red Armed

light will flash rapidly while in the Instant Mode.

Easy Exit (optional)

Your System may have been programmed to allow Easy Exit, which allows a user to exit the premises with the system armed.

By pressing



followed by



, the protection is removed from the Exit/ Entry zone for 3 minutes.

This will allow, for example, an early morning commuter to exit the house in the morning, without having to disarm and rearm the

system, waking the family.

Arming with a System Trouble Present (TROUBLE



is lit)

If the GEM-P400 has a system trouble present, TROUBLE



will be lit and the keypad sounder pulsin

. If you cannot

immediately clear the trouble, the system can still be armed. Simply press



followed by



to view the trouble.

Press



to view any other troubles, and exit the TROUBLE mode when done. Enter your User Code and press



to arm

the system. For more information, refer to pa

e 11. Note: System troubles should be repaired as soon as possible.

Arming Your System

Oi230a

page 7 Tuesday, September 16, 1997 08:26

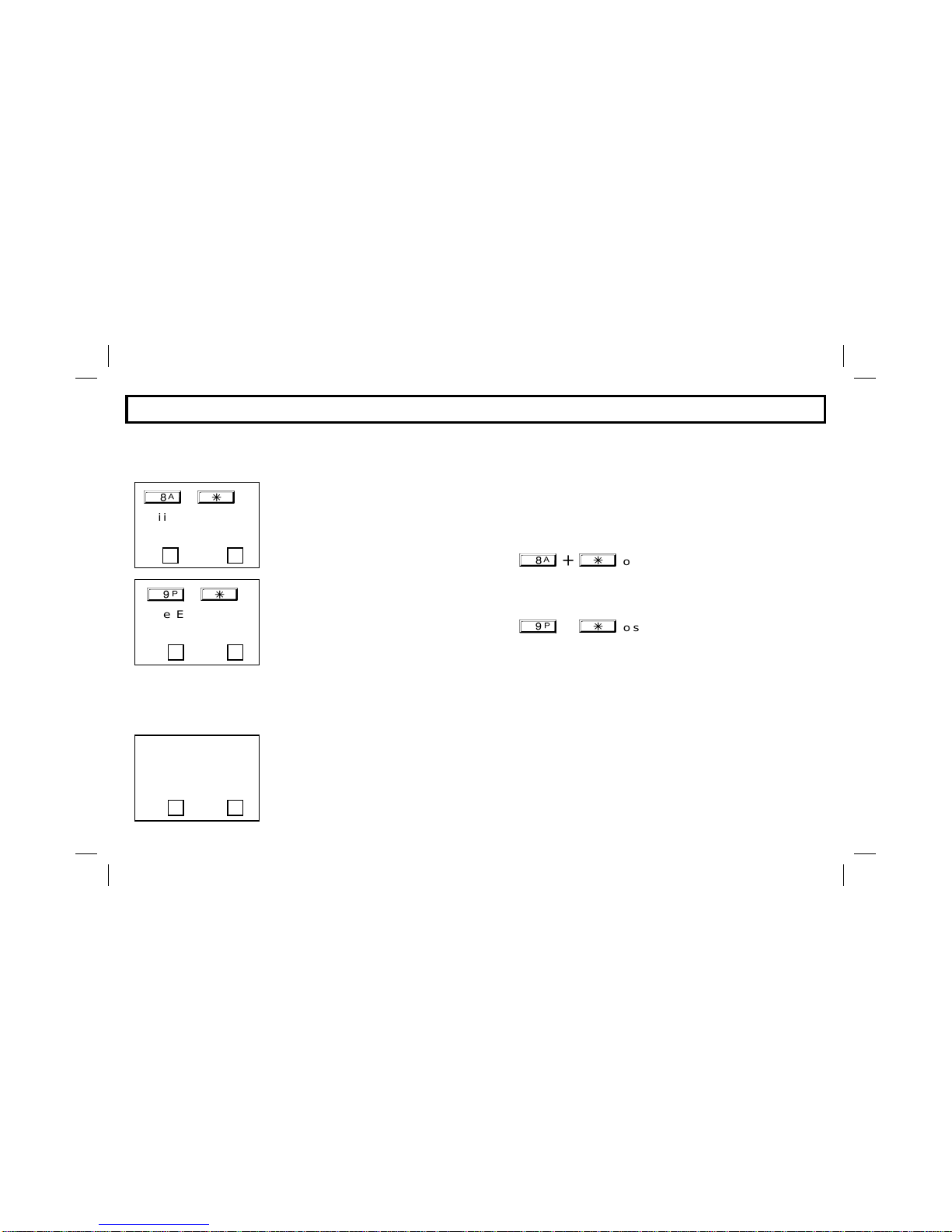

Emergency Buttons  

The three sets of emergency buttons, if programmed, are always active whether the system is armed

or disarmed. Discuss these Buttons with your installer. The emergency signal will only be activated

when the two respective buttons are pressed at the same time.

Auxiliary Alarm: Simultaneously press







to alert the central station of an

auxiliary emergency, if so programmed.

(The nature of this emergency alarm is to be determined by the installer)

Police Emergency: Simultaneously press







to sound a police emergency alarm,

and to alert the central station of a Police emergency, if so programmed.

Emergency Conditions

Ambush Alarm

In the event that you are forced by an intruder to disarm your system, the ambush alarm can be

activated. Disarming the system with the Ambush Code will cause the system to disarm and

simultaneously send a silent ambush alarm signal to Central Station. If your system has the Ambush

feature enabled, the code assigned as the User 4 code will function as your Ambush Code.





Auxiliary Emergency

Enabled?

Yes No





Police Emergency

Enabled?

Yes

Ambush Alarm

Enabled?

Yes No

Oi230a

page 8 Tuesday, September 16, 1997 08:26

Disarming Your System when Returning

1Enter your premises throu

h the Entry/Exit door. The keypad will sound a steady tone to remind you to disarm the system

before your Entry Delay time expires.

2Enter your User Code and press



.The red Armed li

ht will

o out, indicatin

that the system has been disarmed.

Note: If you make a mistake enterin

your code, press



and re-enter the code, followed by



Alarm Indication

If the Red Armed li

ht is flashin

rapidly, an alarm occurred while you were away. Proceed with caution!

For your own protection, leave immediately and call authorities from a nei

hbors phone .

Silencing an Alarm

In the event that the system

oes into alarm due to a violated bur

lary zone, the siren and the keypad sounder will activate and

the number of the zone in alarm will flash in the display. To silence the system, enter your User code followed by



The keypad sounder and siren will silence, but zone in alarm will continue to flash.

Press



to reset this alarm memory.

Disarming Your System / Silencing an Alarm

Oi230a

page 9 Tuesday, September 16, 1997 08:26

Special Functions

By pressing A followed by the the appropriate key, (do not press simultaneously) these special functions and features

can be enabled:

Easy Arm

(when system is disarmed)

The Easy Arm feature allows the system to be armed by

pressing



followed by



. This will allow the easy

arming of the system by someone who is not a regular

system user.

Easy Exit (when system is armed)

This function (if programmed) allows an occupant to leave

the premises without disarming the system. Pressing



followed by



while the system is armed will

start a 3 minute period, during which you can leave through

the Exit/ Entry door.

Bell / Battery Test

Pressing



followed by



will cause the bell, or

siren to sound for 2 seconds. This will also initiate a test of

your battery to make sure it is adequately charged. The

P400 also performs an automatic battery test very 24 hours

Access Output

If programmed, pressing



followed by



will

activate the Access Output which may be configured to

open a door strike, turn on lighting, or activate some other

special feature your installer has provided.

Display System Trouble

Pressing



followed by



when TROUBLE



is lit will cause the system to display any current system

troubles. Pressing



will exit the Display System

Trouble Mode.

Chime Mode On / Off

Pressing



followed by



will activate / deactivate

the door chime. Activating this feature will cause any door to

beep the keypad sounder when it is opened.

Program Mode

Pressing



followed by



will enable the “Program

Mode”, which will allow you to program and erase user codes.

(see Programming user codes, page 14)

Keypad Sounder On / Off

Pressing



followed by



will deactivate / activate

the keypad sounder, depending on its present state. By

deactivating the sounder on a keypad installed in a bedroom,

for example, you will only turn off

that

keypad’s sounder.

All other keypads on the system will still sound normally.

Oi230a

page 10 Tuesday, September 16, 1997 08:26

Autres manuels pour GEM-P400

Table des matières

Autres manuels NAPCO Système de sécurité

NAPCO

NAPCO PRO410 Manuel utilisateur

NAPCO

NAPCO Magnum Alert-700 Guide produit

NAPCO

NAPCO XP-400 Fiche technique

NAPCO

NAPCO Gemini GEM-X255 Manuel utilisateur

NAPCO

NAPCO EXPRESS XP-600 Manuel utilisateur

NAPCO

NAPCO iSecure Manuel d'installation

NAPCO

NAPCO MAGNUM ALERT 3000 FIRE ALARM Manuel utilisateur

NAPCO

NAPCO MAGNUM ALERT-725 Manuel utilisateur

NAPCO

NAPCO Magnum Alert 800 Manuel utilisateur

NAPCO

NAPCO MAGNUM ALERT 900 SYSTEM Manuel utilisateur

NAPCO

NAPCO MAGNUM ALERT-725 Manuel utilisateur

NAPCO

NAPCO F-TPBR Manuel utilisateur

NAPCO

NAPCO Gemini GEM-X255 Manuel utilisateur

NAPCO

NAPCO EXPRESS XP-600 Manuel utilisateur

NAPCO

NAPCO F-TPG Manuel utilisateur

NAPCO

NAPCO FREEDOM - Manuel utilisateur

NAPCO

NAPCO MVA-1000 Manuel utilisateur

NAPCO

NAPCO MAGNUM ALERT 854 SYSTEM Manuel utilisateur

NAPCO

NAPCO F64 CODED Manuel utilisateur

NAPCO

NAPCO XP-600 - 9-16-1997 Manuel utilisateur

NAPCO

NAPCO FREEDOM - Manuel utilisateur

NAPCO

NAPCO EXPRESS XP-600 Manuel d'installation

NAPCO

NAPCO Magnum Alert-800 Manuel utilisateur

NAPCO

NAPCO MAGNUM ALERT-850 Manuel utilisateur

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
