MYD-AM335X-Linux-4.1.18
Development Guide
Introduction
This section provides an overview of the areas covered by the documentation,what is
contained, the appropriate readers, the documentation version history, and the
applicable hardware version.
This chapter describes how to run Linux system and embedded Linux applications
and the process of drive development in MYD-AM335X series development board. It
includes building the development environment, compiling the source code,
examples of Linux application and image download.
This document is suitable for embedded Linux development engineers with some
development experience.
Version History
Version
Number Description Time
V1.0 Initial Version 2017.4.1
V1.1
1. Add kernel and u-boot repository configuration for
Buildroot
2. Add MEasy HMI demo to rootfs for development
boards
2018.07.01
V1.2 1. Add support of core board with EMMC 2018.07.26
V1.3
1. Add chapters for MYIR peripheral module usage
2. Limit the speed of ETH1 on MYD-AM335X to
100BASE-T.
2018.08.28
V1.4
1. Add support of new EhterNet PHY chip YT8511 in
kernel.
2. Capacitive and resistive touch screen are
compatible in buildroot.
3. Please fetch sources from 2021.11.18
4
https://github.com/MYiR-Dev/myir-ti-
buildroot/releases/tag/MYD-
AM335X_V20R5_20211118
Hardware Version
MYD-AM335X, MYD-AM335X-Y,MYD-AM335X-J.
Note: This document applies to the above three versions of the hardware,
the user can choose the corresponding operation according to the
corresponding board.In this paper, the MYD-AM335X series is used to
represent the three board.
5
1. Software Resources
This section describes the software resources of the MYD-AM335X series
development boards.
Table 1-1 Software Resources.
Category Name Description Source MYD-
AM335X
MYD-
AM335X-
Y
Bootloader U-boot
Responsible for
system
initialization and
boot kernel.
YES √ √
Kernel Linux
4.1.18
Designed for
MYD-AM335X
hardware
YES √ √
Drivers LCD
Controller
LCD driver，for
4.3 inch、7 inch YES √ √
Drivers Touch
Panel
Resistive touch
screen driver YES √ √
Drivers Touch
Panel
Capacitance
touch screen
driver
YES √ √
Drivers RTC RTC clock driver YES √ √
Drivers UART Serial driver YES √ √
Drivers SDIO WiFi WiFi driver YES × √
Drivers RS485 RS485 driver YES √ √
Drivers CAN CAN driver YES √ √
Drivers Ethernet Ethernet driver YES √ √
Drivers MMC/SD MMC/SD driver YES √ √
Drivers NAND
Flash
NAND Flash
driver YES √ √
Drivers Audio Audio driver YES √ √
Drivers GPIO-LED GPIO-LED driver YES √ √
Drivers I2C I2C driver YES √ √
6
Drivers HDMI HDMI driver YES √ ×
Drivers PMU
Power
Management
Unit driver
YES √ √
Drivers USB Host USB Host driver YES √ √
Drivers USB
Device
USB Device
driver（Gadget）YES √ √
Filesystem Rootfs Base on buildroot Bin √ √
Filesystem Rootfs-qt Qt filesystem Bin √ √
Filesystem UBI Provide image
file YES √ √
Filesystem Ramdisk.gz ramdisk
filesystem YES √ √
Demo LCD LCD test
program YES √ √
Demo RTC RTC clock test
program YES √ √
Demo RS485 RS485 test
program YES √ √
Demo CAN CAN test
program YES √ √
Demo Ethernet Ethernet test
program YES √ √
Demo NAND
Flash
NAND Flash test
program YES √ √
Demo GPIO-LED GPIO-LED test
program YES √ √
Demo Audio Audio test
program YES √ √
Demo Qt
QT environment
verification
program
YES √ √
7
2. Deploy development environment
This section describes the tools and environment, tool chain settings, development
environment validation.
PC development environment: Ubuntu12.04/Ubuntu14.04/Ubuntu16.04 64bit
Desktop
Cross compiler: gcc5.3(Linaro GCC 2016.02)
Hardware debugging environment structures
MYD-AM335X Hardware debugging environment structures：
Connect the debug serial port J12 to the PC,set the baudrate of serial port on host
PC to 115,200-8-n-1. Specific as follows:
8
Figure 2-1 MYD-AM335X Hardware Debugging Interface
MYD-AM335X-Y Hardware debugging environment structures：
Connect the debug serial port J10 to the PC,set the baudrate of serial port on host
PC to 115,200-8-n-1. Specific as follows:
Figure 2-2 MYD-AM335X-Y Hardware Debugging Interface
MYD-AM335X-J Hardware debugging environment structures：
9
Connect the debug serial port J3 to the PC,set the baudrate of serial port on host PC
to 115,200-8-n-1. Specific as follows:

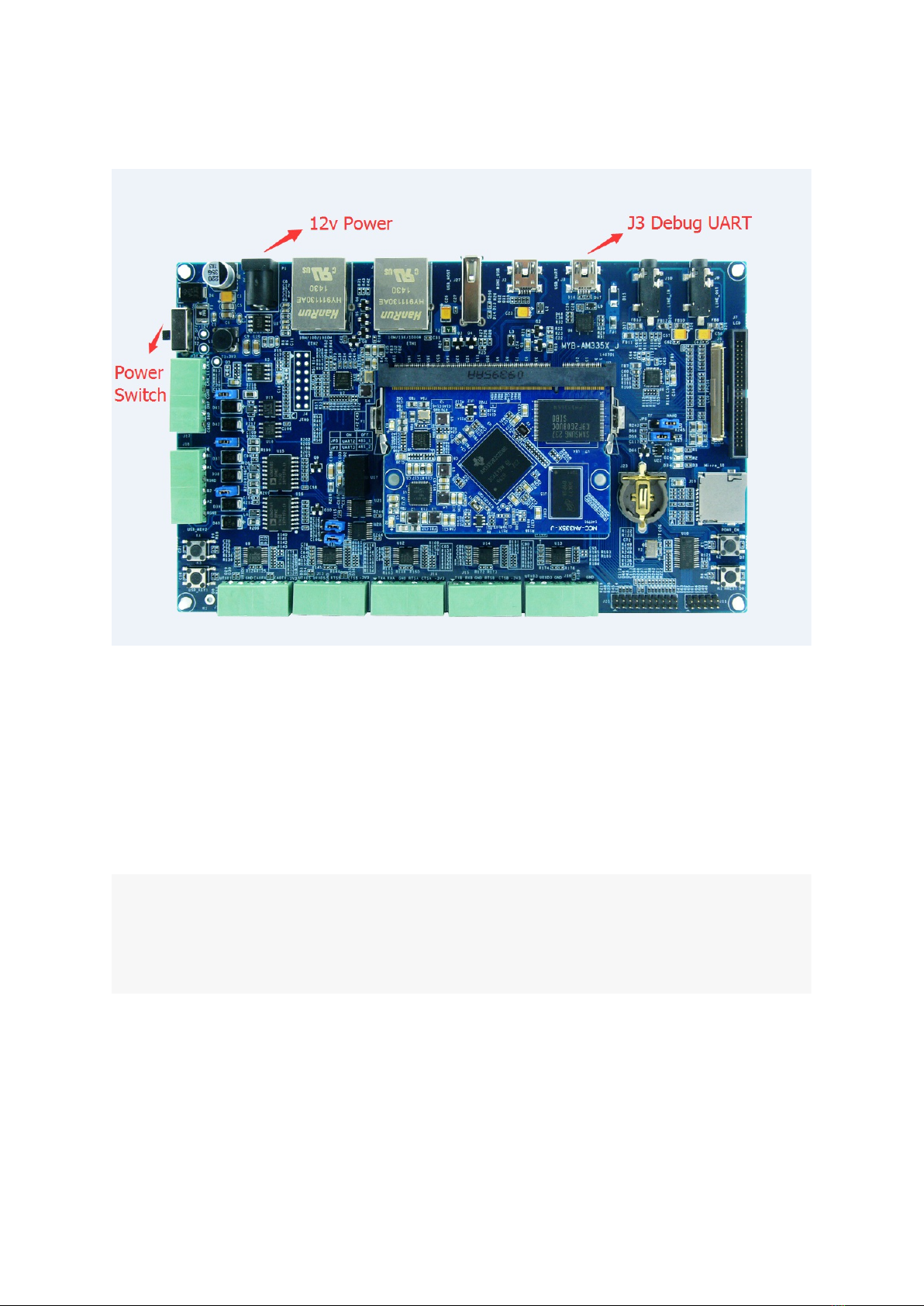

Figure 2-3 MYD-AM335X-J Hardware Debugging Interface
Create a working directory:
Create a work directory and copy the resources from 04-Linux_Source of our release
package to the work directory on ubuntu host PC， here is defined by customers
according to their development environment.
$ mkdir -p <WORKDIR>
$ cp /media/cdrom/04-Linux_Source/* <WORKDIR> -rf
$ ls <WORKDIR>
Bootloader/ Examples/ Filesystem/ Kernel/ Patches/ ToolChain/
10
