Installing the Wall Mount

Drywall Installation Concrete/Brick Installation

1

2

1

2

Center of the stud

NOTE: We recommend that this product is installed by the professional only. We accept no liability for damages caused

by incorrect assembly, installation or use. If there is any doubt, please contact the specialist from the seller for help.

Also make sure that all of the hardware has been included with your mount.You should find the following:

Tools required for the installation:

• Phillips Head Screw Driver

• Electric or Portable Drill

IMPORTANT!

• For safety reasons, the wall or mounting surface must be capable of supporting the combined weight of the mount and

the display; otherwise the structure must be reinforced.

• Safety gear and proper tools must be used. A minimum of two people are required for this installation.Failure to do so

can result in property damage and/or serious injury.

• Make sure that no electrical cables, water pipes or gas pipes are located within the wall.

• 1/4” (6 mm) Drill Bit + Stud Finder ( Drywall Installation )

• 7/16” (11 mm) Masonry Bit ( Concrete Installation )

Stud Finder

Tape Measure

Tape Measure

Make sure it is level.

Use a pen to mark four

or six locations.

Make sure it is level.

Use a pen to mark four

or six locations.

MV-STA2B

Flat Panel TV Wall Mount Instrution Manual

(A) M6x50 Lag Bolt X 4 (B) Concrete Anchor X 4 (C) M6 Washer X 8

(D) M4x14 Bolt X 4 (E) M6x14 Bolt X 4 (F) M8x16 Bolt X 4

3 3

7

Tighten or loosen the screw

to make the tilt happen.

Insert one Concrete Anchor (B)

into each hole.

4 4

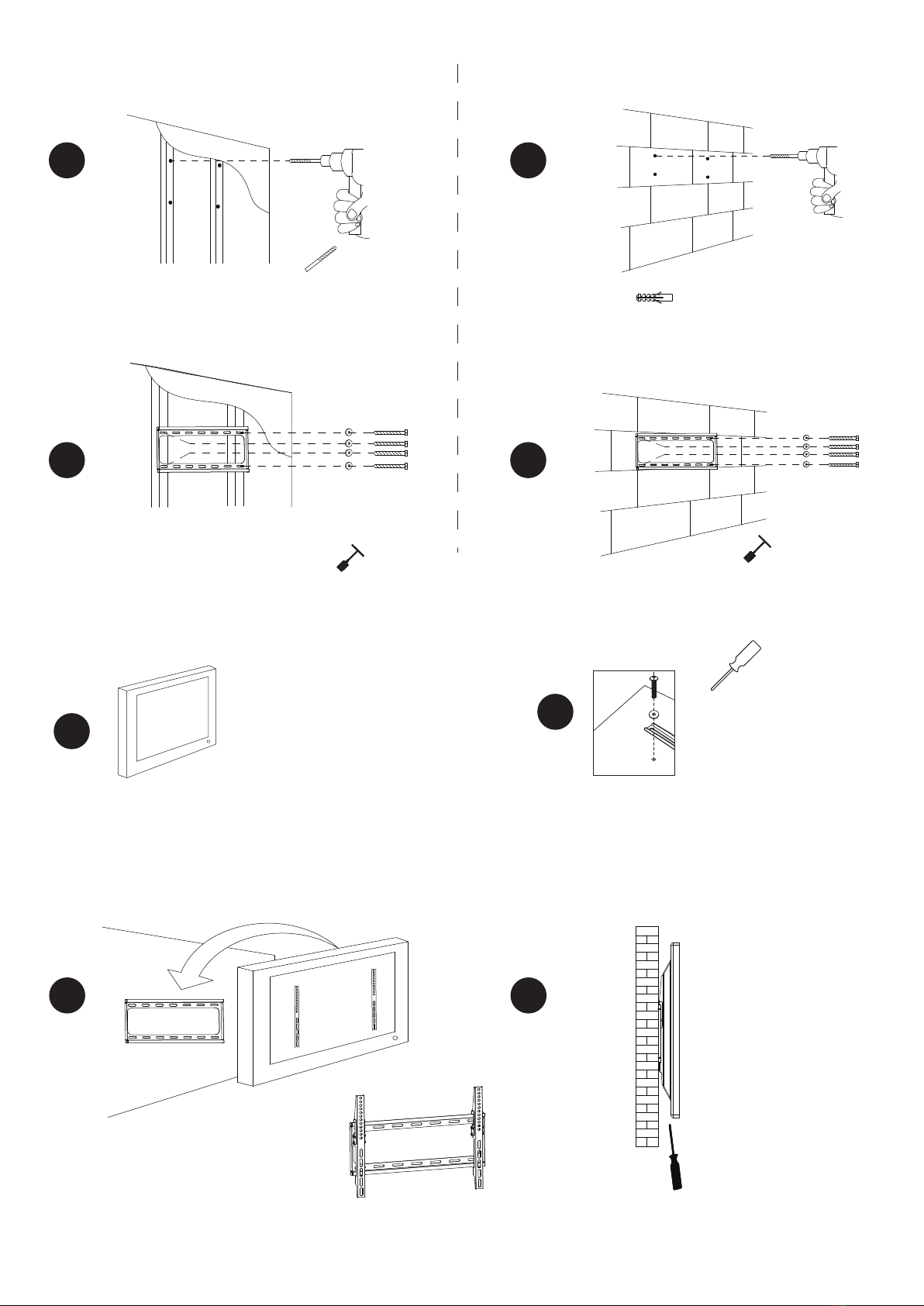

Fix the wall plate to the wall

using the Lag Bolt (A) provided.

6

5

For additional security, Tighten the screws.

Lock

5

Choose proper bolt from D,E,F according to

TV vesa holes.

Fix bracket to tv with screw and washer

Do not use the M6 Washers (F) if you are using the M8 Bolts .

6

Fix the wall plate to the wall

using the Lag Bolt (A) provided.
