Quick Start Guide

82001423L Revision D

MultiAccess Model MA30120

permission from Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties with respect to the contents hereof and

Specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from

time to time in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any person or

organization of such revisions or changes.

Record of Revisions

Revision Date Description

A 11/17/03 Manual released.

B 12/06/04 Manual revised to include software version 1.08.

C 07/19/05 Manual updated for Modem Setup configuration. This includes software version 1.12.

D06/06/06 Manual revised to include software version 1.14.

Patents

This device covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794;

5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; 5,724,356;

5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725;

5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425;

5,355,365; 5,309,562; 5,301,274

Copyrights and Trademarks

Trademarks of Multi-Tech Systems, Inc.: Multi-Tech, the Multi-Tech logo and MultiAccess.

HylaFAX is a trademark of Silicon Graphics Corporation. Windows is a registered trademark of Microsoft

Corporation in the United States and other countries.

All products or technologies are the trademarks or registered trademarks of their respective holders.

Technical Support

Country By Email By Phone

France: [email protected] +(33) 1-64 61 09 81

India: support@multitechindia.com +91 (124) 2340780

Europe, Asia, Africa: support@multitech.co.uk +(44) 118 959 7774

U.S., Canada, all others: [email protected] (800) 972-2439 or +763-717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(763) 785-3500 or (800) 328-9717

Fax 763-785-9874

Internet Address: http://www.multitech.com

Contents

Introduction and Description.................................................................................................. 1

WAN Communications..........................................................................................................................................................1

Management...........................................................................................................................................................................1

Remote Access.......................................................................................................................................................................1

About This Manual ................................................................................................................................................................1

Safety Recommendations for Rack Installations....................................................................................................................2

Ship Kit Contents...................................................................................................................................................................2

Front Panel.............................................................................................................................................................................3

Installation................................................................................................................................ 4

Site Planning..........................................................................................................................................................................4

Hardware Installation.............................................................................................................................................................5

Cabling Procedure - Back Panel ............................................................................................................................................5

Starting Your MultiAccess...................................................................................................... 6

Navigating Through the Screens............................................................................................................................................8

Network Setup .....................................................................................................................................................................10

Line Interfaces .....................................................................................................................................................................11

Modem Setup.......................................................................................................................................................................12

User Authentication .............................................................................................................................................................18

License Agreements..............................................................................................................22

Multi-Tech Systems, Inc. End User License Agreement (EULA).......................................................................................22

GNU GENERAL PUBLIC LICENSE.................................................................................................................................23

MultiAccess Quick Start Guide Introduction and Description

Multi-Tech Systems, Inc. PN 82001423L 1

Introduction and Description

Welcome to Multi-Tech’s new MultiAccess Communications Server, Model MA30120. The MultiAccess

Communications Server is a high-performance digital remote access solution for Enterprise LANs and intranets or

internet service providers. MultiAccess is a V.92 remote access server (RAS) supporting up to four T1 line

interfaces implementing either RBS or PRI signaling for use in North America or up to four E1 line interfaces

implementing PRI signaling for international use. The MultiAccess Communications Server uses a web based

Graphical User Interface (GUI) for configuration, is a 1U (one-up) rackmountable unit that contains up to four

universal modem ports for dial-in communications.

WAN Communications

MultiAccess ships turnkey for T1/RBS or T1/E1 PRI ISDN and is populated with 30 modems on line interface 1 for

the basic configuration. Additional modem modules can be added to support up to four T1/E1 line interfaces.

The high-density modems provide V.92/56K dial-up speeds. In addition, they are manageable from remote

locations using platform-independent, industry standard protocols.

Management

MultiAccess includes robust management support allowing a network administrator to securely manage the

devices either through a web browser or at the command line. The browser-based option uses the HTTPS

protocol, also know as SSL (Secure Sockets Layer) to provide 128-bit encryption to secure the management

session. The command line interface is accessible via SSH (Secure Shell) and supports SCP (Secure Copy) and

sftp (Secure File Transfer Protocol) to help provide maintenance support.

SNTP Support. MultiAccess includes an industry standard Simple Network Time Protocol (SNTP) client that

enables it to synchronize its clock with a remote time/clock server on the Internet. This feature is useful for

accounting purposes.

Remote Access

Comprehensive Security. MultiAccess provides an industry standard Radius Server and Radius Client for

authentication and authorization of thousands of user profiles using PAP and CHAP. In addition, it uses Network

Address Translation (NAT) to hide internal, non-routable IP addresses. If a Radius Server does not exist, one is

provided as part of the MultiAccess system. This Radius Server could provide authentication and authorization

information for this and other Radius Clients in use at your site.

About This Manual

This Quick Start Guide is intended to provide the experienced system administrator the information needed to

quickly get the MultiAccess up and running. A User Guide with more detailed information is provided on the

MultiAccess system CD in Acrobat (pdf) format.

Introduction and Description MultiAccess Quick Start Guide

2 Multi-Tech Systems, Inc. PN 82001423L

Safety Warnings

1. Use this product only with UL- and CUL-listed computers.

2. To reduce the risk of fire, use only 26 AWG or larger telephone wiring.

3. Never install telephone wiring during a lightning storm.

4. Never install a telephone jack in a wet location unless the jack is specifically designed for wet locations.

5. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at

the network interface.

6. Use caution when installing or modifying telephone lines.

7. Avoid using a telephone (other than a cordless type) during an electrical storm; there is a risk of electrical

shock from lightning.

8. Do not use a telephone in the vicinity of a gas leak.

Caution: Danger of explosion if battery is incorrectly replaced. A lithium battery on the MultiAccess PC board

provides backup power for the time-keeping capability. The battery has an estimated life expectancy of ten years.

Contact Multi-Tech if you suspect a failed battery. If data and time are incorrect after having the unit powered off,

it may be due to a weak battery or incorrect setup.

Caution: The Ethernet ports are not designed to be connected to a Public Telecommunication Network.

Safety Recommendations for Rack Installations

•Ensure proper installation of the MultiAccess in a closed or multi-unit enclosure by following the

recommended installation as defined by the enclosure manufacturer. Do not place the MultiAccess

directly on top of other equipment or place other equipment directly on top of the MultiAccess.

•If installing the MultiAccess in a closed or multi-unit enclosure, ensure adequate airflow within the rack so

that the maximum recommended ambient temperature is not exceeded.

•Ensure that the MultiAccess is properly connected to earth ground via a grounded power cord. If a power

strip is used, ensure that the power strip provides adequate grounding of the attached apparatus.

•Ensure that the mains supply circuit is capable of handling the load of the MultiAccess. Refer to the power

label on the equipment for load requirements.

•Maximum ambient temperature for the MultiAccess is 40 degrees Celsius (104°F).

•This equipment should only be installed by properly qualified service personnel.

•Only connect like circuits. In other words, connect SELV (Secondary Extra Low Voltage) circuits to SELV

circuits and TN (Telecommunications Network) circuits to TN circuits.

Ship Kit Contents

The MultiAccess is shipped with the following:

•1 MultiAccess

•4 Power Cords (US,Euro, Austel, & UK)

•1 Document CD

•1 Recovery Image CD

•1 printed Quick Start Guide manual

•2 Rack Mounting Brackets and four mounting screws

If any of these items are missing, contact Multi-Tech Systems or your dealer or distributor. Inspect the contents

for signs of any shipping damage. If damage is observed, do not power up the MultiAccess; contact Multi-Tech’s

Tech Support for advice.

MultiAccess Quick Start Guide Introduction and Description

Multi-Tech Systems, Inc. PN 82001423L 3

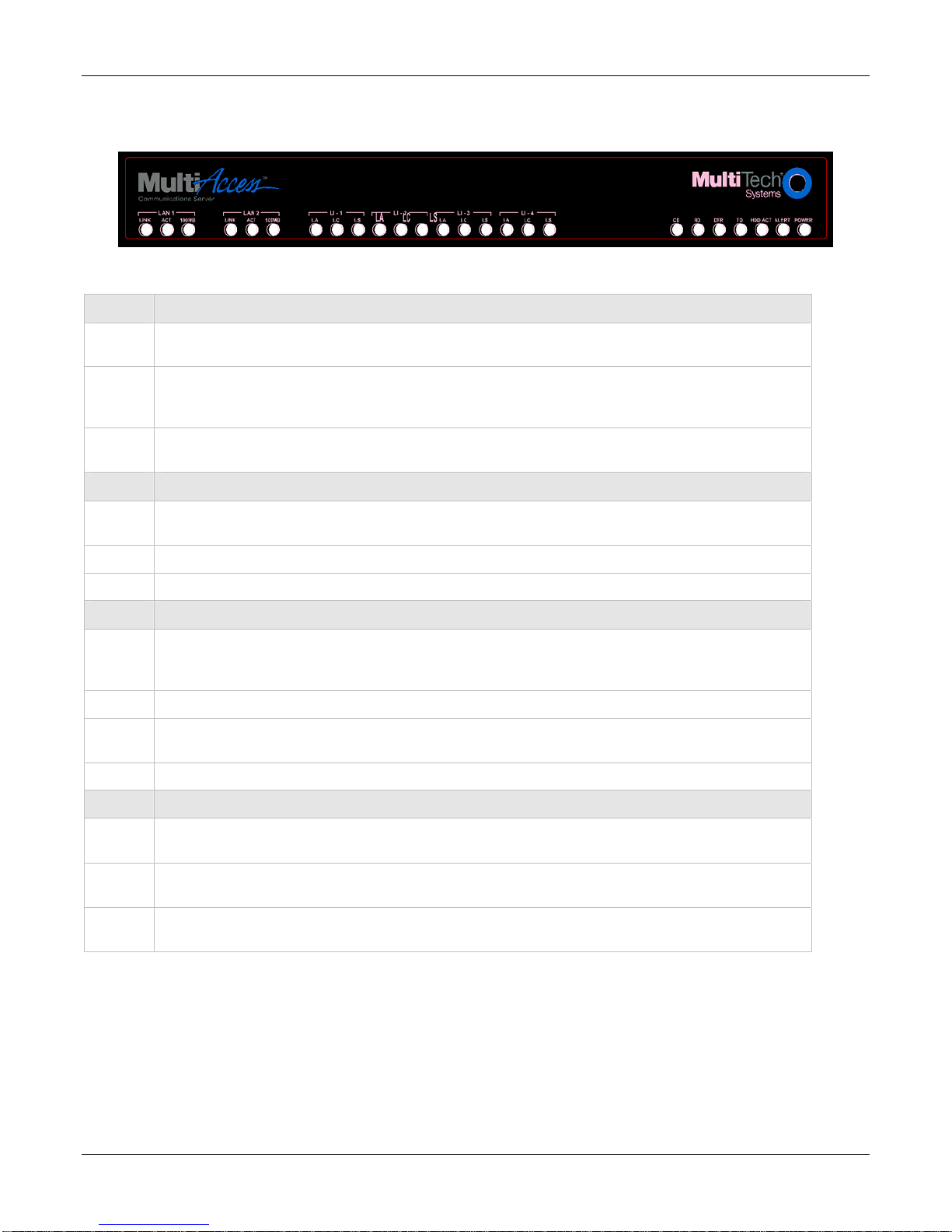

Front Panel

The MultiAccess has 16 front panel LEDs to provide operating status.

Front Panel LED Descriptions

LED Description of LAN 1 & 2 LEDs

LINK The LINK LED indicates link integrity for the LAN Ethernet port. If the Ethernet link is valid at

either 10 Mbps or 100 Mbps, the LINK LED is lit. If the Ethernet link is invalid, the LINK LED is off.

ACT The ACT (Activity) LED indicates either transmit or receive activity on the LAN Ethernet port.

When activity is present on the LAN Ethernet port, the ACT LED is lit. When no activity is present

on the LAN Ethernet port, the ACT LED is off.

100MB The 100MB LED indicates the speed of the LAN Ethernet port. The 100MB LED is lit if the LAN

Ethernet port is linked at 100 Mbps. The 100 MB LED is off at 10 Mbps.

LED Description of LIne LI-1 thru LI-4 LEDs

LA The LA (Link Active) indicates layer 1 is up. LA blinks when Los of Frame Alignment (LFA) but not

Loss of Signal (LOS).

LC The LC indicates a red alarm.

LS The LS indicates a yellow alarm.

LED Description of Support Modem LEDs

CD The CD (Carrier Detect) LED lights when the modem detects a valid carrier signal from another

modem. It is on when the modem is communicating with the other modem. It is off when the link is

broken.

RD The RD (Read Data) LED flashes when the modem is receiving data from another modem.

DTR The DTR (Data Terminal Ready) LED lights when the operating system detects and initializes the

modem.

TD The TD (Transmit Data) LED flashes when the modem is transmitting data to another modem.

LED Description of System LEDs

HDD

ACT The HDD ACT (Hard Disk Drive Activity) LED lights when the MultiAccess hard disk drive is

accessed.

ALERT The ALERT LED lights and the system beeps when memory DIMM is bad, missing, or if other

rudimentary hardware failure.

POWER The POWER LED is off when the MultiAccess is in a reset state. When the POWER LED is lit, the

MultiAccess is not in a reset state.

Note: The Back Panel is described in the Cabling section.

Installation MultiAccess Quick Start Guide

4 Multi-Tech Systems, Inc. PN 82001423L

Installation

Site Planning

With proper planning, your MultiAccess system can be installed quickly and in a short time. To implement the

suggested planning process, you must:

1. Plan for physical space, environmental, electronic and electrical needs. Identify physical installation site. The

environment should be properly ventilated with controlled temperature and humidity.

• Good AC power source with proper Earth Ground.

• EIA 19” rack, MultiComTower, or standalone installation.

• Determine where the termination point is for each T1, PRI, or E1 line.

• Determine physical access point to the Ethernet network.

• Identify high quality category 5 cable for Ethernet & T1 cabling. Depending on environment characteristics,

shielded T1 cable may be necessary.

• For initial setup and administrative purposes, a network workstation with a WEB browser supporting HTTPS will

be needed.

2. Define your users’ client computer needs

• Determine the number of dial in analog modem users

• Identify client workstation OS (PC running Windows®98/XP/2000, or MAC OS10)

• Identify client modem types (V.34, V.90, V.92)

• Identify dial up security protocol (CHAP & PAP)

• Third-Party Security Devices (SecurID)

• Identify the Security Database (i.e. user file in RADIUS server or Microsoft SAM\Active directory with IAS) and

make sure users have dial in rights with framed protocol PPP attribute

3. Identify applicable network resources (IP address of; gateway/default route, DNS, WINS, RADIUS server(s), etc)

• Identify the network MASK

• Identify available IP addresses (determine the static IP address that is to be assigned to the Multi Access)

• Determine IP assignment method (predefined pool/range) to be implemented by the MultiAccess (regarding the

IP addresses to be assigned to the remote dial in users).

• When Implementing RADIUS Authentication and Accounting, identify the UDP ports used by the RADIUS

server(s)

4. Define your line interfaces

• Obtain T1 or E1 PRI line provisioning information for your LEC

• Identify the telephone number(s) of the line or lines

• Identify the Framing Format

• Identify the Line Coding

• Identify the type of signaling (RBS or PRI for T1 or E1 PRI)

• For RBS, the signaling type can be referred to as the start method and/or the FXS signaling method (i.e.

Immediate, Wink, Ground, and Loop)

• For PRI signaling identify the type of central office switch\protocol, i.e. AT&T5ESS, DMS100/250, National

ISDN2

• Identify the Line Build-Out (LBO) i.e. what db level is presented on premise by the provider and what db level

should the premise equipment transmit at.

Note: For E1 lines the signaling type must be PRI. R2 signaling methods are not supported.

MultiAccess Quick Start Guide Installation

Multi-Tech Systems, Inc. PN 82001423L 5

Hardware Installation

The MultiAccess is designed to install either on a desktop or in a standard EIA 19“ rack, and is shipped with the

mounting hardware to install the MultiAccess in the rack. If installing in a rack, use the provided mounting hardware

and follow the rack enclosure manufacturer’s instructions to safely and securely mount the MultiAccess in the rack

enclosure. Proceed to the cabling procedure.

Cabling Procedure - Back Panel

Cabling your MultiAccess involves making the proper power, phone, and line (T1/E1/PRI) connections as described

and illustrated below.

The MultiAccess back panel has a fan, a power plug, POWER Switch (| / O), a RJ-11 phone LINE jack, a DB-9 COM1

jack, a DB-15 High-density DSUB (VIDEO) jack, two USB (Revision 1.1 compliant) jacks, four RJ-45 T1/E1/PRI line

jacks, and two Ethernet RJ-45 (Ethernet 1 & Ehternet 2) jacks.

1. Using an RJ-45 cable, connect one end to LI-1 (Line 1 Interface) on the back of the MultiAccess and the other

end to your first T1/E1/PRI line connection. If a second, third, or fourth line connection is required, connect an RJ-

45 cable for each of the line connections being used.

2. Connect a workstation to your local network, connect one end of an RJ-45 cable to the Ehternet 1 jack on the

back of the MultiAccess and the other end to the hub on your local network.

3. For advanced users, the Video and Keyboard connections are for manual intervention of the Operating System.

The default root level login password is linux (lower case) and the command to change the root level password is

“passwd”. The recommended mimumum password length is 8-characters. However, the MultiAccess will accept

less than 8-characters.

The Linux command to properly shut down the MultiAccess is shutdown -h now. The command to restart is

shutdown -r now.

4. With the MultiAccess Power switch in the off (Ο) position and using the supplied power cord, connect the

MultiAccess power plug to a live power outlet.

5. Place the MultiAccess Power switch to the on (|) position to turn on the MultiAccess

Caution: Never switch off MultiAccess Power until after you have performed the Shutdown

process. Refer to Administration > System Tools in Chapter 3 of the User Guide. If the MultiAccess is not properly

shut down before switching off Power, the next start may take a little longer, or in the worst case, data could be lost.

6. Proceed to Starting the MultiAccess.

Connecting & Starting the MultiAccess MultiAccess Quick Start Guide

6 Multi-Tech Systems, Inc. PN 82001423L

Starting Your MultiAccess

This section of the Quick Start Guide covers the steps for connecting a workstation to the MultiAccess, starting up

the MultiAccess, opening the MultiAccess Communications Server Web Management program, performing the

time zone setup, and using the menu bar to navigate through the Web Management software screens.

1. Set the workstation IP address to 192.168.2.x subnet other than 192.168.2.1 which is the IP address of

Ethernet 1 (eth0) and 192.168.2.5 which is already assigned to Ethernet 2 (eht1).

2. Turn on power to the MultiAccess. When you hear 5 beeps, approximately 2 minutes after applying

power, continue with the next step.

Note: Depending on the version of MultiAccess (and other variables, like the previous shutdown and the

number of expansion modules) the duration needed to boot may vary. It may be helpful to connect an

external monitor and keyboard to determine the current status of the system. Five seconds after turning

on power, one beep is heard, indicating a successful POST of the mother board, next the BIOS detects

the hard drive from which the Linux operating system and appropriate drivers are loaded.

3. Bring up a Web browser on the workstation. At the browser’s address line, enter https://192.168.2.1 and

press the Enter key.

Important: Be sure to type https (http will not work).

4. In some environments, one or more Security Alert screen(s) may display. At the initial Security Alert

screen, click Yes and follow any additional on-screen prompts.

1. The Login screen is displayed.

•Type the default User name: admin (all lower-case)

•Tab to the Password entry and type the default password: admin (all lower-case).

•Click the Login button.

Note: The User name and Password entries are case-sensitive (both must be all lower-case) and can

be up to 12 characters each. Later, you will want to change the password from the default (admin) to

something else. (If Windows displays the AutoComplete screen, for security reasons, you may want to

click No to tell Windows OS to not remember the password.)

MultiAccess Quick Start Guide Connecting & Starting the MultiAccess

Multi-Tech Systems, Inc. PN 82001423L 7

Changing the Password: You should change the default User and Password entries. This can be

accomplished in the WEB Admin screen of the Administration menu.

Caution: Use a safe password! Your first name spelled backwards is not a sufficiently safe password; a

password such as xfT35$4 is better.

2. If someone else is already logged onto the MultiAccess or you were logged in recently, the following

message displays.

At the prompt Do you want to log the user out? Click Yes.

If you click No, you are returned to the Login screen.

3. The MultiAccess™Communications Server Web Management Home screen is displayed.

Autres manuels pour MultiAccess MULTIACCESS MA30120

Table des matières

Autres manuels Multitech Serveur

Multitech

Multitech ProxyServer MTPSR1-100 Manuel utilisateur

Multitech

Multitech MultiConnect SE MTS2EA Manuel utilisateur

Multitech

Multitech FaxFinder FF240-IP Manuel de service

Multitech

Multitech FaxFinder FF-420 Manuel utilisateur

Multitech

Multitech MultiConnect SS MTS2SA-T Manuel utilisateur

Multitech

Multitech MultiAccess MA220 Manuel utilisateur

Multitech

Multitech FaxFinder FF130 Manuel utilisateur

Multitech

Multitech TalkAnytime TA2410 Manuel utilisateur

Multitech

Multitech FaxFinder FF240 Manuel utilisateur

Multitech

Multitech FaxFinder FF110 Manuel utilisateur

Multitech

Multitech MultiModem iSMS SF100-G Manuel de service

Multitech

Multitech MultiModem iSMS SF100-G Manuel utilisateur

Multitech

Multitech TalkAnytime TA410 Manuel utilisateur

Multitech

Multitech FaxFinder FF100 Manuel utilisateur

Multitech

Multitech MultiModem iSMS SF100-G Manuel utilisateur

Multitech

Multitech FaxFinder FF130 Manuel utilisateur

Multitech

Multitech MultiConnect SE MTS2EA Manuel utilisateur

Multitech

Multitech ProxyServer MTPSR1-202ST Manuel utilisateur

Multitech

Multitech MultiConnect SE MTS2EA Manuel utilisateur

Multitech

Multitech MA100-1M Manuel utilisateur

Multitech

Multitech FaxFinder FF200 Manuel utilisateur

Multitech

Multitech MultiConnect WF MTS2WFA Manuel utilisateur

Multitech

Multitech CommPlete RAS96 Manuel utilisateur

Multitech

Multitech MultiModem iSMS SF100-G Manuel utilisateur

Manuels Serveur populaires d'autres marques

HP AlphaServer ES47 Manuel utilisateur

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

HP ProLiant Gen9 Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

HP Integrity rx2600 Guide d'installation

Milestone

Milestone Husky IVO 350T Manuel utilisateur
