MULTISPAN UTC-1202G Manuel utilisateur

TERMINAL CONNECTION

TECHNICAL SPECIFICATION

Page-1

UTC-1202G Manual

TEMPERATURE CONTROLLER

Page-2

MECHANICAL INSTALLATION GUIDELINES

1. Prepare the panel cutout with proper dimensions as shown

above.

2. Fit the unit into the panel with the help of clamp given.

3. The equipment in its installed state must not come in close

proximity to any heating source, caustic vapors, oils steam,

or other unwanted process byproducts.

4. Use the specified size of crimp terminal (M3.5 screws) to

wire the terminal block. Tightening the screws on the

terminal block using the tightening torque of the range of

1.2 N.m.

5. Do not connect anything to unused terminals.

INSTALLATION GUIDELINES

1. This equipment, being built-in-type, normally becomes a

part of main control panel and in such case the terminals

do not remain accessible to the end user after installation

and internal wiring.

2. Do not allow pieces of metal, wire clippings, or fine metallic

fillings from installation to enter the product or else it may

lead to a safety hazard that may in turn endanger life or

cause electrical shock to the operator.

3. Circuit breaker or mains switch must be installed between

power source and supply terminal to facilitate power ‘ON’ or

‘OFF’ function. However this mains switch or circuit breaker

must be installed at convenient place normally accessible to

the operator.

4. Use and store the instrument within the specified ambient

temperature and humidity ranges as mentioned in this

manual.

MAINTENANCE

1. The equipment should be cleaned regularly to avoid

blockage of ventilating parts.

2. Clean the equipment with a clean soft cloth. Do not use

isopropyl alcohol or any other cleaning agent.

3. Fusible resistor must not be replaced by operator.

Read complete instructions prior to installation

and operation of the unit.

WARNING : Risk of electric shock.

SAFETY PRECAUTION

All safety related codifications, symbols and instructions

that appear in this operating manual or on the equipment

must be strictly followed to ensure the safety of the operating

personnel as well as the instrument.

If all the equipment is not handled in a manner specified

by the manufacturer, it might impair the protection provided

by the equipment.

WARNING GUIDELINES

WARNING : Risk of electric shock.

1. To prevent the risk of electric shock, power supply to the

equipment must be kept OFF while doing the wiring

arrangement. Do not touch the terminals while power is

being supplied.

2. To reduce electro magnetic interference, use wire with

adequate rating and twists of the same of equal size shall

be made with shortest connection.

3. Cable used for connection to power source, must have a

cross section of 1mm or greater. These wires should have

insulations capacity made of at least 1.5kV.

4. A better anti-noise effect can be expected by using

standard power supply cable for the instrument.

KEY OPERATION

PARAMETER SETTING

Page-3

Basic Parameter Setting :

Network, CT/PT Selection.

Advance Parameter Setting :

Load Hour %, No Load Hour, RPM.

Enter Password 25

Long Press key

To Enter into parameter

(5 to 50%)

(2 to 128)

Load Hour

Percentage

RPM

Enable / Disable

Pole

Press key to save & exit from

parameter setting

(10 to 500ms)

Pulse ON Time

Auto / Manual

Pulse Mode

(0.01, 0.1, 1, 10, 100, 1000)

Pulse Out

IF Auto

CT Primary

PT Primary

CT Secondary

(5 Amp to 6000 Amp

selectable)

(100V to 520kV selectable)

PT Secondary

(100V to 520V selectable)

Network Selection

(3P-4W/3P-3W/1P-2W)

(5 Amp/1 Amp selectable)

Press key to save & exit from

parameter setting

Enter Password 10

Long Press key

To Enter into parameter

PRG

Load Hour

Enable / Disable

PRG

Page-4

Page-5

Page-6

3P-3W 3P-4W

Display Line 1

Display Line 2

Display Line 3

Energy Value

L1 KW

L2 KW

L3 KW

3P-3W 3P-4W

Display Line 1

Display Line 2

Display Line 3

Energy Value

L1 KVA

L2 KVA

L3 KVA

1) kW PER PHASE

2) kVA PER PHASE

3P-3W 3P-4W

Display Line 1

Display Line 2

Display Line 3

Energy Value

L1 KVAr

L2 KVAr

L3 KVAr

3P-3W 3P-4W

Display Line 1

Display Line 2

Display Line 3

Energy Value

Total KW Total KW

Total KVA Total KVA

Total KVAR Total KVAR

3) kvar PER PHASE

4) Total kW,kVA,kvar

W hk

k V A

W hk

k v a r

W hk

k v a r

k V A

W hk

DISPLAY PAGES for Key

5) Max kW,kVA,kvar

k v a r

k V A

W hk

MAX

3P-3W 3P-4W

Display Line 1

Display Line 2

Display Line 3

Energy Value

Max KW Max KW

Max KVA Max KVA

Max KVAR Max KVAR

Page-7

Product improvement and upgrade is a constant procedure. So for more updated operating information and Support,

Please contact our Helpline: +91-9081078681/83 or Email at ser[email protected] Ver: 2306

Page-8

Autres manuels MULTISPAN Régulateurs de température

MULTISPAN

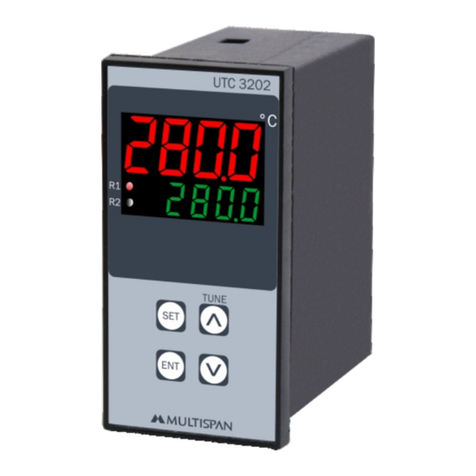

MULTISPAN UTC-320 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-421G Manuel utilisateur

MULTISPAN

MULTISPAN UTC-2202G Feuille d'instructions

MULTISPAN

MULTISPAN UTC-121P Manuel utilisateur

MULTISPAN

MULTISPAN UTC-2202 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-2200G Manuel utilisateur

MULTISPAN

MULTISPAN TC-49 Manuel utilisateur

MULTISPAN

MULTISPAN TC-19 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-121G Manuel utilisateur

MULTISPAN

MULTISPAN UTC-214 Manuel utilisateur

MULTISPAN

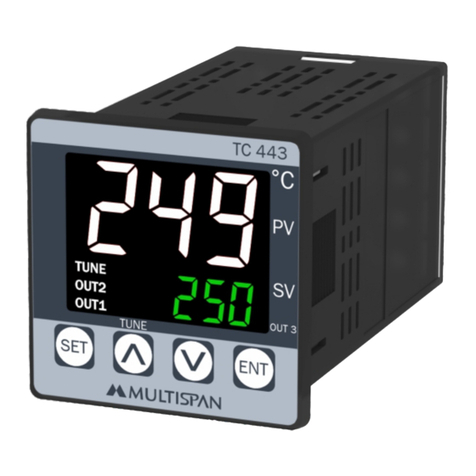

MULTISPAN TC-443 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-221G Manuel utilisateur

MULTISPAN

MULTISPAN UTC-423 Manuel utilisateur

MULTISPAN

MULTISPAN TC-49P Manuel utilisateur

MULTISPAN

MULTISPAN MTC-1202 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-4203 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-222 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-111P Manuel utilisateur

MULTISPAN

MULTISPAN PTC-4202A-M1 Manuel utilisateur

MULTISPAN

MULTISPAN UTC-113P Manuel utilisateur

MULTISPAN

MULTISPAN UTC - 413P Manuel utilisateur

MULTISPAN

MULTISPAN TC-49P Manuel utilisateur

MULTISPAN

MULTISPAN TC-49 Manuel utilisateur

MULTISPAN

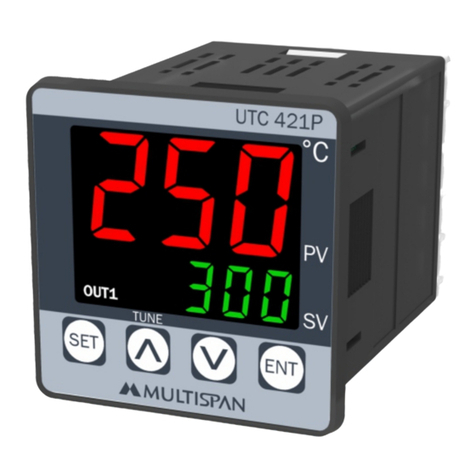

MULTISPAN UTC-421P Manuel utilisateur
