MULTIQUIP Whiteman series Manuel utilisateur

OPERATION MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

SERIES

MODEL HHXDF4-DF5

RIDE-ON TROWEL

(Kubota WG972 Dual Fuel Gasoline/Propane Engine)

Revision #5 (08/30/19)

PN: 32651

To ﬁnd the latest revision of this publication or

associated parts manual, visit our website at:

www.multiquip.com

PAGE 2 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

PROPOSITION 65 WARNING

PAGE 3 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

Grinding/cutting/drilling of masonry, concrete, metal and

other materials with silica in their composition may give

off dust or mists containing crystalline silica. Silica is a

basic component of sand, quartz, brick clay, granite and

numerous other minerals and rocks. Repeated and/or

substantial inhalation of airborne crystalline silica can

cause serious or fatal respiratory diseases, including

silicosis.Inaddition, California and some other

authorities have listed respirable crystalline silica as a

substance known to cause cancer. When cutting such

materials, always follow the respiratory precautions

mentioned above.

WARNING

Grinding/cutting/drilling of masonry, concrete, metal and

other materials can generate dust, mists and fumes

containing chemicals known to cause serious or fatal

injury or illness, such as respiratory disease, cancer,

birth defects or other reproductive harm. If you are

unfamiliar with the risks associated with the particular

process and/or material being cut or the composition of

the tool being used, review the material safety data

sheet and/or consult your employer, the material

manufacturer/supplier, governmental agencies such as

OSHA and NIOSH and other sources on hazardous

materials. California and some other authorities, for

instance, have published lists of substances known to

cause cancer, reproductive toxicity,or other harmful

effects.

Control dust, mist and fumes at the source where

possible. In this regard use good work practices and

follow the recommendations of the manufacturers or

suppliers, OSHA/NIOSH, and occupational and trade

associations.Water should be used for dust

suppression when wet cutting is feasible. When the

hazards from inhalation of dust, mists and fumes cannot

be eliminated, the operator and any bystanders should

always wear a respirator approved by NIOSH/MSHA for

the materials being used.

WARNING

SILICOSIS WARNING RESPIRATORY HAZARDS

SILICOSIS/RESPIRATORY WARNINGS

PAGE 4 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

TABLE OF CONTENTS

HHXDF4-DF5 Ride-On Trowel

Proposition 65 Warning ........................................... 2

Silicosis/Respiratory Warnings ................................ 3

Table of Contents..................................................... 4

Training Checklist .................................................... 6

Daily Pre-Operation Checklist ................................. 7

Safety Information ............................................. 8–16

Lifting and Transporting ................................... 17–19

Speciﬁcations (Trowel)........................................... 20

Speciﬁcations (Engine).......................................... 21

Dimensions............................................................ 22

General Information............................................... 23

Components (Trowel) ...................................... 24–26

Components (Engine)............................................ 27

Right Seat Frame Controls and Indicators............. 28

Inspection ........................................................ 29–31

Setup ..................................................................... 32

Operation......................................................... 33–36

Maintenance.................................................... 37–57

Troubleshooting ............................................... 58–64

Electrical Component Locator ............................... 65

Electrical Wiring Diagram (Lights) ................... 66–67

Electrical Wiring Diagram (Spray/Accessories) ... 68–69

Electrical Wiring Diagram (Engine/Seat Switch).. 70–71

Power and Ground Connections............................ 72

NOTICE

Speciﬁcations are subject to change without notice.

PAGE 5 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

NOTES

PAGE 6 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

TRAINING CHECKLIST

This checklist lists some of the minimum requirements for machine maintenance and operation. Please feel free to detach

it and make copies. Use this checklist whenever a new operator is to be trained or it can be used as a review for more

experienced operators.

Training Checklist

No, Description OK? Date

1Read operation manual

completely.

Machine layout, location of

components, checking of engine

and hydraulic oil levels.

3 Fuel system, refueling procedure.

4 Operation of spray and lights.

5Operation of controls (machine

not running).

6Safety controls, safety stop switch

operation.

7 Emergency stop procedures.

8Startup of machine, pre-heat,

engine choke.

9 Maintaining a hover.

10 Maneuvering.

11 Pitching.

12 Matching blade pitch. Twin-Pitch™

13 Concrete ﬁnishing techniques.

14 Shutdown of machine.

15 Lifting of machine (lift loops).

16 Machine transport and storage.

PAGE 7 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

DAILY PRE-OPERATION CHECKLIST

Daily Pre-Operation Checklist      

1 Engine oil level

2 Hydraulic oil level

3 Radiator coolant level

4 Condition of blades

5 Blade pitch operation

6 Safety stop switch operation

7 Steering control operation

PAGE 8 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

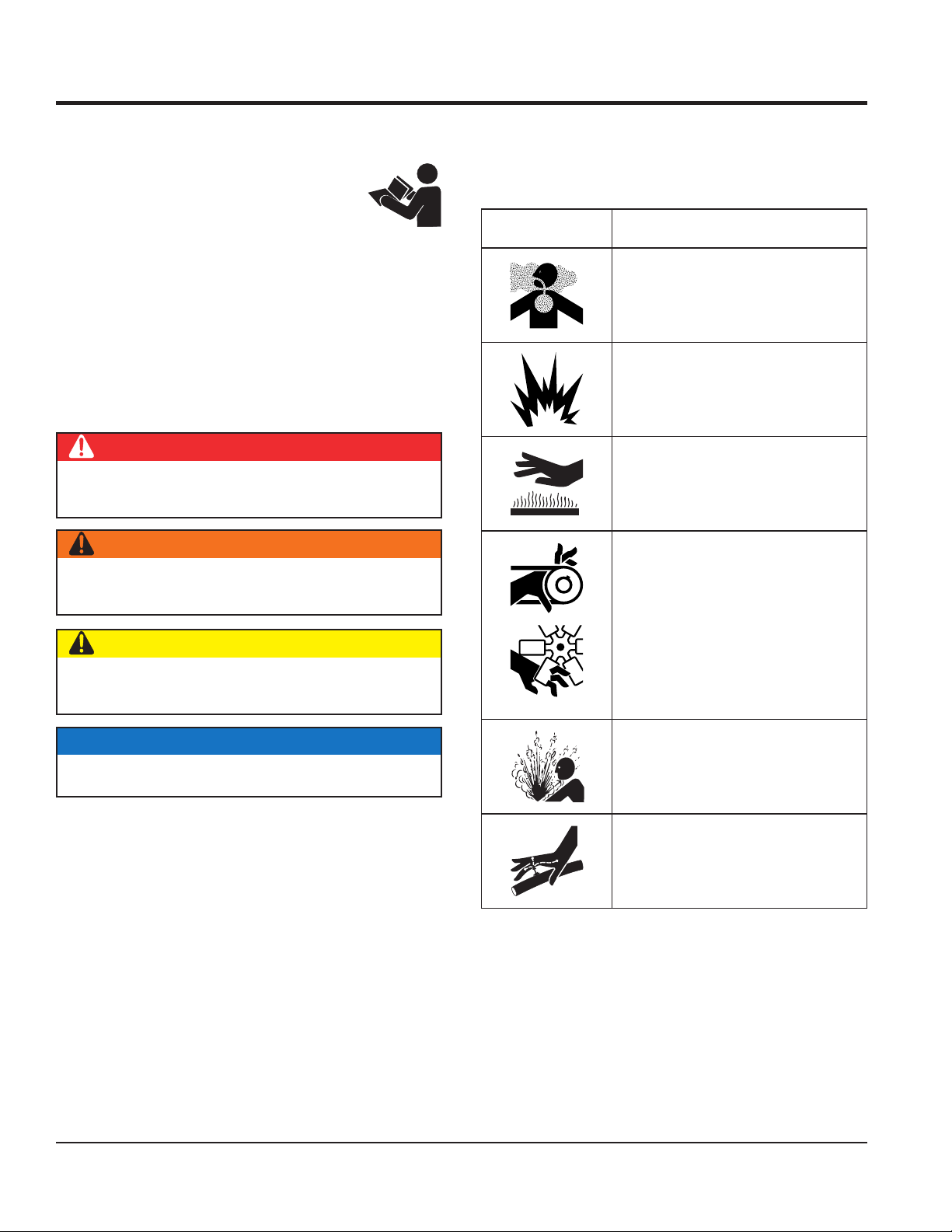

SAFETY INFORMATION

Do not operate or service the equipment before reading

the entire manual. Safety precautions should be followed

at all times when operating this equipment.

Failure to read and understand the safety

messages and operating instructions could

result in injury to yourself and others.

SAFETY MESSAGES

The four safety messages shown below will inform you

about potential hazards that could injure you or others.The

safety messages speciﬁcally address the level of exposure

to the operator and are preceded by one of four words:

DANGER, WARNING, CAUTION

or NOTICE.

SAFETY SYMBOLS

DANGER

Indicates a hazardous situation which, if not avoided,

WILL result in DEATH or SERIOUS INJURY.

WARNING

Indicates a hazardous situation which, if not avoided,

COULD result in DEATH or SERIOUS INJURY.

CAUTION

Indicates a hazardous situation which, if not avoided,

COULD result in MINOR or MODERATE INJURY.

NOTICE

Addresses practices not related to personal injury.

Potential hazards associated with the operation of this

equipment will be referenced with hazard symbols which

may appear throughout this manual in conjunction with

safety messages.

Lethal exhaust gas hazards

Explosive fuel hazards

Burn hazards

Rotating parts hazards

Symbol Safety Hazard

Pressurized fluid hazards

Hydraulic fluid hazards

PAGE 9 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

SAFETY INFORMATION

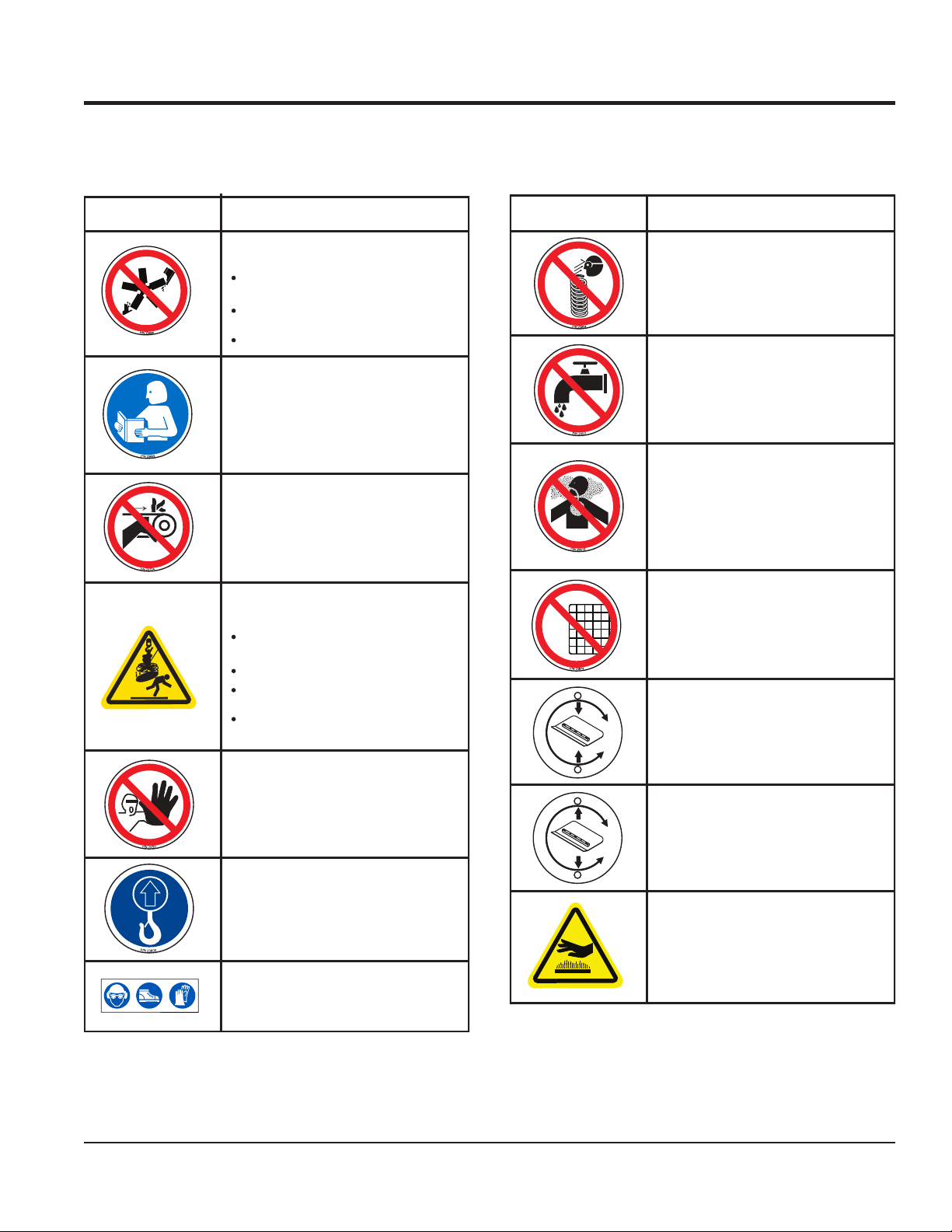

DECALS

Decals associated with the operation of this equipment

are deﬁned below.

To avoid injury you must read

and understand operator’s manual

before using this machine.

NOTICE

Read Manual

DANGER

Belt Guard Hazard

DECAL DEFINITION

DANGER

Rotating Blade Hazard

Keep hands, fingers, and feet clear

of engine fan blades and guard rings.

Keep hands and fingers clear from

engine belts. Moving parts can crush.

DO NOT remove belt guards.

P/N 23700

NEVER allow any person to stand

underneath the trowel while lifting.

CAUTION

Lifting/Crush Hazard

This machine to be operated by

qualified personnel only. Ask for

training as needed.

DANGER

Training

Attach lifting strap to this point.

NOTICE

Lifting Point

Moving parts can cut.

DO NOT remove guards.

Stop engine before servicing.

DO NOT lift trowel with pans attached.

ALWAYS make sure handle

is securely attached.

On Quick PitchTM models make sure

T-Handle latch is locked (engaged).

P/N 36099

ALWAYS wear appropriate clothing

before operating trowel.

NOTICE

Protective Clothing

To avoid injury, DO NOT disassemble

spring cylinders without qualified service

personnel. Possibility exist of severe bodily

harm and injury.

DANGER

Inhalation Hazard

DECAL DEFINITION

DO NOT use this equipment in an

enclosed area. The engine used with

this equipment emits harmful levels of

carbon monoxide which can cause

severe bodily harm — even death!

DANGER

DO NOT Remove Guards, Hazard

DO NOT operate equipment with

guards removed. Serious bodily

injury could result.

Indicates left-side blade pitch

direction.

LEFT-SIDE BLADE PITCH

DANGER

Flying Objects Hazard

DO NOT add water to the retardant tank.

DANGER

No Water Warning

P/N 23808

Burn Hazard

CAUTION

●HOT PARTS can burn skin.

●DO NOT touch hot parts. Allow machine

sufficient amount of time to cool before

performing maintenance.

Indicates right-side blade pitch

direction.

RIGHT-SIDE BLADE PITCH

PAGE 10 — HHXDF4-DF5 RIDE-ON TROWEL • OPERATION MANUAL — REV. #5 (08/30/19)

SAFETY INFORMATION

Indicates that lubrication is required where

this icon is displayed.

DECAL DEFINITION

LUBRICATION POINT

DO NOT light matches around or near this

equipment. This equipment contains highly

flammable fuel. If ignited, could start a fire

causing equipment damage and severe

bodily harm — even death!

DANGER

Fire Hazard

DO NOT smoke around or near this

equipment. This equipment contains highly

flammable fuel. If ignited, could start a fire

causing equipment damage and severe

bodily harm — even death!

DANGER

Fire Hazard

Hot steam or coolant may escape when

radiator cap is removed, causing severe

burns. Allow radiator to cool before

removing cap.

DANGER

Explosion Hazard

P/N 23809

The engine used in this equipment

can run on LPG/propane fuel.

DECAL DEFINITION

PROPANE/LPG TANK

The engine used in this equipment

can run on unleaded gasoline.

UNLEADED GASOLINE

When fuel selection rocker switch is in

this position, indicates that unit is in the

unleaded gasoline mode.

GASOLINE FUEL SELECTION MODE

LPG/PROPANE FUEL SELECTION MODE

P/N 32561

Cold weather starting below 40°F (4°C).

Run engine 3-5 minutes while moving

steering controls before depressing

blade control pedal.

CAUTION

Cold Weather Conditions

LIGHT SWITCH

P/N 23803-XXX

XXX

NOISE LEVEL

Indicates value of the sound power of the

equipment measured at operator’s seat.

When fuel selection rocker switch is in

this position, indicates that unit is in the

LPG/Propane mode.

When light rocker switch is in position 1

all halogen lights will turn on. Position 0

will turn off all lights.

Autres manuels pour Whiteman series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels MULTIQUIP Truelle

MULTIQUIP

MULTIQUIP JTNSW20HTCSL Manuel utilisateur

MULTIQUIP

MULTIQUIP BS46H90 Mode d’emploi

MULTIQUIP

MULTIQUIP Whiteman series Manuel utilisateur

MULTIQUIP

MULTIQUIP WHITEMAN HHXD5 Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman series Manuel utilisateur

MULTIQUIP

MULTIQUIP BH11C Manuel du propriétaire

MULTIQUIP

MULTIQUIP CA4HM Manuel utilisateur

MULTIQUIP

MULTIQUIP HHX Manuel utilisateur

MULTIQUIP

MULTIQUIP WHITEMAN EPOXY/M Series Mode d’emploi

MULTIQUIP

MULTIQUIP B Series Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman Series Manuel

MULTIQUIP

MULTIQUIP hhn34tvdtcsl4 Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman HTN-28K-TCSL Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman HTXD6i Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman J36H55 Manuel utilisateur

MULTIQUIP

MULTIQUIP WHITEMAN HDA Series Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman series Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman HTXD6i Manuel utilisateur

MULTIQUIP

MULTIQUIP WHITEMAN CA5BM Manuel utilisateur

MULTIQUIP

MULTIQUIP BH11C Manuel du propriétaire

MULTIQUIP

MULTIQUIP Whiteman series Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman CA5BC Manuel utilisateur

MULTIQUIP

MULTIQUIP Whiteman JTN Mode d’emploi

MULTIQUIP

MULTIQUIP J36E2 Mode d’emploi

Manuels Truelle populaires d'autres marques

allen

allen HP105 Guide d'application

Bartell

Bartell BM90 Manuel utilisateur

Stone

Stone CF24E Manuel utilisateur

allen

allen HDX750 Guide d'application

Norton

Norton MTA 36 Mode d’emploi

MBW

MBW F24 Manuel utilisateur

MBW

MBW MK8-75 Manuel utilisateur

Wacker Neuson

Wacker Neuson CT 36-400E Manuel utilisateur

Atlas Copco

Atlas Copco BG 240 E Guide de maintenance et de service

MQ Multiquip

MQ Multiquip JS36/30H55DE Series Mode d’emploi

swepac

swepac TR 600P Manuel utilisateur

allen

allen PRO436DF Mode d’emploi

Wacker Neuson

Wacker Neuson CT 36 Manuel utilisateur

Marshalltown

Marshalltown Speed Striker STRIKE45-L Manuel utilisateur

Wacker Neuson

Wacker Neuson CRT 48-31V Manuel utilisateur

Northern Industrial

Northern Industrial tmt-36 Manuel de l'opérateur

BOMAX

BOMAX BM-836H Manuel utilisateur

ENAR

ENAR TIFON 908 Manuel utilisateur
