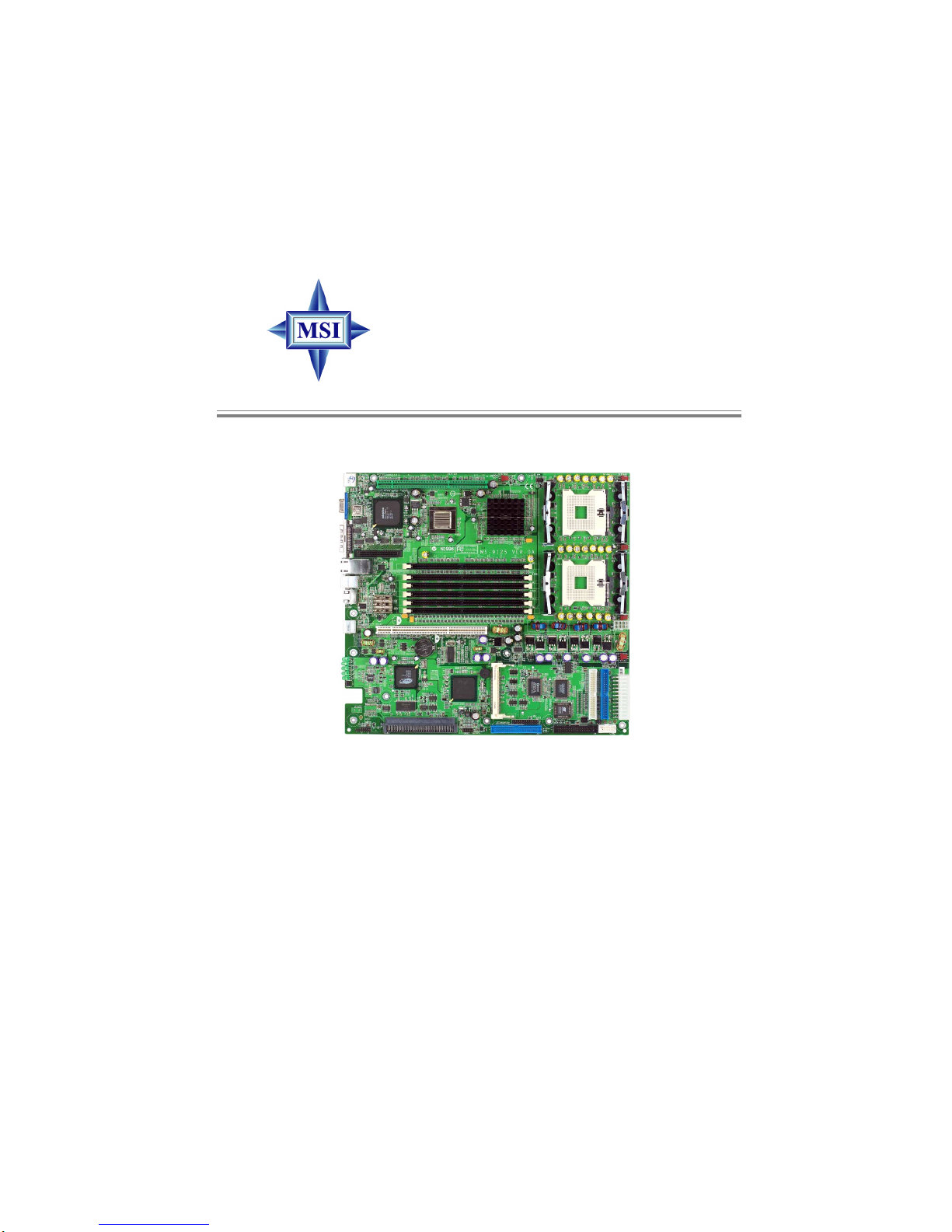

MSI MS-9125 Manuel utilisateur
i
Version 1.0
G52-S9125X1-G22
E7501 Master Series
MS-9125 (v1.X) SSI Mainboard
ii
Manual Rev: 1.0
Release Date: March 2003
FCC-A Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
A digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-StarInternational MS-9125
Testedtocomply
withFCCStandard
ForHomeor OfficeUse
iii
CopyrightNotice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
Intel®and Pentium®are registered trademarks of Intel Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows®95/98/2000/NT/XP are registered trademarks of Microsoft
Corporation.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Revision History
Revision Revision History Date
V1.0 First release March 2003
TechnicalSupport
If a problem arises with your system and no solution can be obtained from the
user’s manual, please contact your place of purchase or local distributor.
Alternatively, please try the following help resources for further guidance.
Visit the MSI website for FAQ, technical guide, BIOS updates, driver
updates, and other information: http://www.msi.com.tw/
iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipment from overheating. Do not cover the openings.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always UnplugthePower Cord beforeinsertingany add-on cardormodule.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged.
zLiquid has penetrated into the equipment.
zThe equipment has been exposed to moisture.
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged.
zThe equipment has obvious sign of breakage.
12. Do not leave this equipment in an environment unconditioned, storage
temperatureabove600C(1400F).Itmaydamagetheequipment.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
v
CONTENTS
FCC-A Radio Frequency Interference Statement ..........................................iii
Copyright Notice ..........................................................................................iii
Revision History ...........................................................................................iii
Technical Support ......................................................................................... iii
Safety Instructions .......................................................................................iv
Chapter1.GettingStarted ........................................................................ 1-1
Mainboard Specifications ....................................................................1-2
Mainboard Layout ...............................................................................1-7
MSI Special Features ...........................................................................1-8
PCAlert™ III .................................................................................1-8
Chapter2.HardwareSetup ....................................................................... 2-1
Quick Components Guide ....................................................................2-2
Central Processing Unit: CPU .............................................................. 2-3
CPU Installation Procedures for Socket 604 ..................................2-4
Memory................................................................................................2-5
Memory Speed/CPU FSB Support Matrix .....................................2-5
DIMM Module Combination......................................................... 2-5
Installing DDR Modules ............................................................... 2-6
Power Supply .......................................................................................2-7
SSI24-PinPowerConnector: POWERJ1 ....................................... 2-7
SSI 8-Pin Power Connector: POWERJ2 ......................................... 2-8
SSI 5-Pin Power Connector: J9 ......................................................2-8
BackPanel ............................................................................................2-9
SerialPortConnector:RJ-45/COM1 .............................................. 2-9
Mouse/Keyboard Connector ...................................................... 2-10
VGA DB 15 Pin Connector .......................................................... 2-10
RJ-45LANJack:Giga-bitLAN .................................................... 2-11
Ultra320 SCSI Connector: SCSI 3 (Channel A) ............................ 2-12
vi
USB Ports .................................................................................... 2-12
Connectors......................................................................................... 2-13
Floppy Disk Drive Connector: FDD ............................................ 2-13
ATA100 Connector: PRI IDE ....................................................... 2-14
ATA133 RAID Connectors: RAID IDE1, RAID IDE2 .................. 2-14
Fan Power Connectors: CPUFAN1/2, SYSFAN1/2/3 ................... 2-15
Front Panel Connector: JSSI........................................................ 2-16
Ultra320 SCSI Connector: SCSI 2 (Channel B) ............................. 2-17
LCDPanelConnector: JLCD1...................................................... 2-18
SCSI LED Connector: J1 (optional).............................................. 2-18
Front USB Connector: USB2 ....................................................... 2-19
Serial Port Connector: COM 2 ..................................................... 2-19
System ID LED Connector: J30.................................................... 2-20
System ID Button Connector: J38 ............................................... 2-20
System ID Button: J23 ................................................................. 2-21
SystemIDLED:D81 .................................................................... 2-21
Five-Fan Module Power Connector: FAN ................................... 2-22
6-pin I2C Bus Connector: J34 ...................................................... 2-23
Jumpers .............................................................................................. 2-24
Clear CMOS Jumper:JBAT1 ........................................................ 2-24
PCIX Channel A Frequency Jumper: J27 ..................................... 2-25
PCIX Channel B Frequency Jumper: J28 ..................................... 2-25
VGADisable/EnableJumper: J15................................................. 2-26
Slots ................................................................................................... 2-27
PCI (Peripheral Component Interconnect) Slots.......................... 2-27
Mini PCI bus ............................................................................... 2-28
PCI Interrupt Request Routing .................................................... 2-31
Chapter3.BIOS Setup.............................................................................. 3-1
Entering Setup......................................................................................3-2
Control Keys .................................................................................3-2
vii
Getting Help ..................................................................................3-3
The Main Menu ................................................................................... 3-4
Standard CMOS Features .................................................................... 3-6
IPMIV1.5BIOS Features ..................................................................... 3-8
Advanced BIOS Features .................................................................. 3-10
Advanced Chipset Features............................................................... 3-16
Integrated Peripherals ........................................................................ 3-19
Power Management Setup ................................................................. 3-23
PNP/PCI Configurations..................................................................... 3-26
PC Health Status ................................................................................ 3-28
Frequency/Voltage Control ................................................................ 3-29
LoadFail-Safe/OptimizedDefaults ..................................................... 3-30
Set Supervisor/User Password........................................................... 3-31
Chapter 4.SCSI BIOSSetup (optional) .................................................... 3-1
EnteringSCSI BIOS ..............................................................................3-2
Control Keys .................................................................................3-2
Selecting the SCSI Channel ........................................................... 3-2
Selecting the Management Type ...................................................3-2
Configure/View SCSI Controller Settings .............................................3-4
SCSI Bus Interface Definitions ......................................................3-4
Additional Options........................................................................3-5
BIOSInformation........................................................................... 3-9
DiskUtilities ....................................................................................... 3-11
Troubleshooting ........................................................................................ T-1
Glossary ....................................................................................................G-1
1-1
Getting Started
Thank you for purchasing the E7501 Master LRS2 (MS-
9125 v1.X) SSI (Server System Infrastructure) mainboard. The
E7501 Master LRS2 is a superior computer mainboard based on
Intel®E7500/E7501 & ICH3-S chipsets for optimal system
efficiency. Designed to fit the advanced Intel®Xeon™ proces-
sors in the 604 pin package, the motherboard provides a solu-
tion for front-end and general purpose server/workstation in the
entry-level and mid-range market segment.
Chapter 1. Getting
Started
Getting Started
1-2
MS-9125 SSI Mainboard
Mainboard Specifications
Target Segment
hTarget in the entry-level and mid-range, front-end and general purpose server
market segments.
CPU
hThe second-generation of microprocessors using the Intel®NetBurst™
microarchitecture.
hSupports Single/Dual Intel®Xeon™ with 512KB L2 cache processors.
Chipset
hIntel®E7500/7501 North Bridge
- Supports dual processors at 100/133MHz (x4 transfers).
- System bus bandwidth of 3.2GB/s or 4.27GB/s.
-144-bit wide,DDR200/266 memoryinterface.
hIntel®ICH3-S South Bridge
- Universal Host Controller Interface (UHCI) USB 1.1 compliant host
controllers.
- 2 channel Ultra ATA/100 bus Master IDE controller.
- SMBus controller.
- I/O APIC.
- AC’97 2.2 interface.
- PCI 2.2 interface.
hIntel®P64H2 Chipset
- Supports 64-bit PCI-X slots at 66/100/133MHz..
- Connects directly to the MCH and provides a dedicated path for high
performance I/O.
Feature Xeon™ (Prestonia)
L2 Cache 512 KB
L3 Cache None
Data Bus Transfer Rate 3.2 GB/s or 4.27GB/s
Multi-Processor Support 1-2 CPUs
Manageability Features Intel and OEM EEPROMS and thermal
sensor on package
Package PGA 604
Operating Voltage 1.475 V
1-3
Getting Started
MemoryBusFeature
hSupports dual channel (144-bit wide) DDR200/266 memory interface. Each
channel supports 3 DIMM slots.
hSupports six 184-pin DDR DIMM sockets up to 12GB.
hSupports ECC (x72) DDR200/266 DIMMs using 64MB, 128MB, 256MB, or
512MBDRAMs.
I/OFeature
h266 MB/s point-to-point connection for ICH3-Switch parity protection.
h8-bit wide, 66 MHz base clock, 4X data transfer.
h1 GB/s point-to-point connection for I/O bridges with ECC protection.
16-bit wide, 66 MHz base clock, 8X data transfer.
h2 channel Ultra ATA/100 bus master IDE controller.
Slots
hTwo PCI-X (64-bit/100MHz) slots (the green one for Adaptec ZCR).
hOne Mini PCI (32-bit/33MHz) slot.
Ultra-320SCSIAdapter(Optional)
hIntegrated Adaptec AIC-7902 Ultra-320 SCSI adapter.
hSupports dual-channel Ultra320 LVD SCSI.
hSupports Adaptec ZCR & Intel RAIDIOS (Zero-Channel RAID).
ATA133RAID(Optional)
hIntegrated Promise 20271 ATA133 RAID controller.
- Two-channel bus master IDE port.
- Supports ATA133 RAID 0, 1, and 0+1.
Interface Clock Speed Samples Data Width Bandwidth
(MHz) per Clock (Bytes) (MB/s)
System Bus (Data) 100/133 4 8 3200/4270
DDR interface 100/133 2 16 3200/4270
Hub Interface A 66 4 1 266
Hub Interface B, C, D 66 8 2 1066
PCI-X 66 1 8 528
100 1 8 800
133 1 8 1066
Bandwidth Summary
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels MSI Carte mère
MSI
MSI Microstar MS5116 Manuel utilisateur
MSI
MSI A520M PRO-VDH Manuel utilisateur
MSI
MSI K8T Neo2-F Manuel utilisateur
MSI
MSI MPG Z590M Manuel utilisateur
MSI
MSI B450 TOMAHAWK MAX Manuel utilisateur
MSI
MSI MS-7258 Manuel utilisateur
MSI
MSI K9N4 - Ultra-F Motherboard - ATX Manuel utilisateur
MSI
MSI 915GLM-V Manuel utilisateur
MSI
MSI RC410M-L Manuel utilisateur
MSI
MSI Z170A XPOWER GAMING TITANIUM EDITION Manuel utilisateur
MSI
MSI H270 TOMAHAWK ARCTIC Manuel utilisateur
MSI
MSI PRO B550M-VC WIFI Manuel utilisateur
MSI
MSI 870S-G46 series Manuel utilisateur
MSI
MSI B560M PRO Manuel utilisateur
MSI
MSI MS-7367 Manuel utilisateur
MSI
MSI B450M BAZOOKA MAX WIFI Manuel utilisateur
MSI
MSI X299-A PRO Manuel utilisateur
MSI
MSI X299 GAMING M7 ACK Manuel utilisateur
MSI
MSI B150A GAMING PRO Manuel utilisateur
MSI
MSI B350M MORTAR Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
