Introduction

Thank you for choosing the P4MAM-V Series (MS-6787 v2.X) micro ATX mainboard. The P4MAM-V

Series is based on VIA ® VT8751A & VT8235 chipsets for optimal system efficiency. Designed to fit the

advanced Intel ® Pentium ® 4 processors in 478 pin package, the P4MAM-V Series delivers a high

performance and professional desktop platform solution.

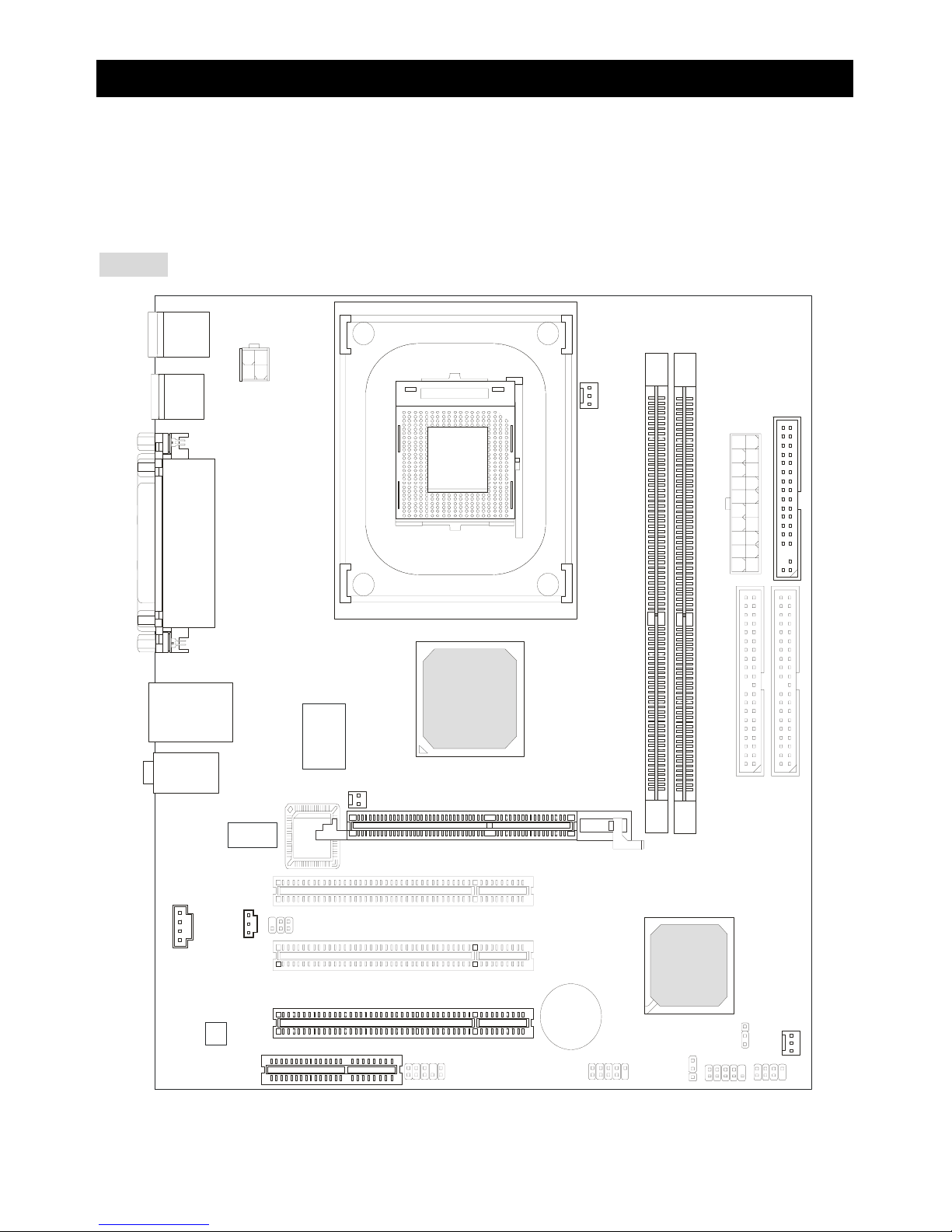

Layout

BATT

VIA

VT8235

DIMM 1

DIMM 2

CD_IN1

JSPDIF1

JFP2JFP1

JIR1

(Optional)

JCI1

(Optional)

JBAT1

JUSB1JAUDIO1

ATX1

SFAN1

CFAN1

PCI Slot 1

PCI Slot 2

PCI Slot 3

IDE 1

IDE2

Top: Parallel Port

Bottom:

COM A

VGAPort

Top: Mouse

Bottom: Keyboard

Top: LAN Jack

Bottom: USB

Ports

USB

Ports

Codec

JPW1

T: L ine- In

B:Mic

Line-Out

FDD1

SOCKET 478

Winbond

W83697HF

VIA

VT6103

VIA

VT8751A

BIOS

AGP Slot

CNR

JP1

Specifications

CPU

zSupports Intel ® Pentium 4/Celeron (Socket 478) processor.

zSupports Intel ® P4 Northwood up to 3.06GHz and P4 Prescott Celeron up to 2.8GHz.

(For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Chipset

zVIA ® VT8751A chipset (664 BGA)

- 64bit P4 processors FSB I/F (533MHz).

- 64bit DDR SDRAM memory I/F (200/266MHz).

- 32bit AGP I/F (66MHz) for 4x/2x mode.

- 8bit V-Link I/F (66MHz) with peak bandwidth of 266MB/s.

zVIA ® VT8235 chipset (376 BGA)

- Dual-channel UDMA 133/100/66/33 master mode EIDE controller.

- 6 ports USB controller (v2.0).

- KBD controller with PS2 mouse support.

- SMBus I/F and ACPI/APM compliance power management.

- LPC I/F for super I/O and 2MB flash ROM (BIOS).

- AC-97 link controller to cooperate w/ external AC97 audio & modem codec.

- 10/100Mbps Fast Ethernet controller.

- Supports HSP modem.

Main Memory

zSupports four memory banks using two 184-pin DDR DIMM.

zSupports up to 2GB PC2100/PC1600 DDR SDRAMs.

zSupports 2.5v DDR SDRAM.

(For the updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Slots

zOne AGP (Accelerated Graphics Port) 4x slot.

zThree PCI 2.2 32-bit PCI bus slots (support 3.3v/5v PCI bus interface).

zOne CNR (Communication Network Riser) slot.

On-Board IDE

zAn IDE controller on the VIA ® VT8235 Chipset provides IDE HDD/CD-ROM with PIO, Bus Master

and Ultra DMA 33/66/100/133 operation modes. Can connect up to four IDE devices.

On-Board Peripherals

zOn-Board Peripherals includes:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port (COM A)

- 1 parallel port supports SPP/EPP/ECP mode

- 6 USB 2.0 ports (Rear * 4/ Front * 2)

- 1 audio (Line-In/Line-Out/Mic) port

- 1 RJ45 LAN jack

- 1 VGA port

Audio

zAC97 link controller integrated in VT8235.

zVIA ® VT1616 6-channel software audio codec.

- Compliance with AC97 v2.2 spec.

LAN

zVIA ® VT6103 PCI local bus single-chip Fast Ethernet Controller.

- With external 10/100 Base-T Lan transformer.

- Integrated Fast Ethernet MAC and PHY in one chip.

- Supports 10Mb/s and 100Mb/s auto-negotiation operation.

- Compliance with PCI v2.2 and PC99 standard.

- Supports ACPI power management.

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and

expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface (DMI) function which records your

mainboard specifications.

Dimension

zMicro-ATX Form Factor: 243 mm x 214mm.

Mounting

z6 mounting holes.

Rear Panel

The back panel provides the following connectors:

Keyboard

USBPorts

Mouse

COMport VGAport

Par allel Port LineIn

LineOut

Mic In

LAN

USBPorts

Hardware Setup

This chapter tells you how to install the CPU, memory modules, and expansion cards, as well as how to

setup the jumpers on the mainboard. It also provides the instructions on connecting the peripheral

devices, such as the mouse, keyboard, etc. While doing the installation, be careful in holding the

components and follow the installation procedures.

Central Processing Unit: CPU

The mainboard supports Intel Pentium 4 Northwood & Prescott Celeron processor in the 478 pin

package. The mainboard uses a CPU socket called PGA478 for easy CPU installation. When you are

installing the CPU, make sure the CPU has a heat sink and a cooling fan attached on the top to prevent

overheating. If you do not find the heat sink and cooling fan, contact your dealer to purchase and install

them before turning on the computer. (For the latest information about CPU, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_cpu_support.php )

Example of CPU Core Speed Derivation Procedure

If CPU Clock = 133MHz

Core/Bus ratio = 23

then CPU core speed = Host Clock x Core/Bus ratio

= 133MHz x 23

=3.06GHz

Memory Speed/CPU FSB Support Matrix

Memory

FSB DDR 200 DDR 266

400 MHz OK OK

533 MHz OK OK

CPU Installation Procedures for Socket 478

1. Please turn off the power and unplug the power cord before installing the CPU.

2. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree

angle.

3. Look for the gold arrow. The gold arrow should point towards the lever pivot. The CPU can only

fit in the correct orientation.

4. If the CPU is correctly installed, the pins should be completely embedded into the socket and

can not be seen. Please note that any violation of the correct installation procedures may cause

permanent damages to your mainboard.

5. Press the CPU down firmly into the socket and close the lever.As the CPU is likely to move

while the lever is being closed, always close the lever with your fingers pressing tightly on top of

the CPU to make sure the CPU is properly and completely embedded into the socket.

Installing the CPU Fan

As processor technology pushes to faster speeds and higher performance, thermal management

becomes increasingly important. To dissipate heat, you need to attach the CPU cooling fan and

heatsink on top of the CPU. Follow the instructions below to install the Heatsink/Fan:

1. Locate the CPU and its retention mechanism on the motherboard.

2. Position the heatsink onto the retention mechanism.

3. Mount the fan on top of the heatsink. Press down the fan until its four clips get wedged in the

holes of the retention mechanism.

4. Press the two levers down to fasten the fan. Each lever can be pressed down in only ONE

direction.

5. Connect the fan power cable from the mounted fan to the 3-pin fan power connector on the

board.

MSI Reminds You...

Overheating…

Overheating will seriously damage the CPU and system, always make sure the cooling fan can work

properly to protect the CPU from overheating.

Replacing the CPU…

While replacing the CPU, always turn off the ATX power supply or unplug the power supply’s power

cord from grounded outlet first to ensure the safety of CPU.

Memory

The mainboard provides two 184-pin unbuffered DDR200/DDR266 DDR SDRAM, and supports the

memory size up to 2GB. To operate properly, at least one DIMM module must be installed. (For the

updated supporting memory modules, please visit

http://www.msi.com.tw/program/products/mainboard/mbd/pro_mbd_trp_list.php )

Install at least one DIMM module on the slots. Memory modules can be installed on the slots in any

order. You can install either single- or double-sided modules to meet your own needs.

Installing DDR Modules

1. The DDR DIMM has only one notch on the center of module. The module will only fit in the right

orientation.

2. Insert the DIMM memory module vertically into the DIMM slot. Then push it in until the golden

finger on the memory module is deeply inserted in the socket.

3. The plastic clip at each side of the DIMM slot will automatically close.

Autres manuels pour MS-6787

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels MSI Carte mère

MSI

MSI MS-9896 Manuel utilisateur

MSI

MSI 848P NEO-V - Motherboard - ATX Manuel utilisateur

MSI

MSI MAG B560M MORTAR WIFI Manuel utilisateur

MSI

MSI K9N6SGM-V - Motherboard - Micro ATX Manuel utilisateur

MSI

MSI MS-6183E Manuel utilisateur

MSI

MSI B550M PRO-DASH Manuel utilisateur

MSI

MSI MS-6507E Manuel utilisateur

MSI

MSI MPG Z690 CARBON WIFI Manuel utilisateur

MSI

MSI PRO Series Manuel utilisateur

MSI

MSI MS-6330 Manuel utilisateur

MSI

MSI MS-6198 Manuel utilisateur

MSI

MSI K7N2GM2-ILSR Manuel utilisateur

MSI

MSI 645 Combo Manuel utilisateur

MSI

MSI PRO B650M-A WIFI Manuel utilisateur

MSI

MSI P35 Platinum Combo series Manuel utilisateur

MSI

MSI X99S XPOWER GAMING TITANIUM Manuel utilisateur

MSI

MSI P45 NEO3-FR - Motherboard - ATX Manuel utilisateur

MSI

MSI NLX EX3 Manuel utilisateur

MSI

MSI 890GXM Manuel utilisateur

MSI

MSI MS-7395 Manuel utilisateur

MSI

MSI X299 TOMAHAWK AC Manuel utilisateur

MSI

MSI G41M series Manuel utilisateur

MSI

MSI MS-6323 Manuel utilisateur

MSI

MSI K9N Neo V3 Series Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
