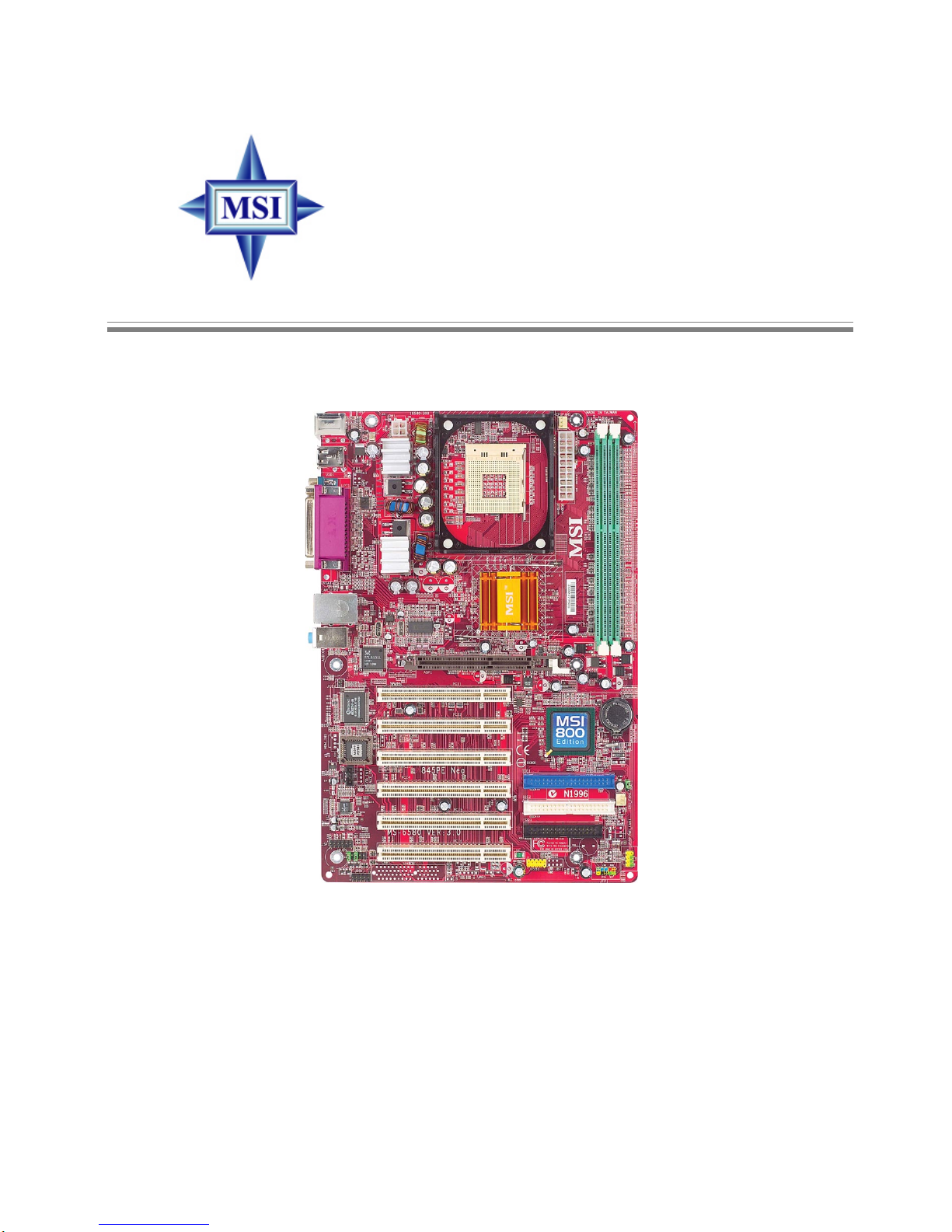

MSI MS-6580 Manuel utilisateur
i
Version 3.0
G52-M6580XH
MS-6580 (v3.X) ATX Mainboard
845PE Neo
ii
Manual Rev: 3.0
Release Date: July 2003
FCC-B Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for a class
B digital device, pursuant to part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the equip-
ment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference, in which case the user will be required to correct
the interference at his own expense.
Notice 1
The changes or modifications not expressly approved by the party respon-
sible for compliance could void the user’s authority to operate the equipment.
Notice 2
Shielded interface cables and A.C. power cord, if any, must be used in order to
comply with the emission limits.
VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU
RESEAU.
Micro-StarInternational MS-6580
Testedtocomply
withFCCStandard
ForHomeorOfficeUse
iii
CopyrightNotice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document,
but no guarantee is given as to the correctness of its contents. Our products
are under continual improvement and we reserve the right to make changes
without notice.
Trademarks
All trademarks are the properties of their respective owners.
AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered
trademarks of AMD Corporation.
PS/2 and OS®/2 are registered trademarks of International Business Machines
Corporation.
Windows®98/2000/NT/XP are registered trademarks of Microsoft Corporation.
Netware®is a registered trademark of Novell, Inc.
Award®is a registered trademark of Phoenix Technologies Ltd.
AMI®is a registered trademark of American Megatrends Inc.
Revision History
3.0 First release for 845PE Neo July2003
withPCB3.x
TechnicalSupport
If a problem arises with your system and no solution can be obtained from the
user’s manual, please contact your place of purchase or local distributor.
Alternatively, please try the following help resources for further guidance.
Visit the MSI website for FAQ, technical guide, BIOS updates, driver
updates, and other information: http://www.msi.com.tw/
iv
1. Always read the safety instructions carefully.
2. Keep this User’s Manual for future reference.
3. Keep this equipment away from humidity.
4. Lay this equipment on a reliable flat surface before setting it up.
5. The openings on the enclosure are for air convection hence protects the
equipmentfromoverheating. DONOTCOVER THEOPENINGS.
6. Make sure the voltage of the power source and adjust properly 110/220V
before connecting the equipment to the power inlet.
7. Place the power cord such a way that people can not step on it. Do not
place anything over the power cord.
8. Always UnplugthePower Cordbeforeinsertingany add-oncardormodule.
9. All cautions and warnings on the equipment should be noted.
10. Never pour any liquid into the opening that could damage or cause electri-
cal shock.
11. If any of the following situations arises, get the equipment checked by a
service personnel:
zThe power cord or plug is damaged.
zLiquid has penetrated into the equipment.
zThe equipment has been exposed to moisture.
zThe equipment has not work well or you can not get it work according
to User’s Manual.
zThe equipment has dropped and damaged.
zThe equipment has obvious sign of breakage.
12. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
UNCONDITIONED,STORAGETEMPERATUREABOVE600C(1400F),IT
MAYDAMAGETHEEQUIPMENT.
Safety Instructions
CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
v
CONTENTS
FCC-B Radio Frequency Interference Statement ...........................................ii
Copyright Notice ..........................................................................................iii
Revision History ........................................................................................... iii
Technical Support ......................................................................................... iii
Safety Instructions .......................................................................................iv
Chapter1.GettingStarted ........................................................................ 1-1
Mainboard Specifications .................................................................... 1-2
Mainboard Layout ...............................................................................1-4
MSI Special Features ...........................................................................1-5
PC Alert 4 ......................................................................................1-5
FuzzyLogic4................................................................................. 1-6
Live Monitor .................................................................................1-7
D-Bracket2(Optional)...................................................................1-8
LiveBIOS/LiveDriver ................................................................. 1-10
S-Bracket(Optional) .................................................................... 1-11
MSI DVD 5.1 Channel (Optional) ................................................ 1-12
Chapter2.HardwareSetup ....................................................................... 2-1
Quick Components Guide ....................................................................2-2
Central Processing Unit: CPU ..............................................................2-3
CPU Core Speed Derivation Procedure .........................................2-3
CPU Installation Procedures for Socket 478 ..................................2-4
Installing the CPU Fan ..................................................................2-5
Memory................................................................................................2-7
Memory Speed/CPU FSB Overclocking Support Matrix ...............2-7
DIMM Module Combination......................................................... 2-8
Installing DDR Modules ...............................................................2-8
Power Supply .......................................................................................2-9
ATX 20-Pin Power Connector: PWR1 ........................................... 2-9
ATX 12V Power Connector: JPW1 ................................................2-9
vi
BackPanel .......................................................................................... 2-10
Keyboard Connector ................................................................... 2-10
Mouse Connector ....................................................................... 2-11
USB Connectors.......................................................................... 2-11
RJ-45LANJack (Optional) .......................................................... 2-12
Serial Port Connector: COM A .................................................... 2-12
Parallel Port Connector ................................................................ 2-13
Audio Port Connectors ............................................................... 2-14
Connectors......................................................................................... 2-15
Floppy Disk Drive Connector: FDD1........................................... 2-15
Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-16
Fan Power Connectors: CPUFAN1/SYS_FAN1........................... 2-17
Front Panel Audio Connector: JAUD1 ........................................ 2-18
Front Panel Connectors: JFP1 & JFP2 ......................................... 2-19
S-Bracket Connector: JSP1 .......................................................... 2-20
Front USB Connector: JUSB1...................................................... 2-22
D-Bracket 2 Connector: JDB1 ...................................................... 2-23
Chassis Intrusion Switch Connector: JCI1 .................................. 2-24
CD-InConnector:CD_IN1 .......................................................... 2-24
Jumpers .............................................................................................. 2-25
Clear CMOSJumper: JBAT1 ........................................................ 2-25
Slots ................................................................................................... 2-26
AGP (Accelerated Graphics Port) Slot......................................... 2-26
PCI (Peripheral Component Interconnect) Slots.......................... 2-26
PCI Interrupt Request Routing .................................................... 2-27
Chapter3.BIOS Setup.............................................................................. 3-1
Entering Setup......................................................................................3-2
Selecting the First Boot Device .....................................................3-2
Control Keys ................................................................................. 3-3
Getting Help .................................................................................. 3-3
vii
The Main Menu ...................................................................................3-4
Standard CMOS Features ....................................................................3-6
Advanced BIOS Features ....................................................................3-8
Advanced Chipset Features............................................................... 3-13
Power Management Features............................................................. 3-16
PNP/PCI Configurations..................................................................... 3-20
Integrated Peripherals ........................................................................ 3-23
PC Health Status ................................................................................ 3-26
Frequency/Voltage Control ................................................................ 3-27
Set Supervisor/User Password........................................................... 3-29
Load High Performance/BIOS Setup Defaults.................................... 3-30
AppendixA:Using4-or6-ChannelAudioFunction ................................A-1
Installing the Audio Driver .................................................................A-2
Using 4- or 6-Channel Audio Function ...............................................A-4
Testing the Connected Speakers.......................................................A-16
PlayingKaraOK ................................................................................A-18
AppendixB:TheexplanationforoverspecificationandoverclockingonIntel®
845PEchipset ......................................................................................B-1
1-1
Getting Started
Chapter 1. Getting
Started
Thank you for purchasing the 845PE Neo (MS-6580 v3.X)
ATX mainboard. The 845PE Neo is based on Intel®845PE &
ICH4 chipsets for optimal system efficiency. Designed to fit the
advanced Intel®Pentium 4 processor in the 478-pin package,
the 845PE Neo delivers a high performance and professional
desktop platform solution.
Getting Started
1-2
MS-6580 ATX Mainboard
Mainboard Specifications
CPU
hSupports Socket 478 for Intel®Pentium 4 processors
hSupports up to 3.06 GHz and higher speed
Chipsets
hIntel®845PE chipsets
- AGP 4x slot (1.5v only)
- FSB 533/(800 MHz) (refer to Appendix B for details on FSB 800MHz )
- Support DDR 200/266/333/(400) DDR technology (refer to Appendix B for
details on DDR400)
- Support 400/533 MHz Intel NetBurst micro-architecture bus
hIntel®ICH4 chipset
- AC’97 2.2 interface
- 6 USB 2.0/1.1 ports
- 2 channel Ultra ATA/100 Bus Master IDE controller
- SMBus 2.0 support
- Integrated LAN controller
MainMemory
hSupports two 184-pin DDR200/DDR266/DDR333/(DDR400) DIMMs (refer
to Appendix B for details on DDR 400)
hSupports Max. memory size of 2GB
Slots
hOne AGP (Accelerated Graphics Port) 4x slot (support 1.5v only)
hSix PCI 2.2 32-bit Master bus slots (support 3.3v/5v)
On-BoardIDE
hAn IDE controller integrated in ICH4
hSupport PIO, Bus Master and Ultra ATA66/100 operation modes
hCan connect up to four IDE devices
On-Board Peripherals
hOn-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes
- 1 serial port connector COM A
1-3
Getting Started
- 1 parallel port
- 1 RJ-45 LAN jack (Optional)
- audio ports in vertical
- 6 USB ports (Rear * 4/ Front * 2)
Audio
h6 channels audio codec Realtek ALC650/655
LAN(Optional)
hRealtek® 8101L
- Integrated 10/100 Ethernet MAC and PHY in one chip
- Supports 10Mb/s and 100Mb/s auto-negotiation operation
- Compliant with PCI v2.2, mini PCi 1.0 and LAN on Motherboard (LOM)
standard
BIOS
hThe mainboard BIOS provides “Plug & Play” BIOS which detects the pe-
ripheral devices and expansion cards of the board automatically.
hThe mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.
Dimension
hATX Form Factor: 30.5 cm (L) x 20 cm (W)
Mounting
h6 mounting holes
Others
hACPI support, including STR/STD (S3/S4)
hSupport WOR/WOL
hPC2001 compliant
hSupport D-Bracket 2/S-Bracket
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels MSI Carte mère
MSI
MSI 650GLMD Manuel utilisateur
MSI
MSI MAG Z390 TOMAHAWK Manuel utilisateur
MSI
MSI K7 Master MS-6341 Manuel utilisateur
MSI
MSI A68HM-E33 Series Manuel utilisateur
MSI
MSI MAG B660 TOMAHAWK WIFI DDR4 Manuel utilisateur
MSI
MSI Z490-A PRO Manuel utilisateur
MSI
MSI P67A-GD65 Series Manuel utilisateur
MSI
MSI MPG Z690 EDGE WIFI DDR4 Manuel utilisateur
MSI
MSI FM2-A55M-E33 series Manuel utilisateur
MSI
MSI MS-6315 Manuel utilisateur
MSI
MSI Z270 XPOWER GAMING TITANIUM Manuel utilisateur
MSI
MSI X370 GAMING PRO CARBON Manuel utilisateur
MSI
MSI Z170A SLI PLUS Manuel utilisateur
MSI
MSI MEG Z490 GODLIKE Manuel utilisateur
MSI
MSI Z87-GD65 GAMING Manuel utilisateur
MSI
MSI 945PL Neo Series Manuel utilisateur
MSI
MSI X299 PRO Manuel utilisateur
MSI
MSI G52-M6570XA-G22 Instructions d'utilisation
MSI
MSI MEG Z590 ACE Manuel utilisateur
MSI
MSI K8N Diamond Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
