MSI MPG X570 GAMING PLUS Manuel utilisateur

Quick Start

Thank you for purchasing the MSI®MPG X570 GAMING PLUS motherboard. This Quick

Start section provides demonstration diagrams about how to install your computer.

Some of the installations also provide video demonstrations. Please link to the URL to

watch it with the web browser on your phone or tablet. You may have even link to the

URL by scanning the QR code.

Preparing Tools and Components

DDR4 Memory

Graphics Card

SATA Hard Disk Drive SATA DVD Drive

Phillips Screwdriver

Chassis

Power Supply Unit

A Package of Screws

Thermal Paste

CPU Fan

AMD®AM4 CPU

2Quick Start

Safety Information

yThe components included in this package are prone to damage from electrostatic

discharge (ESD). Please adhere to the following instructions to ensure successful

computer assembly.

yEnsure that all components are securely connected. Loose connections may cause

the computer to not recognize a component or fail to start.

yHold the motherboard by the edges to avoid touching sensitive components.

yIt is recommended to wear an electrostatic discharge (ESD) wrist strap when

handling the motherboard to prevent electrostatic damage. If an ESD wrist strap is

not available, discharge yourself of static electricity by touching another metal object

before handling the motherboard.

yStore the motherboard in an electrostatic shielding container or on an anti-static pad

whenever the motherboard is not installed.

yBefore turning on the computer, ensure that there are no loose screws or metal

components on the motherboard or anywhere within the computer case.

yDo not boot the computer before installation is completed. This could cause

permanent damage to the components as well as injury to the user.

yIf you need help during any installation step, please consult a certified computer

technician.

yAlways turn off the power supply and unplug the power cord from the power outlet

before installing or removing any computer component.

yKeep this user guide for future reference.

yKeep this motherboard away from humidity.

yMake sure that your electrical outlet provides the same voltage as is indicated on the

PSU, before connecting the PSU to the electrical outlet.

yPlace the power cord such a way that people can not step on it. Do not place anything

over the power cord.

yAll cautions and warnings on the motherboard should be noted.

yIf any of the following situations arises, get the motherboard checked by service

personnel:

Liquid has penetrated into the computer.

The motherboard has been exposed to moisture.

The motherboard does not work well or you can not get it work according to user

guide.

The motherboard has been dropped and damaged.

The motherboard has obvious sign of breakage.

yDo not leave this motherboard in an environment above 60°C (140°F), it may damage

the motherboard.

Quick Start

Installing a Processor

https://youtu.be/Xv89nhFk1vc

4Quick Start

Important

If you are installing the screw-type CPU heatsink, please follow the figure below to

remove the retention module first and then install the heatsink.

Quick Start

Installing DDR4 memory

http://youtu.be/T03aDrJPyQs

DIMMA2 DIMMA2

DIMMB2

DIMMA1

DIMMA2

DIMMB1

DIMMB2

6Quick Start

HDD LED

RESET SW

Connecting the Front Panel Header

http://youtu.be/DPELIdVNZUI

JFP1

HDD LED HDD LED -

HDD LED +

POWER LED -

POWER LED +

POWER LED

2 10

+- --

Power LED

HDD LED Reset Switch

Reserved

Power Switch

JFP1

1 HDD LED + 2 Power LED +

3 HDD LED - 4 Power LED -

5 Reset Switch 6 Power Switch

7 Reset Switch 8 Power Switch

9 Reserved 10 No Pin

RESET SW

POWER SW

POWER LED+

POWER LED-

HDD LED

Quick Start

BAT1

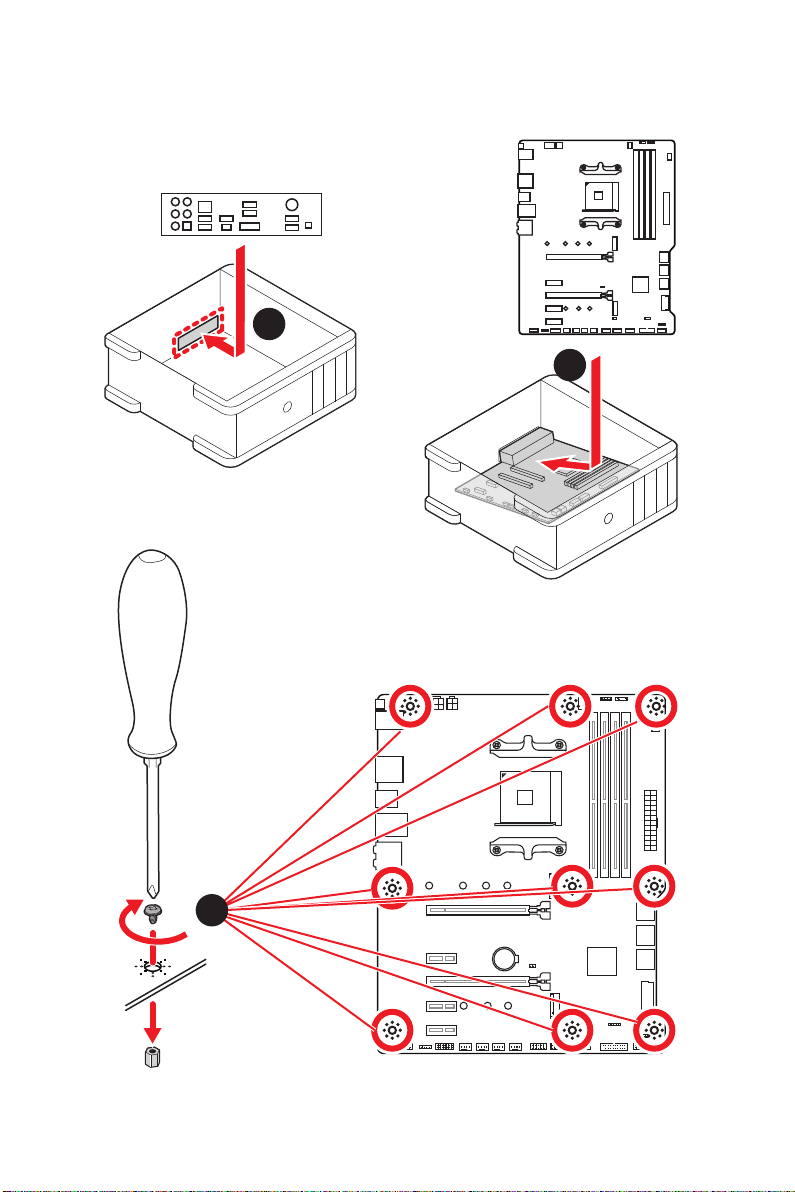

Installing the Motherboard

8Quick Start

Connecting the Power Connectors

http://youtu.be/gkDYyR_83I4

ATX_PWR1 CPU_PWR1

CPU_PWR2

Quick Start

Installing SATA Drives

http://youtu.be/RZsMpqxythc

10 Quick Start

Installing a Graphics Card

http://youtu.be/mG0GZpr9w_A

Autres manuels pour MPG X570 GAMING PLUS

Table des matières

Autres manuels MSI Carte mère

MSI

MSI MEG X570 ACE Manuel utilisateur

MSI

MSI K9NGM Series Manuel utilisateur

MSI

MSI MAG B550 TOMAHAWK Manuel utilisateur

MSI

MSI B350 GAMING PRO CARBON Mode d’emploi

MSI

MSI B360M PRO-VDH Manuel utilisateur

MSI

MSI e GF65M-P4 Manuel utilisateur

MSI

MSI MPG Z790 EDGE WIFI DDR4 Manuel utilisateur

MSI

MSI 990FXA Manuel utilisateur

MSI

MSI 790GX-G65 Series Manuel utilisateur

MSI

MSI MS-5148 Manuel utilisateur

MSI

MSI 845 Pro Manuel utilisateur

MSI

MSI P965 Neo Series Manuel utilisateur

MSI

MSI MAG B650 TOMAHAWK WIFI Manuel utilisateur

MSI

MSI 870-C45 FX V2series Manuel utilisateur

MSI

MSI MS-7260 Manuel utilisateur

MSI

MSI H310M PRO-VDH Manuel utilisateur

MSI

MSI MS-7345 Manuel utilisateur

MSI

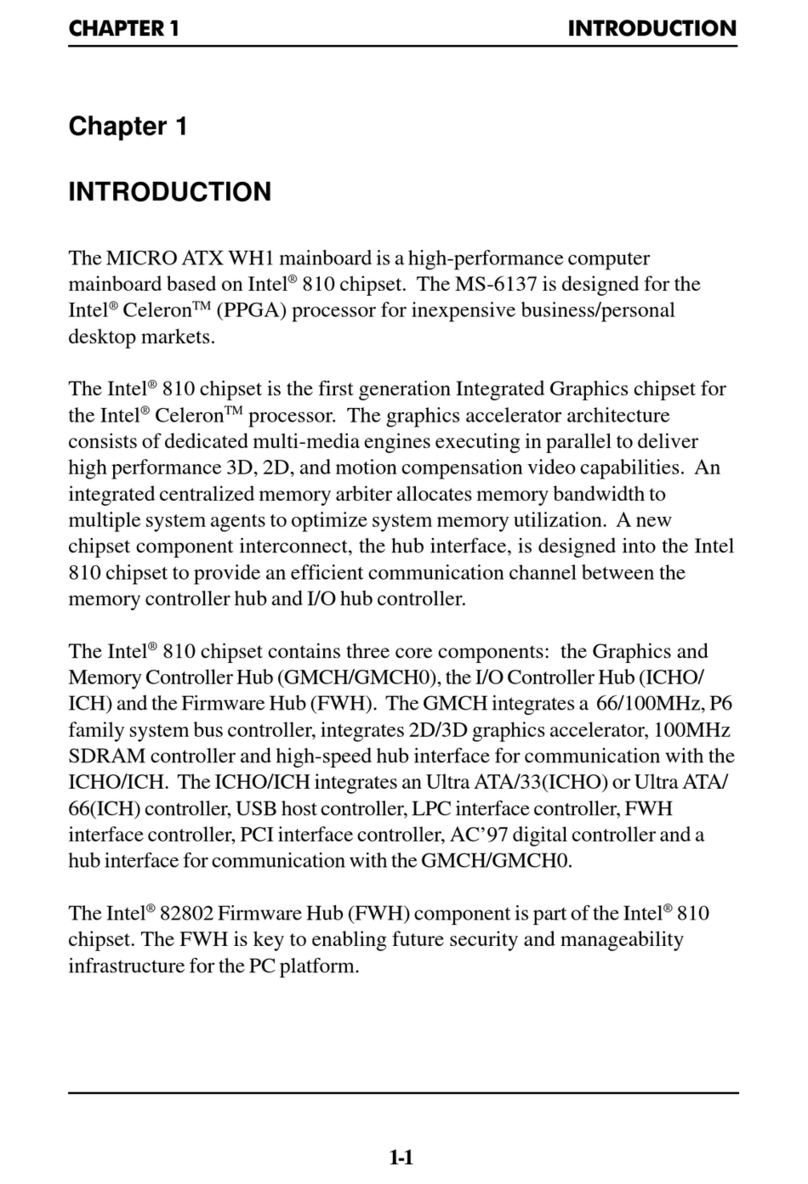

MSI MS-6137 Manuel utilisateur
